Product description

CanCNC Tooling Solutions 0225-0206 ER32 Spin Jig

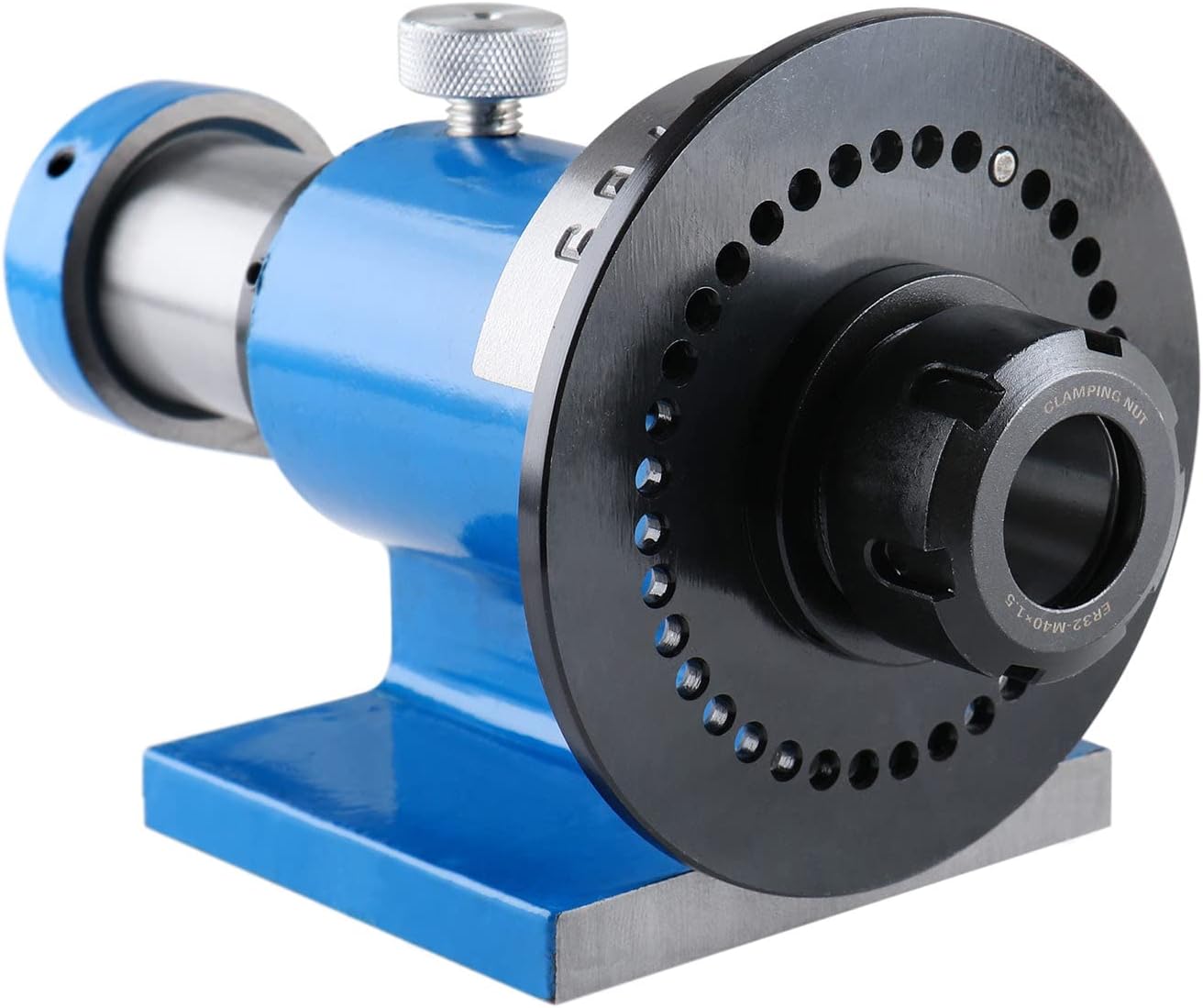

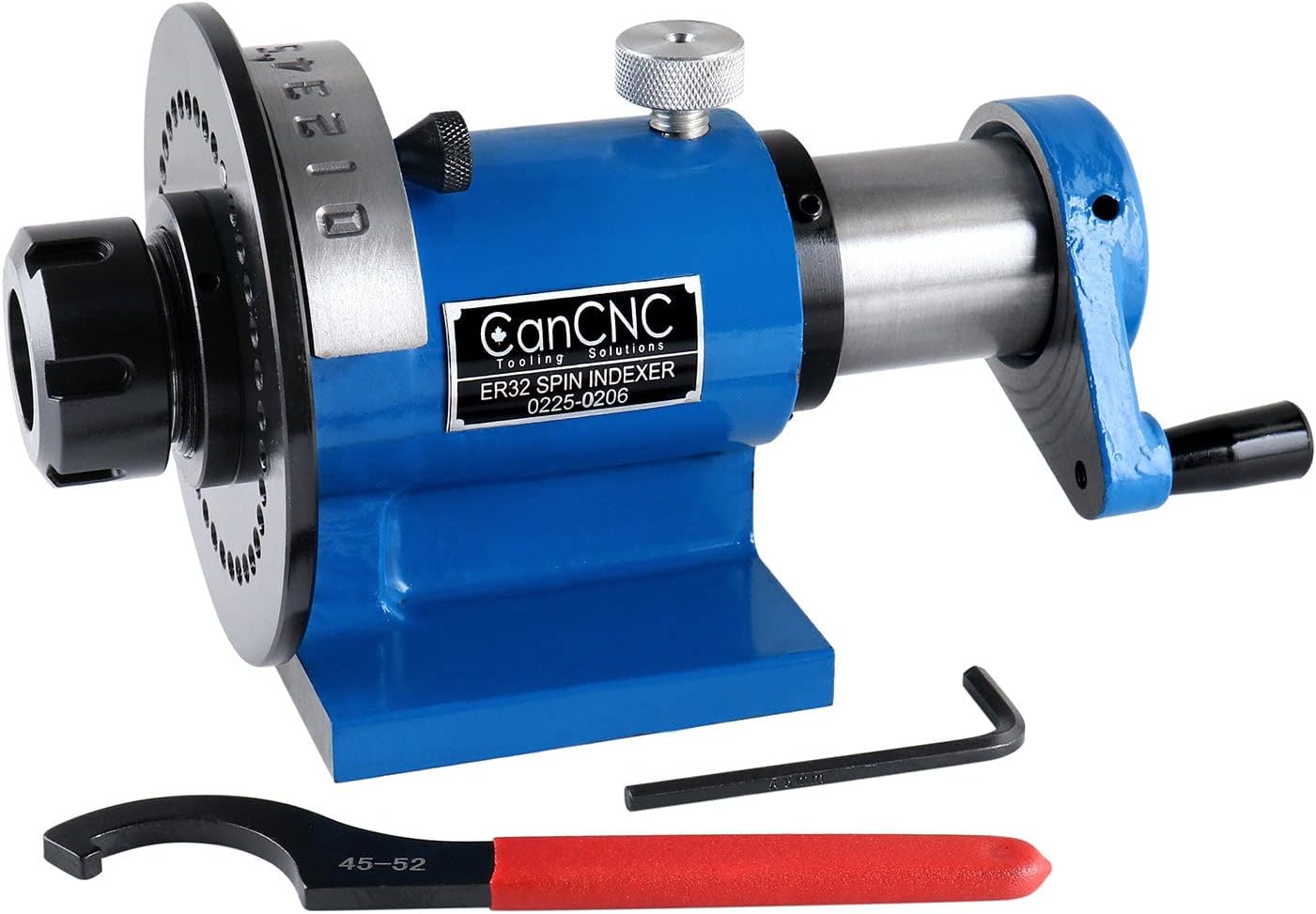

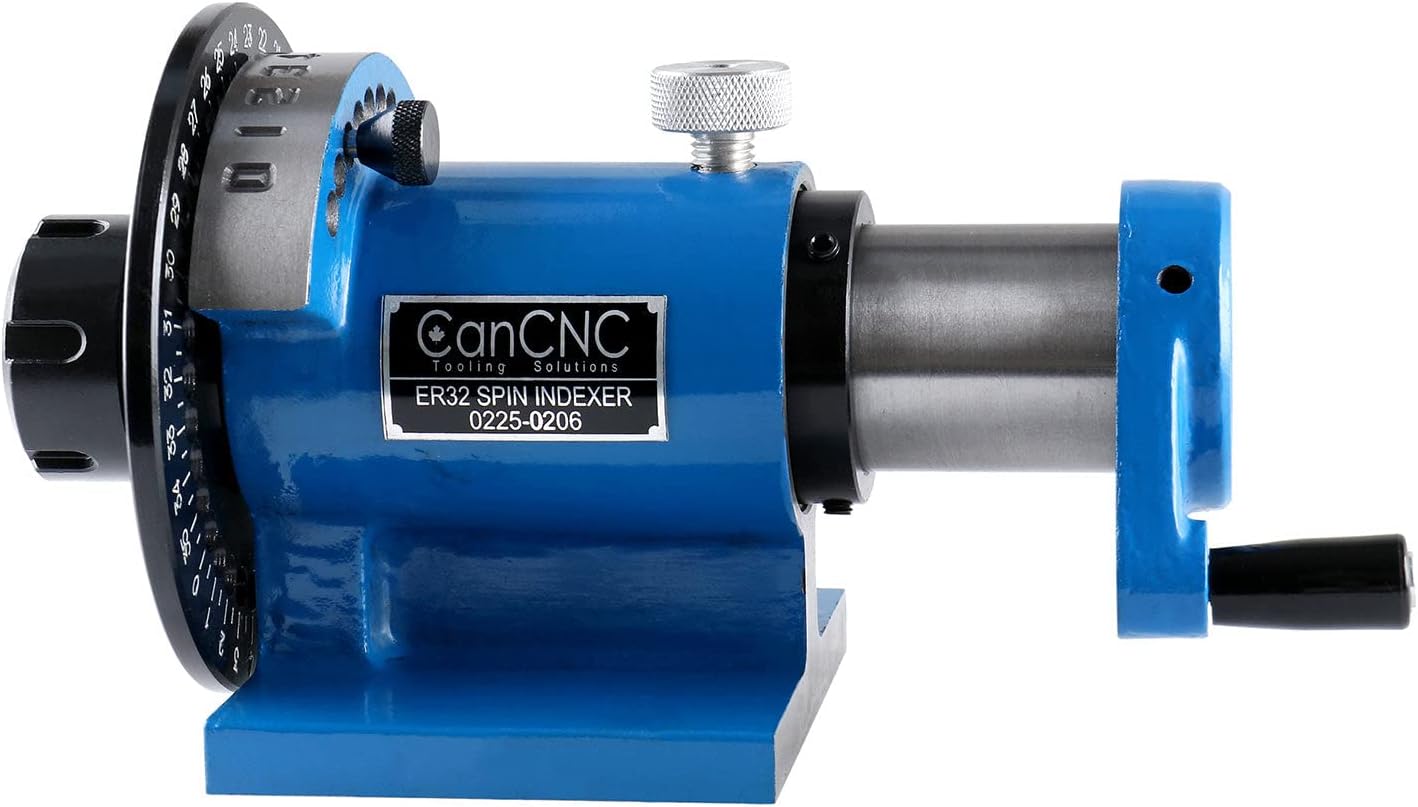

CanCNC 0225-0206 ER32 Spin Indexer Indexing Jig Fixture

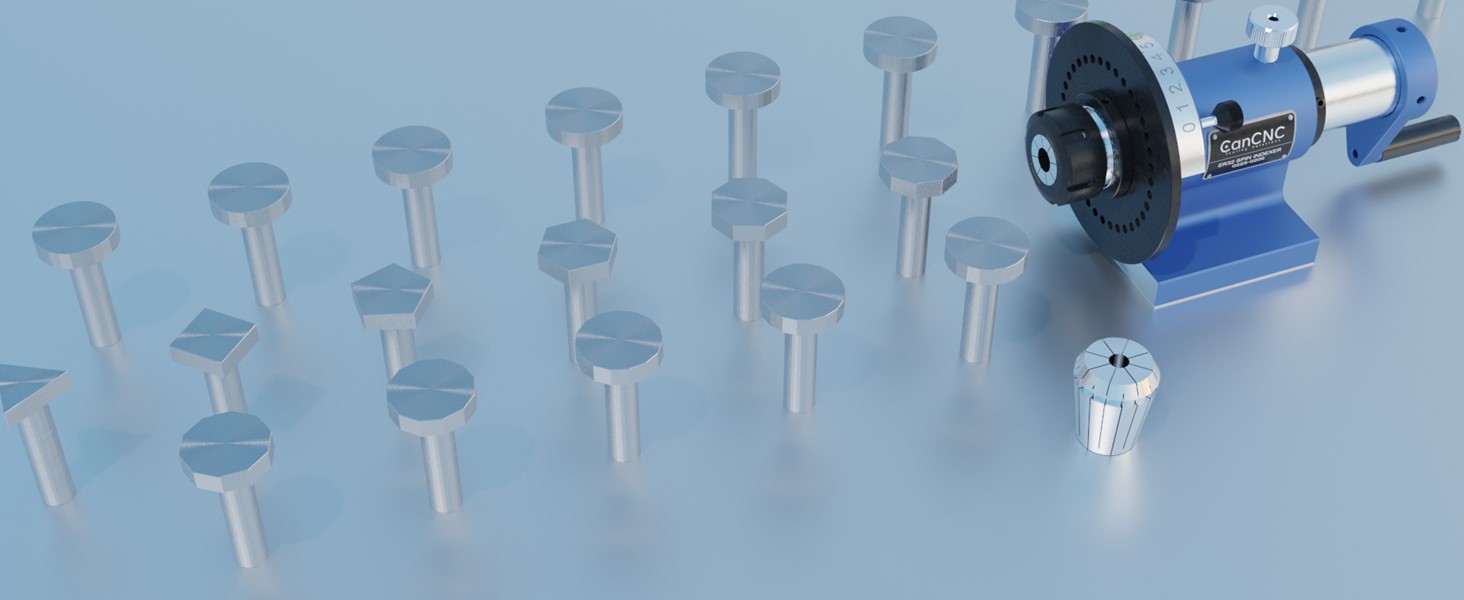

CanCNC Tooling Solutions 0225-0206 ER32 Spin Index Fixture provides better gripping and accuracy than 5C Spin Jig as it uses ER32 collets. Spin indexers are designed for surface grinding. ER32 spin jig extends the capabilities of drill presses, surface grinders, gear cutters, and milling machines.

Features

SKU: 0225-0206

CanCNC Tooling Solutions 0225-0206 ER32 Spin Indexer
- Spindle hardened and ground with 0.0005" (T.I.R.) run-out.
- Indexing to 1 degree within 360°, fitting ER32 collets, range 1/16"-13/16"
- 10 vernier holes for 1° indexing, 2" spindle travel for flute grinding, 5" diameter index plate with a 36-hole circle and graduated by 0 to 35 for direct indexing in 10° steps and is marked in 5° increments.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

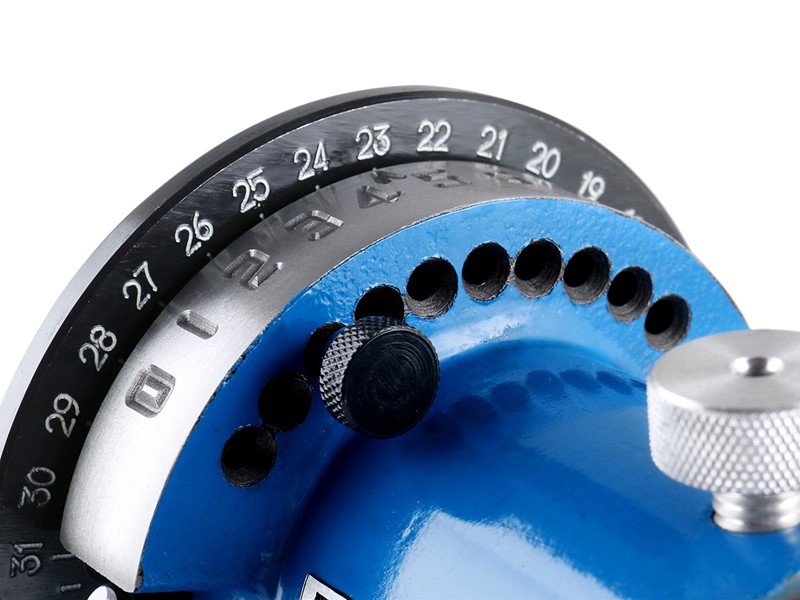

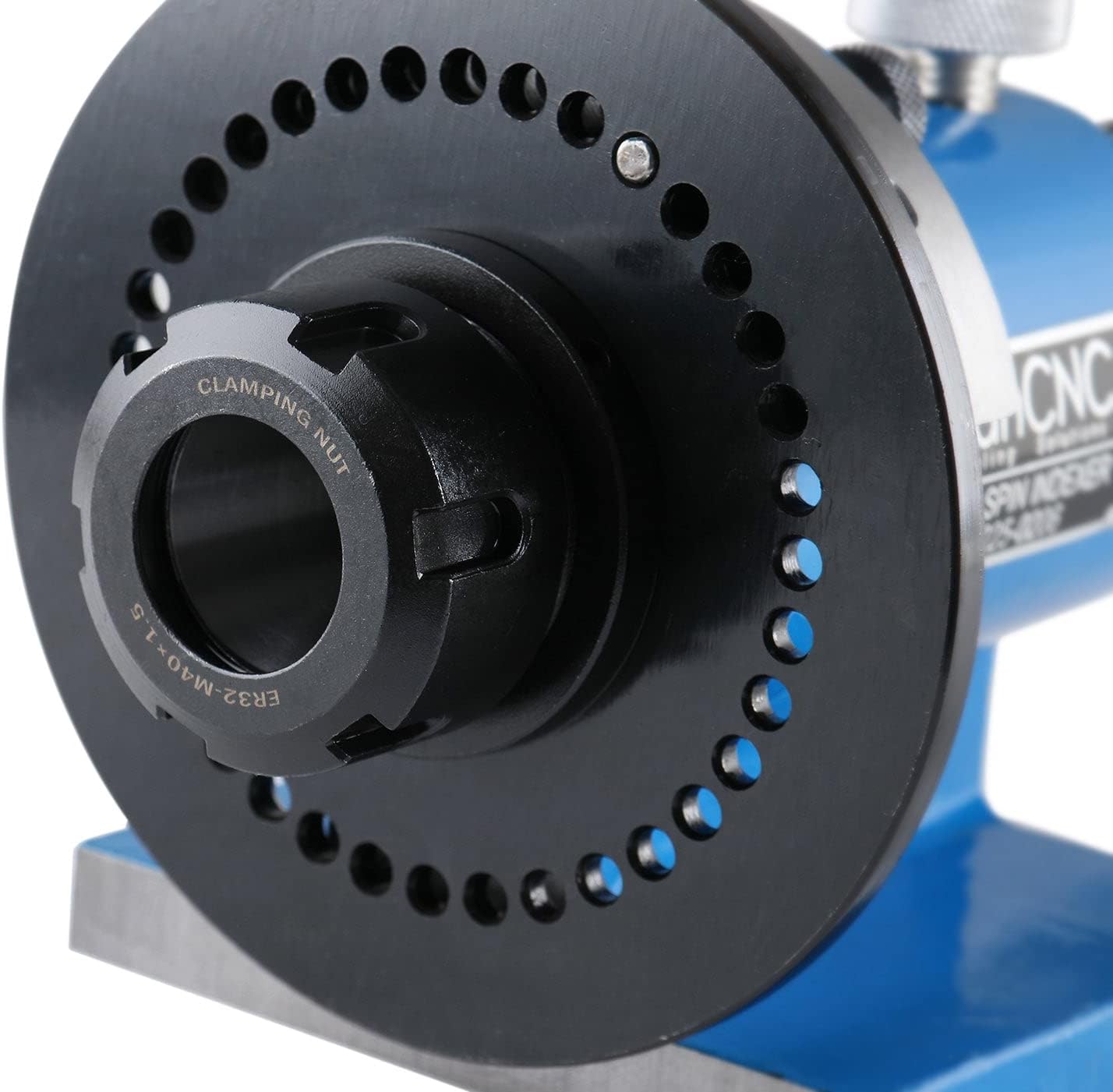

10 Vernier Holes

for 1° indexing

Each spin jig has 10 vernier holes for 1° indexing

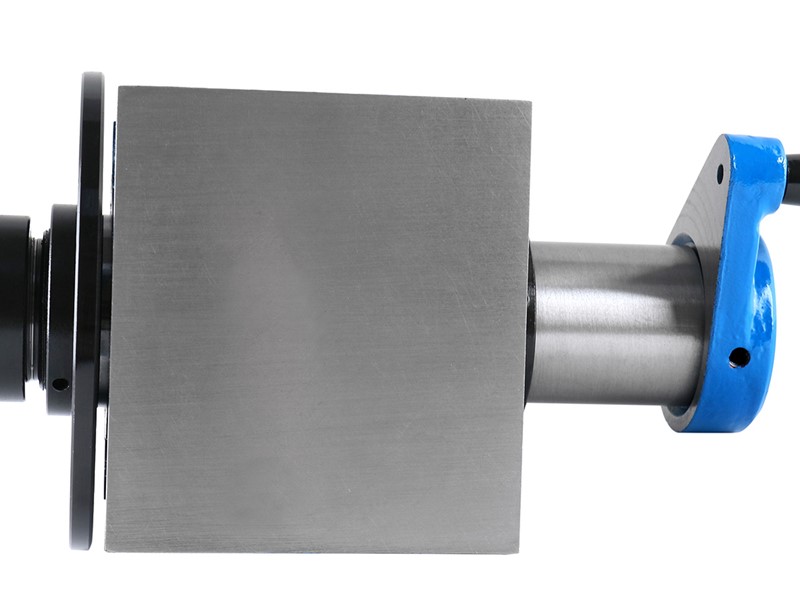

Base footprint

Size of the Base

Base footprint: 4.5x4" ground parallel to the spindle.

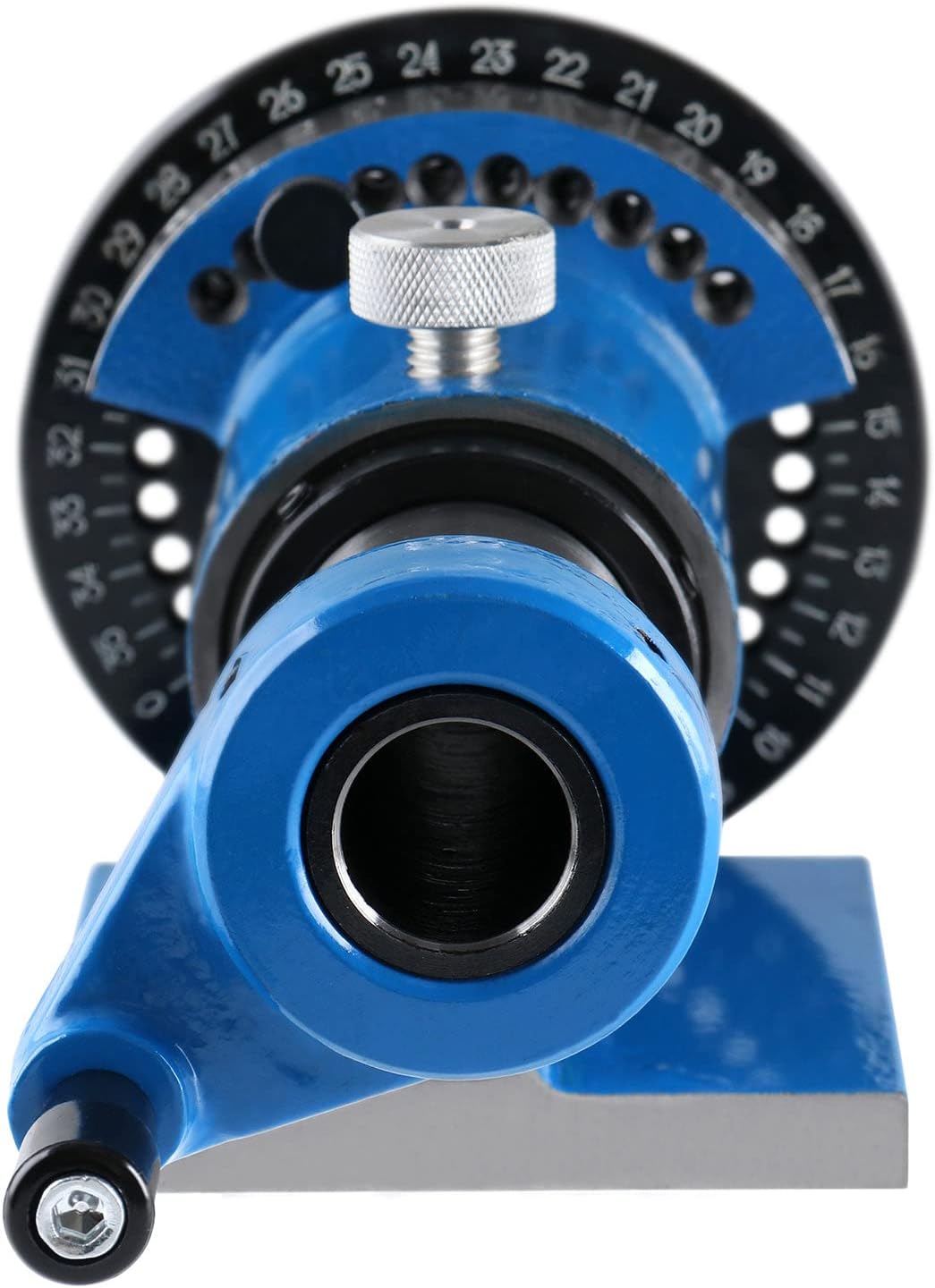

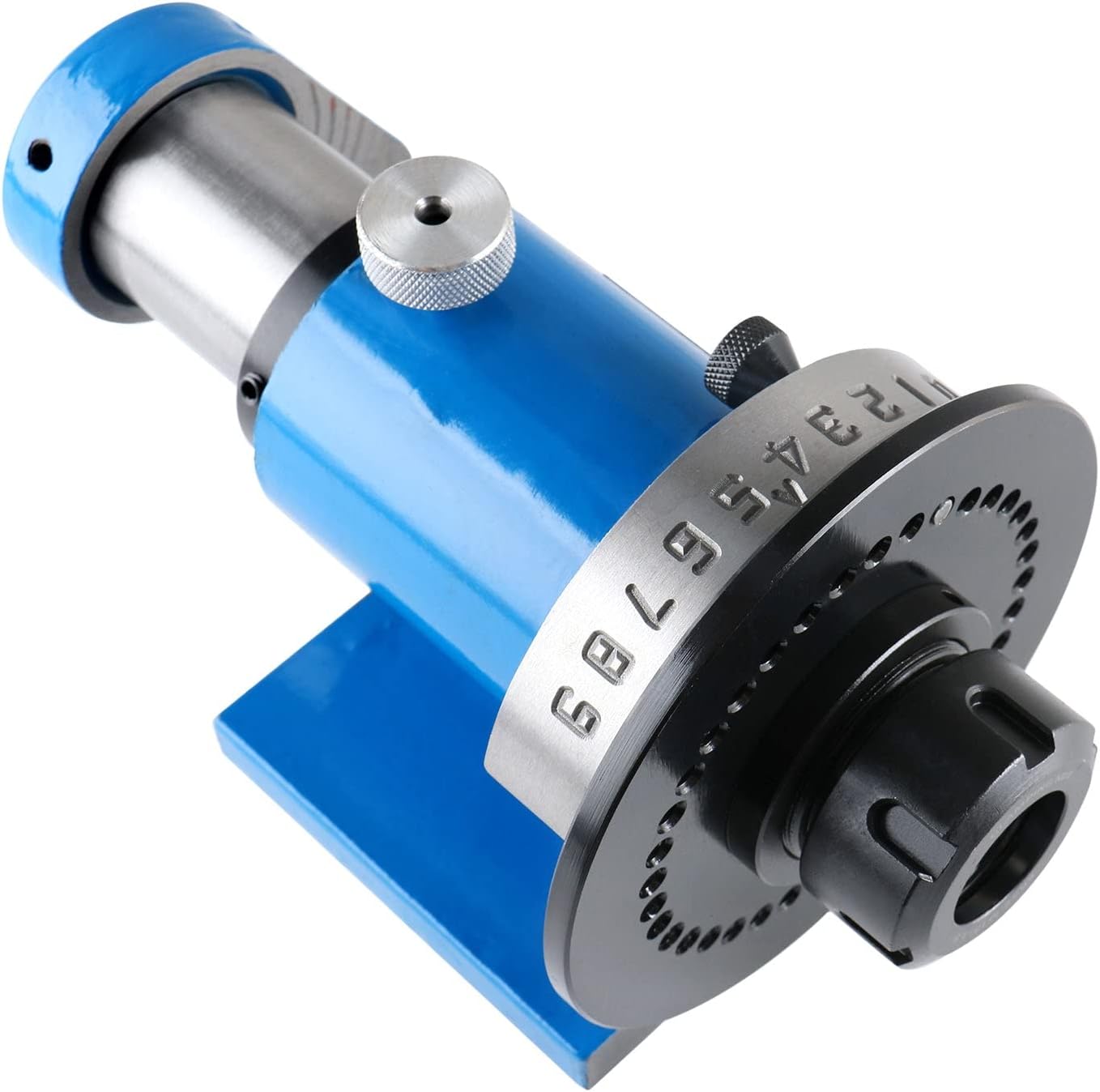

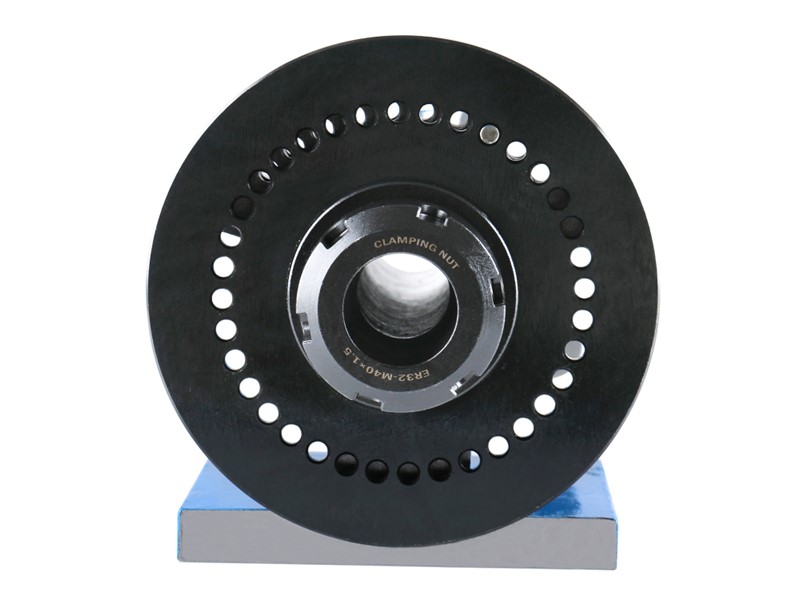

5" Indexing Disc

5" diameter index plate has 36 hole circles and is graduated by 0 to 35 for direct indexing in 10° steps and is marked in 5° increments.

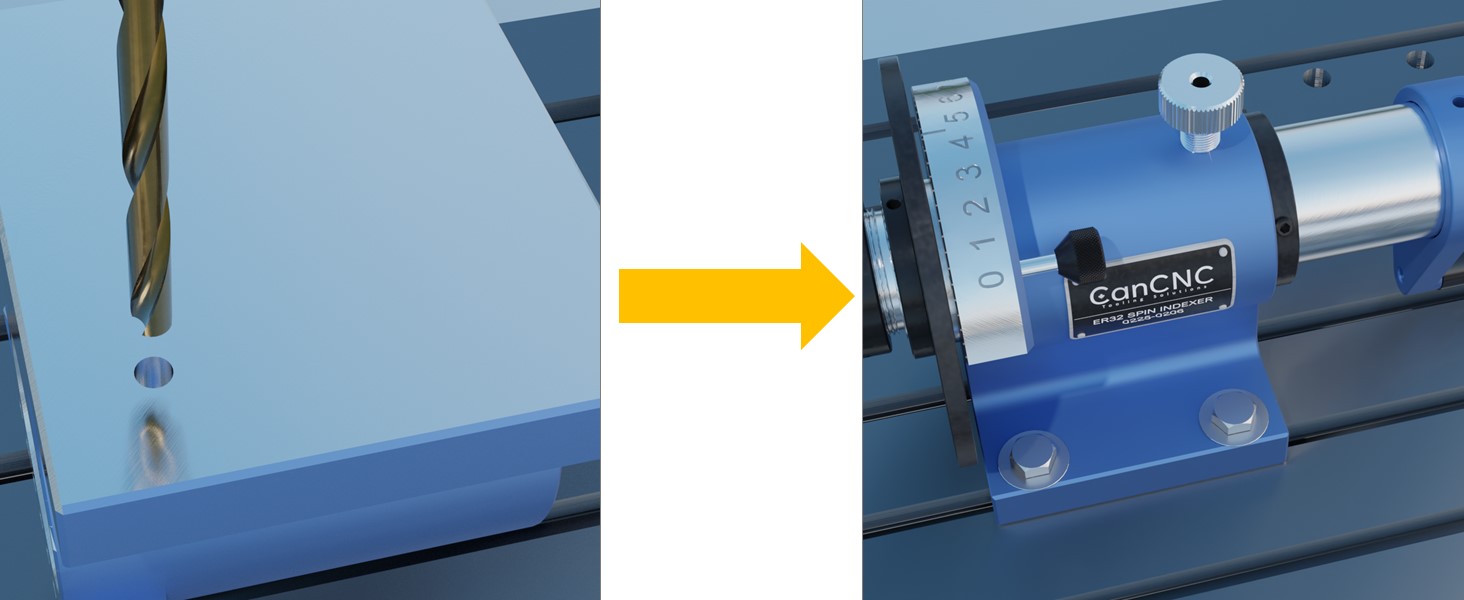

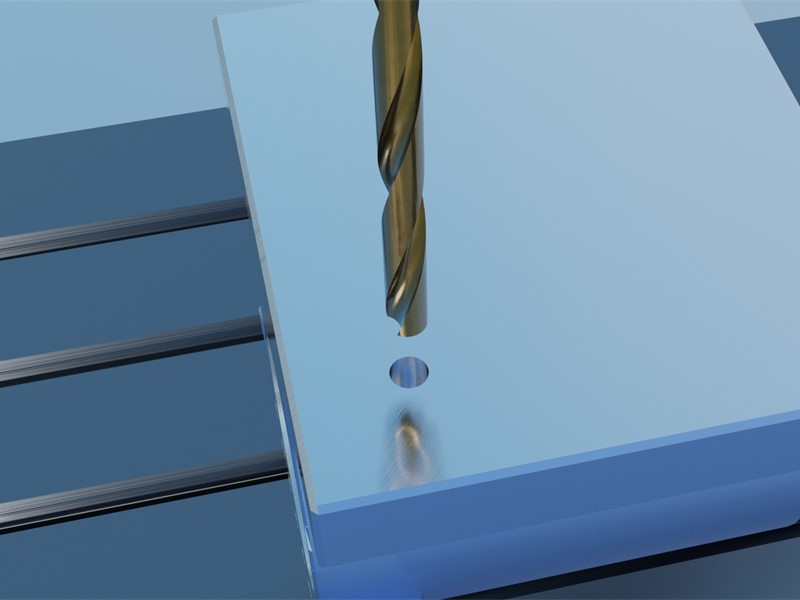

Machining the Bottom Plate

for bolts and nuts

You may machine the bottom plate of the ER32 spin indexing fixture. Create holes for bolts and nuts(as well as washers). Fix it on a machine table, e.g.: a milling table.

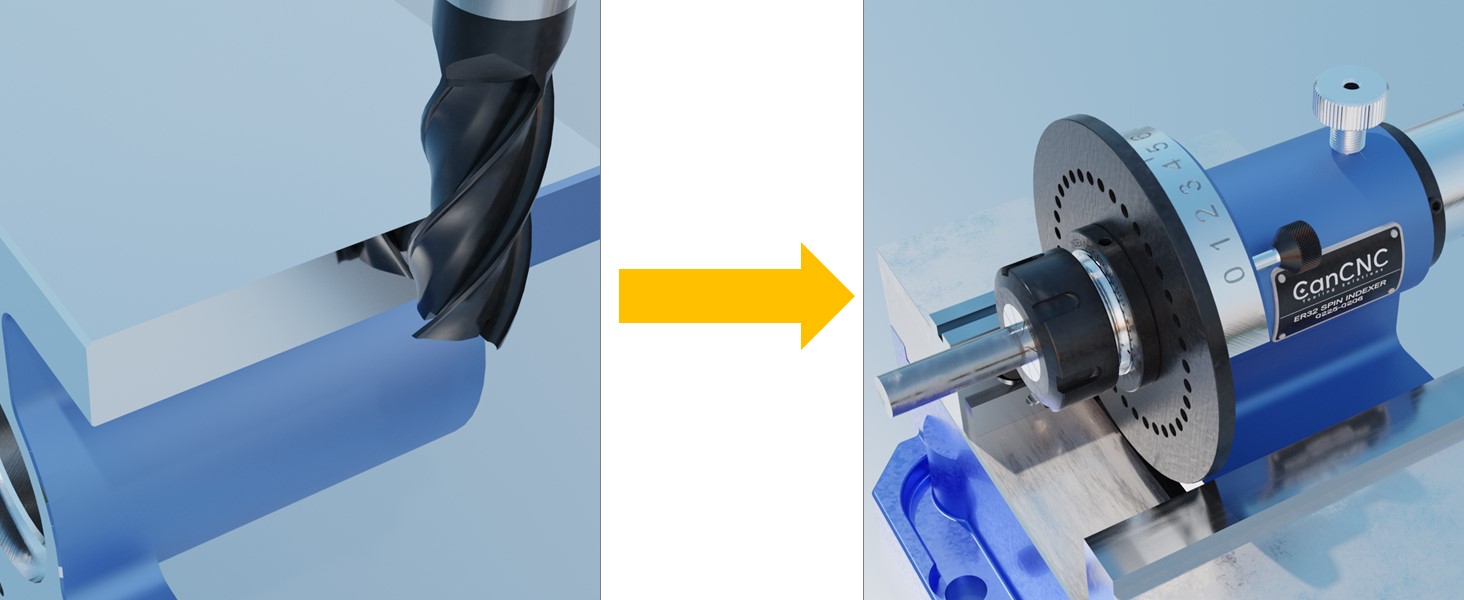

Machining the Bottom Plate

for quick mounting

Through carefully and accurately milling the sides of the bottom plate, you can clamp the spin indexing jig with a machine vise. That is to create a quick mounting ER32 spin indexing fixture.

How does ER32 Spin Index Work

Example of how CanCNC ER32 Spin Jig Rotates a Workpiece

The back side of the index disk has degree markings. They are labeled 0 through 35. They help track where you are on the circle. Each increment represents 10 degrees. The holes and the markings (0-9) behind the index disk allow indexing down to degrees. E.g.: You want to rotate 45 degrees. Just rotate the index disk by 4 increments. Put the index pin in hole #5. When the pin drops in totally, we are 45 degrees away from the original cut.

SKU: 0240-0104

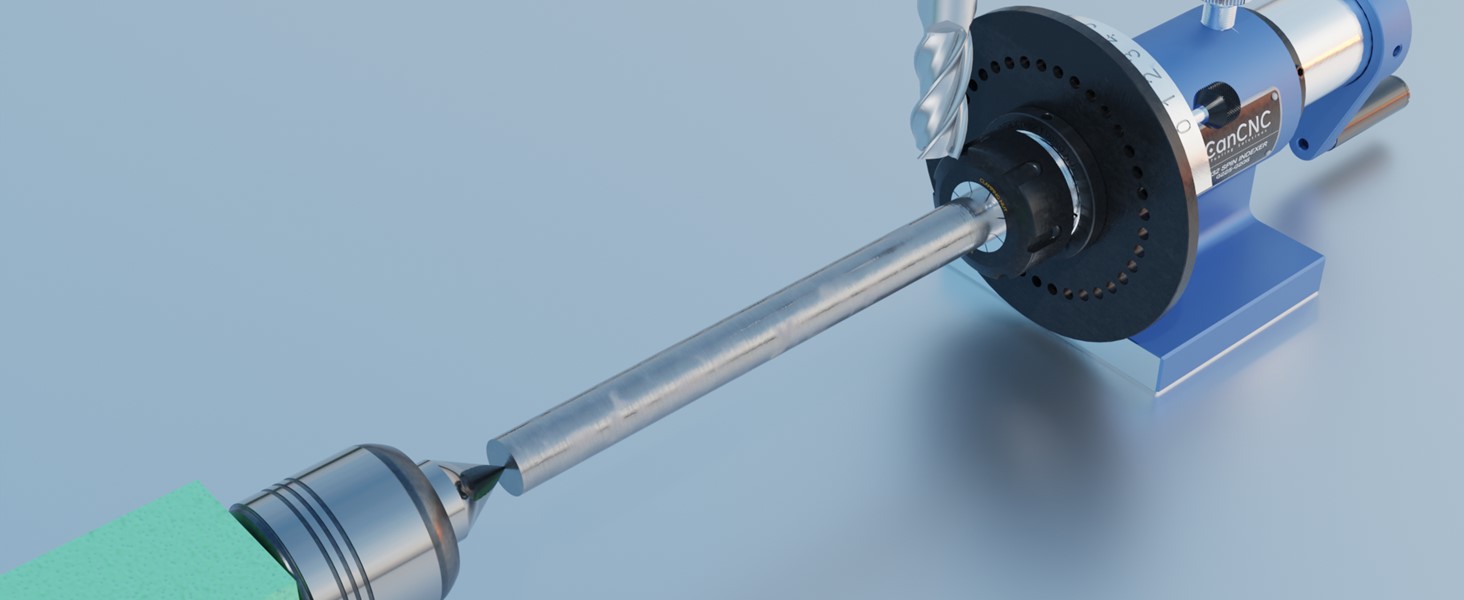

A Matching Tailstock to Enhance Capability

To machine long workpieces, you may get or DIY a matching tailstock to get the most ideal result.
Search for the SKU

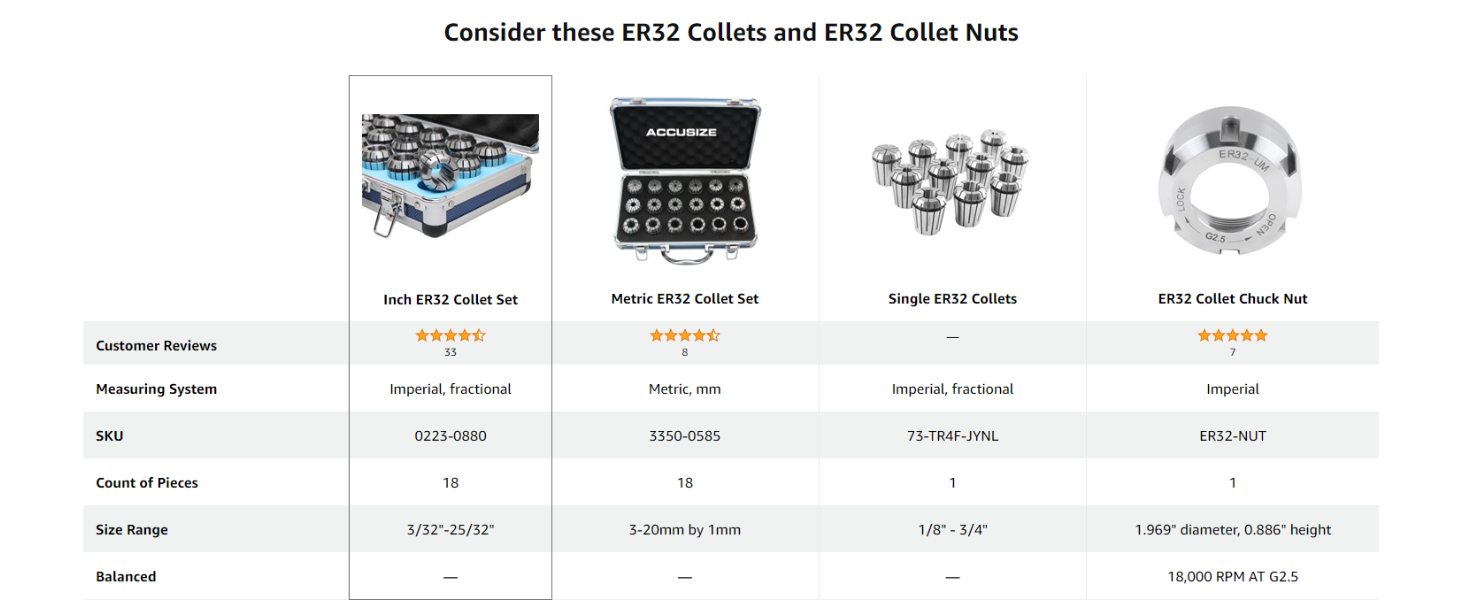

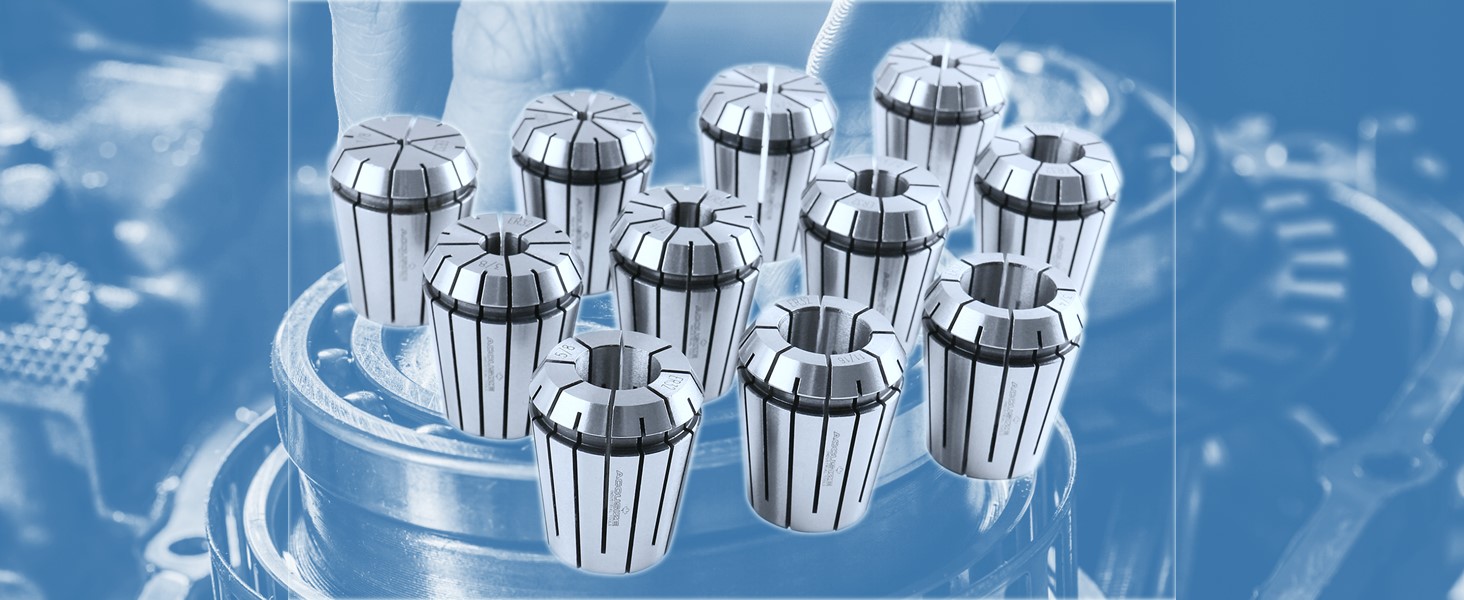

Get the Most of the Jig with a ER32 Collet Set

We carry ER32 Collets

inch sets: 0223-0880

mm sets: 3350-0585

Single collet: 0223-0847

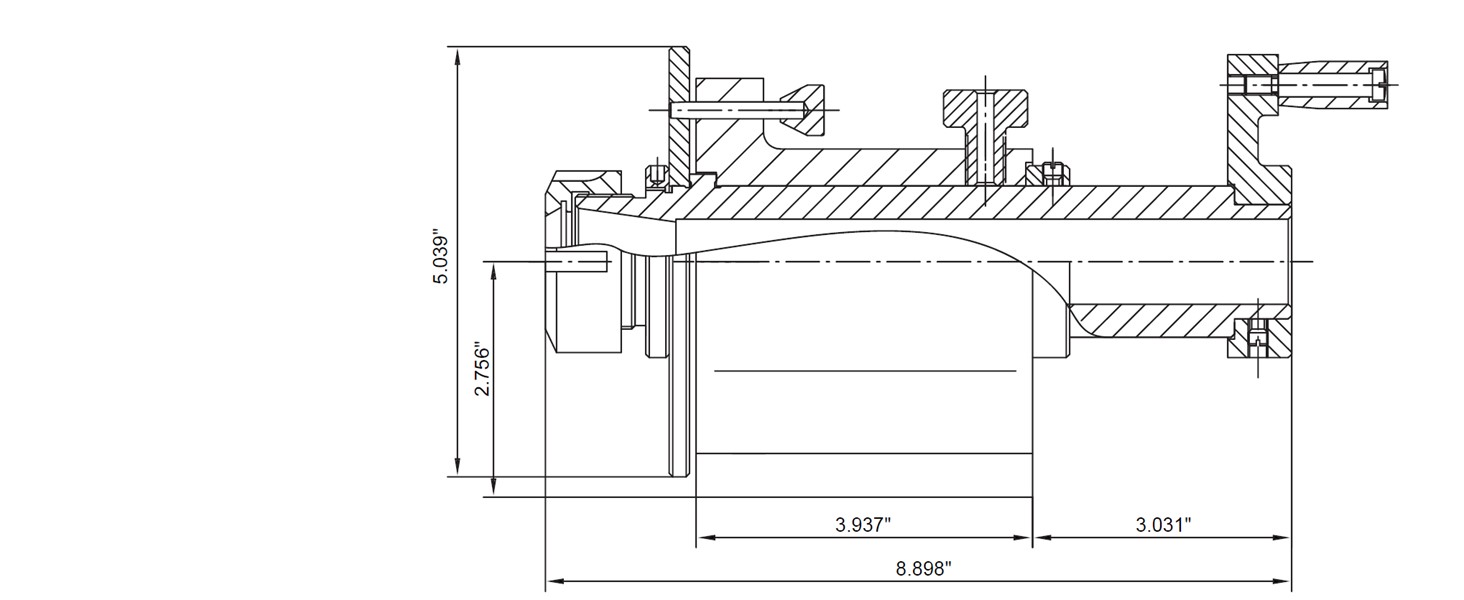

Schema

Diagram of ER32 Spin Indexer

Compare Spin Indexing Fixtures of Different Styles

ER32 Collet

Works with ER32 collets, offering better gripping and accuracy than 5C Spin Jig

5C Collet

Work with 5C collets

5C Collet

Work with 5C collets

Horizontal Indexing

Horizontal Indexing Direction

Horizontal Indexing

Horizontal Indexing Direction

Horizontal/Vertical Indexing

Horizontal and Vertical Indexing Direction

Machine Holes

To Fix the Jig on a Milling Table

Get a milling table, nuts and bolts, create holes on the bottom plate, fix the jig on the table

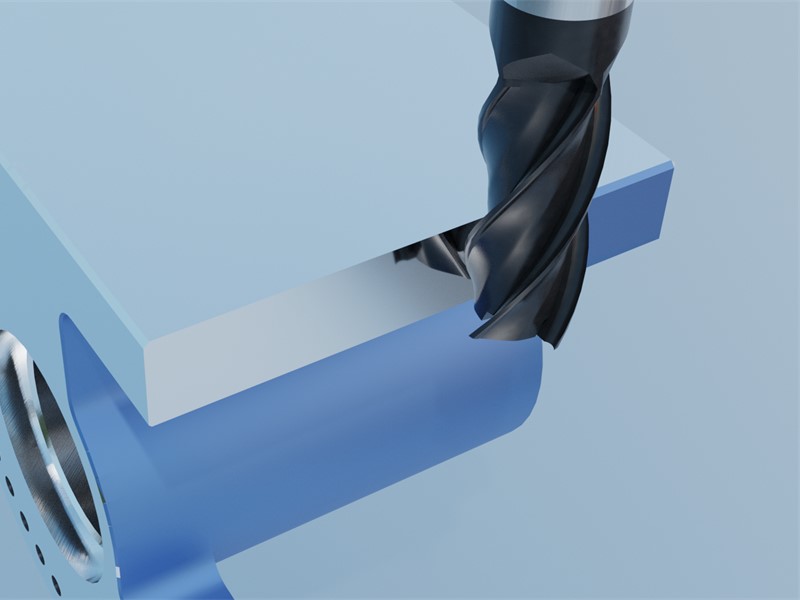

Machine Sides

To Clamp the Jig with a Machine Vise

You need to carefully and accurately machine the sides of the bottom plate of the ER32 spin indexer
