100W Foldable Solar Panel - Charger for Power Stations | Monocrystalline 23.5% High Efficiency QC3.0 USB-A/USB-C Output | IP65 Waterproof | Portable for Camping, RV, Emergency Blackout

BeoYjVon 100W Foldable Solar Panel - Green Power Solution

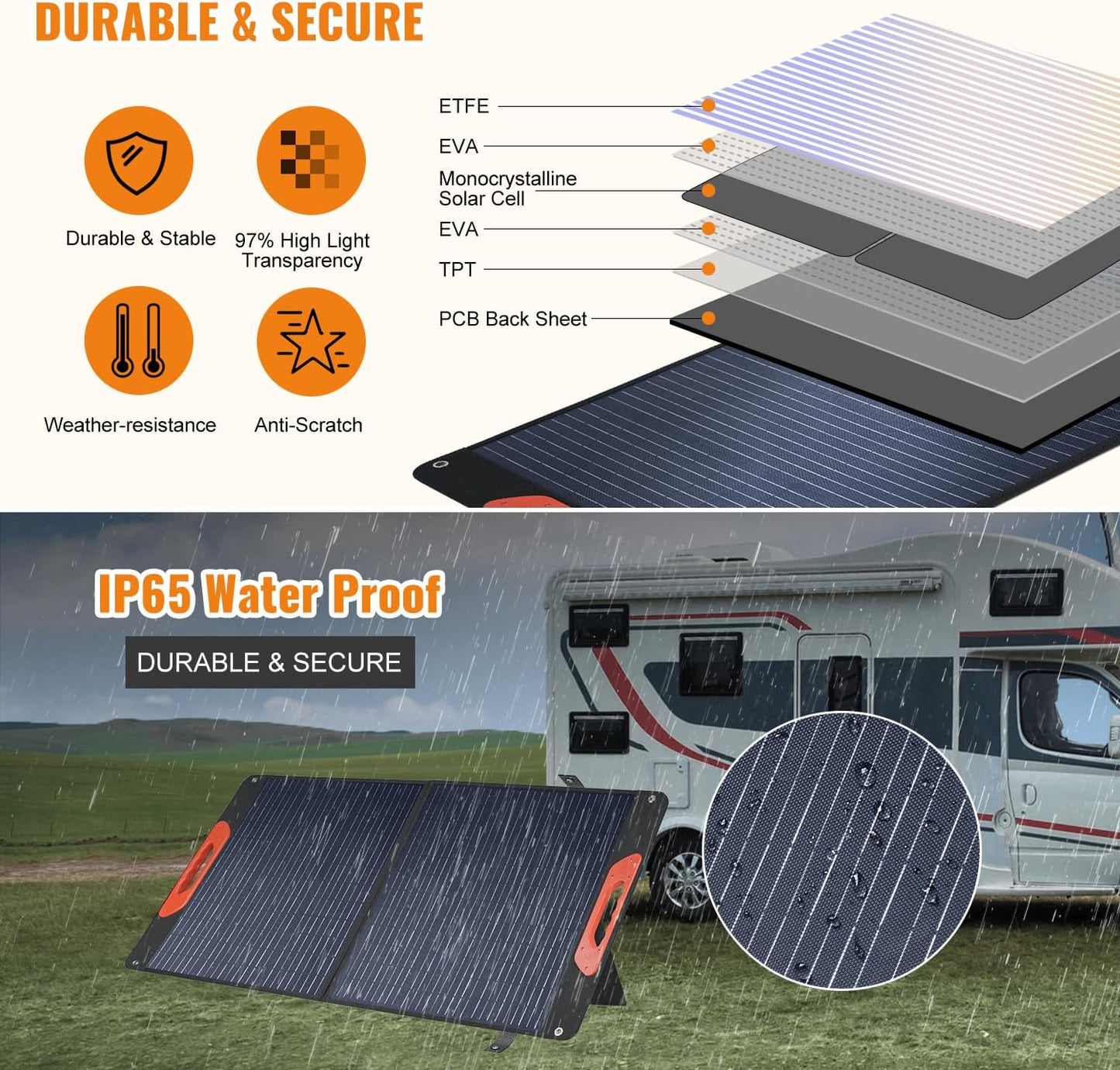

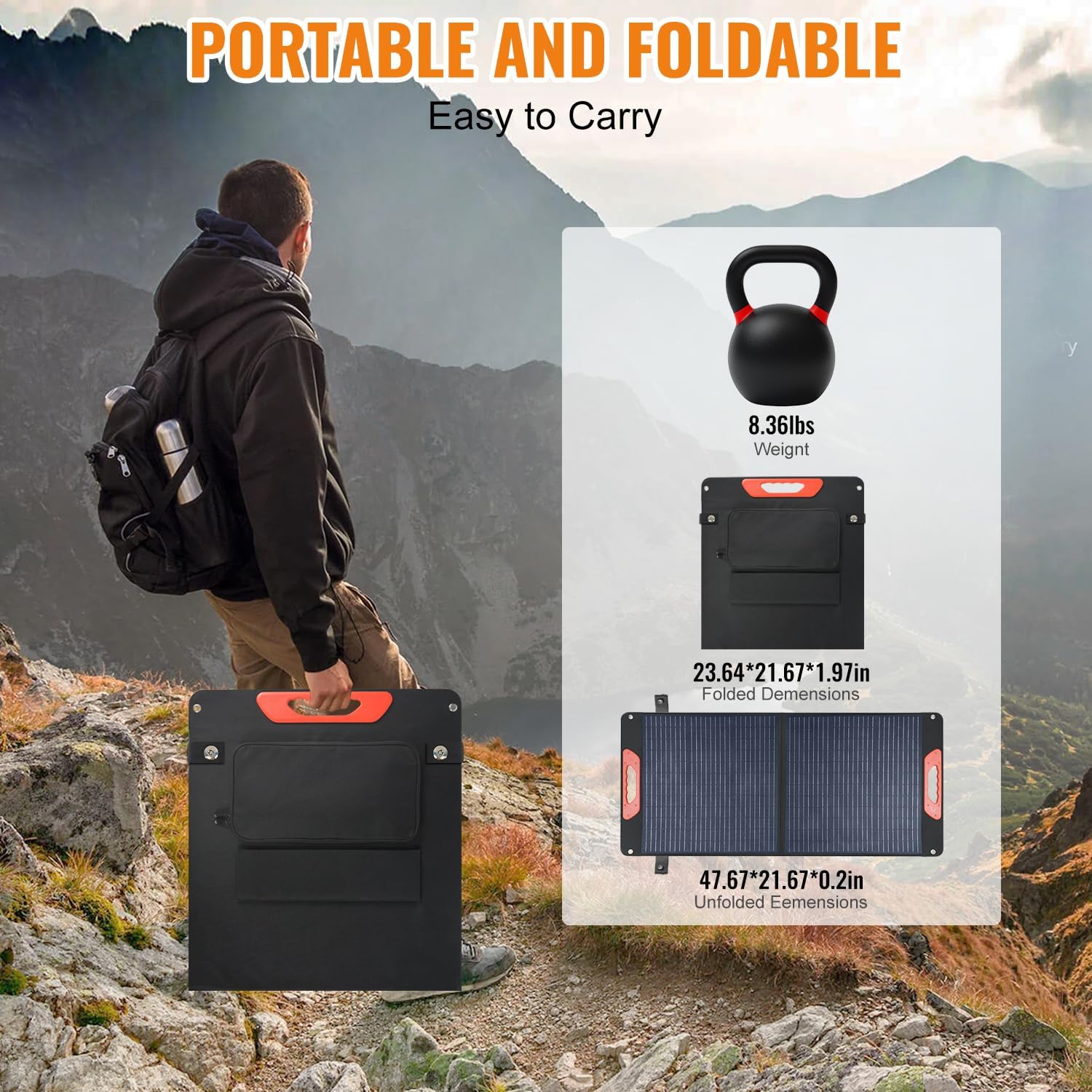

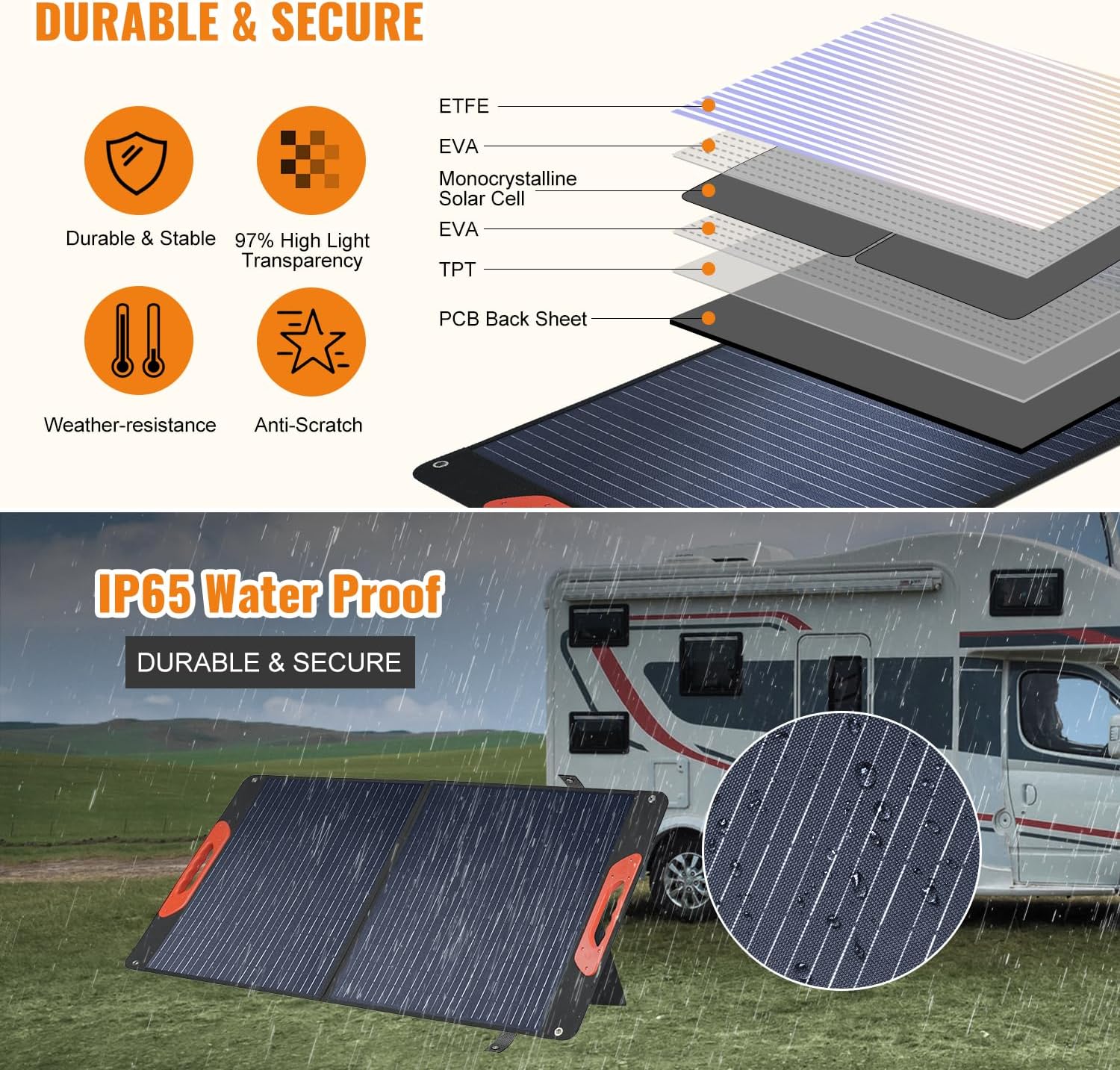

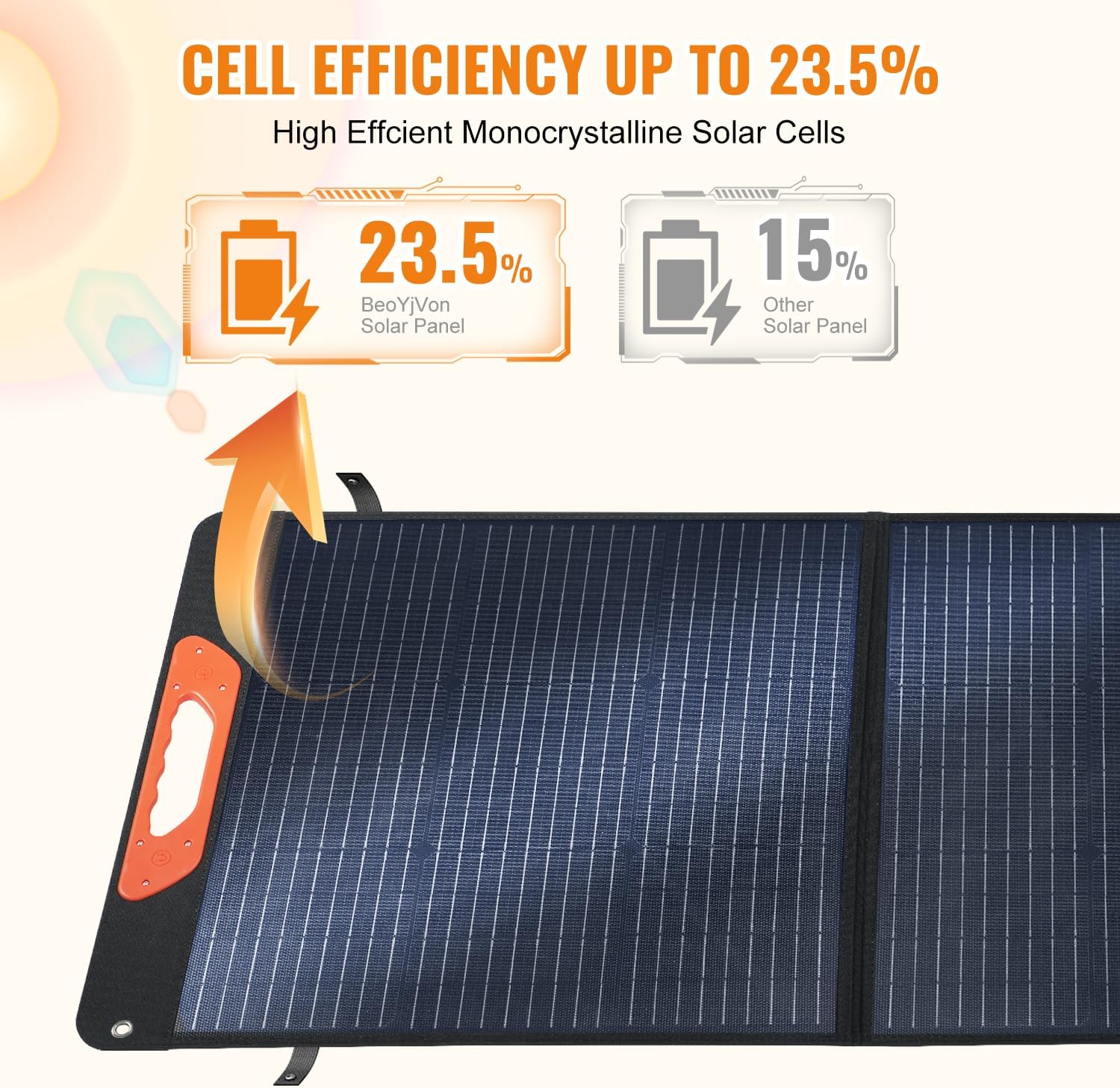

BeoYjVon 100W Portable Solar Panel is uniquely designed: small-size, waterproof, portable, and foldable. It is a reliable solar charger with an easy-carry TPE rubber handle, four adjustable kickstands, four hanging holes, and a built-in cable bag. With up to 23.5% high-efficiency monocrystalline solar cells and premium ETFE lamination films achieving a light penetration rate of 97%, you will get greater power efficiency than polycrystalline solar panels. The advanced 6-layer ETFE laminated technology and the long-lasting water-resistant Oxford cloth material make it a favorite for those with RVs, campers, and on the road, ideally suited for outdoor living or even unexpected power outages. Freedom from loud gas generators, opt for silent and green solar power.

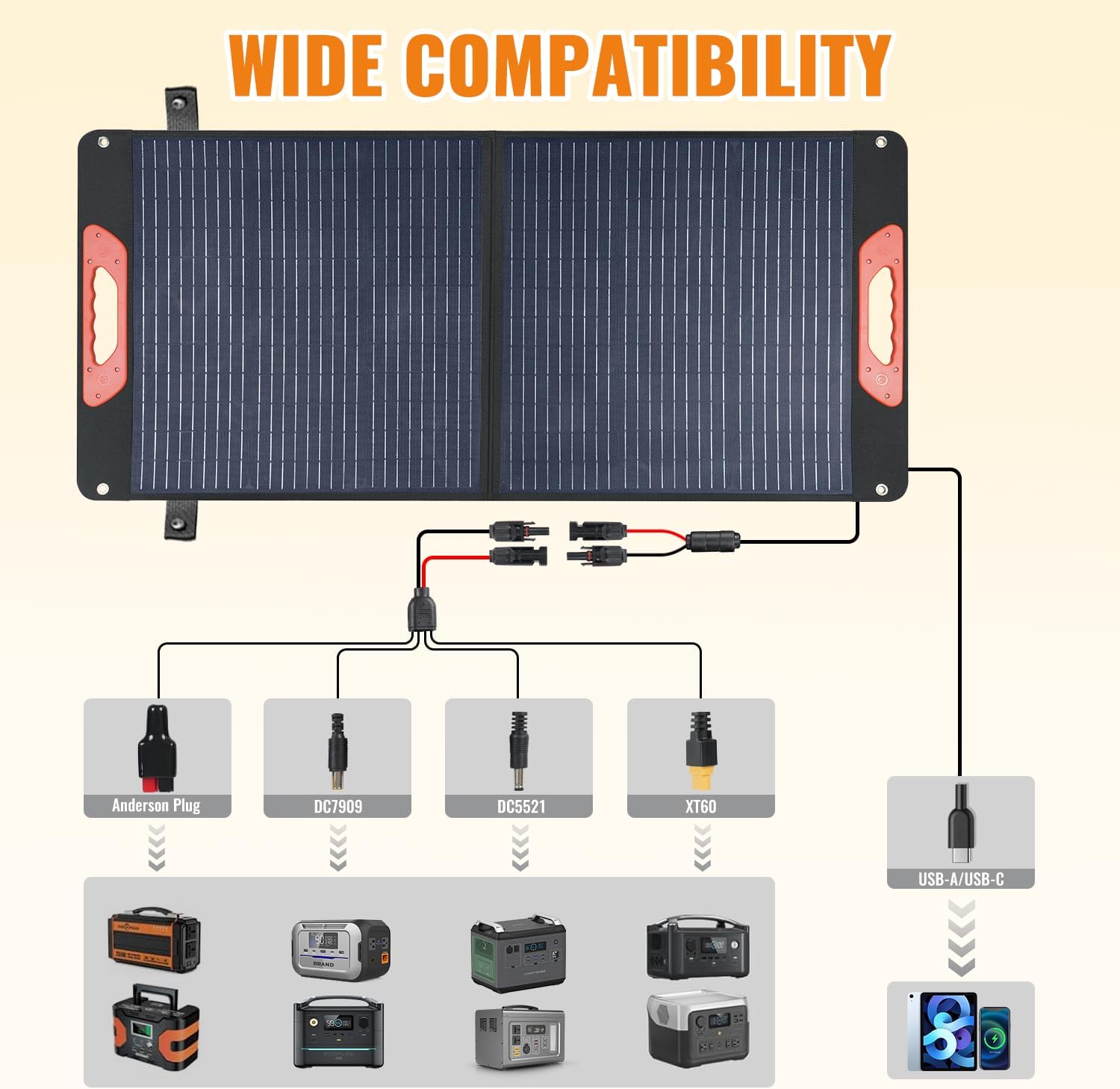

4 in 1 Solar Extension Cable, USB-A & USB-C Ports Meet Most of Your Charging Needs

Anderson adapter for Jackery Explorer 1000,for ROCKPALS 300W,for Ecoflow

DC7909 adapter for Jackery Explorer 160/240/300/500/1000, for Goal Zero Yeti 160/240/300, for Anker 521 Power Station, for BLUTTI EB 240

DC5521 adapter for Rockpals 250W/350W/500W,for FlashFish 200W/300W,for PAXCESS ROCKMAN 200W/300W/500W, for PRYMAX 300W

XT60 adapter for EF ECOFLOW RIVER Pro 720Wh/DELTA 1260Wh/Anker 757 PowerHouse 1229Wh

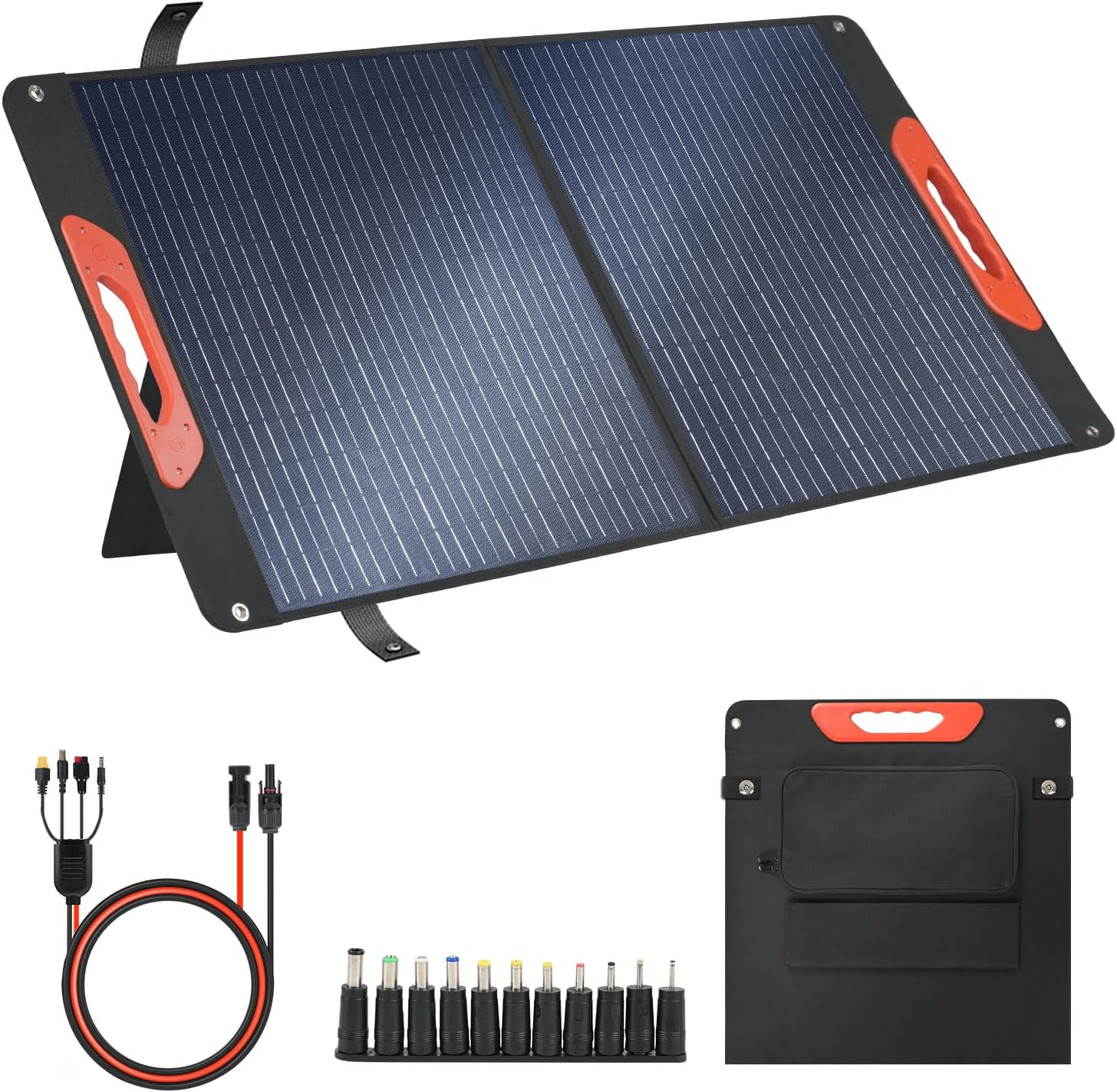

Meanwhile,there is a complimentary 11 in 1 DC adapter DC5521(Female) to DC6340/6030/5525/5521/5517/4817/4017/35135/3011/2507/2006(Male) to expand the folding solar panel's compatibility.

Please Note: Some portable power stations have a maximum input power limit. For instance, for Jackery Explorer 160 it has a maximum input of 42W. Even when using our 100W solar panel in optimal sunlight conditions, the power it receives won't exceed its 42W limit. This does not indicate that our solar panel has insufficient power output. Please verify your power station model and check if it has a maximum input power limit before placing your order.

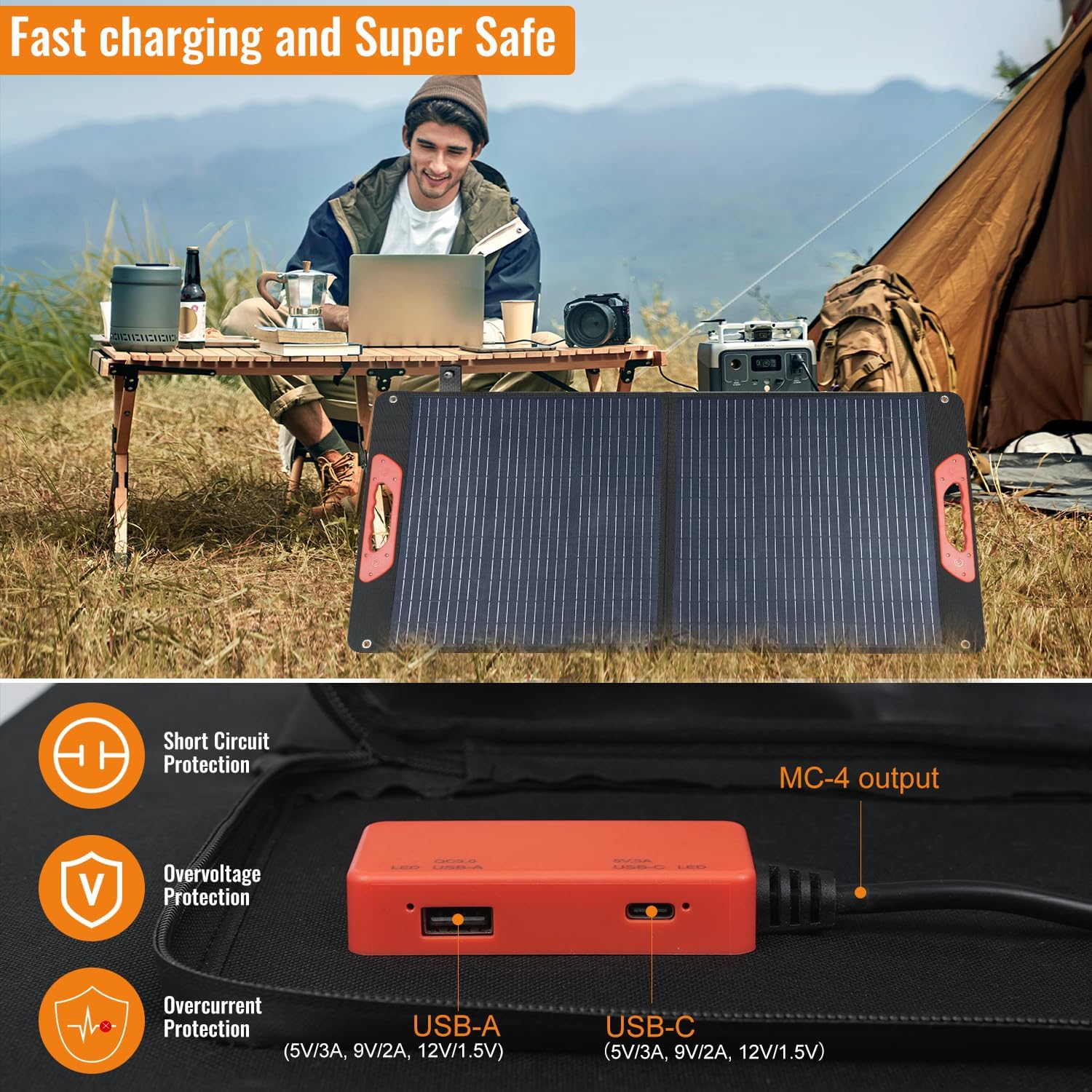

The orange USB-A port(5V/3A,9V/2A,12V/1.5A) and USB-C port(5V/3A,9V/2A,12V/1.5A) are fast charging, allowing you to efficiently recharge multiple USB devices while enjoying your outdoor activities.

If you want to charge a 12V battery (LiFePO4, lithium, AGM, lead-acid, GEL, etc.) using this 100w solar panel, please be sure to add a MPPT/PWM charge controller(not included ,you need to buy it separately), otherwise there is a risk of damaging the battery.

How to Connect BeoYjVon 100W Foldable Solar Panel in Parallel and Series

A single 100W solar panel is great for small and medium devices charging. With a professional parallel or series connector, you can also parallel or series 2 BeoYjVon 100W solar panels to get more output power to recharge the large-capacity power stations faster (only solar panels of the same model can be used in parallel or series)

The solar panel is equipped with PV-rated cables. The Positive connector is a male connector and the negative connector is a female connector, these wires by themselves are rated for series connections.

When the solar panels are connected in series (+ connected to -, + connected to -), the voltage is added;

when the solar panels are connected in parallel (+ connected to +,-connected to -), the current is added.

Note: Parallel connection, it needs to purchase extra Y connectors (Negative to Negative, Positive to Positive).

When considering series or parallel connections, two solar panels must be of the same model(100W and 100W, 200W and 200W), solar panels of different brands can't use in series or parallel. If it is not the same, it may lead to product failure.

FAQ

Q1: Why can My 100w Solar Panel Not Provide 100W Output Power?

A: Rated 100W is the optimal test result under ideal conditions. The values in sunlight will be slightly less than 100w because the output power is affected by many factors, such as temperature/sunlight intensity/panel angle with sunlight. There are also efficiency losses in charging mobile power stations. To get power as higher as possible, please use it under stronger sunlight / adjust the panel's right angle to the sun / avoid shadow.

Q2: Do I Need a Controller for Charging the Solar Power Station?

A: No, the portable power station generally has a built-in MPPT function, so there is no need to connect the controller early in the charging process.

Q3：What do I Need to Pay Attention to When Connecting Solar Panels?

A: When used with the controller, please connect the controller to the battery first, and then in the connection of solar panels.

The portable solar panel is not a device to store electrical energy. It is only used to convert sunlight directly into electricity and output it to your devices immediately.

The surface of the solar panel is waterproof while the junction port is not waterproof. Please do NOT immerse the folding panel solar in the water!

It's NOT recommended to use portable solar panels in rainy and humid environments, because only under sufficient sunlight can the solar panel's supply power to your devices quickly.

Q4: How to Clean the Solar Panel Surface?

A: Please use a soft cloth to remove the dust and dirt on the surface. Please put it in the clean,dry,cool environment to dissipate heat after using.
