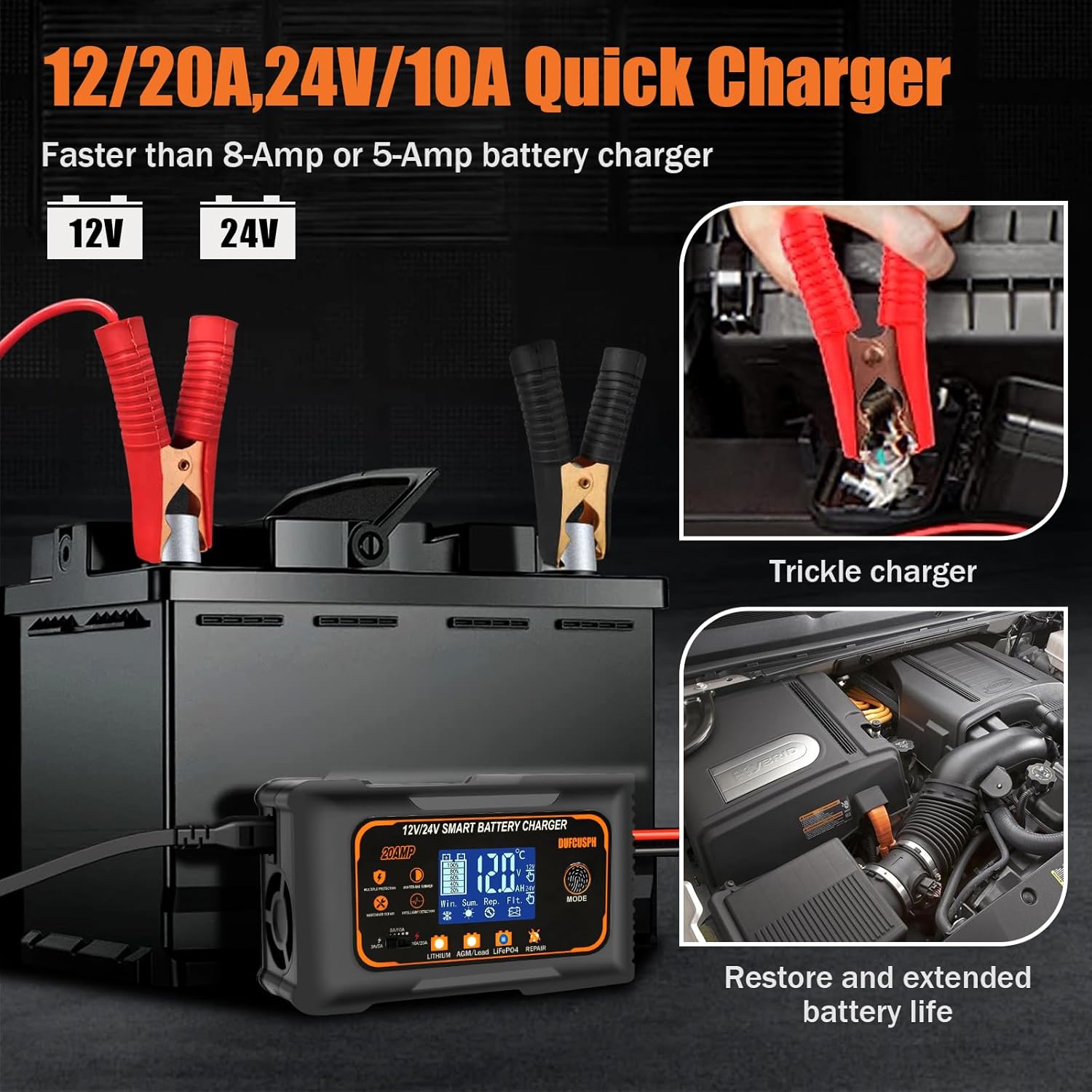

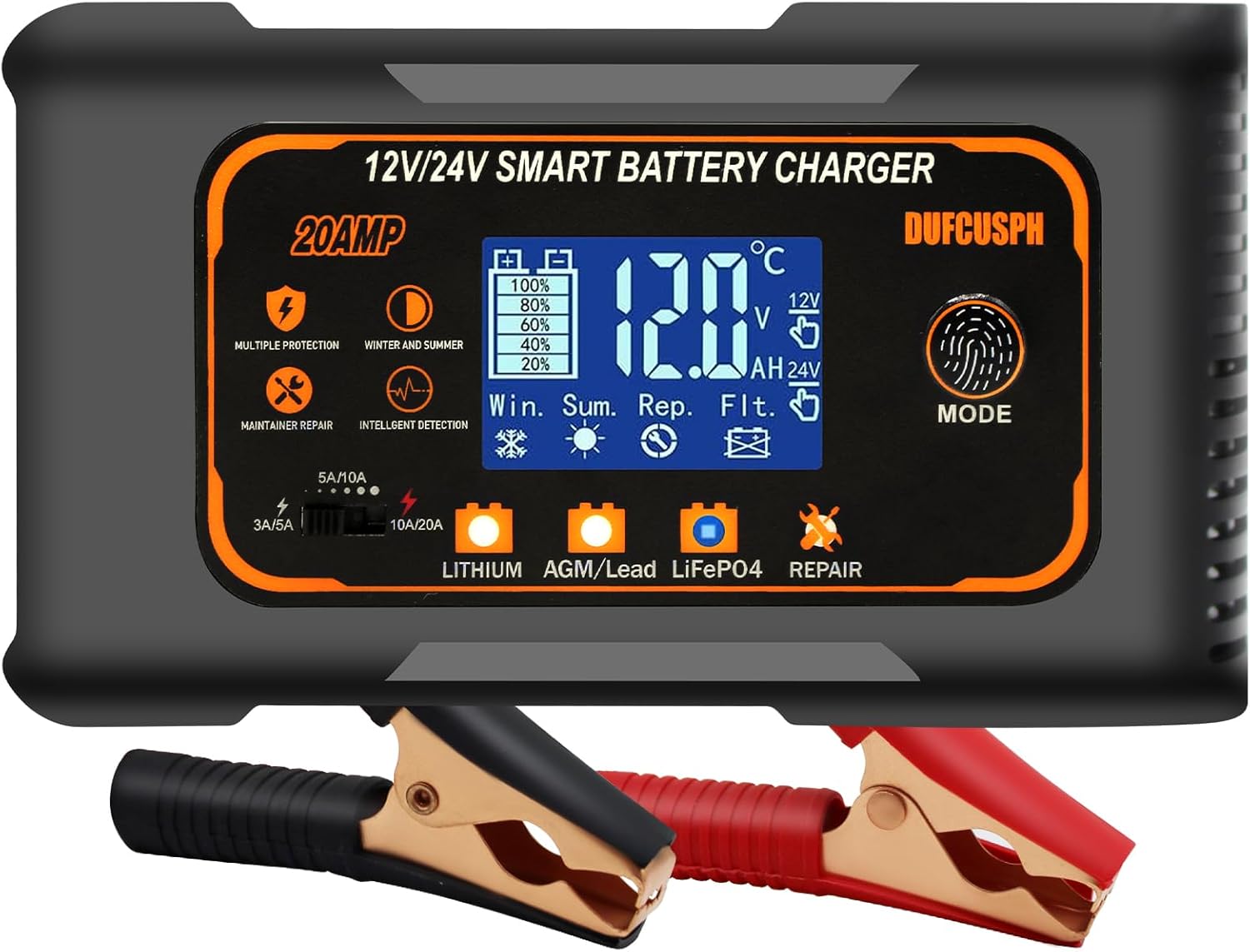

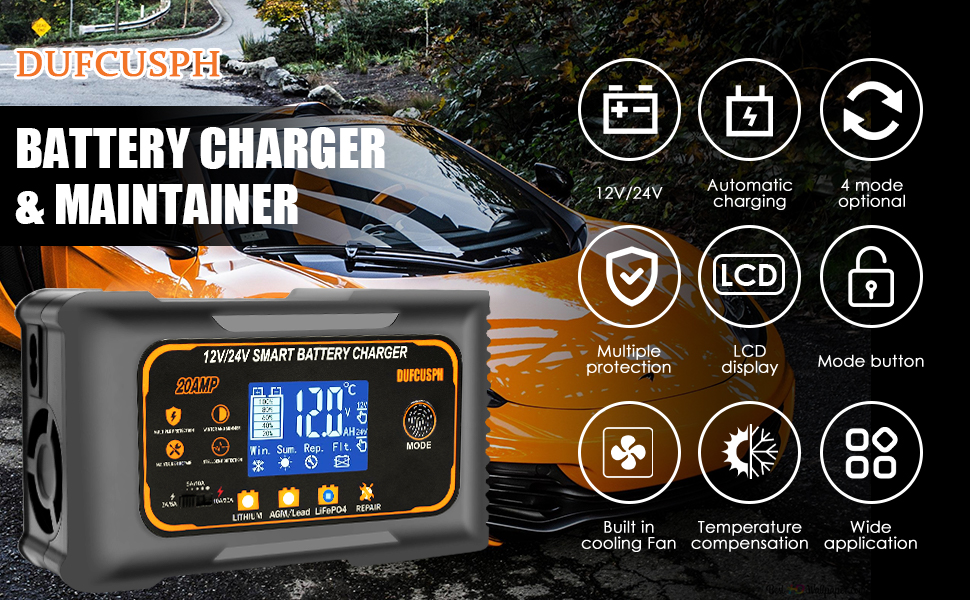

20 Amp Smart Battery Charger for Lifepo4 Lithium AGM Gel Batteries - 12V/20A and 24V/10A Trickle Charger, Maintainer for Boat, Motorcycle, Lawn Mower, Golf Cart

Product Parameters

• AC input : 100v-240v~ 50/60 hz.

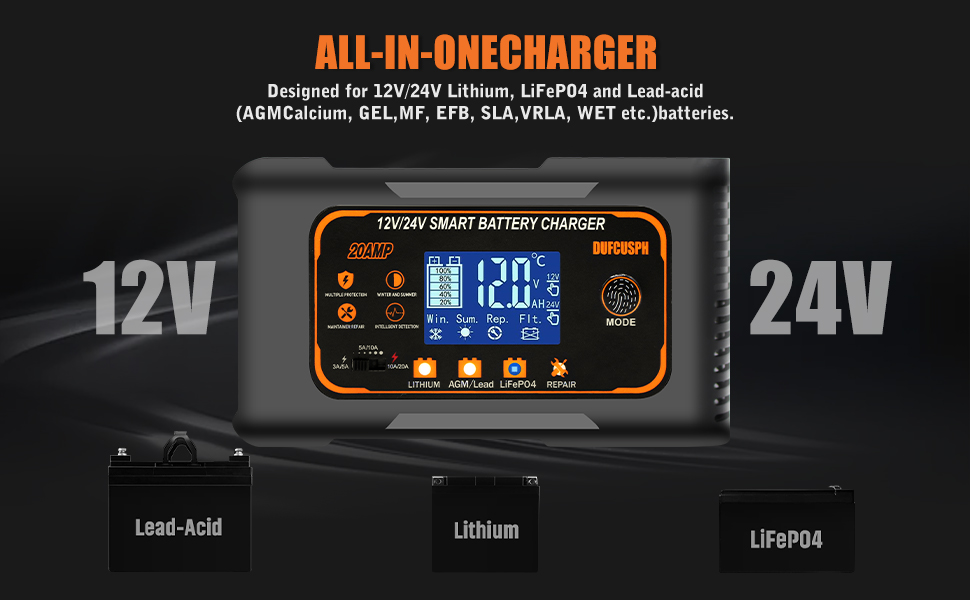

• Output voltage : 12V / 24V. (normal - Max:13.2V-14.6V / 26.5V-29.2V). Lithium /LiFePO4/ lead acid (AGM,GEL,EFB, MF, Flooded, VRLA, SLA and wet battery..).
• Max: Lithium : 12.4V-14.6V / 24.8V-29.2V. Lead acid :14.7V / 29.4V. LifePO4:14.6V / 29.2V.
• Output current : 12V20A & 24V10A

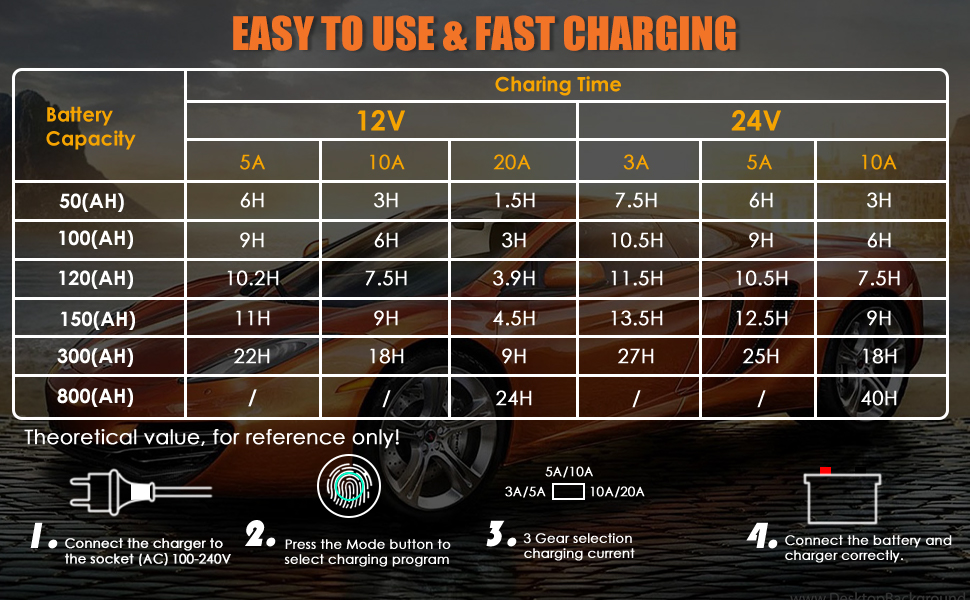

• Support ah: 5AH-300AH... can have more capacity, the larger the capacity needs longer charging time.
• Minimum starting voltage > 2.0 V
• Power and load : MAX 280W
• Size : 158 x90x50mm(6.22 * 3.54 * 1.97 inches) . Net weight: 470g

Cautions

• Charge only lithium batteries with a battery protection board (BMS).
• Charge batteries with a minimum current of 15AH or less.

20 Amp Battery Charger

• Q 1 : Why can't I reach the maximum charging current?
• A 1 : In order to protect the battery, the system will automatically recognize the battery voltage and choose the most suitable current to charge the battery. When the battery voltage is low (e.g. for example, the 12V battery voltage is less than 11V), the system will automatically charge the battery with maximum current. (3-speed adjustable charging current, high current, fast charging).
• Q 2 : Is the LifePO4 battery not fully charged?
• A 2 : When the battery is fully charged, it has a retracement function that reduces the charge by about 1V-2V, which is normal. Add small current to charge uninterruptedly after fully charged.

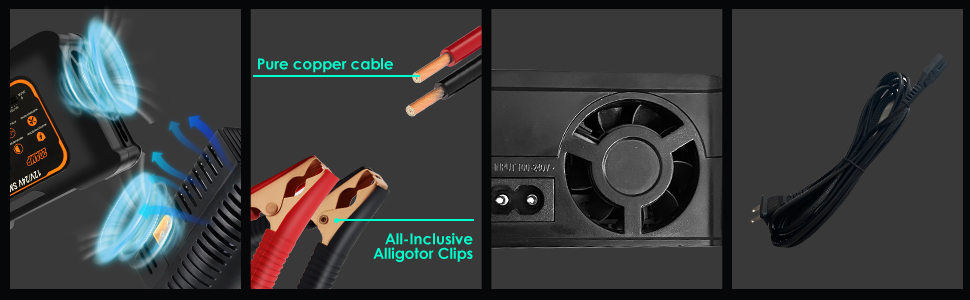

• Q 3 : Is the fan noisy?
• A 3 : It is normal for the fan to generate wind.
