30 Amp 6V/12V/24V Smart Trickle Charger, Car Battery Charger, Lithium, Lifepo4, Lead Acid (AGM/Gel/SLA) Battery Maintainer, Desulfurizer, For: Car, Boat, Motorcycle, Lawn Mowers

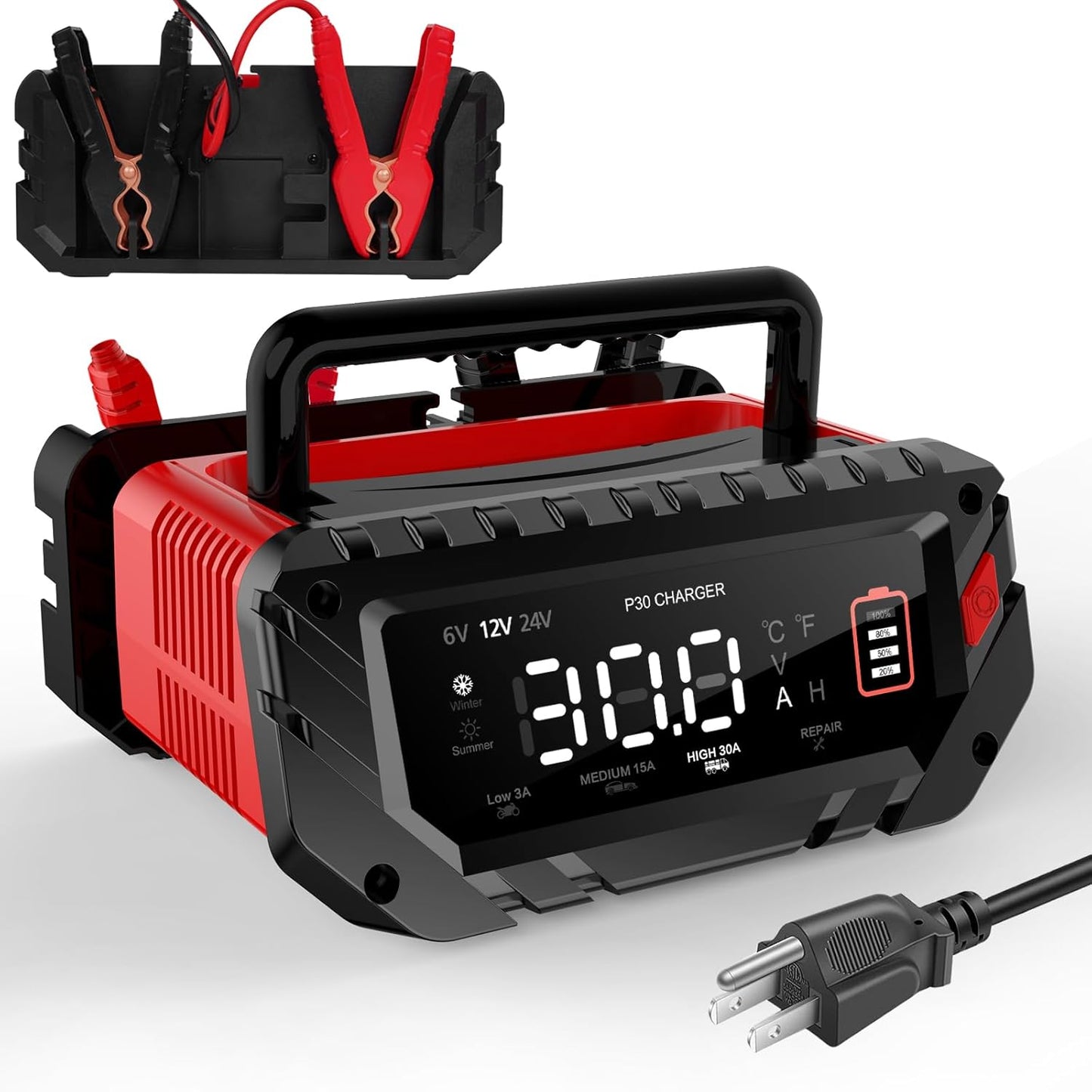

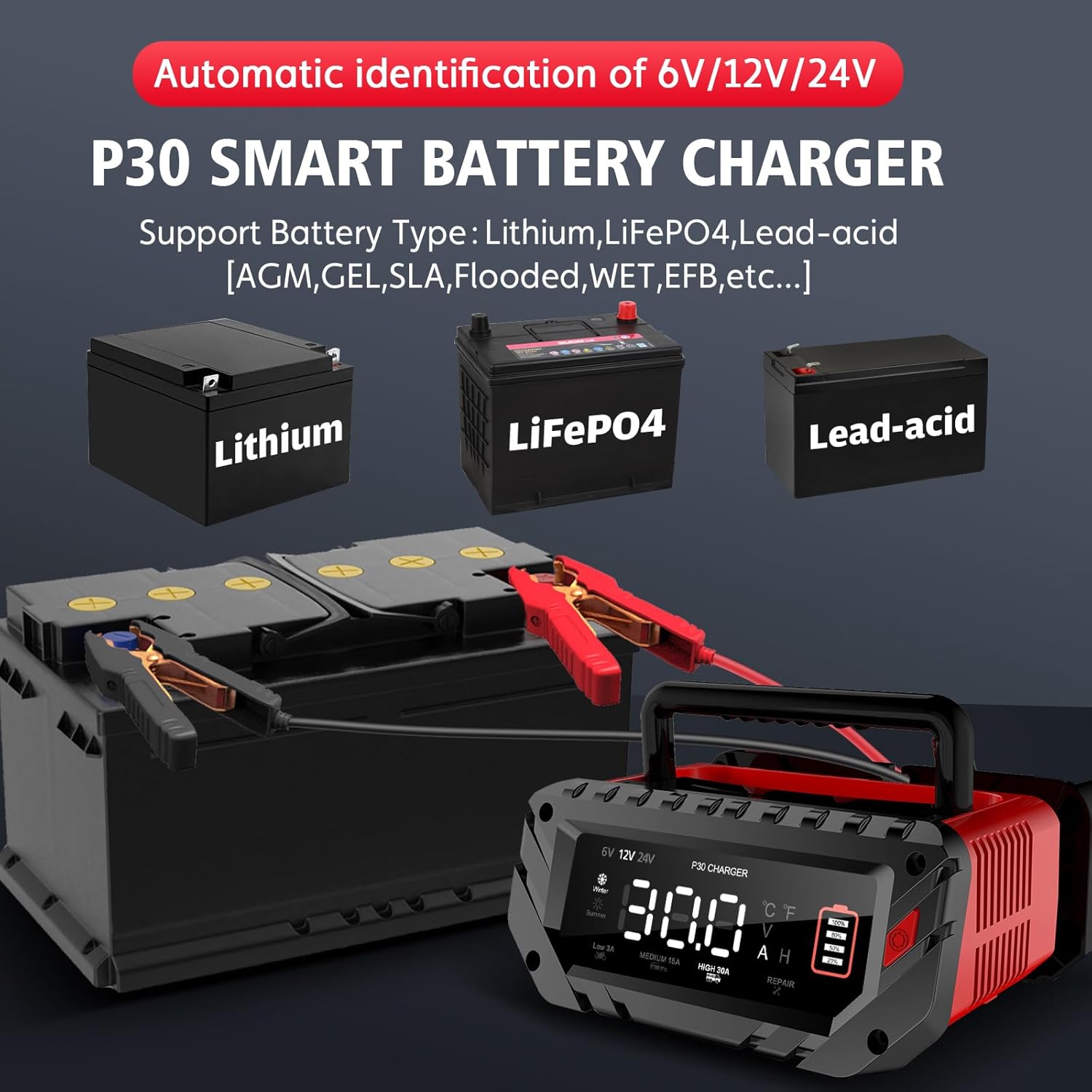

P30 smart battery charger

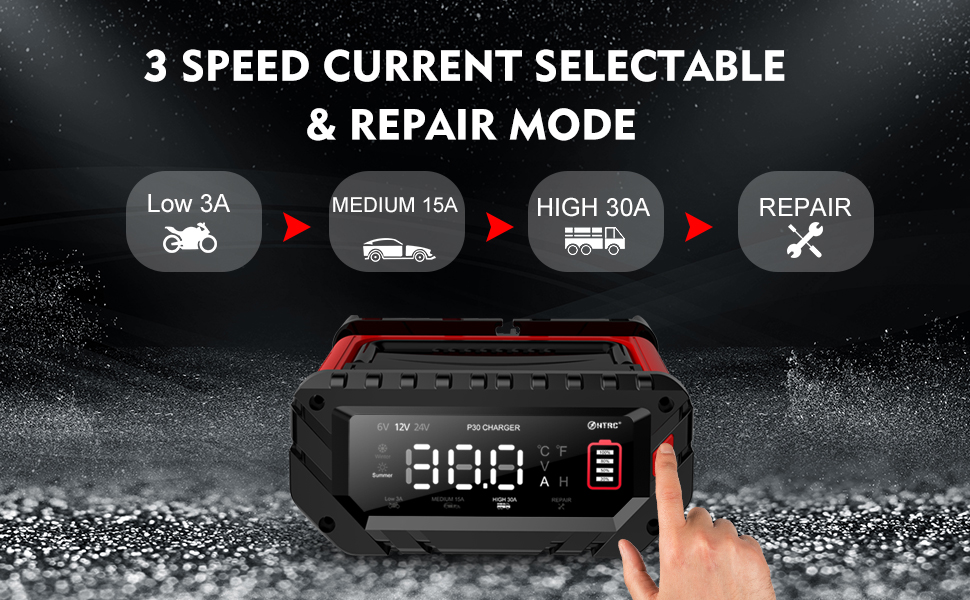

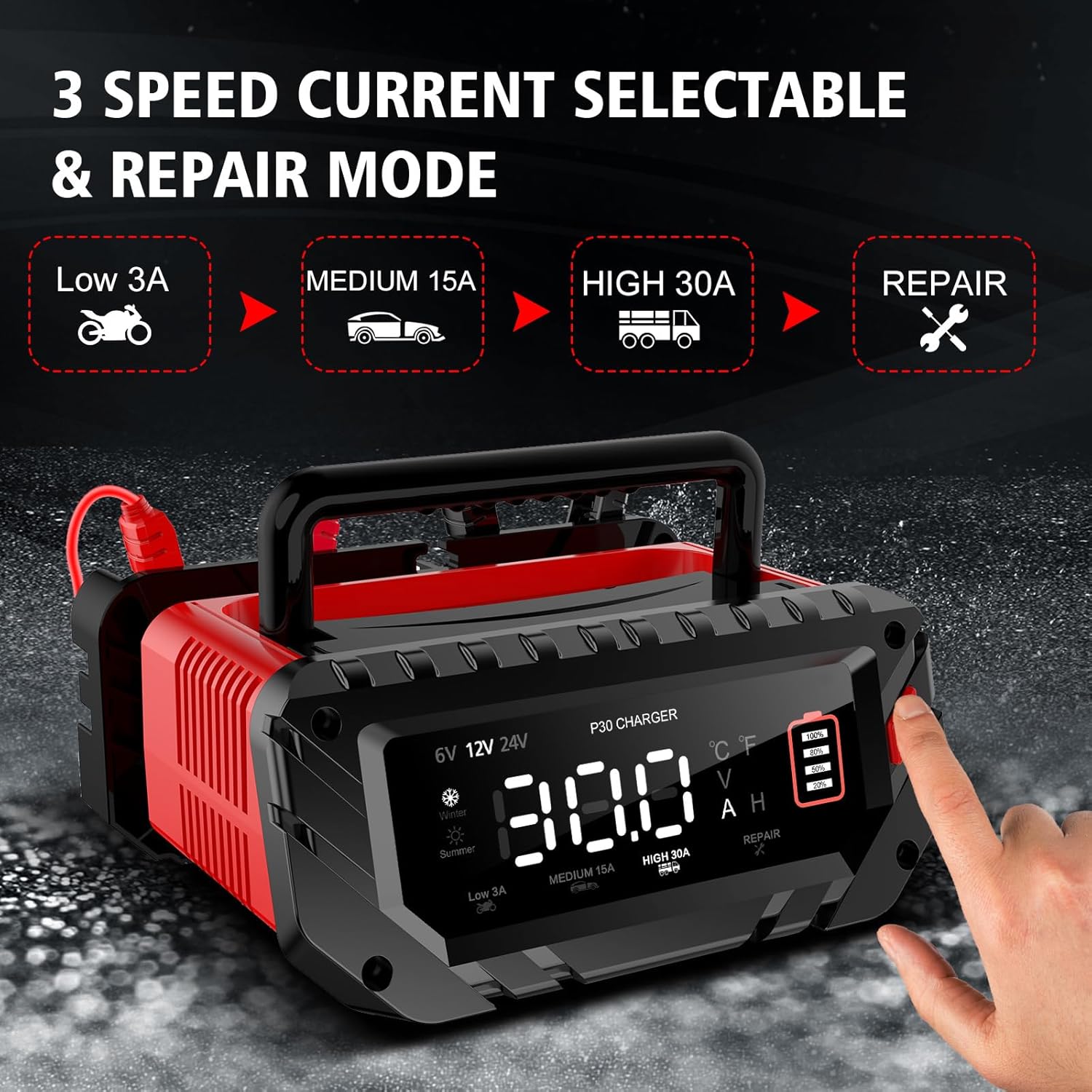

1: Can't reach the maximum charging current? To protect the battery, the system automatically identifies the battery voltage and selects the most appropriate current to charge the battery. When the battery voltage is low (for example, the 12V battery voltage is less than 11V), the system automatically charges the battery at the maximum current. (3 gears can adjust charging current, large current, fast charging) Problem.

2: The LifePO4 battery is not fully charged? When the battery is fully charged, it has a callback function, reducing the charge by about 1V-2V, which is normal. Added a small current after full charge uninterrupted charging.

3: Fan noise? It is normal that the fan has wind.

P30 parameters

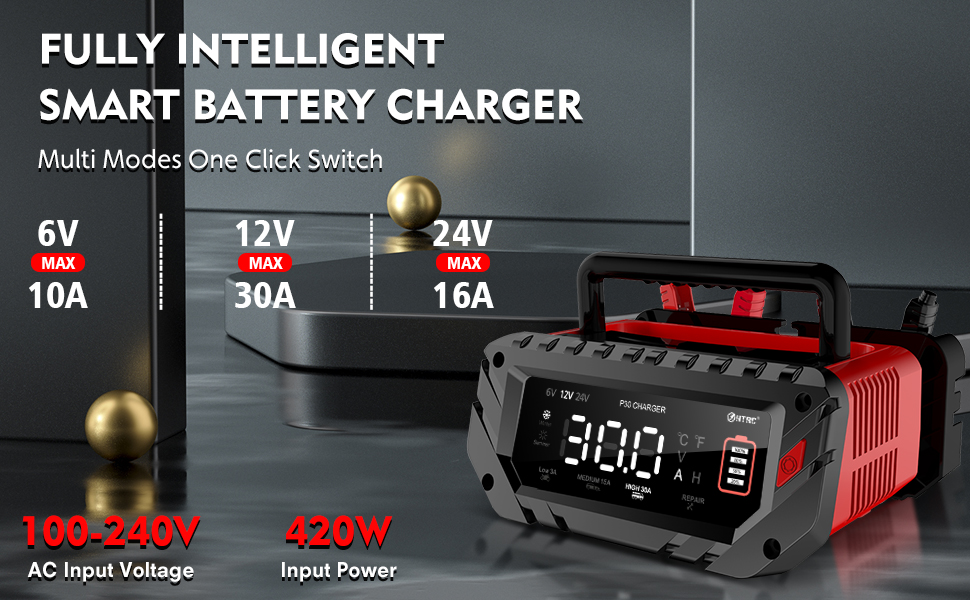

AC input :100v-240v~ 50/60 hz.

Output voltage : 6V / 12V / 24V. (normal - Max:5.4V-7.5V / 13.2V-14.6V / 26.5V-29.2V). Lithium /LiFePO4/ lead acid (AGM,GEL,EFB, MF, Flooded, VRLA, SLA and wet battery..).

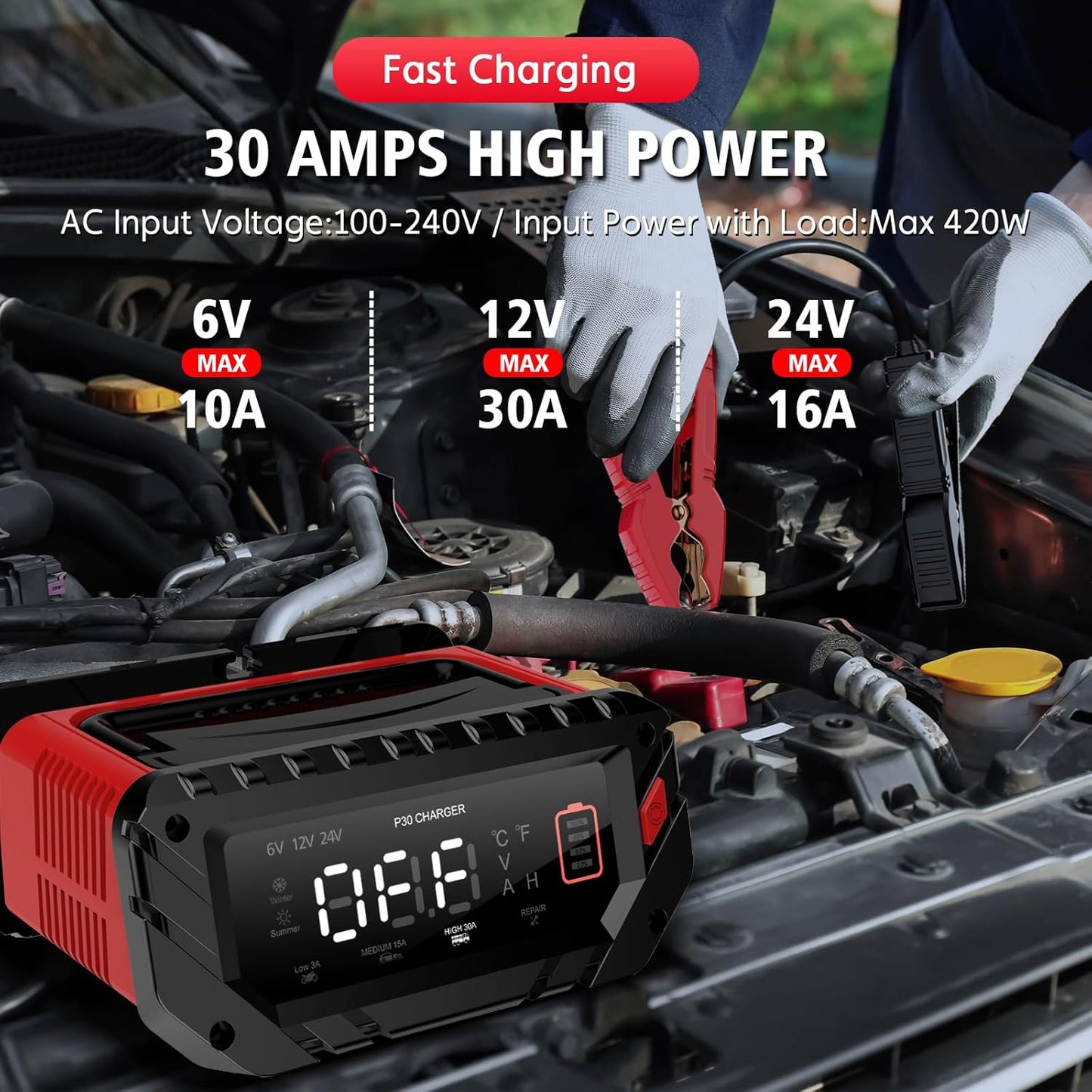

Output current :6V10A,12V30A & 24V16A

Support ah: 2AH-500AH... can have more capacity, the larger the capacity needs longer charging time.

Minimum starting voltage > 2.0 V

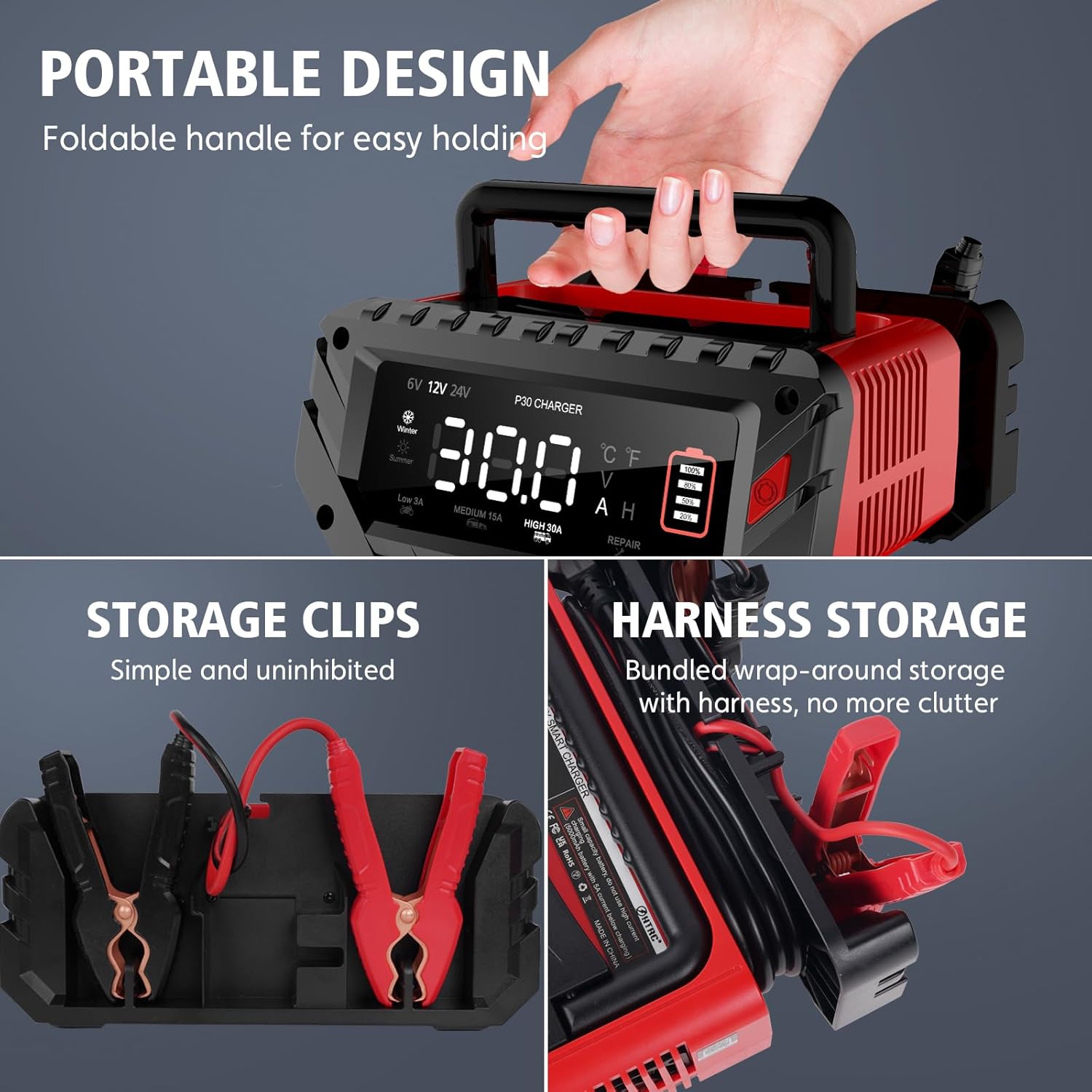

Power and load :MAX; 420 W Size :22 x19x12cm(8.6 * 7.5 * 4.7 inches) .Net weight: 1.5Kg

Note :1 Only charge the lithium battery with battery protection board(BMS).

2 Charge the battery below 15AH with the minimum current
