35T CH-70 Hydraulic Hole Punching Tool Hole Digger Force Puncher, 3/8",1/2",5/8",3/4" Pumcher Apertures, Smooth Hole Puncher Hole Digger for Iron Plate Copper Bar Aluminum Stainless Steel
35T CH-70 Hydraulic Hole Punching Tool Hole Digger Force Puncher, 3/8",1/2",5/8",3/4" Pumcher Apertures, Smooth Hole Puncher Hole Digger for Iron Plate Copper Bar Aluminum Stainless Steel
Couldn't load pickup availability
Product description

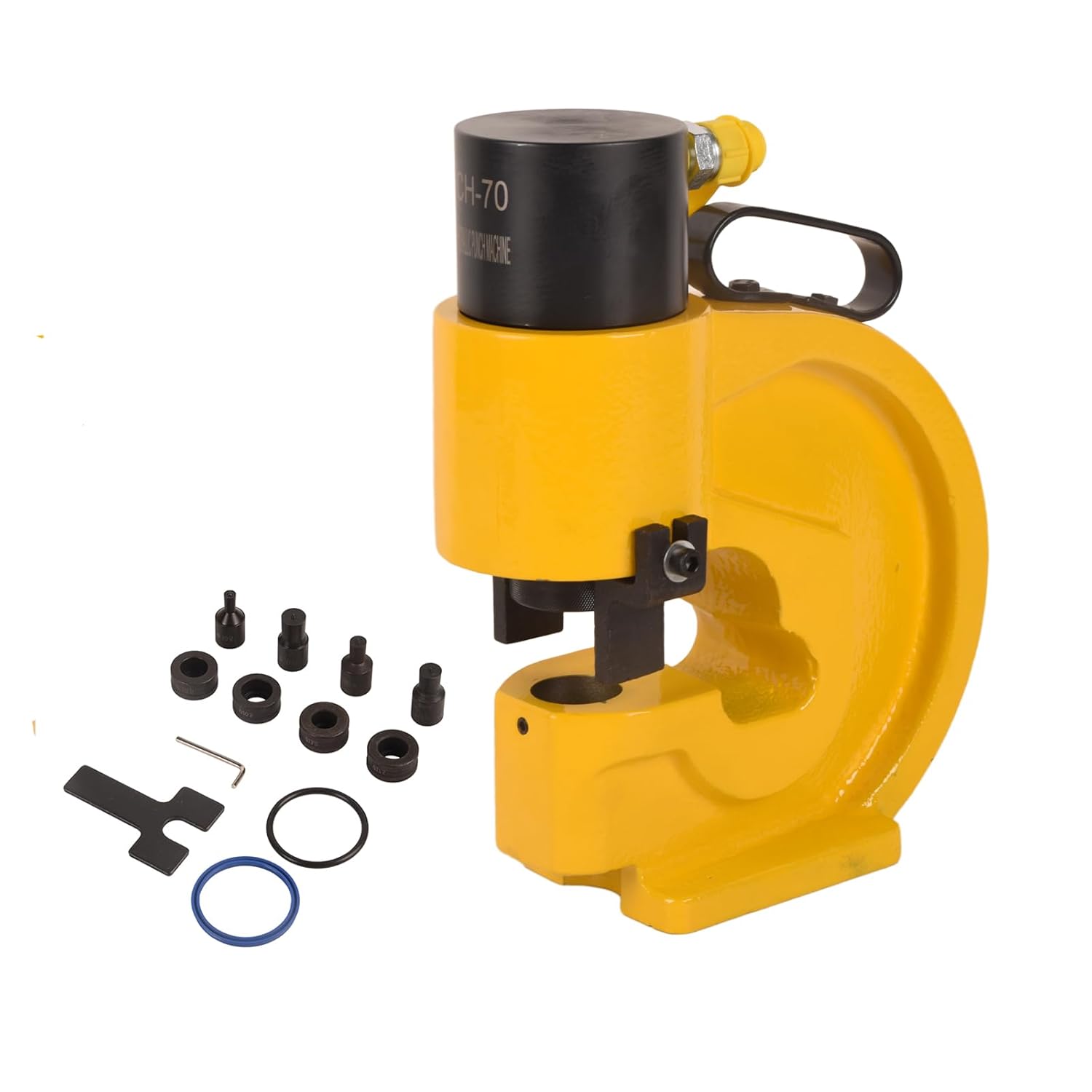

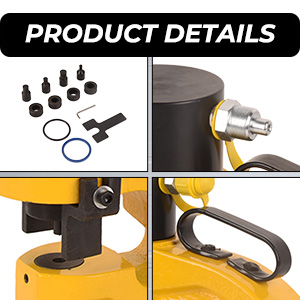

Packing List
- 1 x Puncher
- 1 x Concave pressing plate
- 4 x Dies(one of them is in the puncher)
- 1 x Allen wrench
- Several Sealing Rings

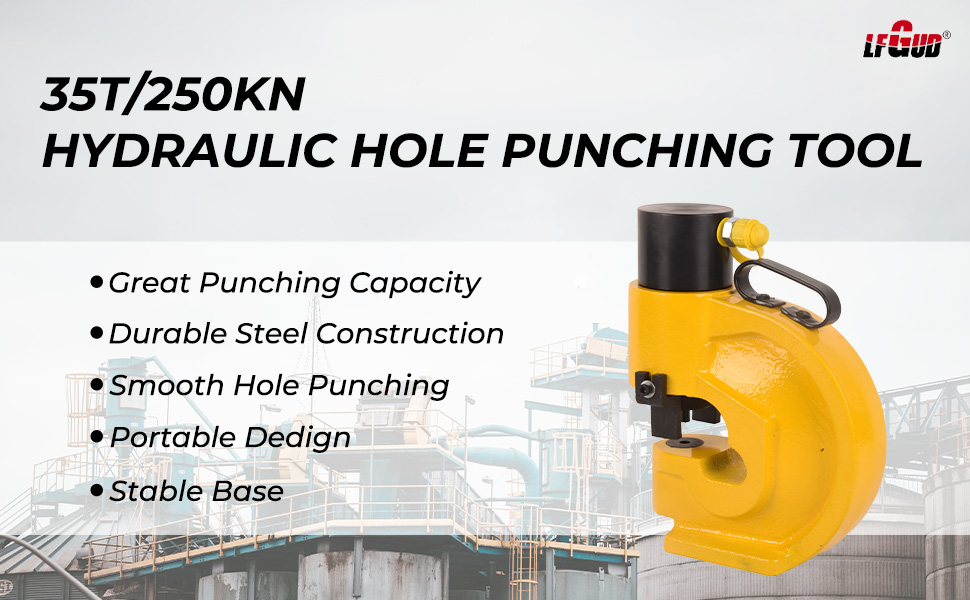

LFGUD 35T/350KN Hydraulic Hole Punching Tool (CH-70)
Heavy Duty Specifications
- Punching Force: 350KN / 35T
- Depth of Throat: 4.3"
- Aperture(4 pairs): 3/8''(Φ10.5mm), 1/2''(Φ13.8mm), 5/8''(Φ17.5mm), 3/4''(Φ20.5mm)
- Max. Thickness of Iron Plate: 1/10" to 2/5" (3-10 mm)
- Max. Thickness of Copper Bar: 1/10" to 1/2" (3-12.7 mm)
- Max. Thickness of Aluminum: 1/10" to 1/2" (3-12.7 mm)
- Max. Thickness of Stainless Steel: 1/10" to 3/10" (3-8 mm)

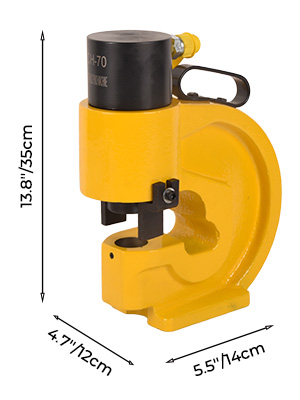

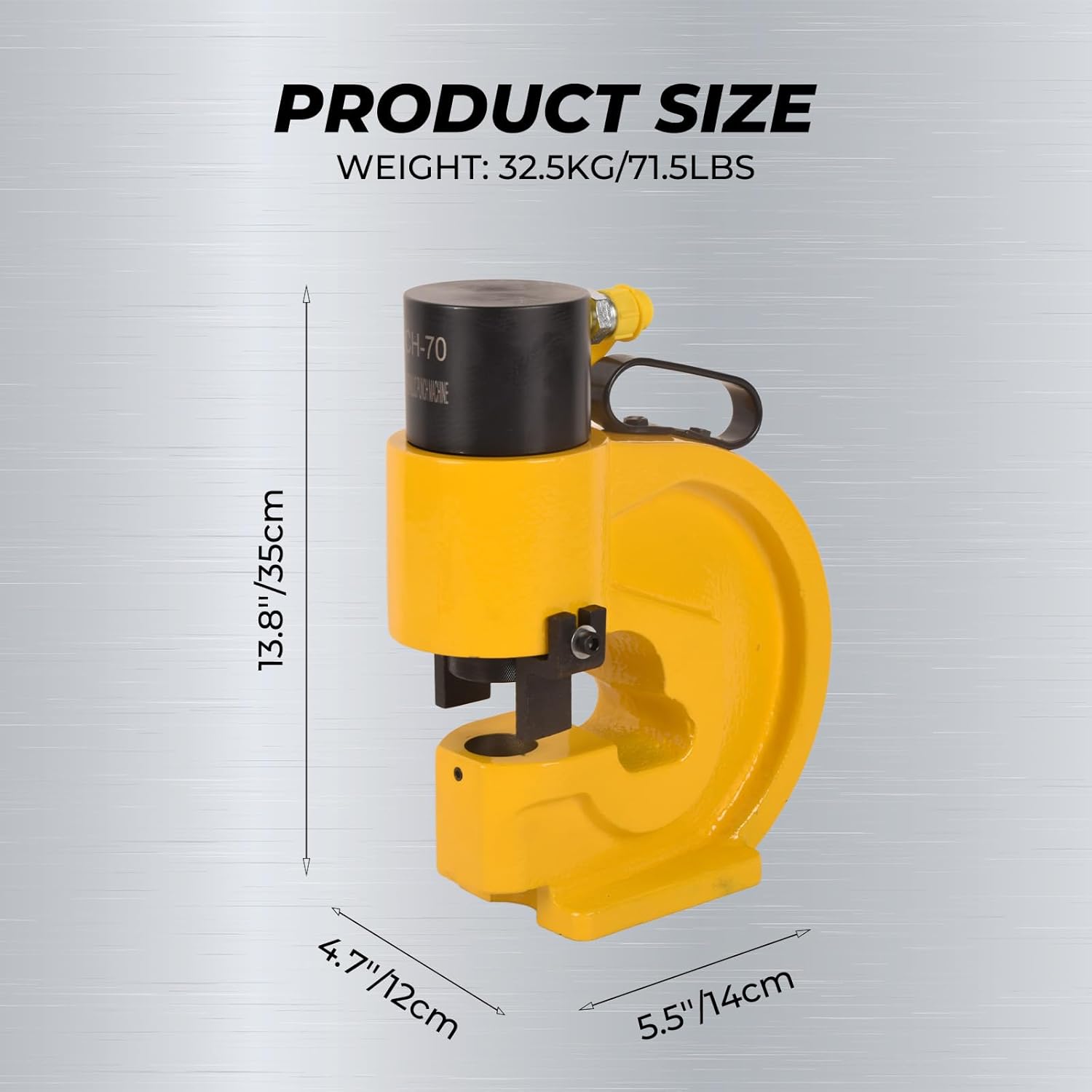

- Package Size: 15.4 x 8.1 x 13 inch / 39 x 20.5 x 33 cm
- Package Weight: 74.3 lbs / 33.7 kg

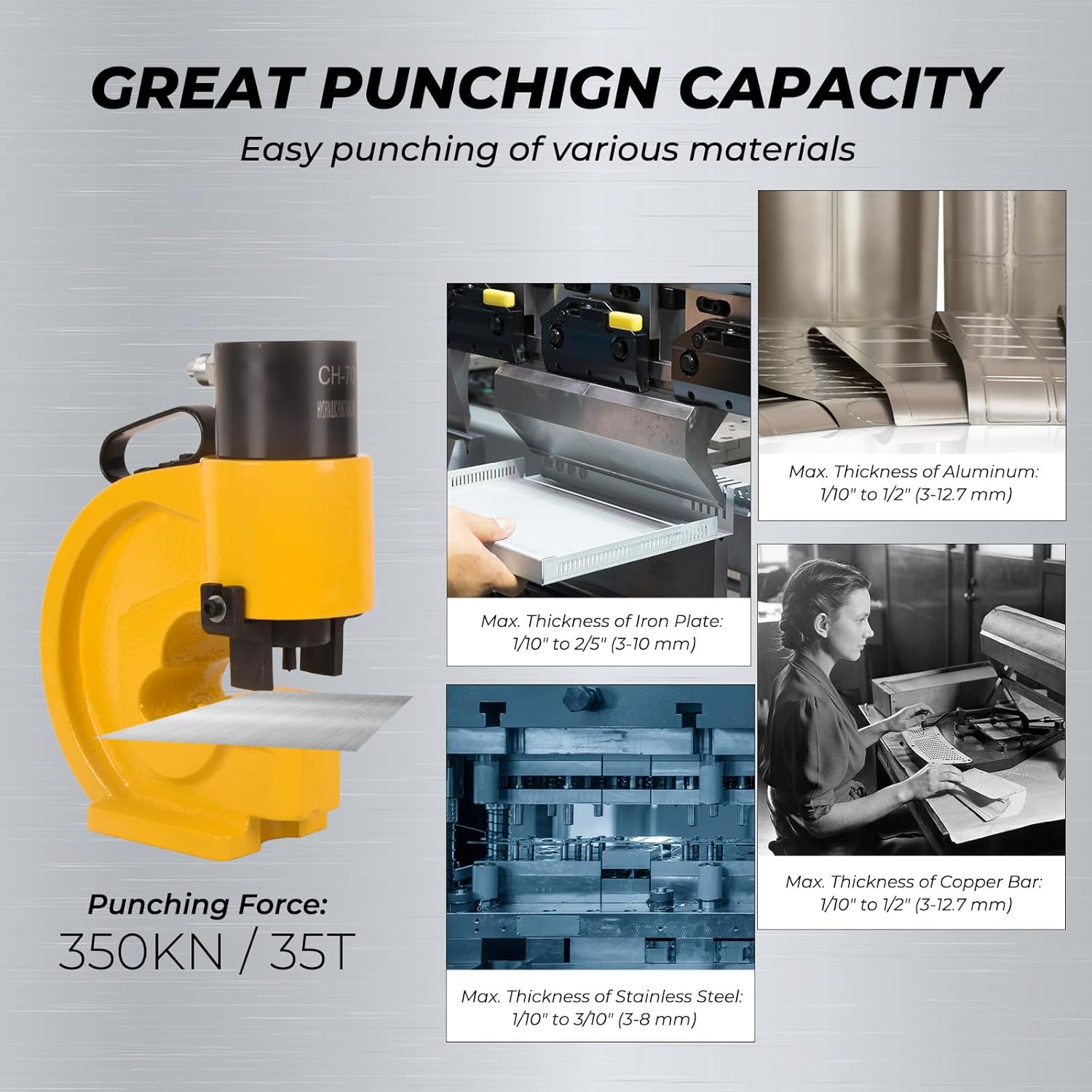

- Great Punching Capacity

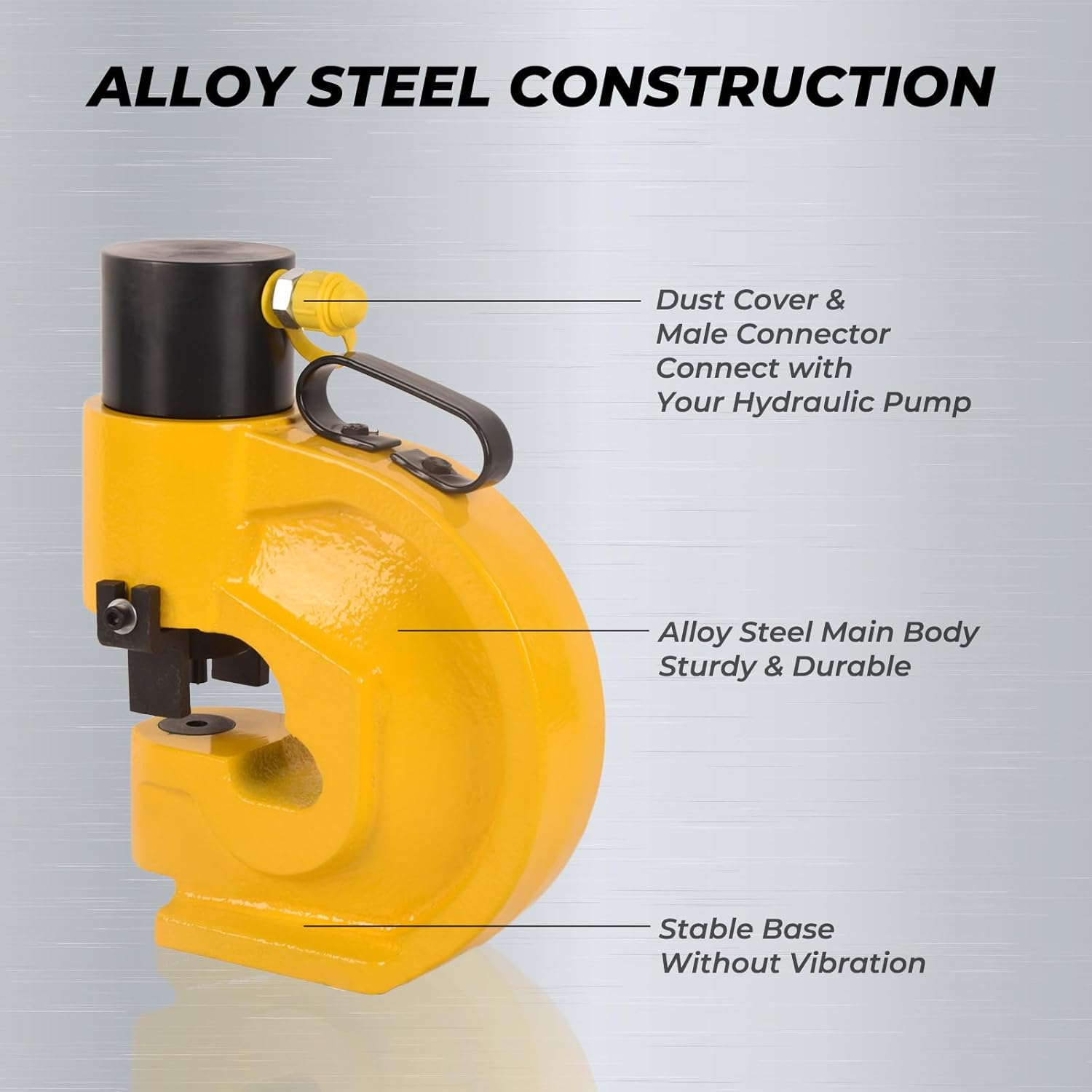

- Alloy Steel Construction
- Smooth Hole Punching
- Portable Design

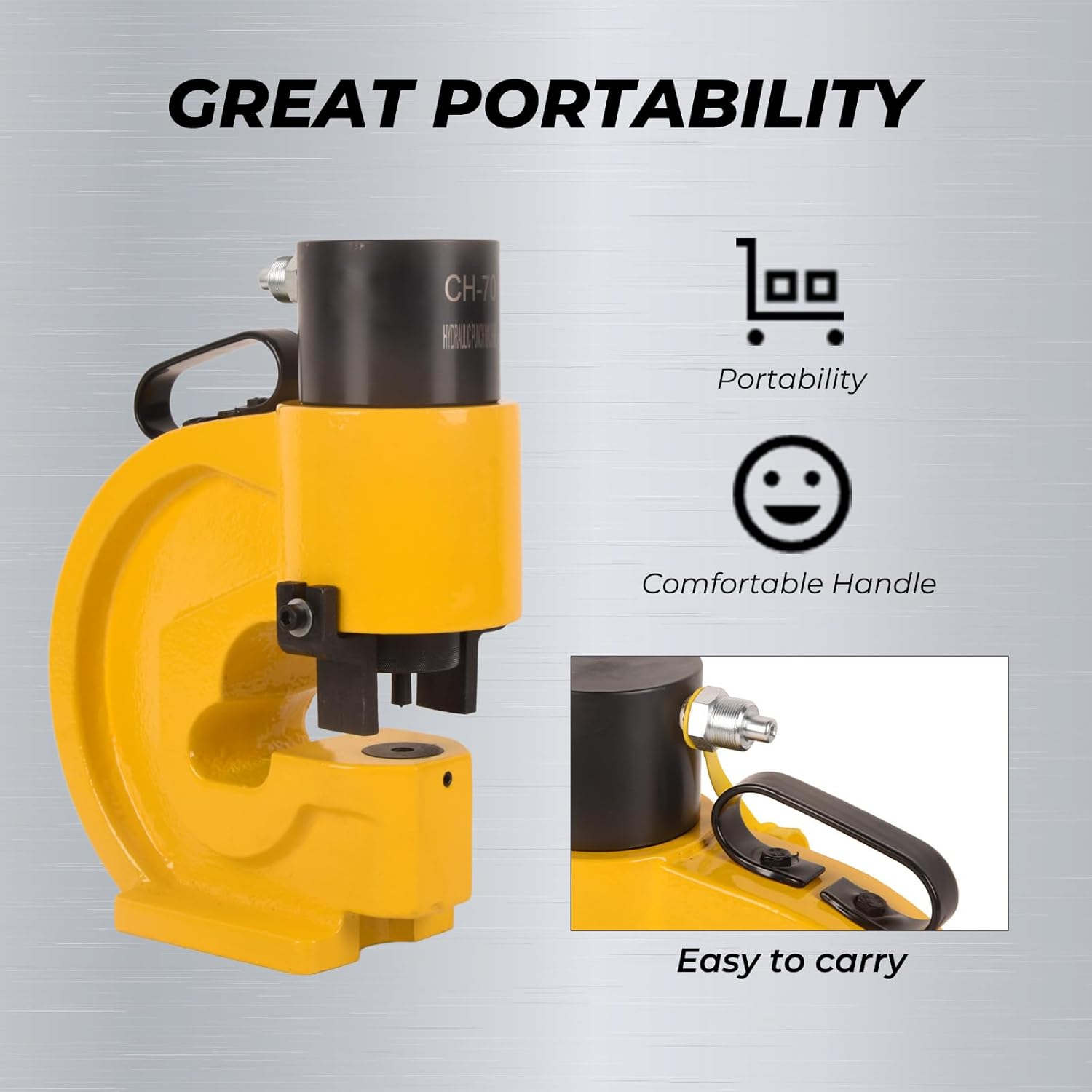

Portable Design
This hydraulic hole puncher features thickened and insulated handle makes itself easy to carry with, bringing a more comfy and safer user experience, suitable for long time use.

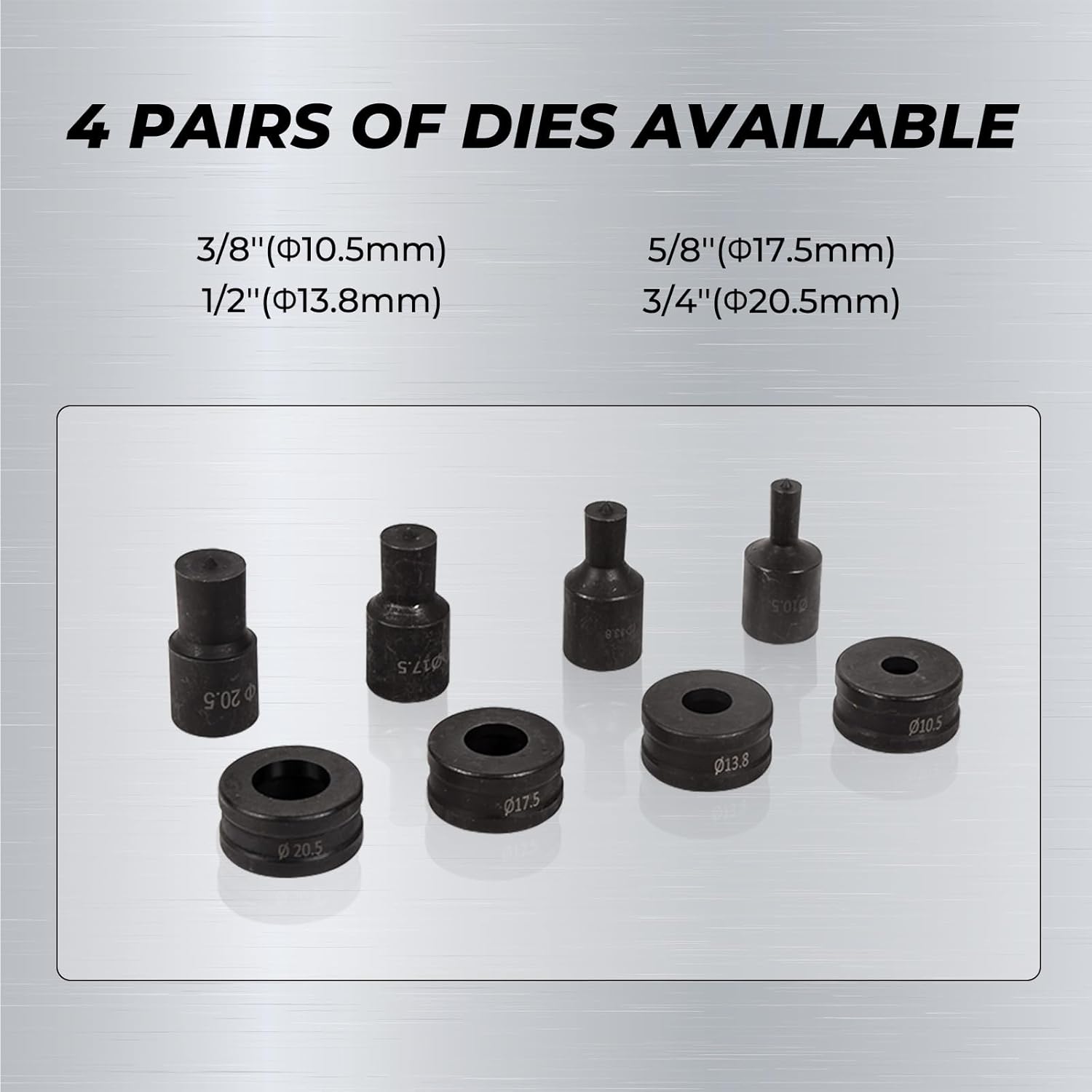

4 PAIRS OF DIES
The punching force of this hydraulic hole punching tool is as strong as 35T/350KN, and comes with four pairs of high quality punching dies of 3/8"(ф10.5 mm), 1/2"(ф13.8 mm), 5/8"(ф17.5 mm), 3/4"(ф20.5 mm),which are not easy to wear off.

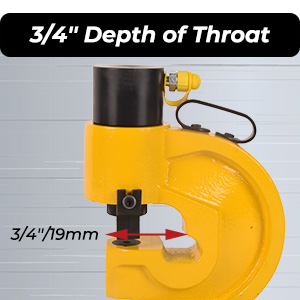

3/4" Depth of Throat
This hydraulic hole punching tool has a deep throat of 4.3"/109 mm, allowing you to put a wide plate in.And it punches quite smooth holes on iron plates of 1/10" to 2/5" (3-10 mm) thickness, aluminum / copper plates of 1/10" to 1/2" (3-12.7 mm) thickness, stainless steel plates of 1/10" to 3/10" (3-8 mm) thickness, and other metal plates.
Recommended Hydraulic Pump for This Punching Tool

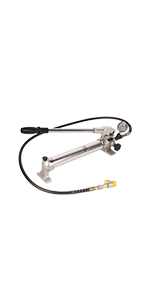

CP-700LB Hydraulic Hand Pump
|

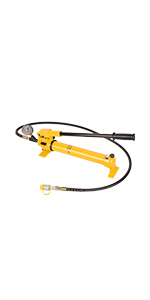

CP-700B Hydraulic Hand Pump
|
|
|---|---|---|
| Customer Reviews |
4
|
4
|
| Price | $139.95 | $189.95 |
| Oil Capacity | 900cc | 900cc |
| Operation Pressure | 20-700bar/290-10000psi | 20-700bar/290-10000psi |
| High pressure | 2.3cc(Oil Output Per Stroke) | 2.3cc(Oil Output Per Stroke) |
| Low pressure | 13cc(Oil Output Per Stroke) | 13cc(Oil Output Per Stroke) |
| Oil Pipe Length | 5.9ft/1.8m | 5.9ft/1.8m |
| Connector | ZG3/8" female quick connector | ZG3/8" female quick connector |
| Material | Aluminum Alloy | Steel |
| Package Dimension | 29.3 x 7.3 x 7.5 inch / 74.5 x 18.5 x 19 cm | 28.7 x 7.09 x 7.5 inch / 73 x 18 x 19 cm |
| Package Weight | 24.5 lbs / 11.1 kg | 30.86 lbs / 14 kg |
