60A MPPT Solar Charge Controller, Auto 12V/24V/48V Detect, LCD Display, Max 160V PV Input, Compatible with AGM Lithium Lead-Acid Batteries

60A MPPT Solar Charge Controller, Auto 12V/24V/48V Detect, LCD Display, Max 160V PV Input, Compatible with AGM Lithium Lead-Acid Batteries

$65.99 USD
$65.99 USD $65.99 USD
Sale Sold out
Shipping calculated at checkout.
Model

From the brand

  2. V123 Solar Charge Controllers

  3. V125 Solar Charge Controllers

  4. MakeSkyBlue, we lead the way in providing advanced inverter and charging technologysolutions. Since our founding, we've been at the forefront of the global green energyrevolution, pushing the boundaries of innovation to make renewable energy moreaccessible,reliable,and efficient, Through continuous technological advancementswe're transforming the way energy powers homes, businesses, and vehicles woridwide

Product description

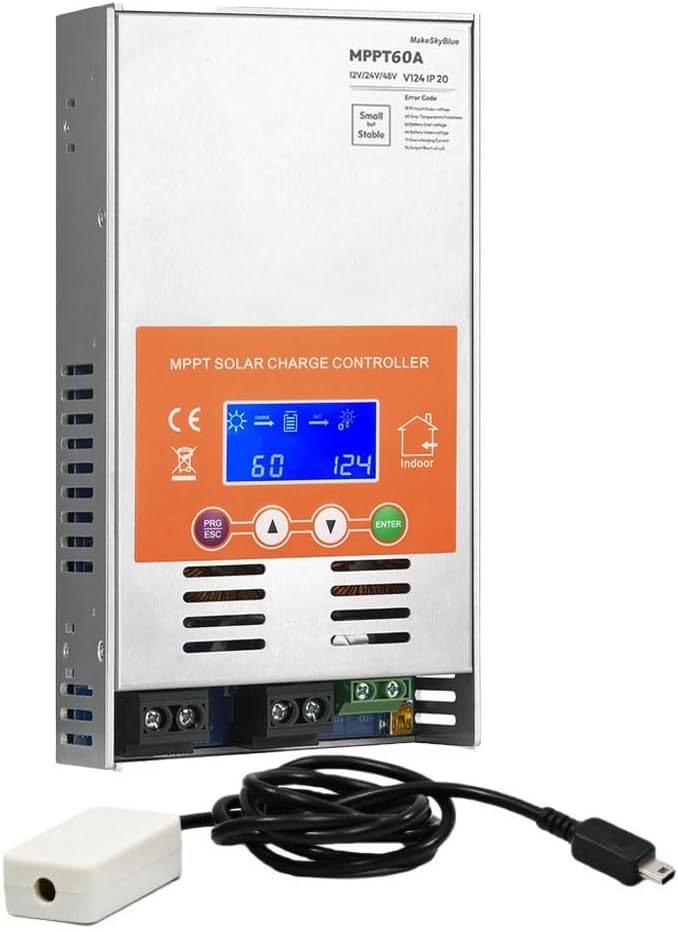

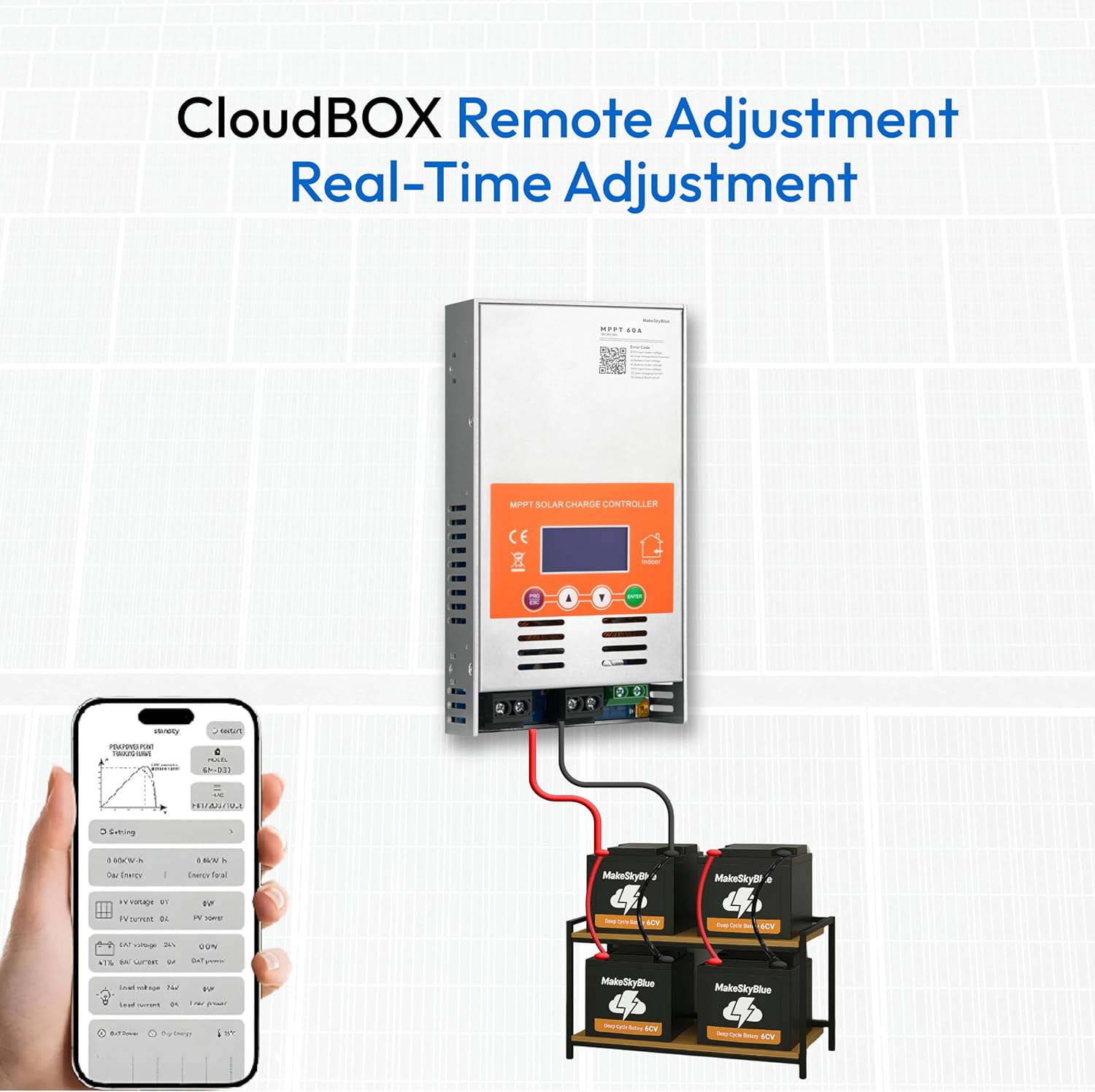

60 AMP V123 MPPT Solar Charge Controller

FEATURED

  • Intelligent Maximum Power Point Tracking technology
  • Built-in DSP controller with high performance

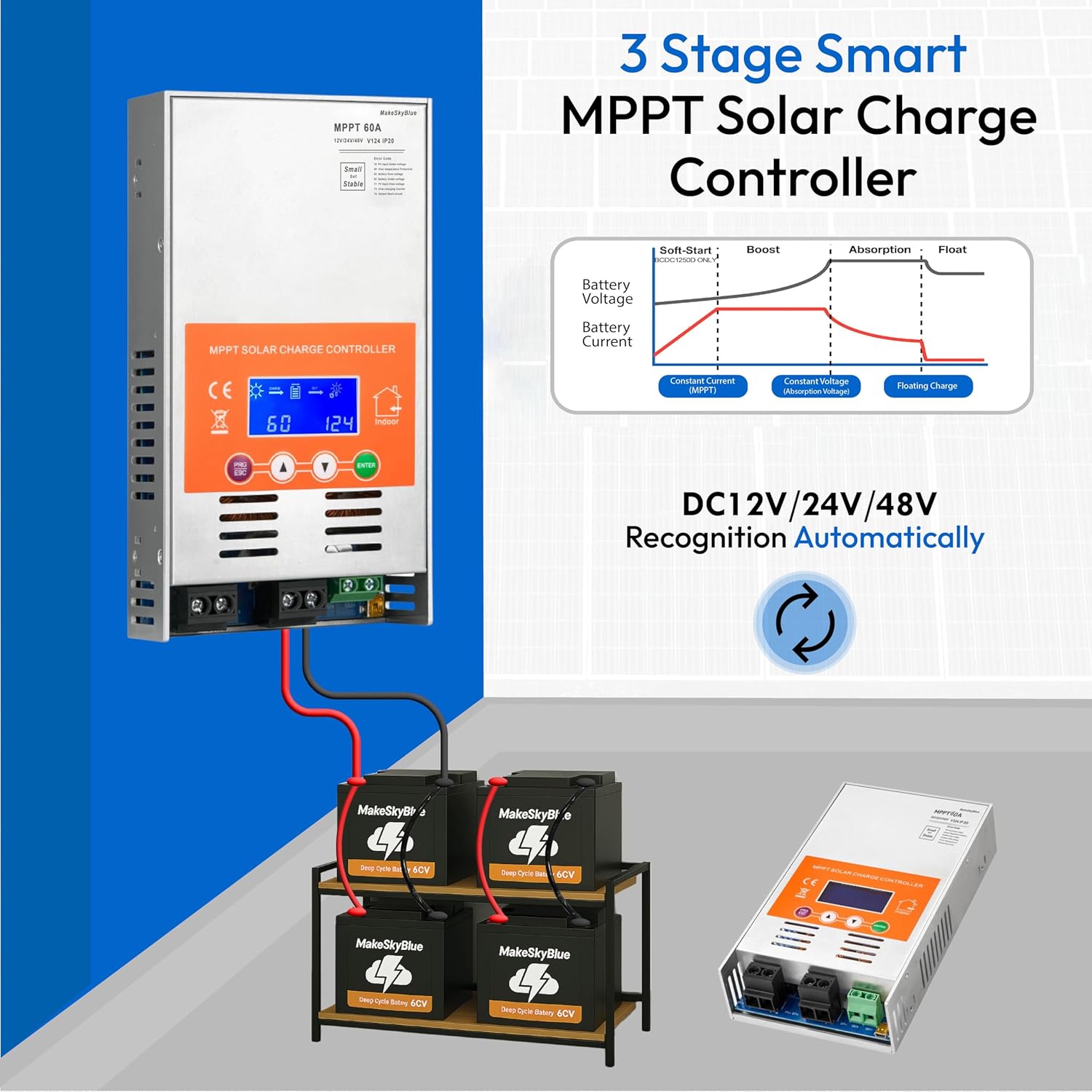

  • Three-stage charging optimizes battery performance
  • Multi-function LCD displays
  • Suitable for all kinds of battery

INPUT

  • Maximum PV Array Power:

  1. ≤ 720W Panel for 12V Battery
  2. ≤ 1440W Panel for 24V Battery
  3. ≤ 2800W Panel for 48V Battery

  • PV Array Open Circuit Voltage (Voc):

  1. 20V-80V for 12V Battery
  2. 37V-105V for 24V Battery
  3. 72V-160V For 48V Battery

OUTPUT

  • Default charging mode is for lead acid battery
  • Set the voltage from 12V-17V for 12V Battery, 24V-34V for 24V Battery, and 48V-68V for 48V Battery

PROTECTION

  • Limited current protection: 61A
  • Temperature protection: >75℃
  • Fan-on temperature: >45℃ Fan-off temperature: <40℃
  • Overcharging protection voltage: 15V for 12V battery, 30V for 24V battery, and 60V for 48V battery

Initialization

Initialization

The initialization page displays as above when you connect all correctly and battery voltage is over 12V.

40A V123

Model and Version

The second page is 60A and version is 123

PV

PV and Charging Power

PV voltage / Output power

PV is solar panel voltage.

Right side is charging power.

Batt

Batt voltage and Charging Current

Battery voltage / Charging current

BATT is battery voltage.

Right side is charging current.

Acc

Acc

ACC Power Generation

ACC is accumulated power generated

Mode

Modes

Working mode/Error code/Temperature

  • 3.0 Night mode, no charging
  • 4.0 MPPT mode
  • 7.0 Absorption mode
  • 8.0 Floating mode

Load time

D00

D00 is setting for load working time.

For example, if you connect a DC lamp less 5 AMP, when you set it 24, then will light for 24 hours.

D01

D01

D01 is floating charging voltage.

And you could set the voltage from 12V-17V for 12V Battery, 24V-34V for 24V Battery, and 48V-68V for 48V Battery

D02

D02

D02 is highest constant charging voltage.

And you could set the voltage from 12V-17V for 12V Battery, 24V-34V for 24V Battery, and 48V-68V for 48V Battery

D03

D03

D03 is protection voltage of battery discharge.

When battery is less 40V for 48V battery, then load is no output.

D04

D04

D04 is setting for battery type.

00 is default for lead-acid battery.

D06

D06

D06 is for voltage calibration.

If you have accurate device and need to calibrate the voltage, then use D06 to change the battery voltage.

60A
