60A Solar Charge Controller MPPT 12V 24V 36V 48V Controller 60amp Solar Charge Regulator MPPT 160V w/LCD Display Work with AGM, Gel, Flooded and Lithium

MPPT Solar Charge Controller 60A , 12V/24V/36V/48V Auto Work
60A mppt solar charge controller is new upgrade version，Better funcations and advanced technology .

Added Features:

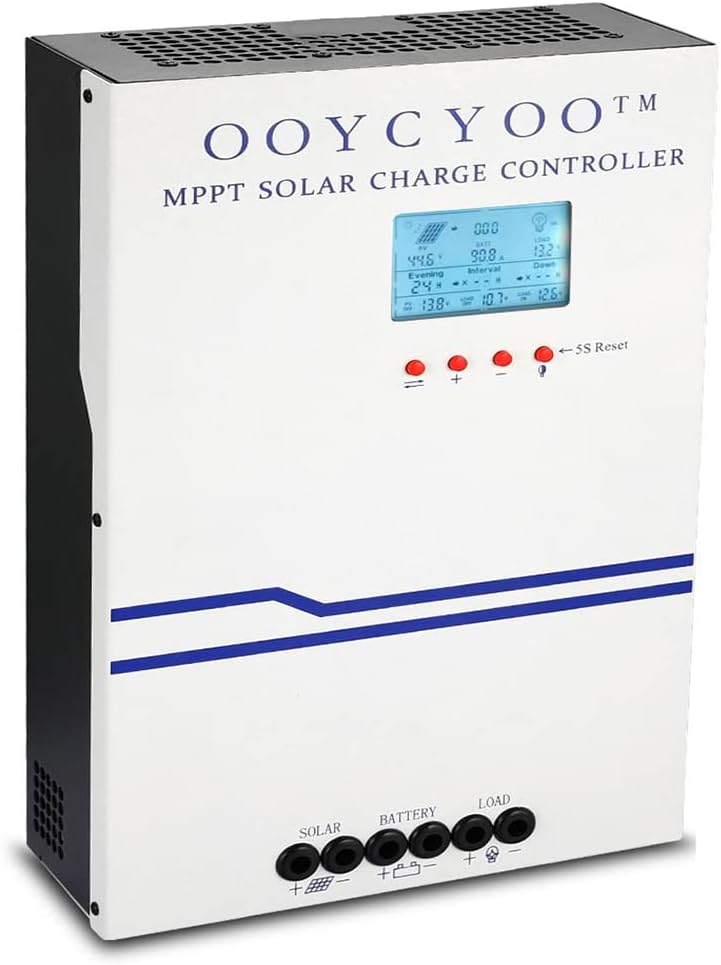

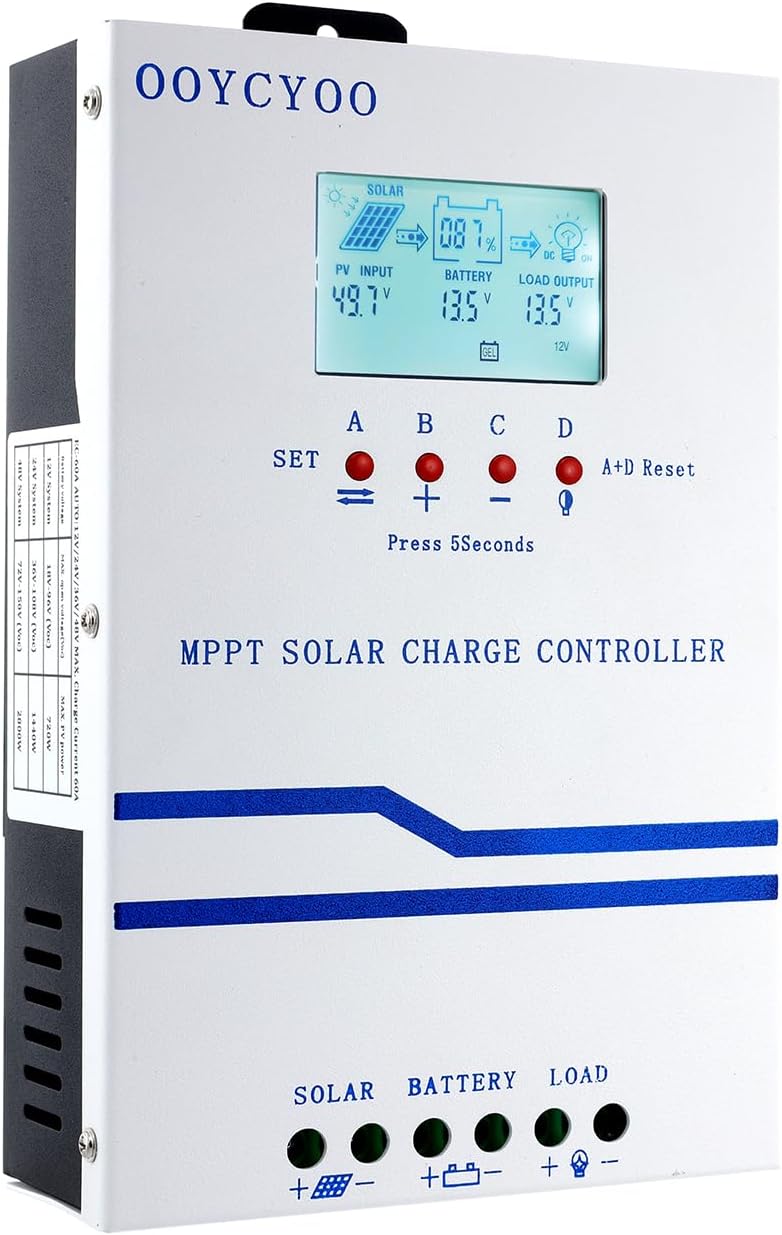

Blacklight LCD Display
The display directly shows the amount of charge: KWH, without the need for other measuring instruments
Two new vents are added for scientifically designed convection cooling.
More Safety Protection
Maximum DC/DC transfer efficiency is as high as 99%

MPPT 60A Technical datas :
Rated charge current:60A

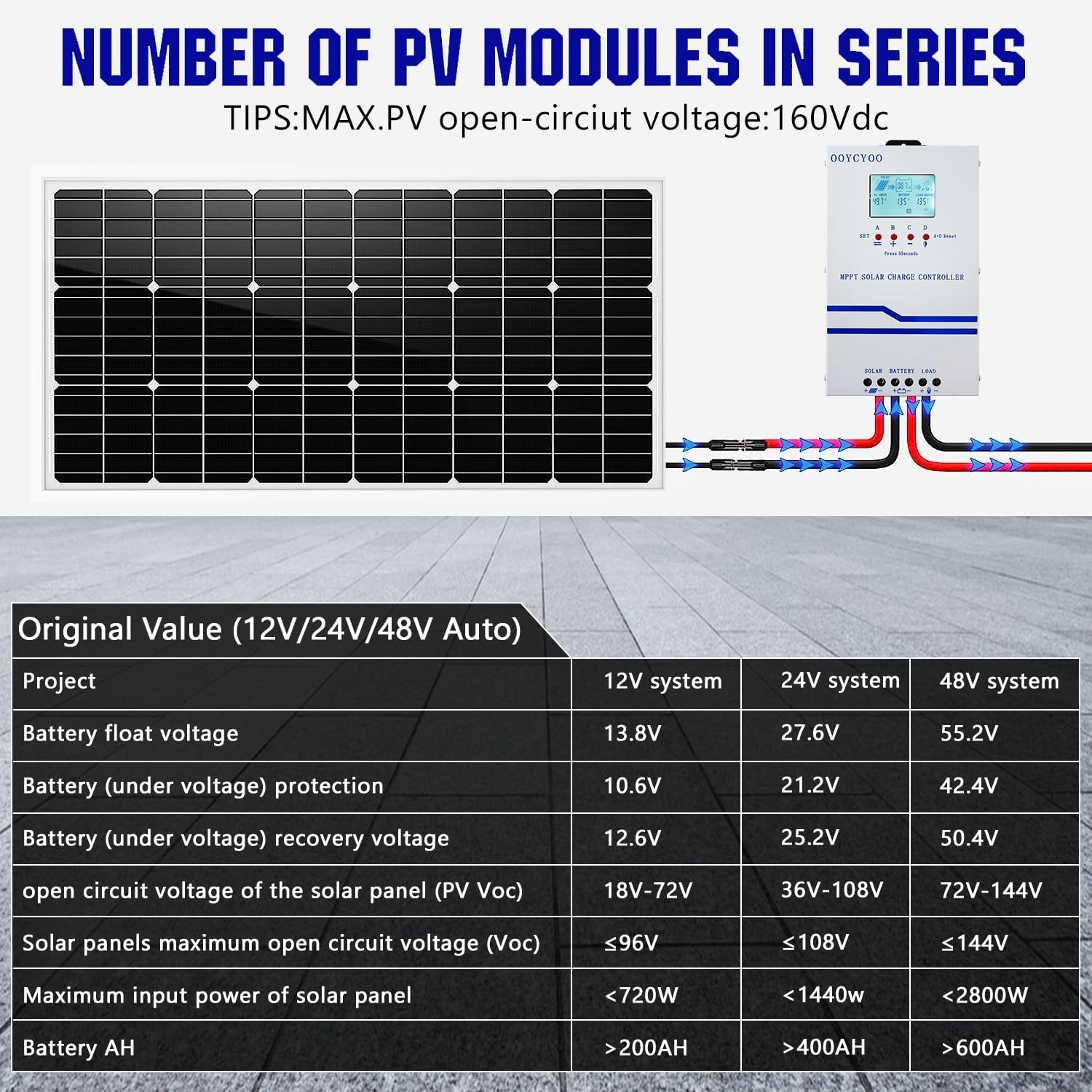

12V battery system:open circuit voltage ≤72V(Voc) maximum. PV input power:720W
24V battery system:Open circuit voltage ≤108V(Voc) maximum.PV input power:1440W
36V battery system:Open circuit voltage ≤144V(Voc) maximum.PV input power:2100W
48V battery system:Open circuit voltage ≤160V(Voc) maximum.PV input power:2800W
System nominal voltage :12V/24V/36V/48V DC Auto identifying
Battery voltage range: 9V~55V
Max.PV open circuit voltage:160VDC
Power terminal:6-12 AWG
Dimension: 11*6*2.5（in）
Weight : 4(ib)

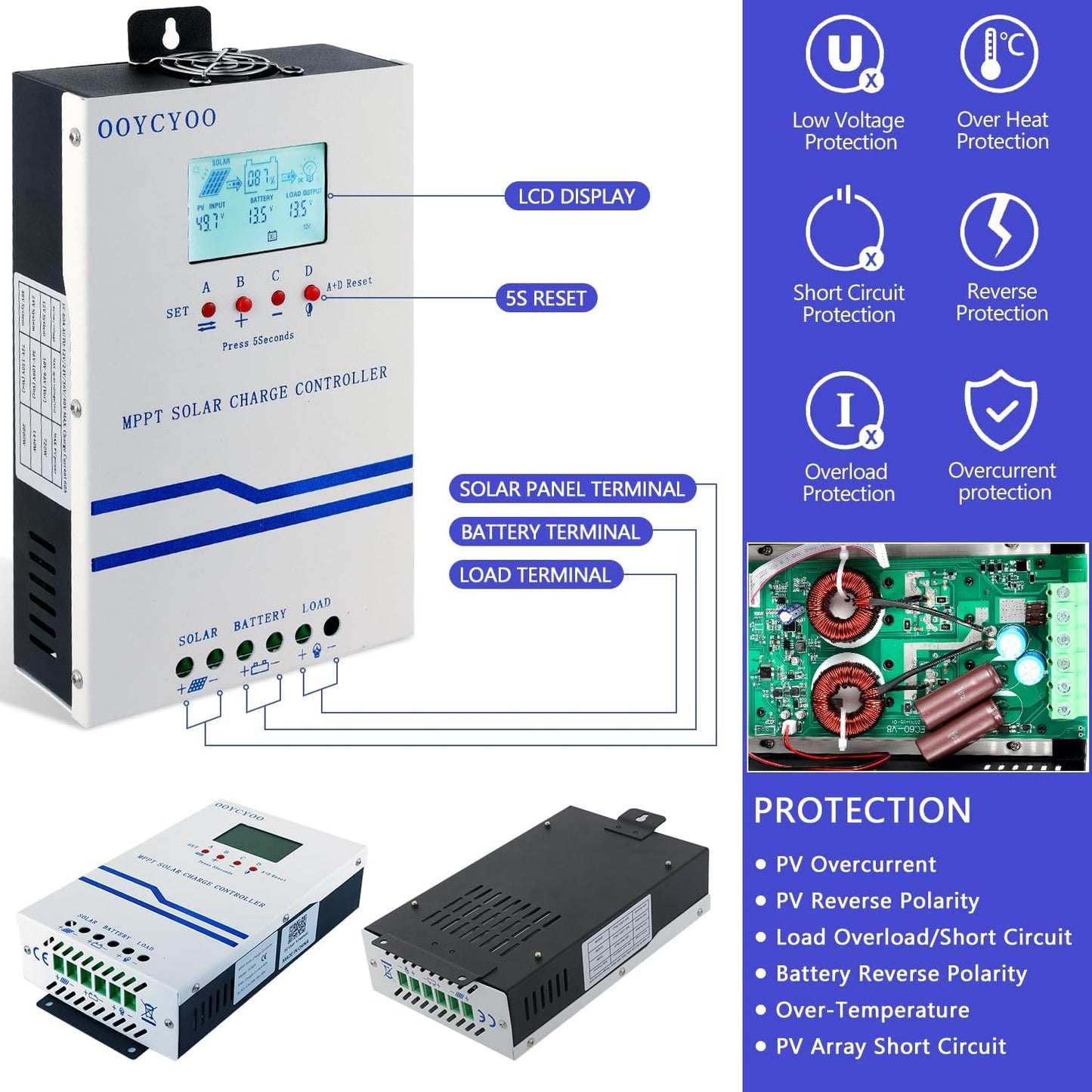

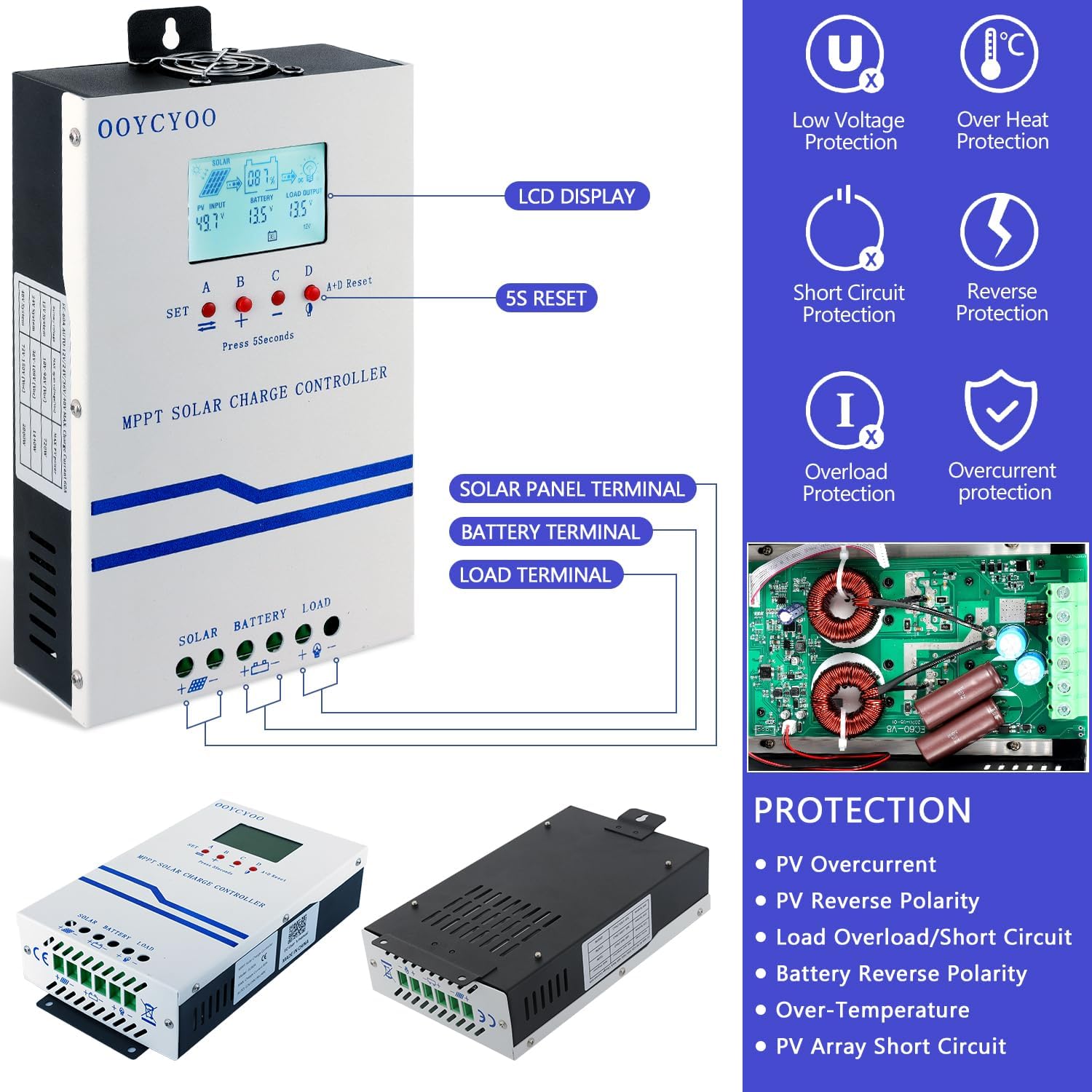

Protection function:
PV Over Current/power
PV Short Circuit
PV Reverse Polarity
Night Reverse Charging
Battery Reverse Polarity
Battery Over Voltage
Battery Over Discharge
Battery Overheating,Controller Overheating
Lithium Battery Low Temperature
Load Short Circuit
Load Overload
TVS High Voltage Transients

Package List:
1 x 60A MPPT Solar Charge Controller
1 x User Manual (English)
