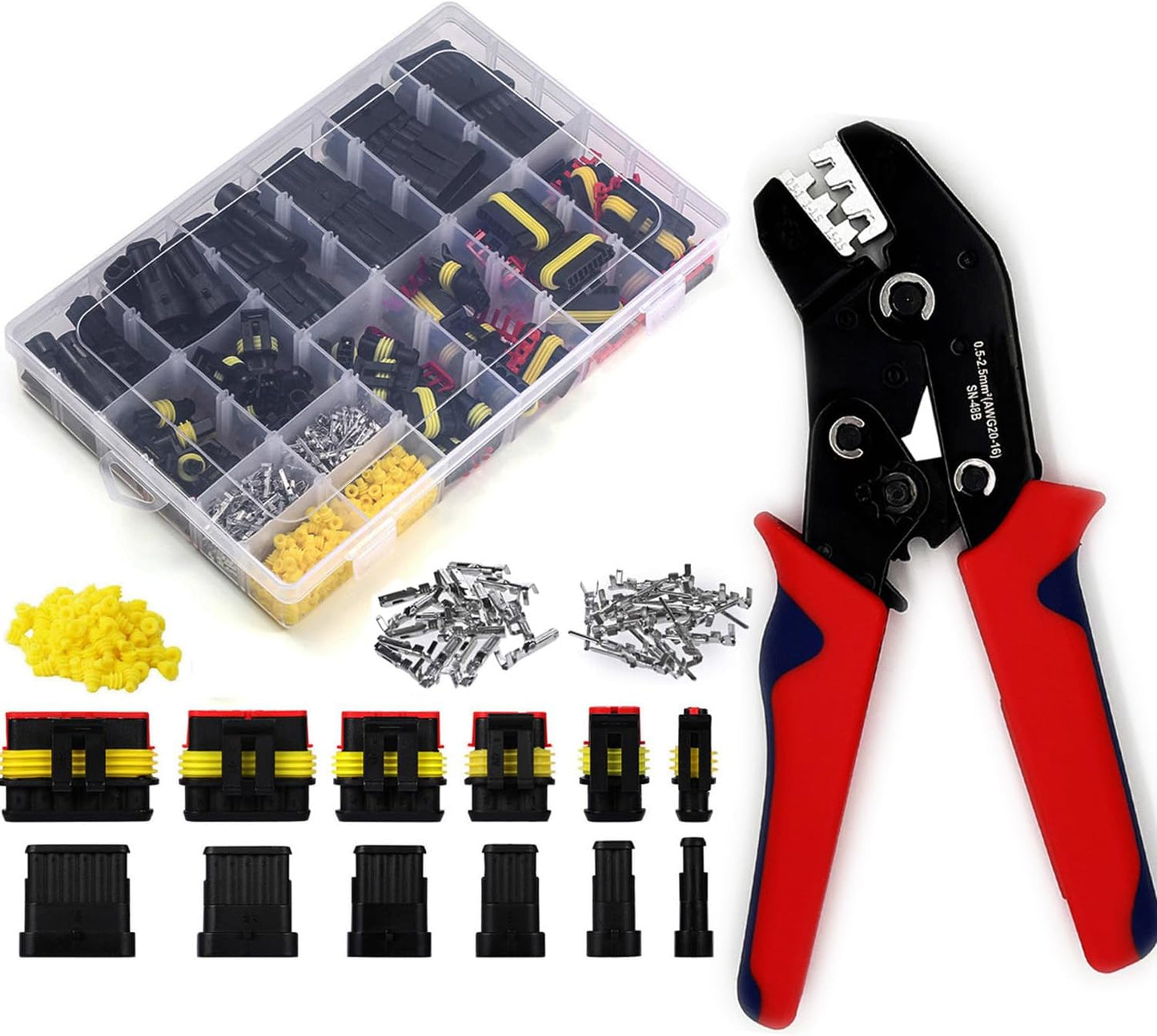

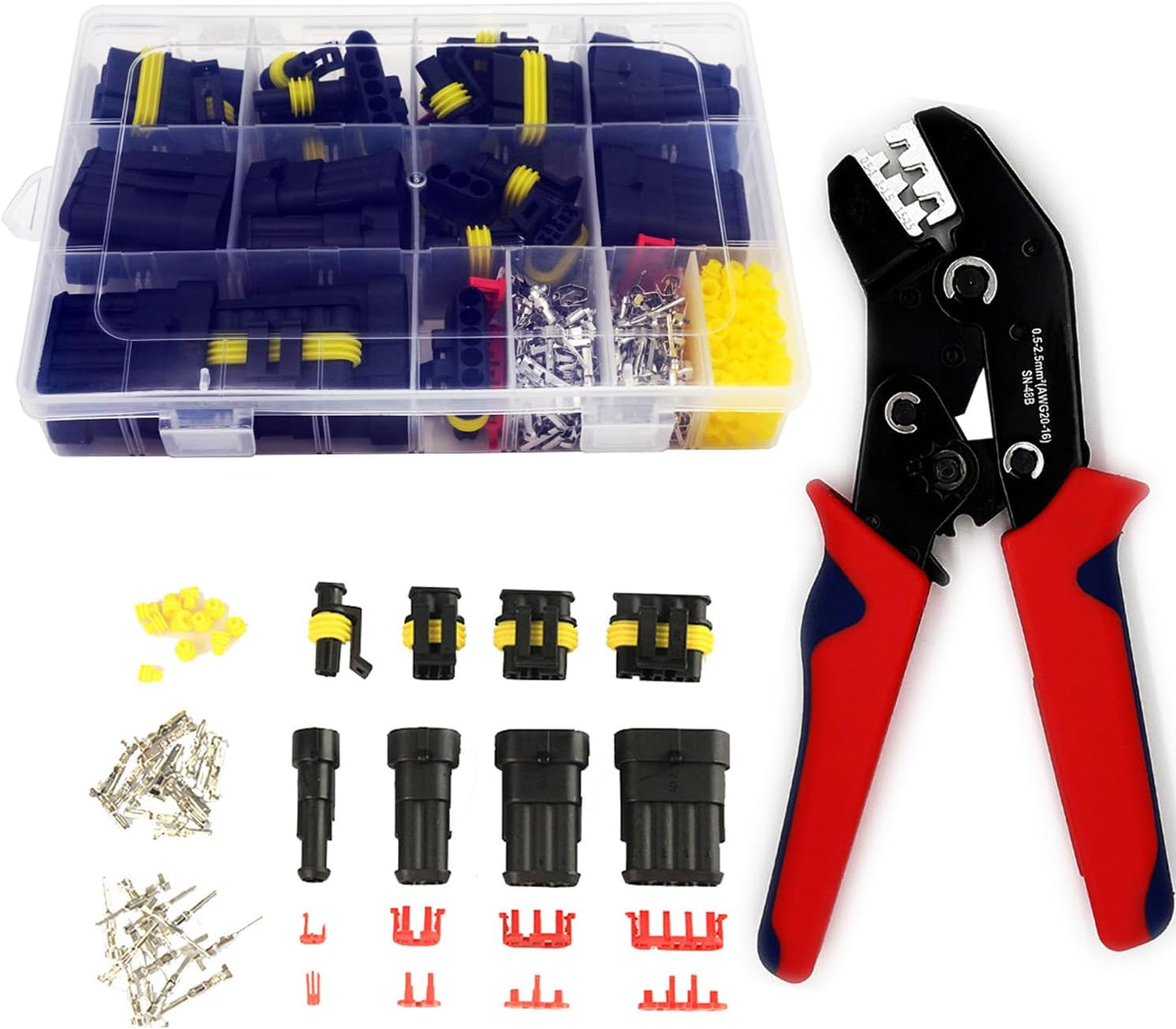

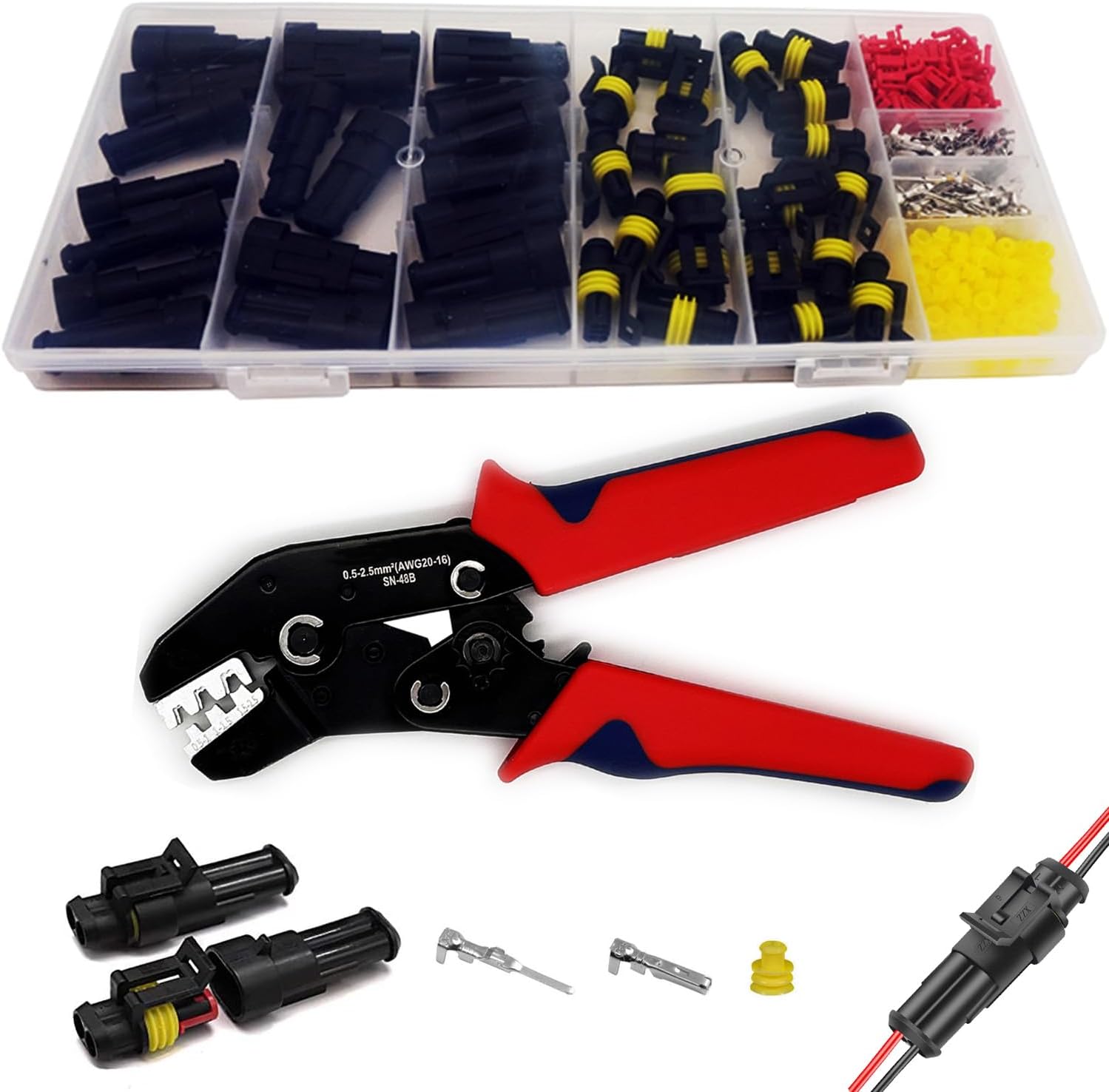

800Pcs 50 Sets Waterproof Automotive Electrical Wire Connectors Plug Kit 1/2/3/4/5/6 Pin Waterproof Connectors with Ratchet Crimping Tool
800Pcs 50 Sets Waterproof Automotive Electrical Wire Connectors Plug Kit 1/2/3/4/5/6 Pin Waterproof Connectors with Ratchet Crimping Tool
Couldn't load pickup availability
From the brand
Waterproof Wire Connectors
Connect you and me, connect the world.
-
About Us
Twippo is a popular brand that is dedicated to provide innovative and quality products. We have specialized in automotive waterproof wire connectors for many years.
Our Mission
Focus on one thing, constant improvement and innovation is our eternal mission.
Product description
Twippo Car Waterproof Electrical Wire Connector (1-Pin, 2-Pin, 3-Pin, 4-Pin, 5-Pin, 6-Pin):
Electrical Wire Connector Terminal Plug, Dustproof, Waterproof, Great for High Sensing Performance Requirement Electrical System.
Automotive Electrical Connector Kit is Suitable for Motorcycle, Car, Truck, Scooter, Jet ski, Boat, etc.
About Us
Twippo is a popular brand that is dedicated to provide innovative and quality products. We have specialized in automotive waterproof wire connectors for many years. Constant improvement and innovation is our eternal mission.
Connect you and me, connect the world.
Features of Automotive Electrical Connectors:

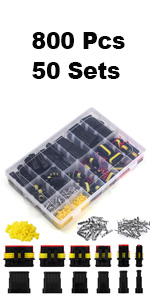

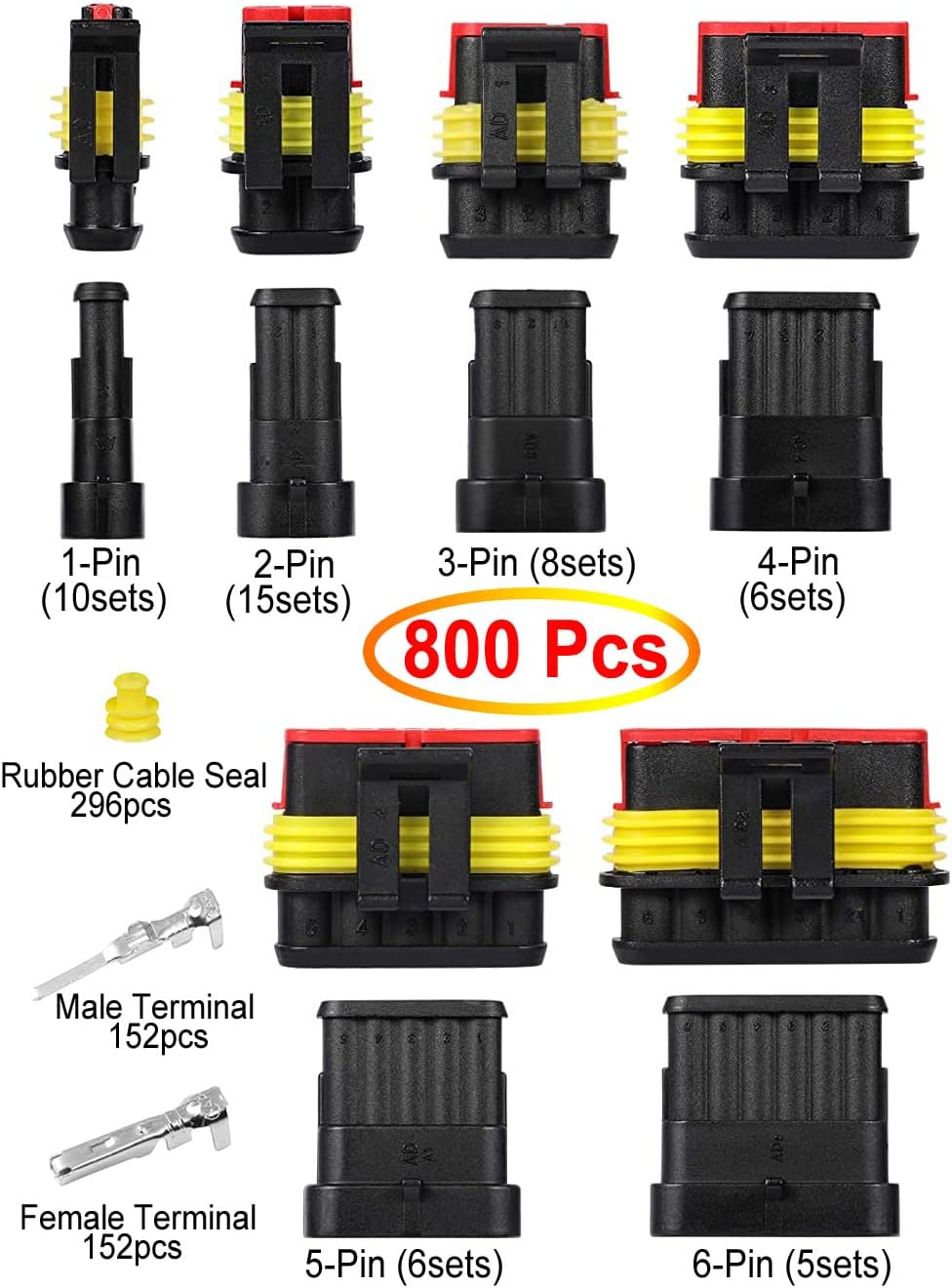

1. Package included: (50 Sets: 1 pin-10sets, 2 pin-15sets, 3 pin-8sets, 4 pin-6sets, 5 pin-6sets, 6 pin-5sets), 800pcs parts respectively, different types of automotive wire connector parts to meet different usage needs.
2. Waterproof electrical connector for car is made of high quality plastic material with good waterproof function.
3. Automotive electrical connectors are good tools for auto repair and reset, very suitable for home DIY and auto repair shop use.
- Material: Plastic + Copper
- Rated Voltage: 12V (waterproof connector)
- Rated Current: 5A (male/female connector）
- Wire Gauge: 22-16 Gauge Wire
- Number of Stitches: 1/2/3/4/5/6 Pin Connector

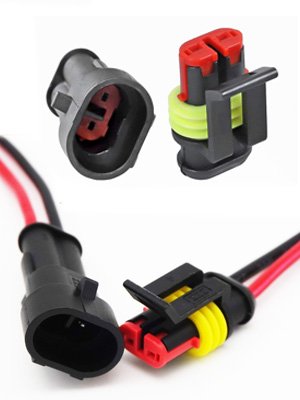

Automotive Electrical Connectors
Gm electrical connectors, dustproof, waterproof, automotive wire connectors are suitable for motorcycle, car, truck, scooter, jet ski, boat, etc.

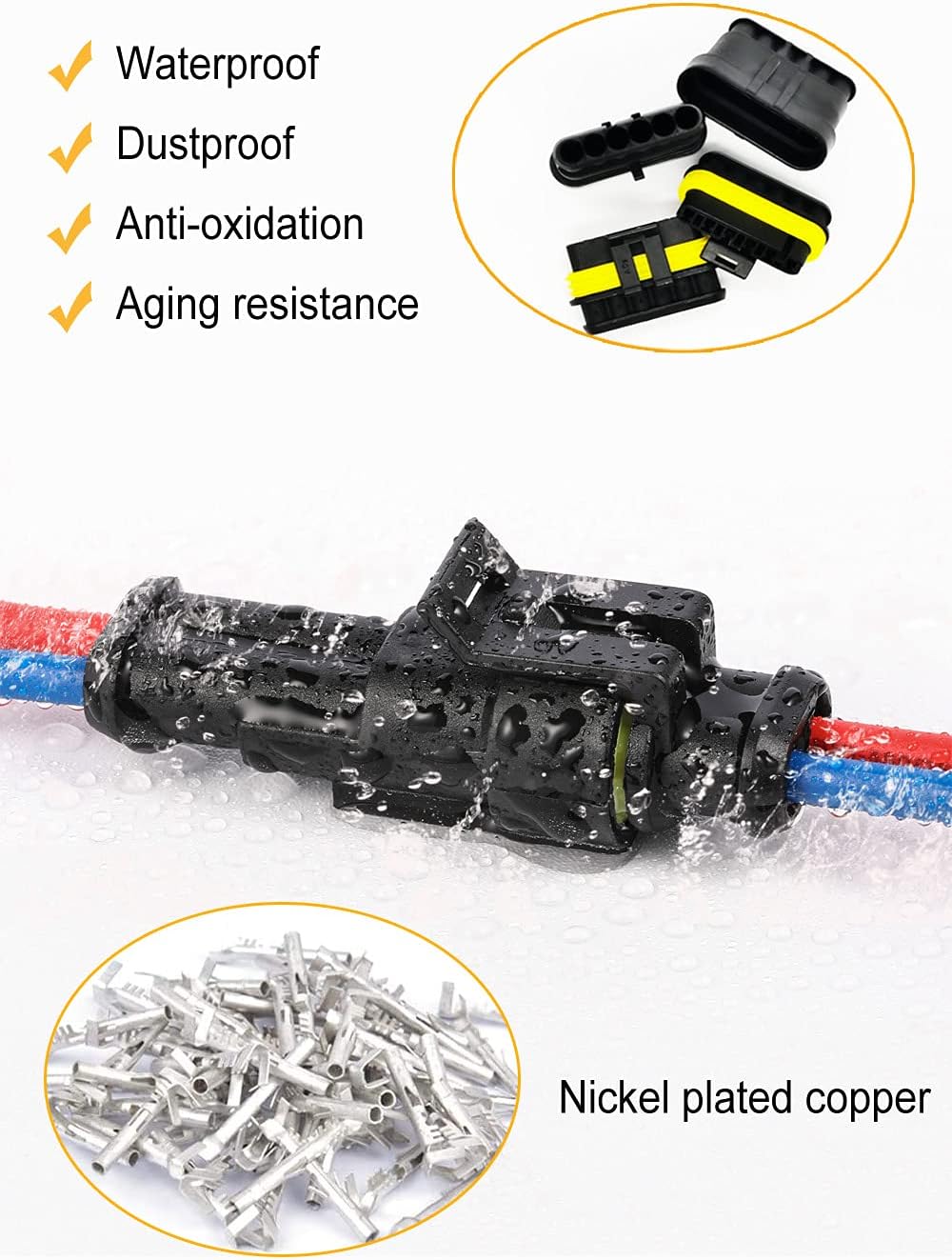

Excellent Waterproof Function
Wire connectors automotive are made of high quality plastic material with good waterproof function safety, good electrical conductivity.

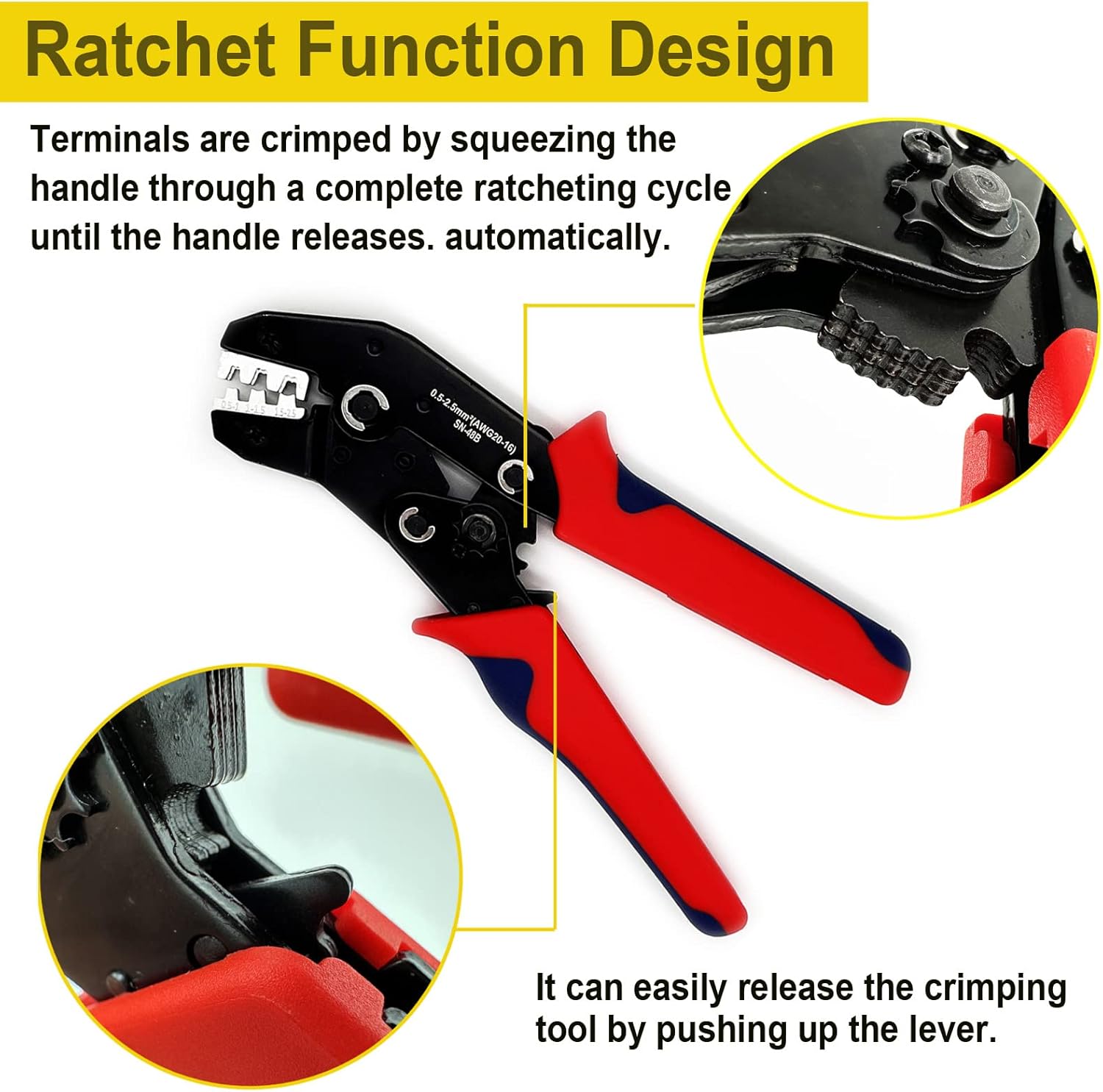

Ratchet Function Design

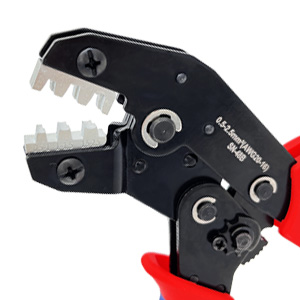

Twippo crimping tool comes with wide crimping range: 0.5-2.5mm²/20-14AWG, it is a very practical ratcheting wire crimper.

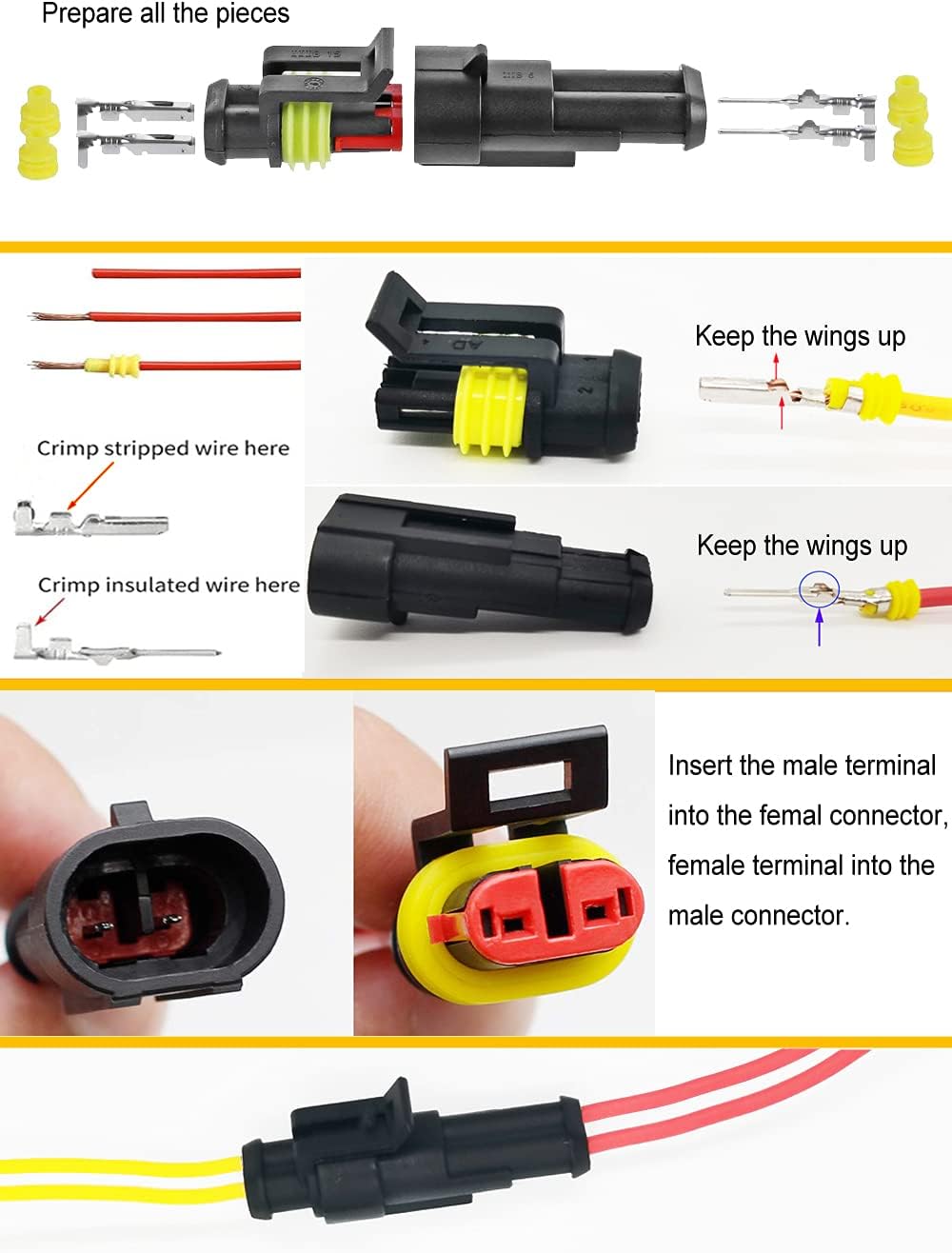

NOTE:
- It is important to identify the insulation tabs, conductor tabs and wings on the terminals.
These wings work for locking the connectors. ***DON’T CRIMP WINGS***
Crimp conductor tabs to the stripped wires. Crimp insulation tabs to the insulated wires.
Don't deform the terminals (otherwise, the terminals and connectors will not be locked).
- PULL TEST is very important.
Pull test to make sure that the terminals are crimpped well, if the terminals do not tight into the place, the wires will easily be pulled out from the connectors.
If you have troubles to crimp the terminals, Twippo crimping tool could help you tight the terminals on the wires very well.
- There is only one direction to insert terminals. (The way likes picture shows.)
The terminals lock the connector with a snap.
Once you insert terminals, they will not be pulled out again. If you put them to wrong direction, they will be pulled out easily.

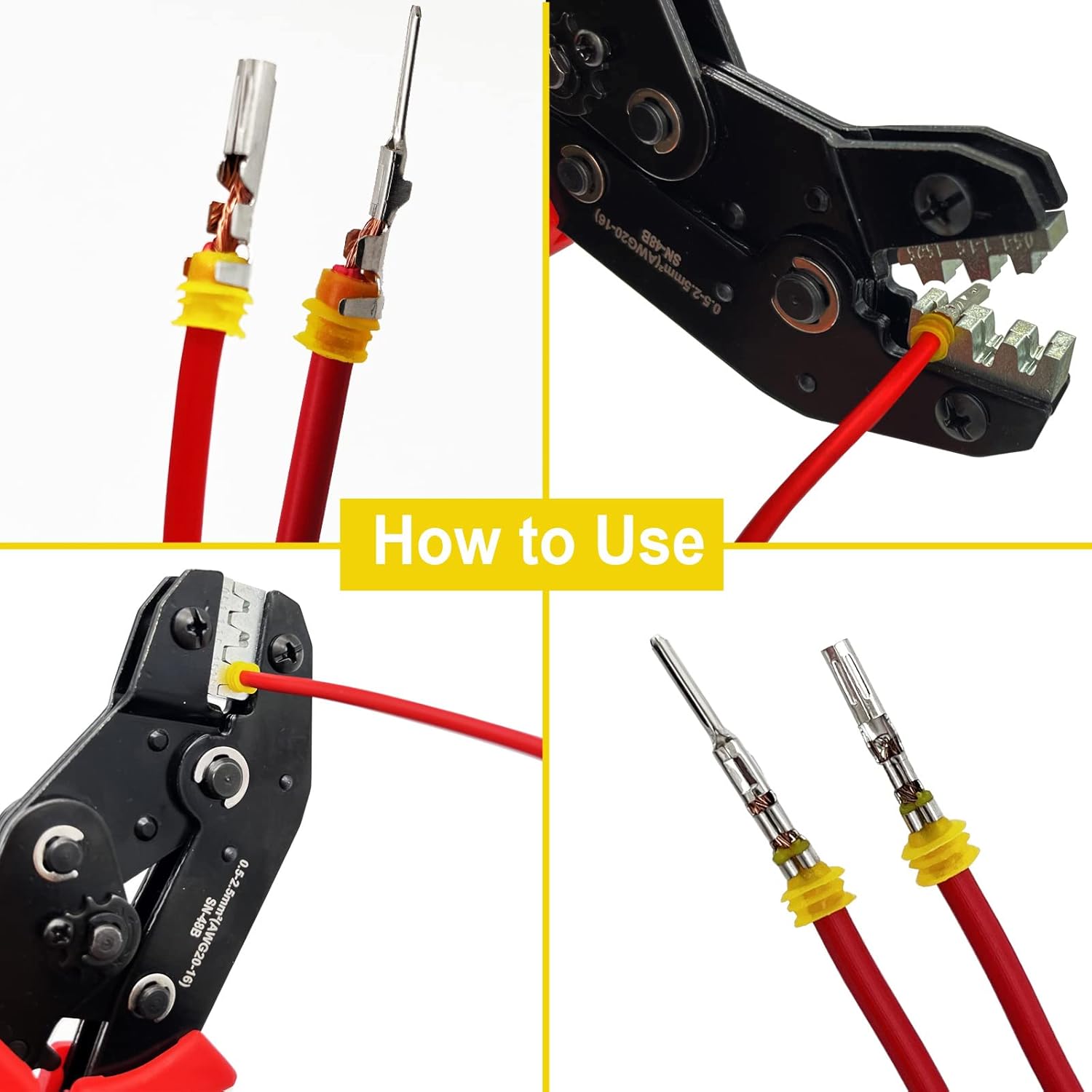

How To Use the Crimper
Step 1
Prepare the terminals to be crimped.
Step 2
Place the terminal in the appropriate size slot of the crimping pliers.
Step 3
Press the crimping pliers firmly, or try multiple crimping attempts to ensure molding.
Step 4
The perfectly crimped terminals are shown here, robust and compact.

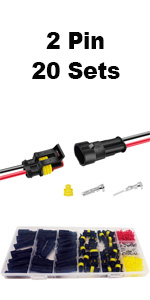

2Pin Wire Connector
|

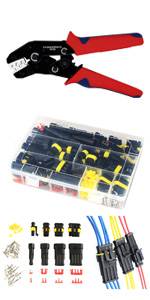

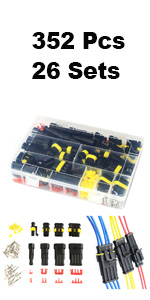

1-4Pin Wire Connector
|
1-6Pin Wire Connector
|

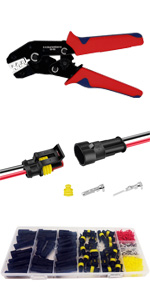

2Pin Wire Connector with Crimper
|
1-4Pin Wire Connector with Crimper
|

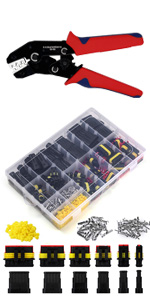

1-6Pin Wire Connector with Crimper
|
|
|---|---|---|---|---|---|---|
| Customer Reviews |
1,076
|
1,579
|
1,374
|
344
|
344
|
344
|
| Price | $15.99 | $15.99 | $31.99 | $29.99 | $29.99 | $39.99 |
| Model | 2 pin | 1-4 pin | 1-6 pin | 2 pin + crimper | 1-4 pin + crimper | 1-6 pin + crimper |
| Qty | 2pin--20 sets | 1pin--8 sets 2pin--6 sets 3pin--6 sets 4pin--6 sets | 1pin--10 sets 2pin--15 sets 3pin--8 sets 4pin--6 sets 5pin--6 sets 6pin--5 sets | 2pin--20 sets crimper--1 set | 1pin--8 sets 2pin--6 sets 3pin--6 sets 4pin--6 sets crimper--1 set | 1pin--10 sets 2pin--15 sets 3pin--8 sets 4pin--6 sets 5pin--6 sets 6pin--5 sets crimper--1 set |
| Crimper | no data | no data | no data | |||
| Apply for | 22-16 AWG | 22-16 AWG | 22-16 AWG | 22-16 AWG | 22-16 AWG | 22-16 AWG |
