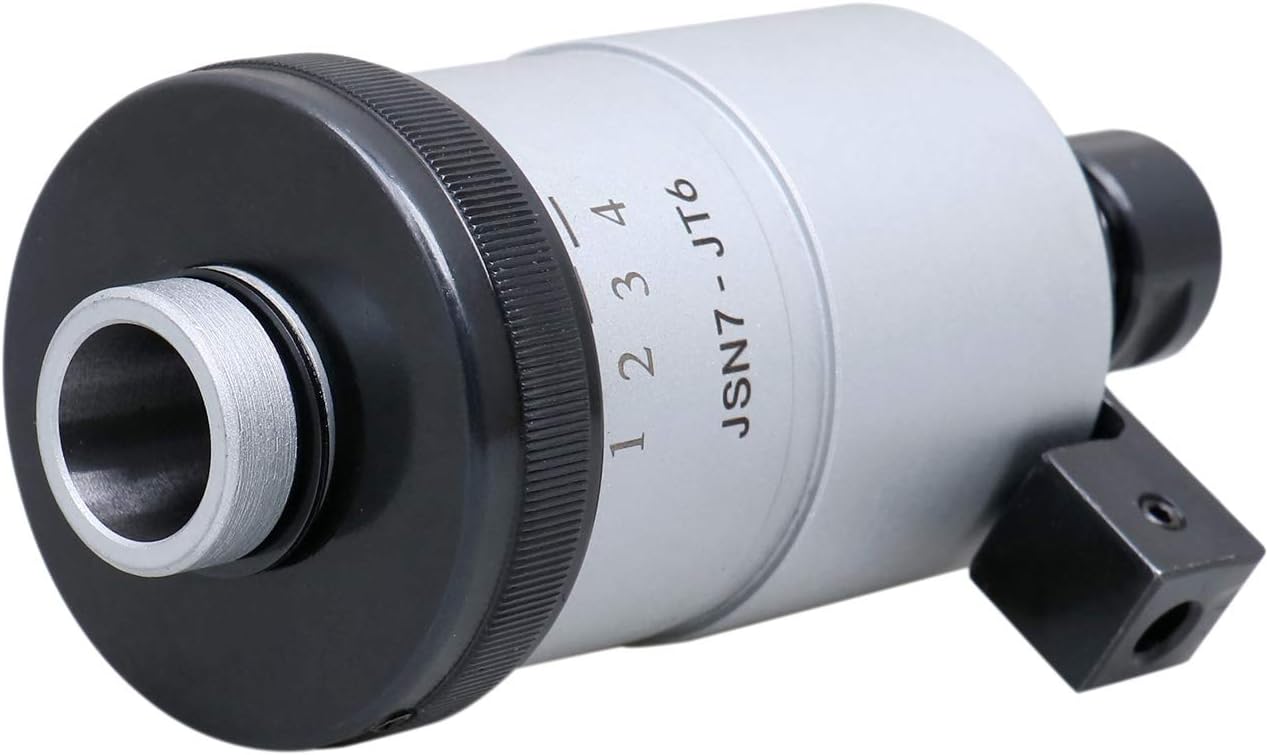

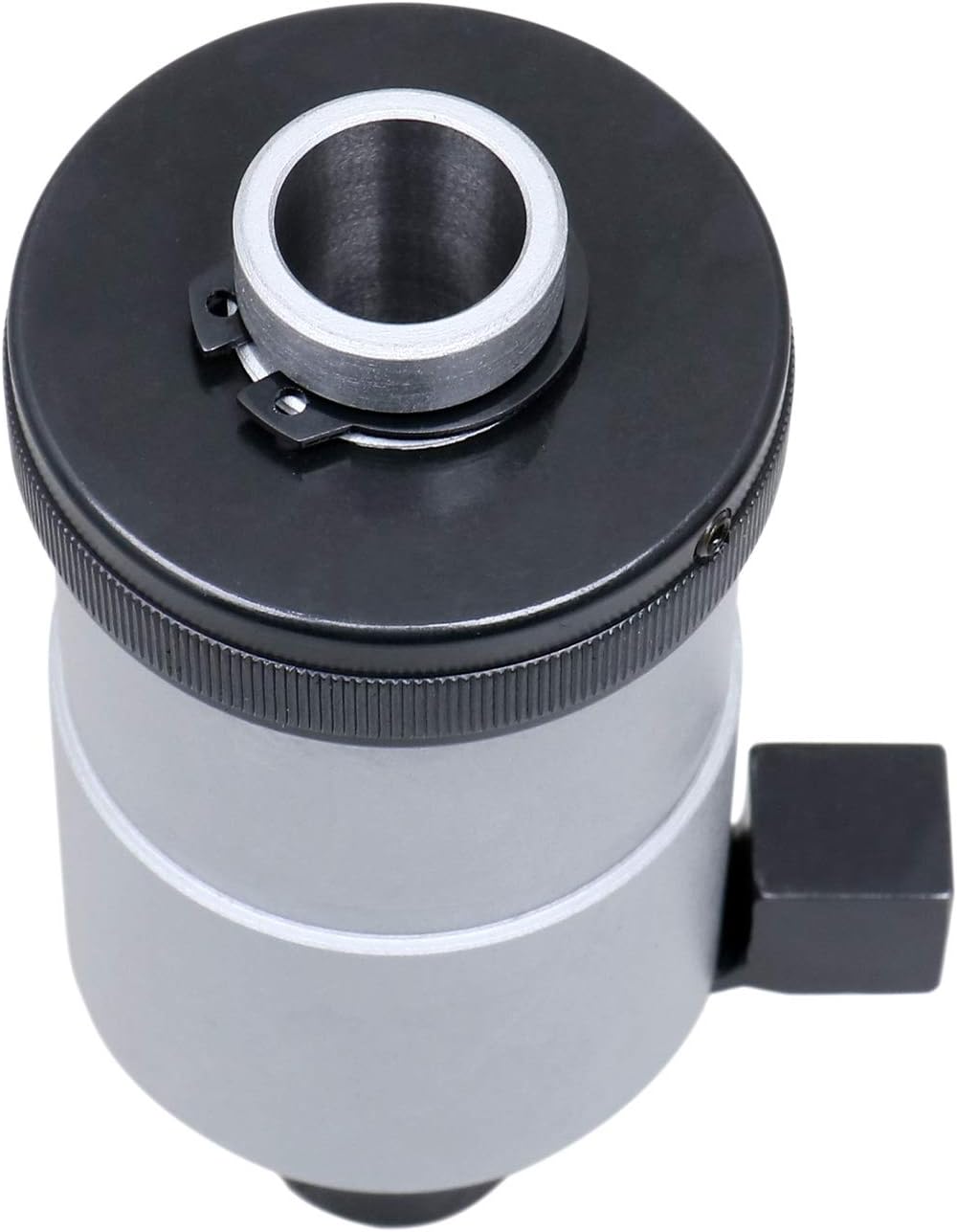

Accusize Industrial Tools - 0-1/4'' Self-Reversing Tapping Head with JT6 Jacobs Taper, Precision Depth Control, for Drill Press, 2600-4002

Application and Features

Features

• Depth control
  • After the machine spindle travel stops, the tap advances 0.140" ± 0.004". For example: to achieve a tap depth of 1.000", stop the spindle at 0.860". The tap will advance an additional 0.140" to 1.000" deep.
• Set the torque as high as possible within the safe limits of the tap. The NC machine cutting feed equals (Tap Pitch x Spindle RPM). The reverse feed equals 2 X (Tap Pitch X Spindle RPM).
• Right or left-hand yapping without modification; re-entry cushion
• Please do not use the self-reversing tapping heads as drill chucks.
• Guaranteed depth control; within ±0.004"
• Chatter-free clutch has positive engagement which allows for a smoother, more accurate operation and more rapid reversal
• Radial Float is self-centering to compensate for hole center misalignment
• The unique Double Spring mechanism produces automatic feed and cushion drive. There are 2 springs for the feed and 2 springs for the reversal
• Pre-set torque control permits easy operation of tap brake torque control

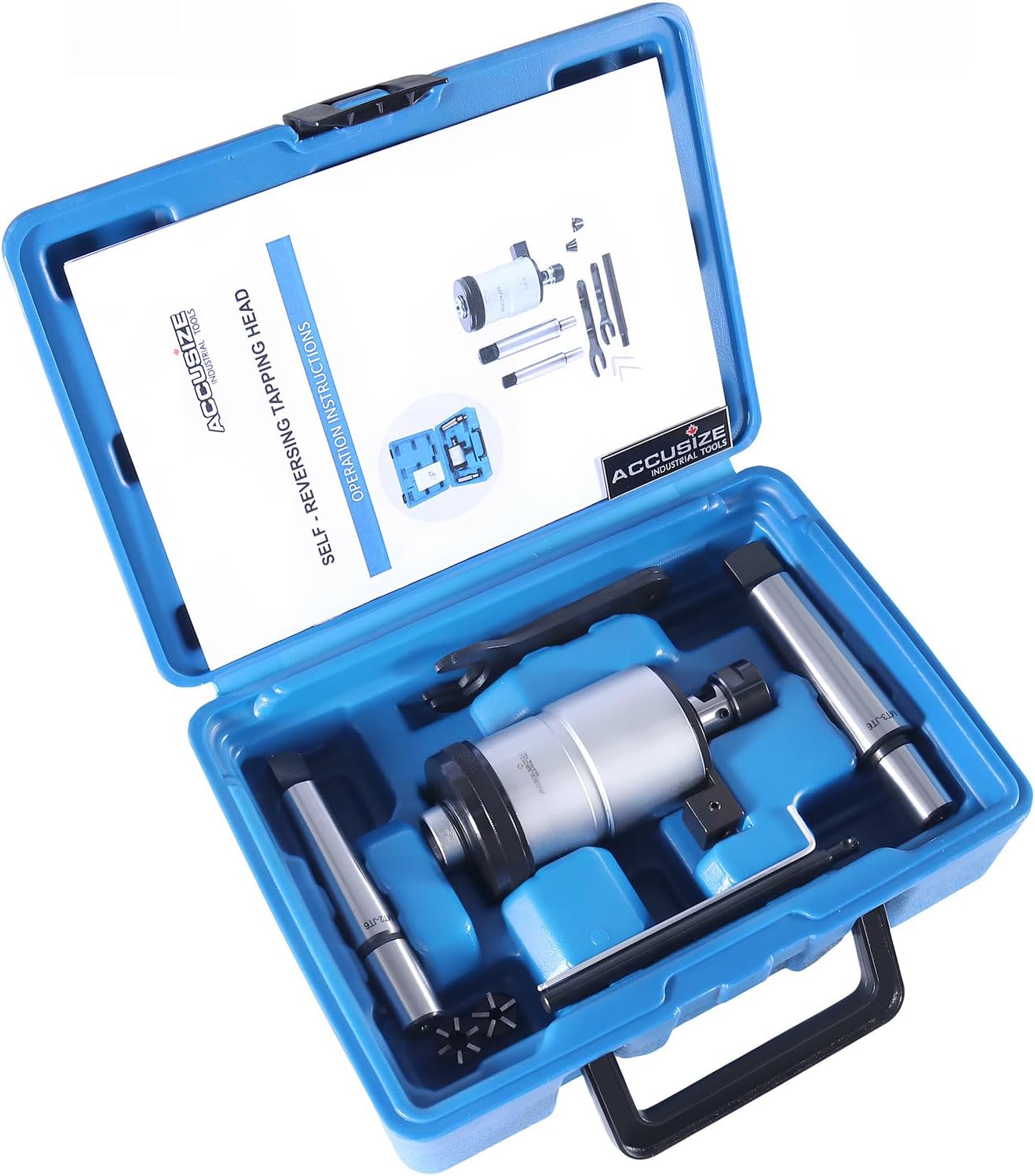

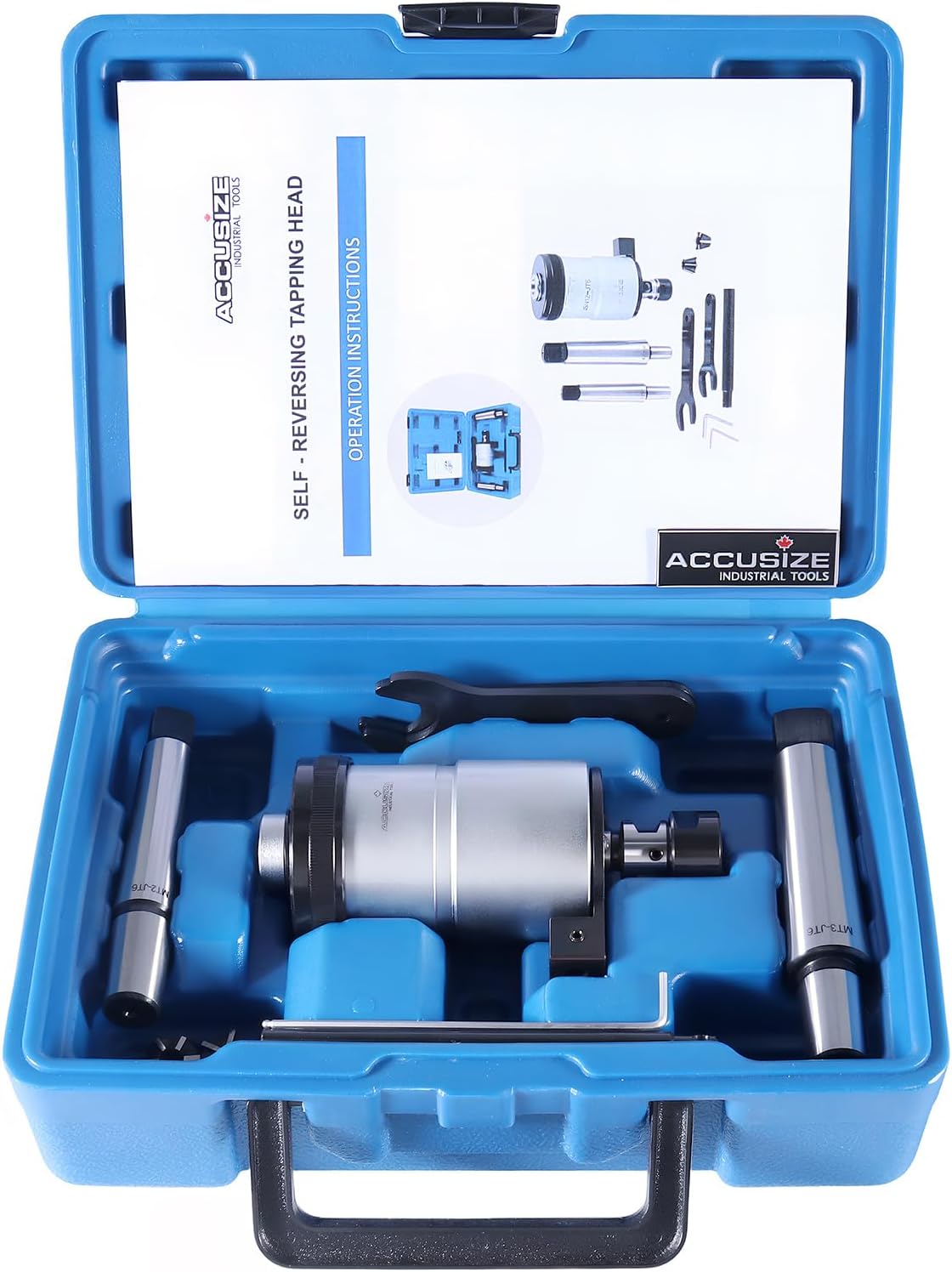

• Head comes complete with 2 collets
• Accusize Self - Reversing Tapping Head are Featured of a reversible rotation, overload protection, and adjustable torque as well as advantages like a compact structure, high efficiency, safe and reliable, and simple operation.
• Working range: The chuck can be supplied with three specifications for various taps from M2 to M20, with their working ranges referring to the following table, and can be selected for connecting with the machine tool based on the machine spindle tapered hole. Adapters with a taper of MS-JT3/6/33 or MS-M16/20 are attached.

Main Technical Specification

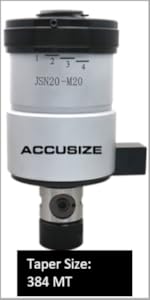

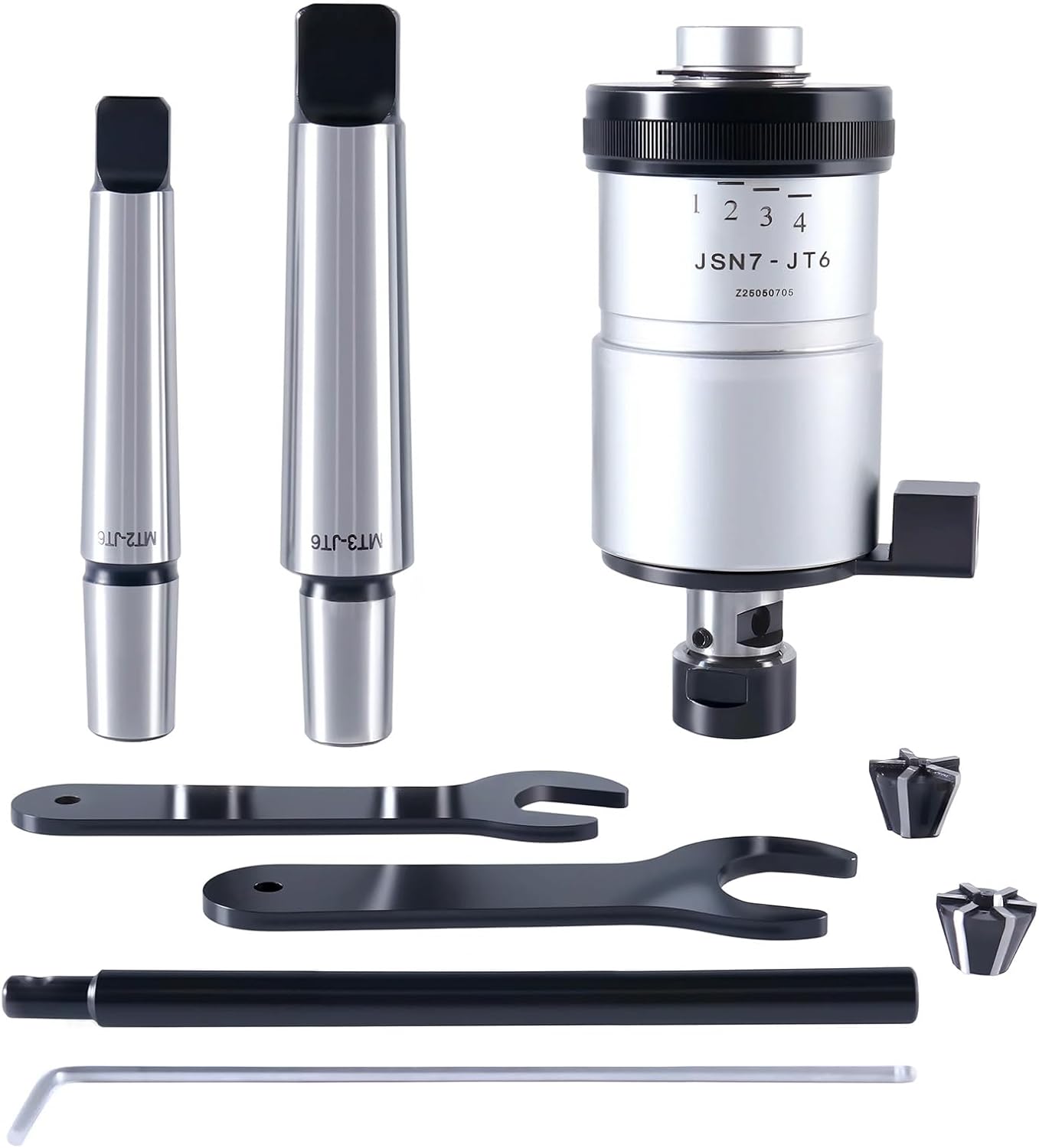

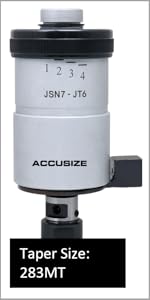

• 2600-4002 package along with arbor MT1-JT6, MT3-JT6
• 2600-4012 package along with arbor MT3-JT6, MT4-JT6
• 2600-4022 package along with arbor MT3-20mm Thread, MT4-20 mm Thread

Operation Instructions of Accusize Self-Reversing Tapping Heads: Method and Step

Figures 1

1. Mounting the chuck: Clean up the connecting parts of both the adaptor and the chuck and mount them onto the machine spindle after they have been assembled.
2. Mounting the tap: Insert the tap into the chuck while watching the position of the tap handle from a window. Then, insert the square end of the tap handle into the square hole of the clamping device and tighten the lock nut with a wrench prior to fastening the top screw of the clamping device.

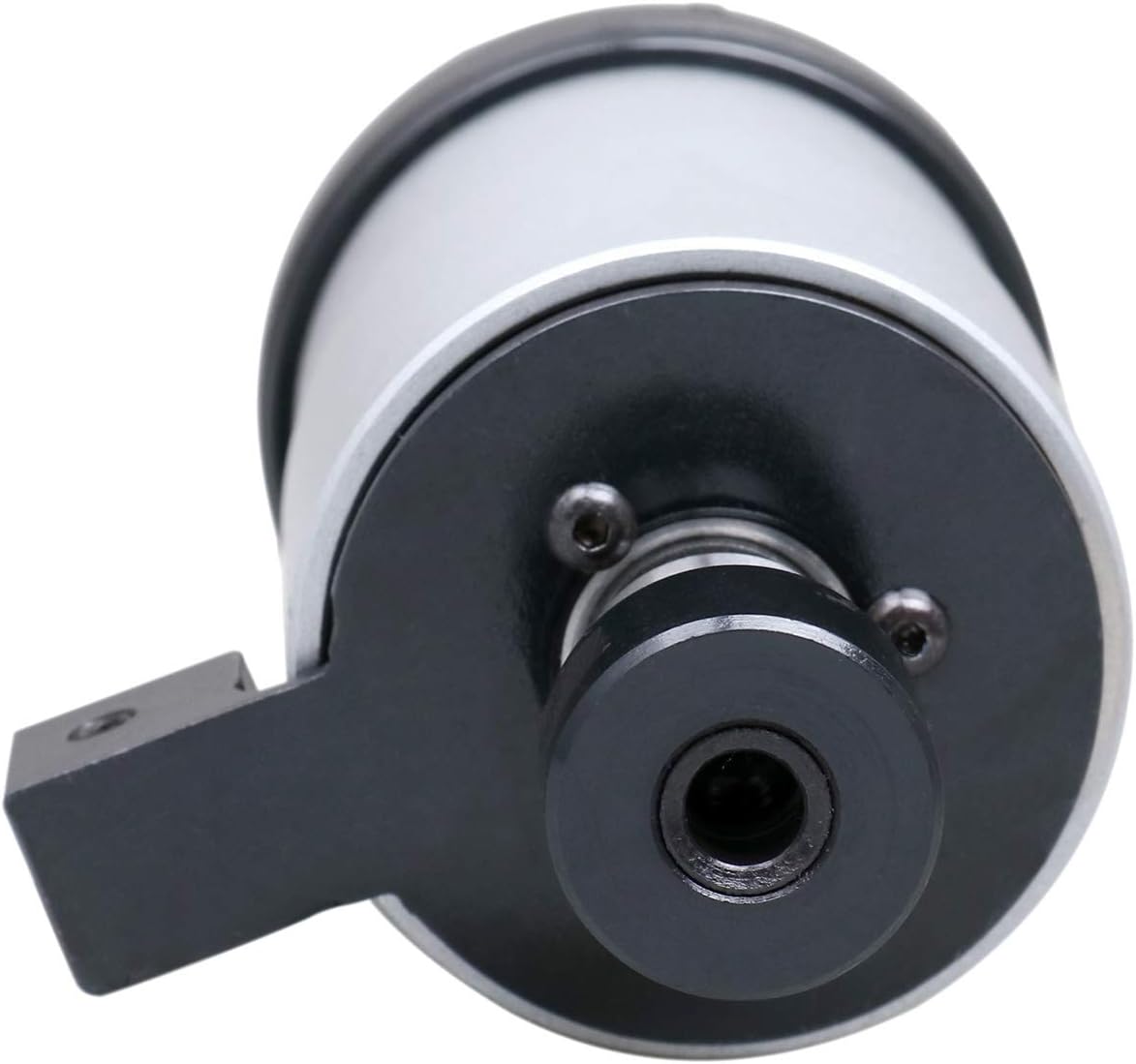

3. Mounting the brake rod: Referring to Figures 1, the brake rod which should be of a certain rigidity to withstand the torque of a reversing tap(A rod made of steel 45#,20-30, HRC45 is recommended) is mounted either on the nonrotating part of the spindle end or on the worktable.
4. Adjusting the torque: A proper torque shown with numbers 1, 2, 3, 4 on the main body periphery is selected according to the diameter to be topped and the material of the workpiece, showing that the chuck can stand the torque varies from small to large and can be selected by the operator himself. In case of materials which are difficult to be tapped, two operations are recommended.
5. Tapping: The operator should align the tap mounted on the machine tool with the machined screw blank hole on the workpiece and operate referring to Figures 2.

P01 arbor, P02 elastic ring, P03 adjust nut for clutch, P04 pin, P05 hex head socket screw

P06 trust bearing, P07 pad, P08 cluth spring(big), P09 cluth spring(small), P10 case

P11 pin, P12 spring washer, P13 cluth ring, P14 ball, P15 buffer spring

P16 pad, P17 driver, P18 bearing, P19 bearing pad, P20 driving spindle screw

P21 driving jaw, P22 return driving spring, P23 return gear, P24 reset spring, P25 pad for return gear

P26 pin, P27 gear, P28 bearing stage, P29 bearing, P30 bearing pad

P31 slit ring, P32 eleatic ring, P33 thrust stop, P34 stop bar, P35 hex head socket screw

P36 hex head socket screw, P37 driving spindle, P38 block, P39 double-thread screw, P40 eleatic ring

P41 flexible collet, P42 pad, P43 nut
