Accusize Industrial Tools 0-3 inch x .0001'' Ultra-Precision M-Type Outside Micrometers Carbide Tipped 3 Pc Set, EG00-0903

$106.00 USD

~~$106.00 USD~~ $106.00 USD

Sale Sold out

Shipping calculated at checkout.

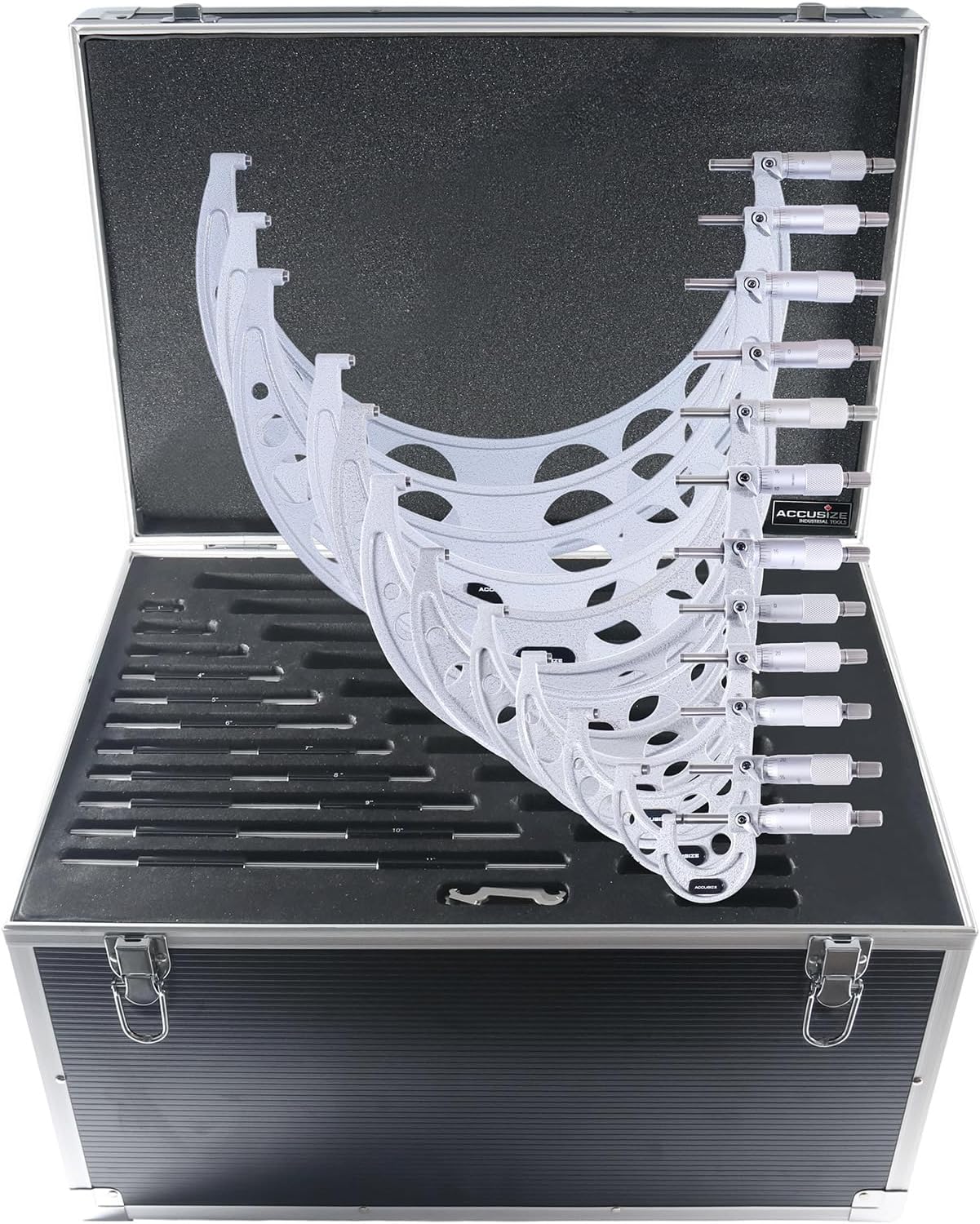

size 0-3" 3 ps/set 0-4" 4 ps/set 0-6" 6 pc/set 0-12" 12pc/set 0-150mm 6pc/set

Product description

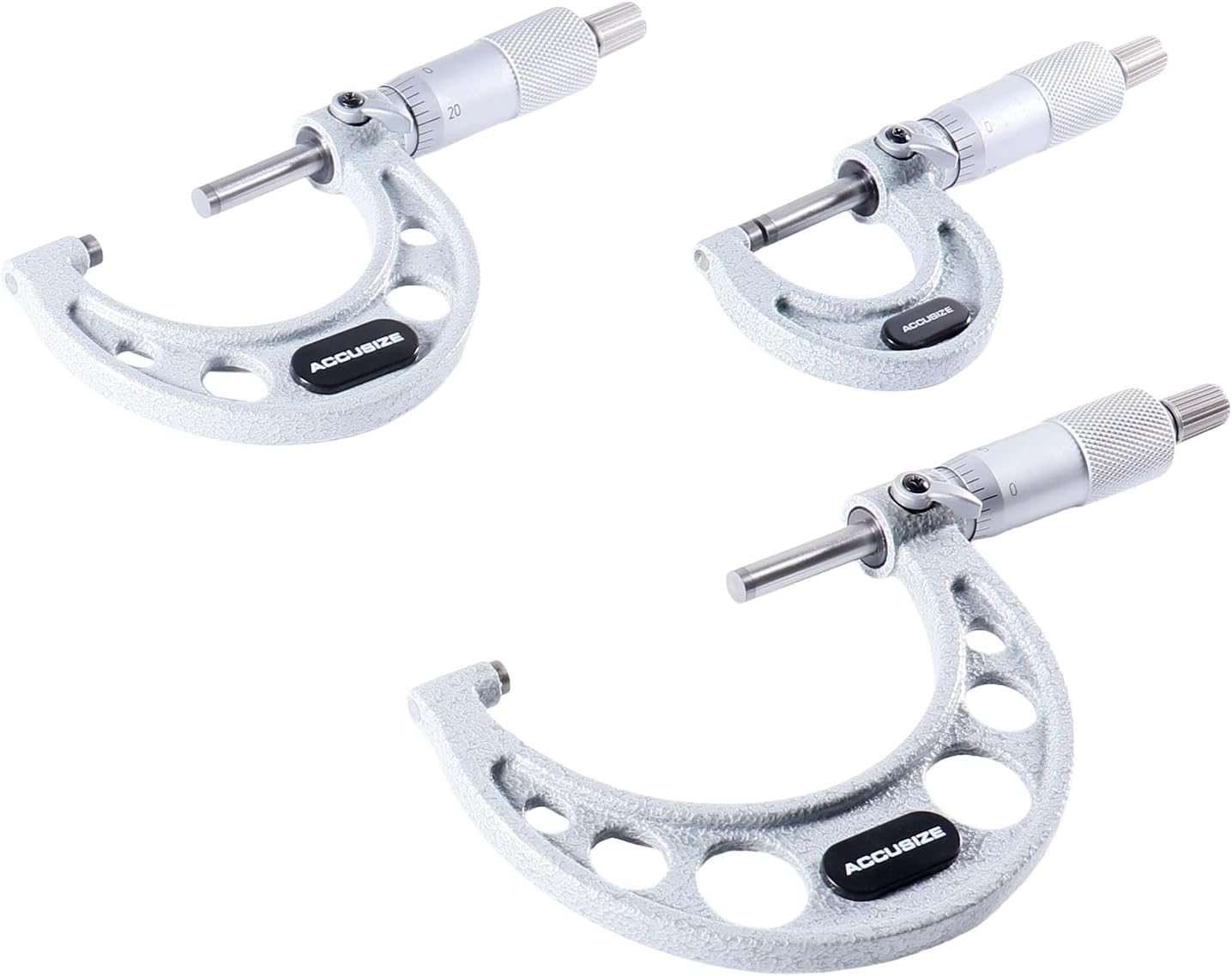

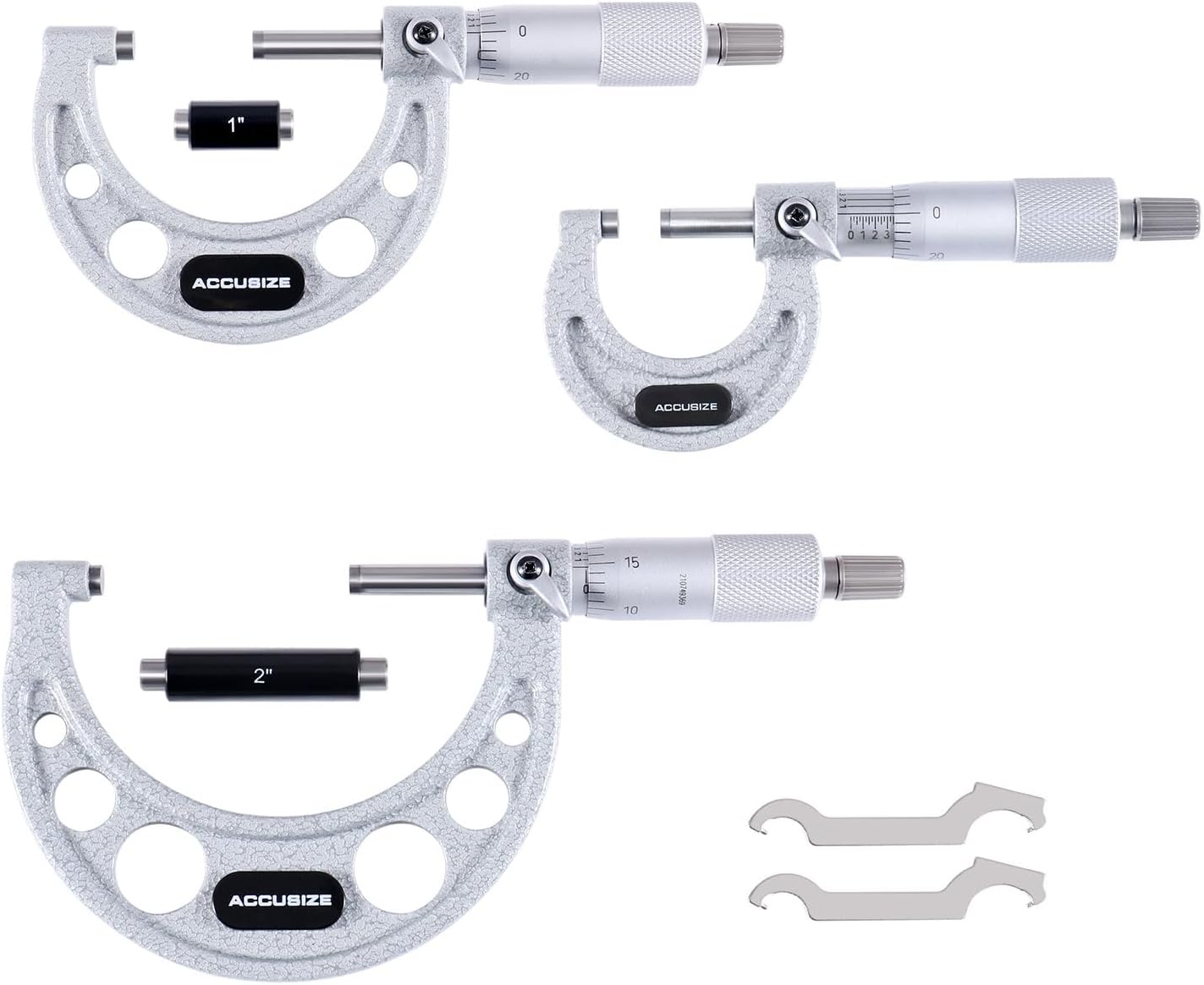

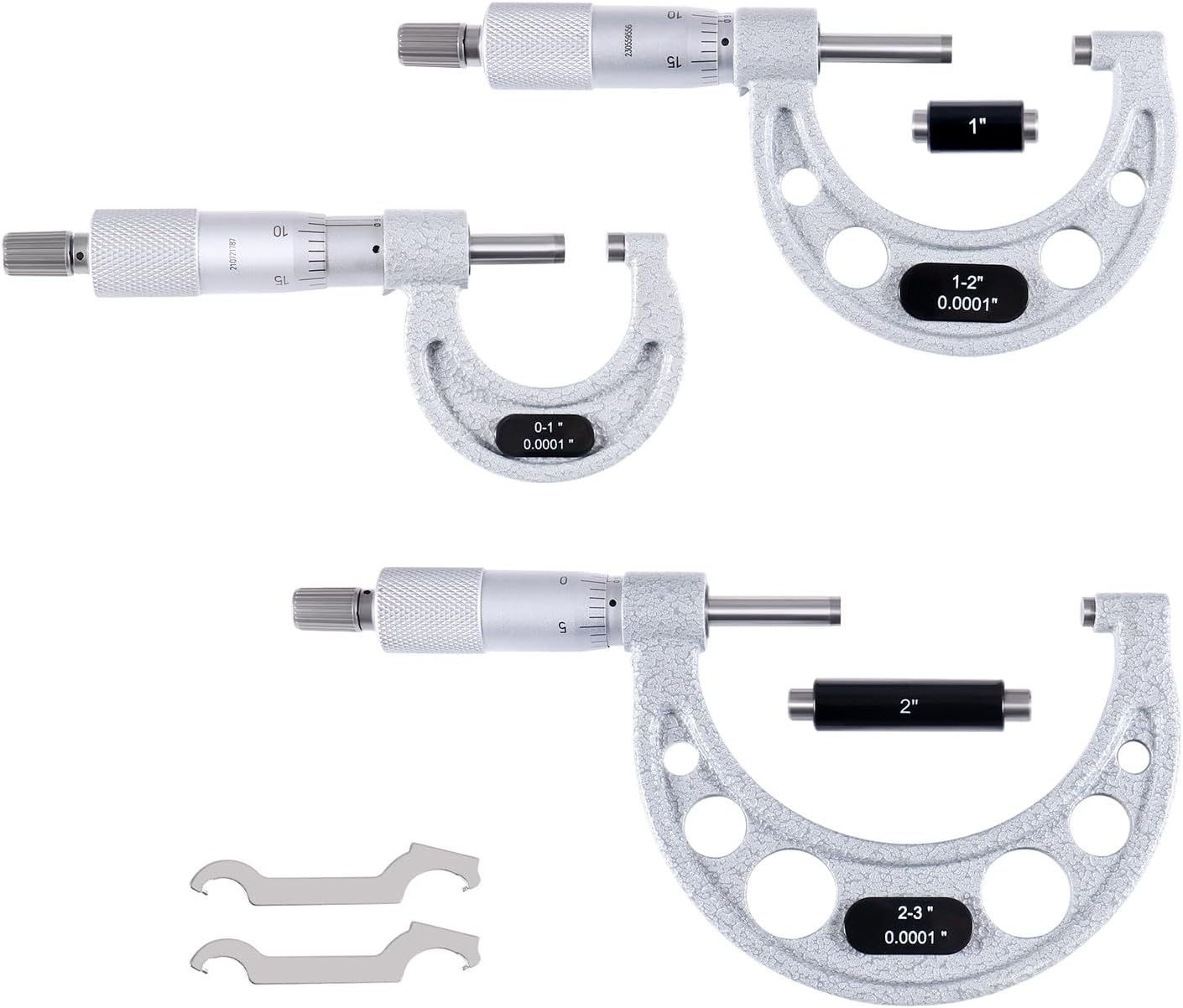

EG00-0903 0-3" x 0.0001" Ultra-precision M-Type Outside Micrometer Set

Introducing the EG00-0903 0-3" x 0.0001" Ultra-Precision M-Type Micrometer Set. Praised for its high accuracy and durability, it rivals top brands at a fraction of the cost. Ideal for precision work, it includes 3 micrometers with robust build and reliable performance, perfect for professional use.

Features

EG00-0906 Carbide Tipped Measuring Face B

Carbide Tipped Measuring Faces

The Carbide Tipped Measuring Faces significantly improve the tool's life.

Locking Nut and Vernier Scale

The Locking Nut and Vernier Scale improve the hassle-free reading experience.

Resolution: 0.0001"(inch); 0.01mm(metric)

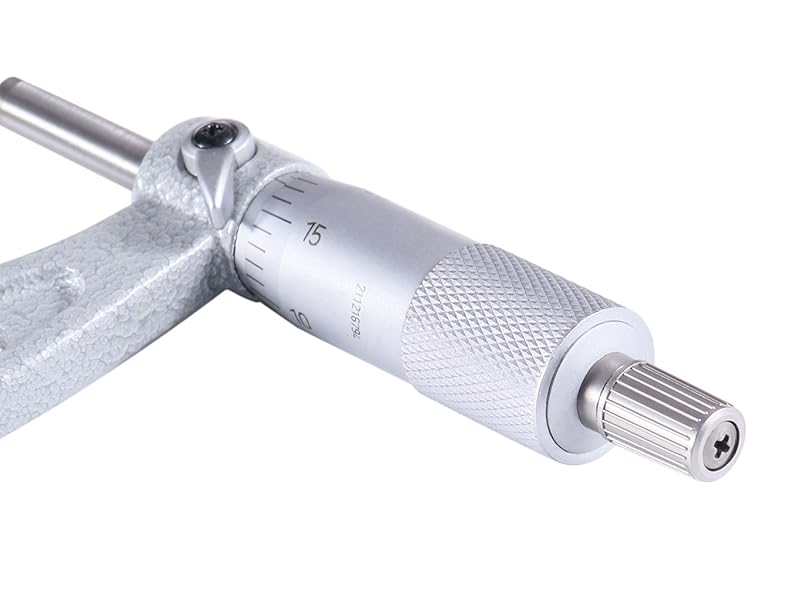

Ratchet Speeder

The smooth ratchet speeder prevents over-tightening, stopping overwhelming forces that may cause damage to the spindle.

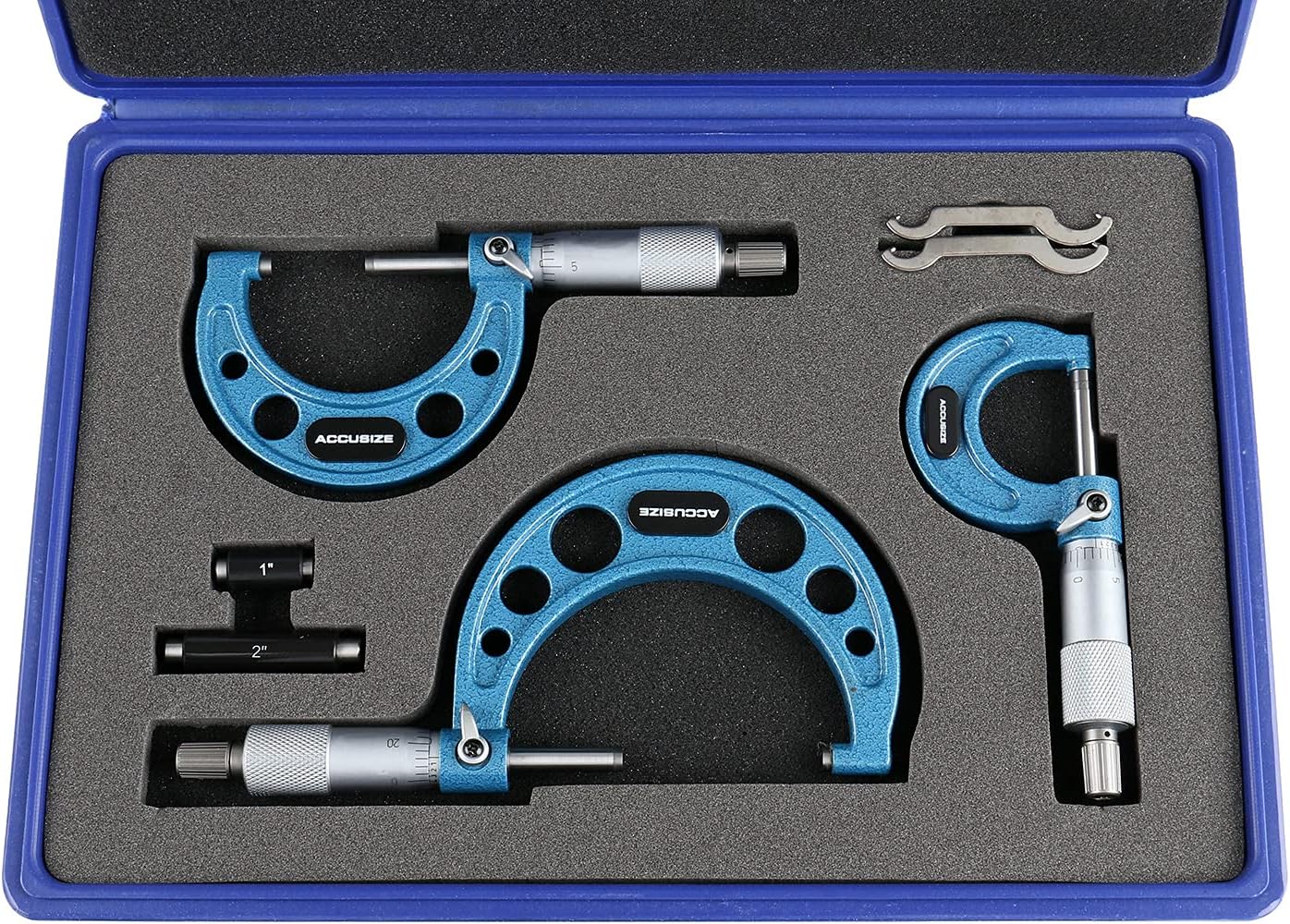

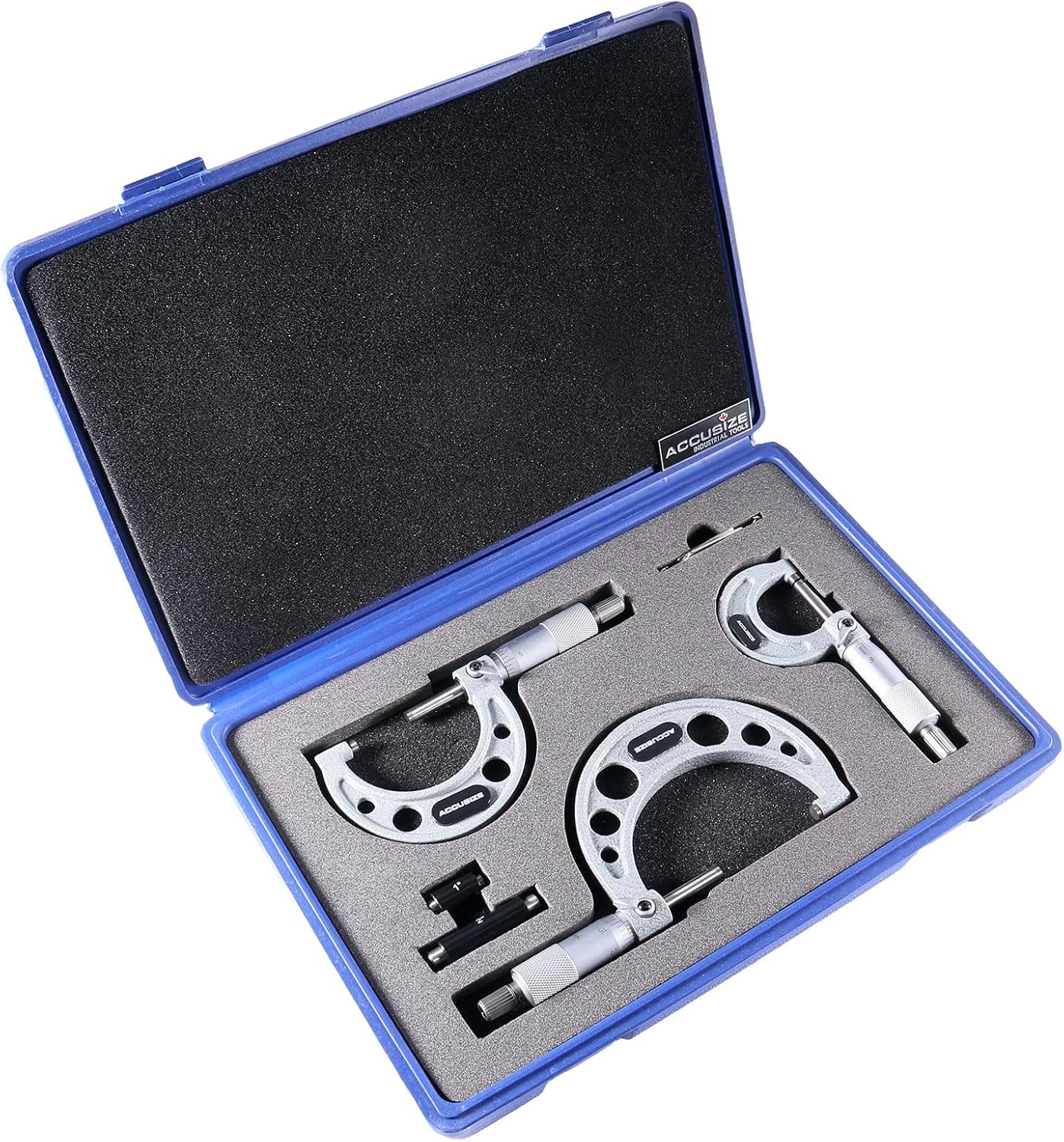

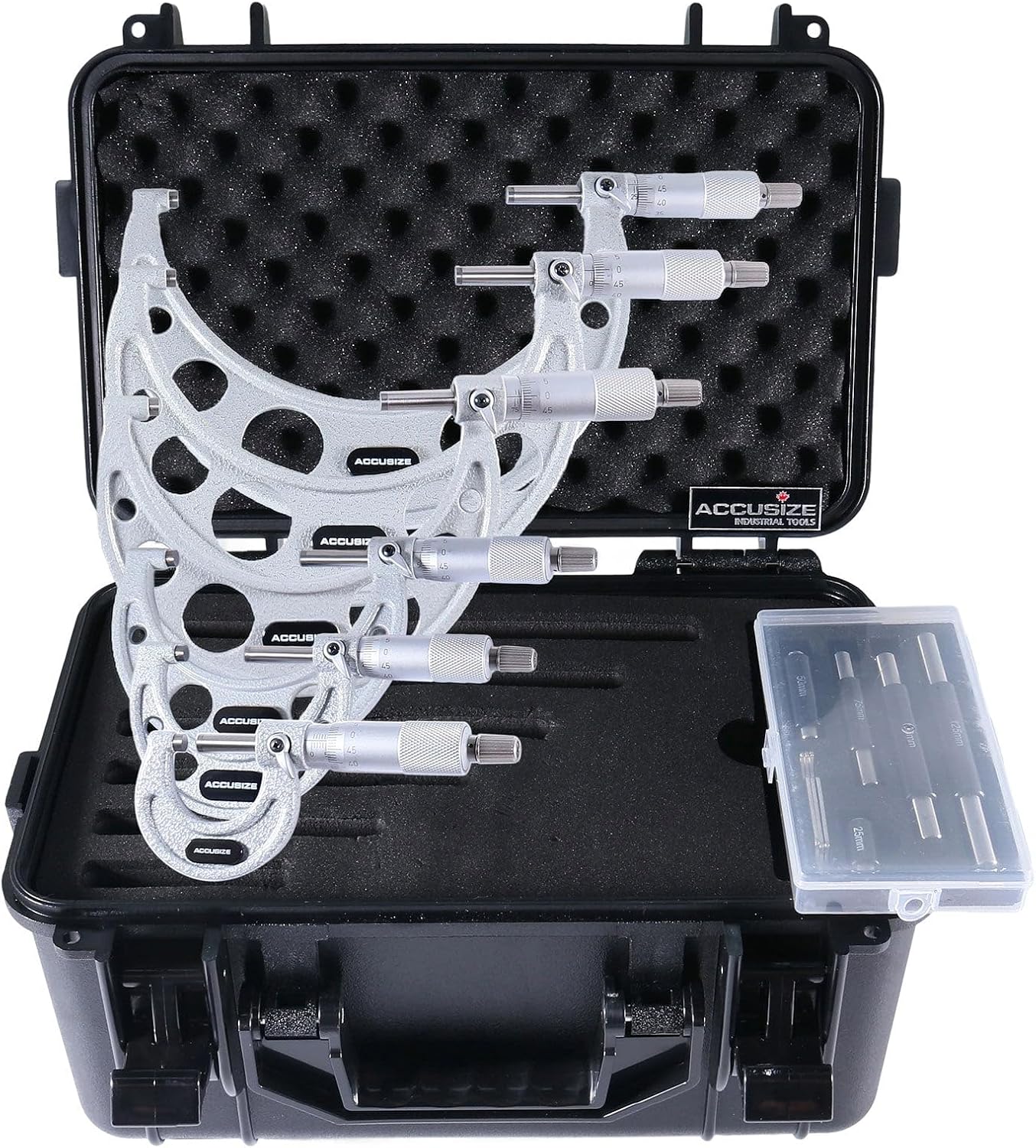

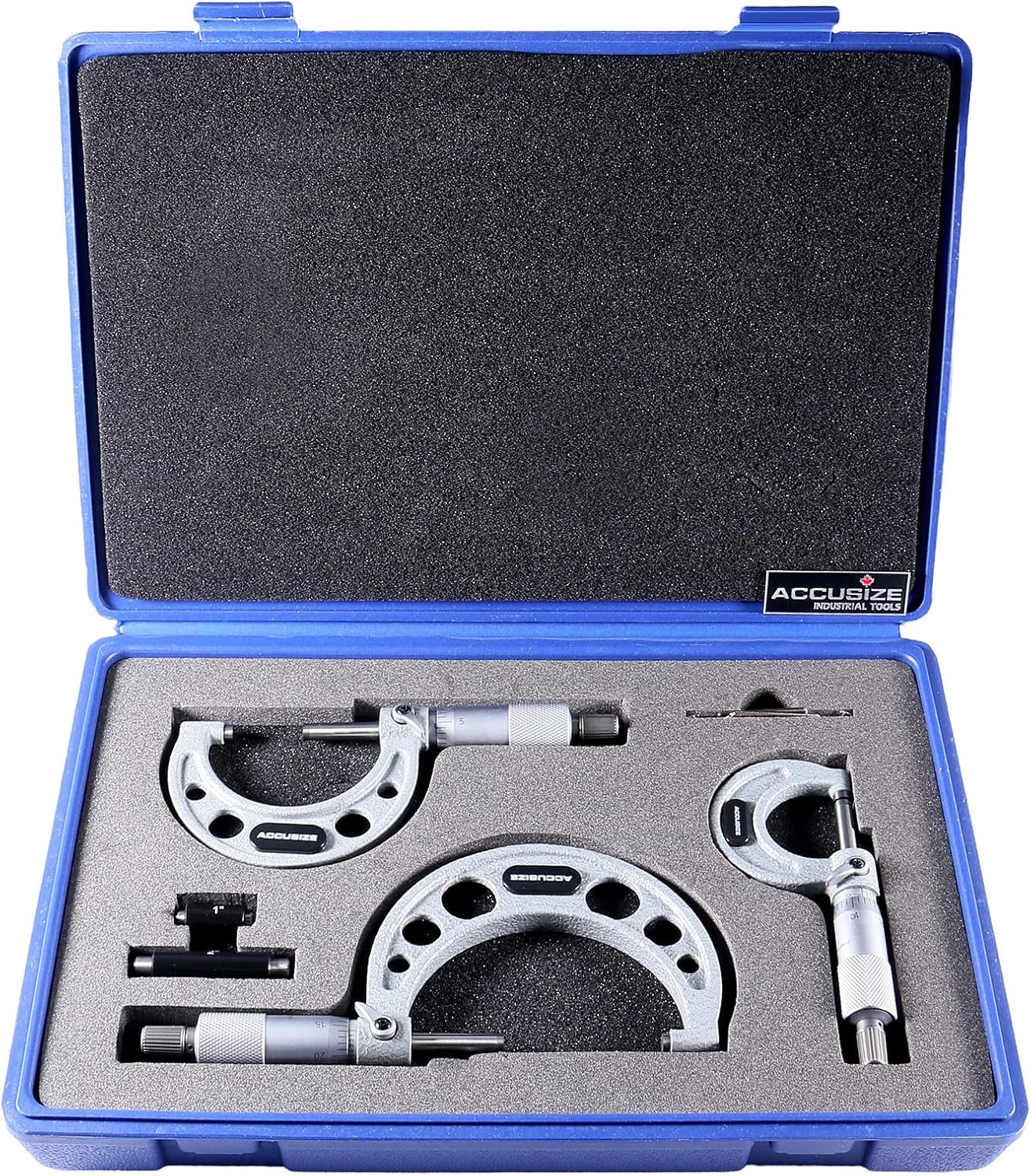

EG00-0903 3pc set outside micrometer packaging

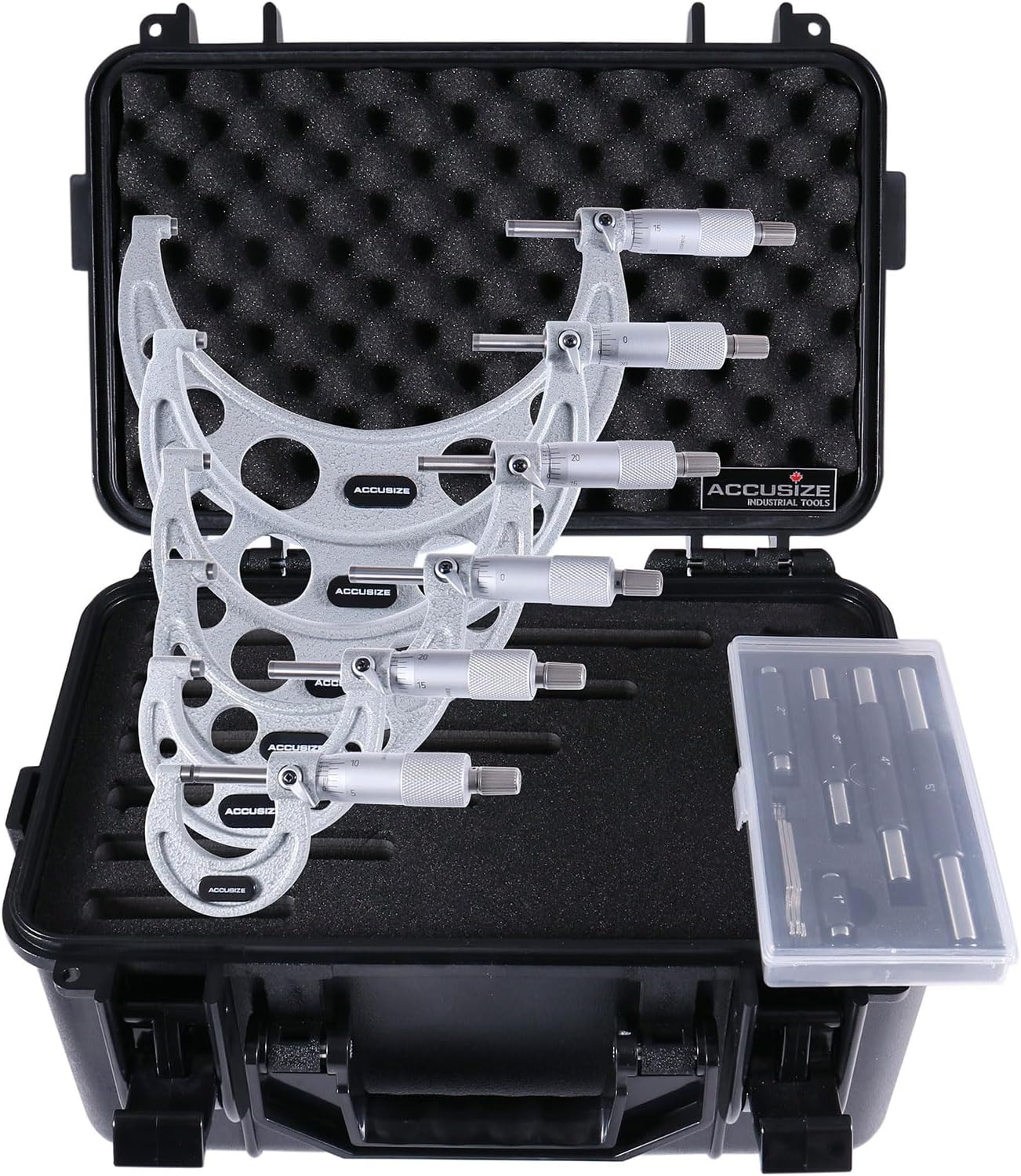

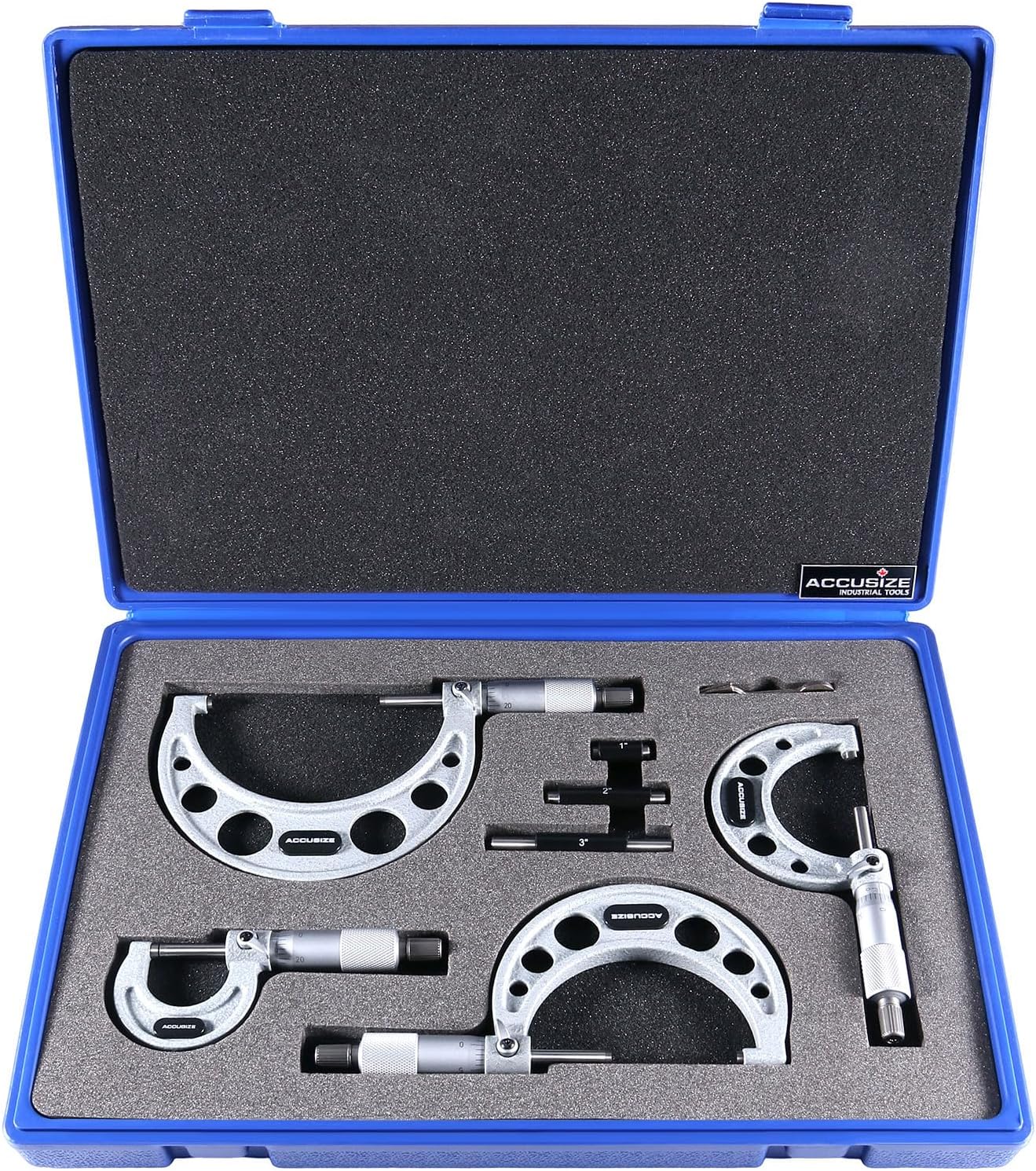

Storage Case

Comes with a reliable plastic storage case

Replacement of each micrometers and some other larger ones


Customer Reviews	257	257	257	257	257	257	257
Price	$37.84	$39.56	$44.72	$48.16	$53.32	$68.80	—
Range	0-1"	1-2"	2-3"	3-4"	4-5"	5-6"	6-7"
Resolution	0.0001"(inch); 0.01mm(metric)	0.0001"(inch); 0.01mm(metric)	0.0001"(inch); 0.01mm(metric)	0.0001"(inch); 0.01mm(metric)	0.0001"(inch); 0.01mm(metric)	0.0001"(inch); 0.01mm(metric)	0.0001"(inch); 0.01mm(metric)
Limit of Error	0.00016"	0.00016"	0.00020"	0.00020"	0.00020"	0.00023"	0.00027"
Parallelism tolerance	0.00008"	0.00008"	0.00012"	0.00012"	0.00016"	0.00016"	0.00020"
Product No.	EG00-0001	EG00-0002	EG00-0003	EG00-0004	EG00-0005	EG00-0006	EG00-0007
Come with Stand
Note	The color might be different	The color might be different	The color might be different	The color might be different	The color might be different	The color might be different	The color might be different

Benefits of Ratchet Friction Thimble

Patented

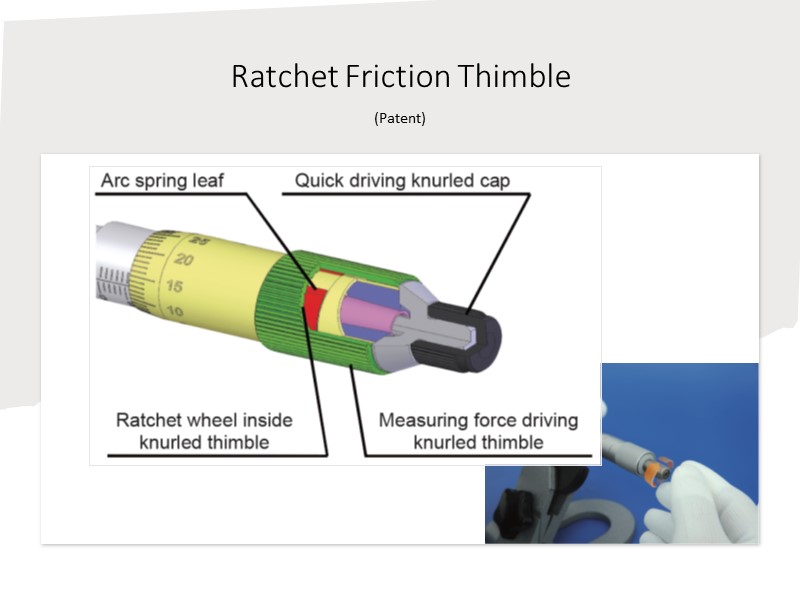

Ratchet Friction Thimble

The ratchet friction thimble provides consistent measuring force through an improved inner structure.

Compared to the ratchet stop, the Ratchet Friction Thimble eliminates axial impact, ensuring more stable measuring forces. The larger thimble design is easier to handle, minimizing user-induced errors. These thimbles can be operated with one hand, making them ideal for achieving precise measurement results.
Feature of

Sleeve and Thimble

Read the measurement result by aligning the sleeve scale line with the thimble graduation line.

Measuring Force Device

The measuring force device is designed to drive the spindle and ensure consistent measuring force on the measuring face, resulting in precise measurement results.

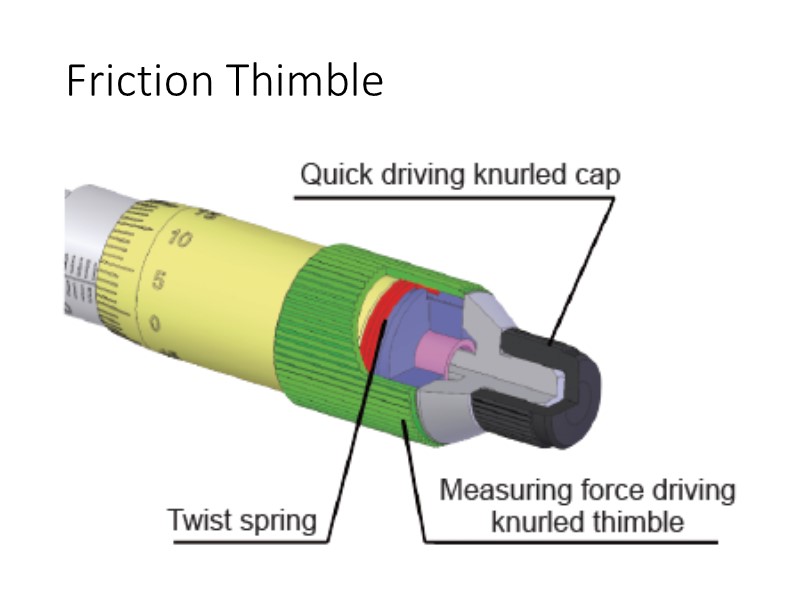

Features of

Friction Thimble

The friction thimble provides consistent measuring force through an improved inner structure.

Compared to the ratchet stop, the Friction Thimble eliminates axial impact, ensuring more stable measuring forces. The larger thimble design is easier to handle, minimizing user-induced errors. These thimbles can be operated with one hand, making them ideal for achieving precise measurement results.

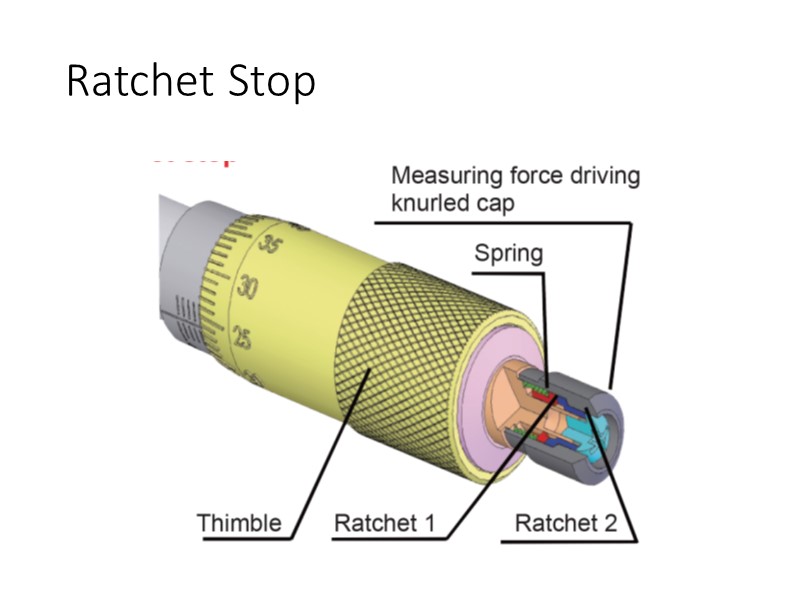

Features of

Ratchet Stop

Standard micrometers are equipped with a ratchet stop.
1. Rotate the spindle until the measuring faces of the anvils, workpiece, and spindle are in contact.
2. Rotate the driving cap two or three times using two or three fingers.
3. Read the measurement value.

Tips of Using the Micrometers

Tips for

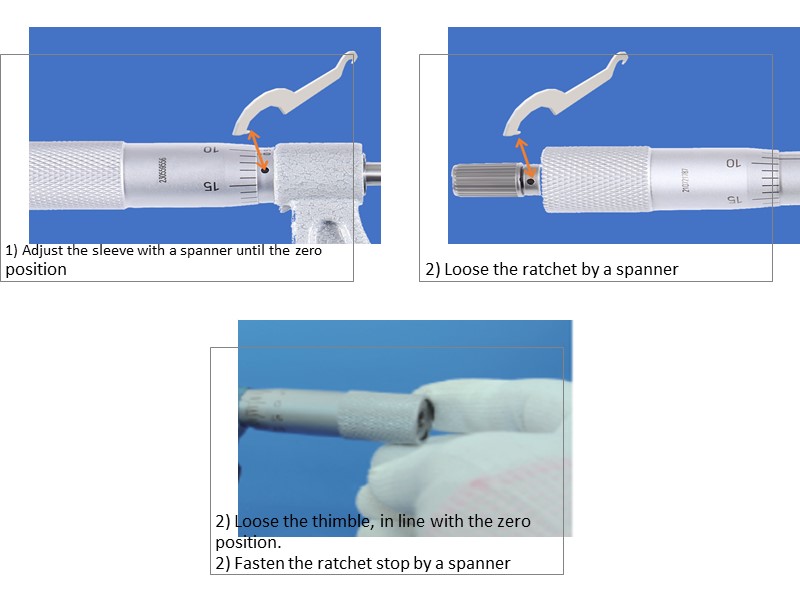

Zero Setting

Before operation, clean the measuring faces of the anvil and spindle with a soft cloth or paper. Carefully bring them together by turning the ratchet stop. If the "0" line on the thimble does not align with the reference line on the sleeve, adjust as follows:
1. Lock the spindle using the locking device.
2. Adjust the sleeve with a spanner until the reference line aligns with the "0" line on the thimble.
Sleeve, Thimble

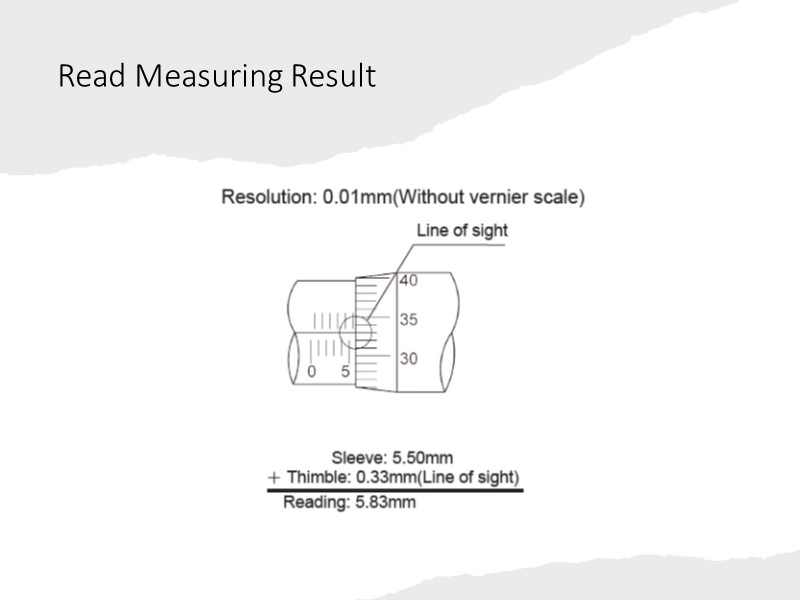

Read Measuring Result

Read measuring result by scale line in sleeve and graduation line in thimble.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Scenario

Using Ratchet Friction Thimble to Avoid Over Tightening

Use the ratchet thimble during measuring to avoid over-tightening to protect the micrometers.

Professional production control empowers Accusize competitiveness.

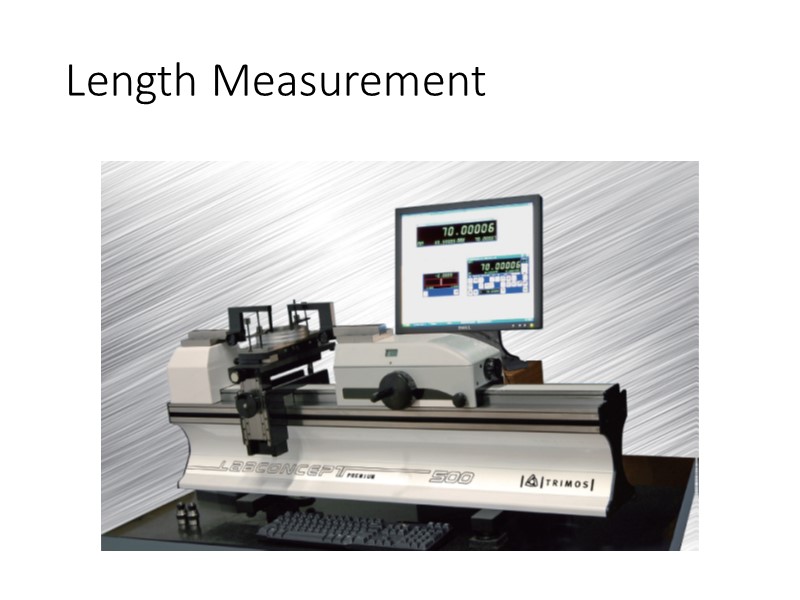

Length Measurement

Swiss TRIMOS, ABC-P500 High Precision Universal Measuring Length Machines
- Designed for setting, calibrating measuring instruments, gauges, and measuring inside and outside dimensions with utmost precision.
- Employs absolute measurement for entire travel lengths.
- Measurement range: 0-550mm; Measurement uncertainty: ≤ (0.15+L/2000) µm. (L: mm).
- Repeat precision: 0.05µm.

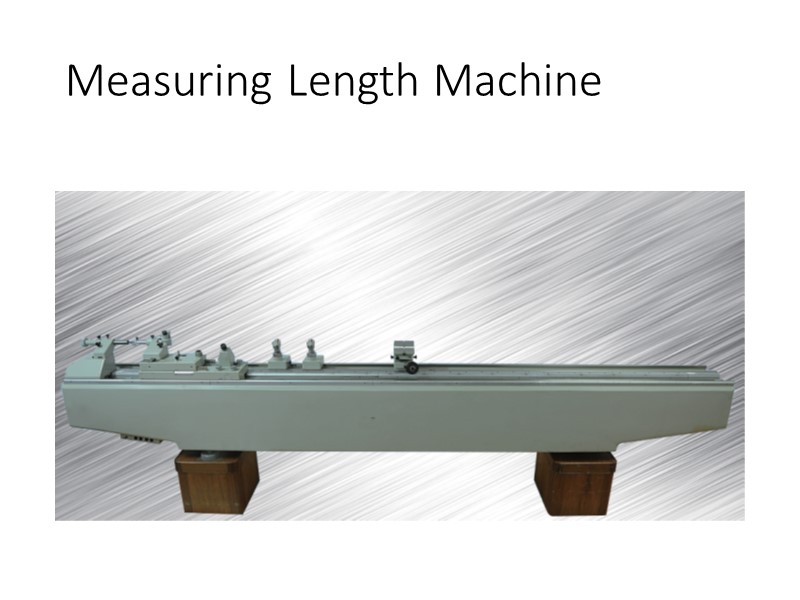

Measuring Length Machine

German CARL ZEISS JENA Product 0-3000mm Measuring Length Machine
- Precision measurement of inside and outside dimensions up to 3000mm.
- Outside dimension measurement uncertainty: ± (1.2+3L/1000) µm.
- Inside dimension measurement uncertainty: ± (1.5+3L/1000) µm. (L: mm)

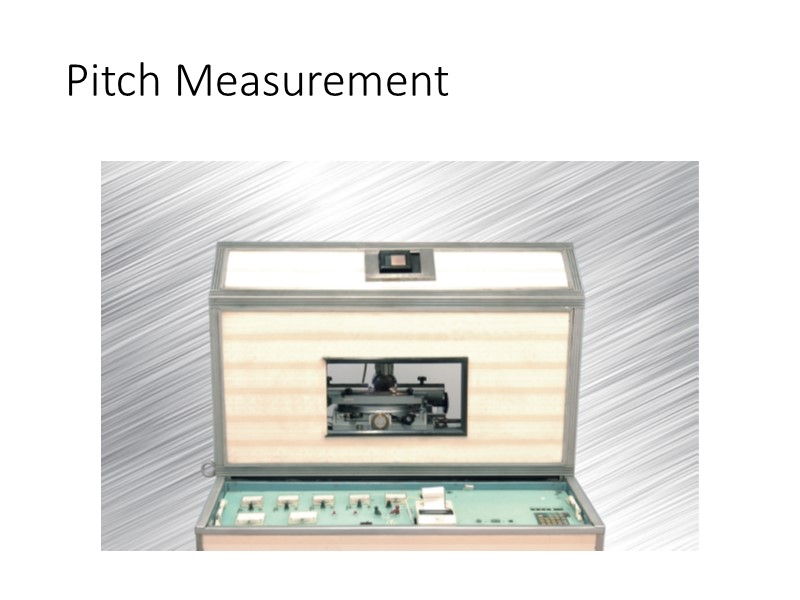

Pitch Measurement

High precision small pitch measuring machine
- Measurement range: 0.3-1mm.
- Length: ≤140mm.
- Pitch diameter: ≤40mm.
- Measurement uncertainty: (0.15+L/240) µm. (L: mm)

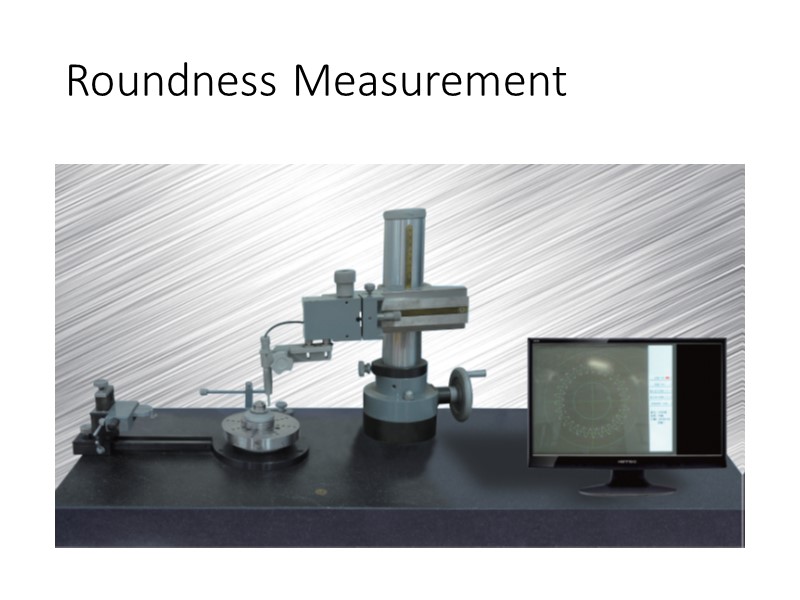

Roundness Measurement

Roundness Measuring Machine
- Precise measurement of roundness, waviness, and other geometric features.
- Spectrometric analysis of part surface state.
- Measurement range: bore Φ3-Φ300mm, cylindrical diameter: 0-Φ300mm.
- Measurement uncertainty: ≤0.03µm. Maximum weight of part: 10kg.

Auxiliary Tools for Various Measuring Purpose

1.4-2.4" Dial Bore Gage Set (EE20-1024)

This bore gage set with the micrometer set is to significantly expand the measuring and inspecting capacity for professional use.

Range: 1.4-2.4"

Resolution: 0.0001''

Stem Length: 6''
Heavy Micrometer Stand

A heavy micrometer stand.

Made of cast iron.

Can be adjusted to any position.

SKU: EG10-1430

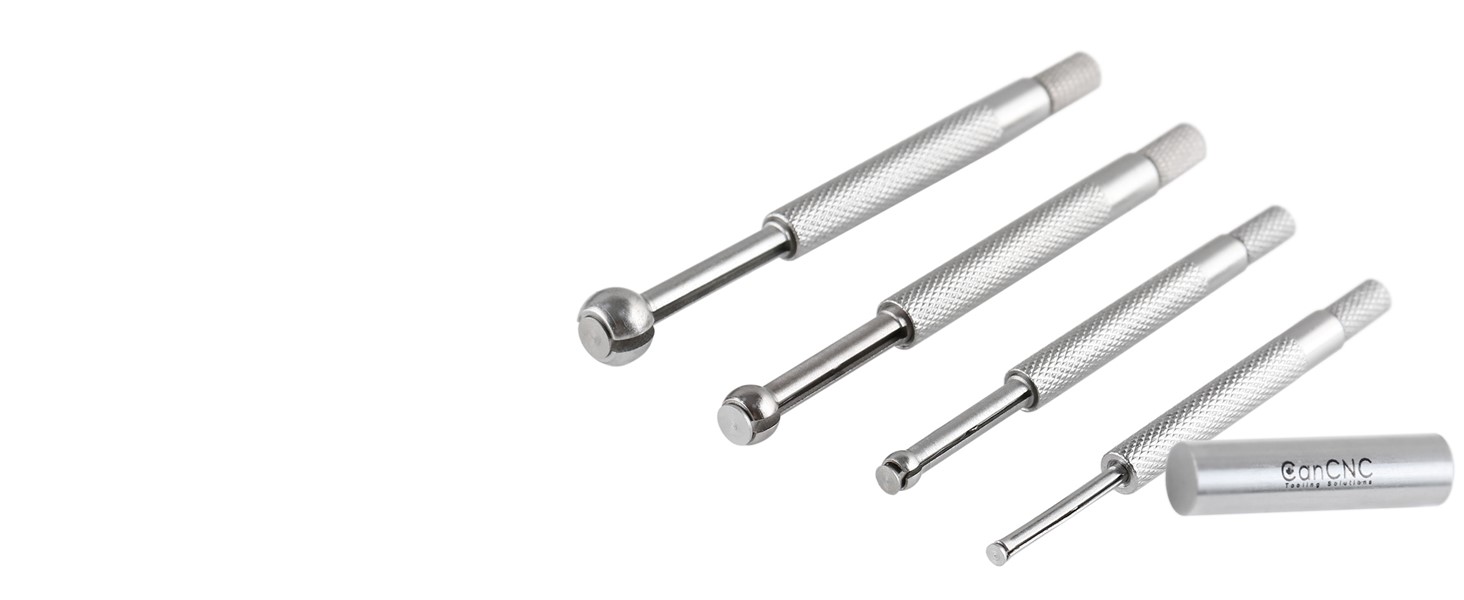

Small Hole Gages, Ball Type, 3604-5001

This small hole gage set with the micrometer set further expands the measuring capacity for professional use. Contact points are hardened tool steel and precision ground.

Range: 1/8"-1/2".
S907-C153 Outside Micrometer Stand

Folding design for portable use.

Clamp can be adjusted and locked in any position

Those tools can significantly expand the inspecting and measuring ability of the micrometre set.
