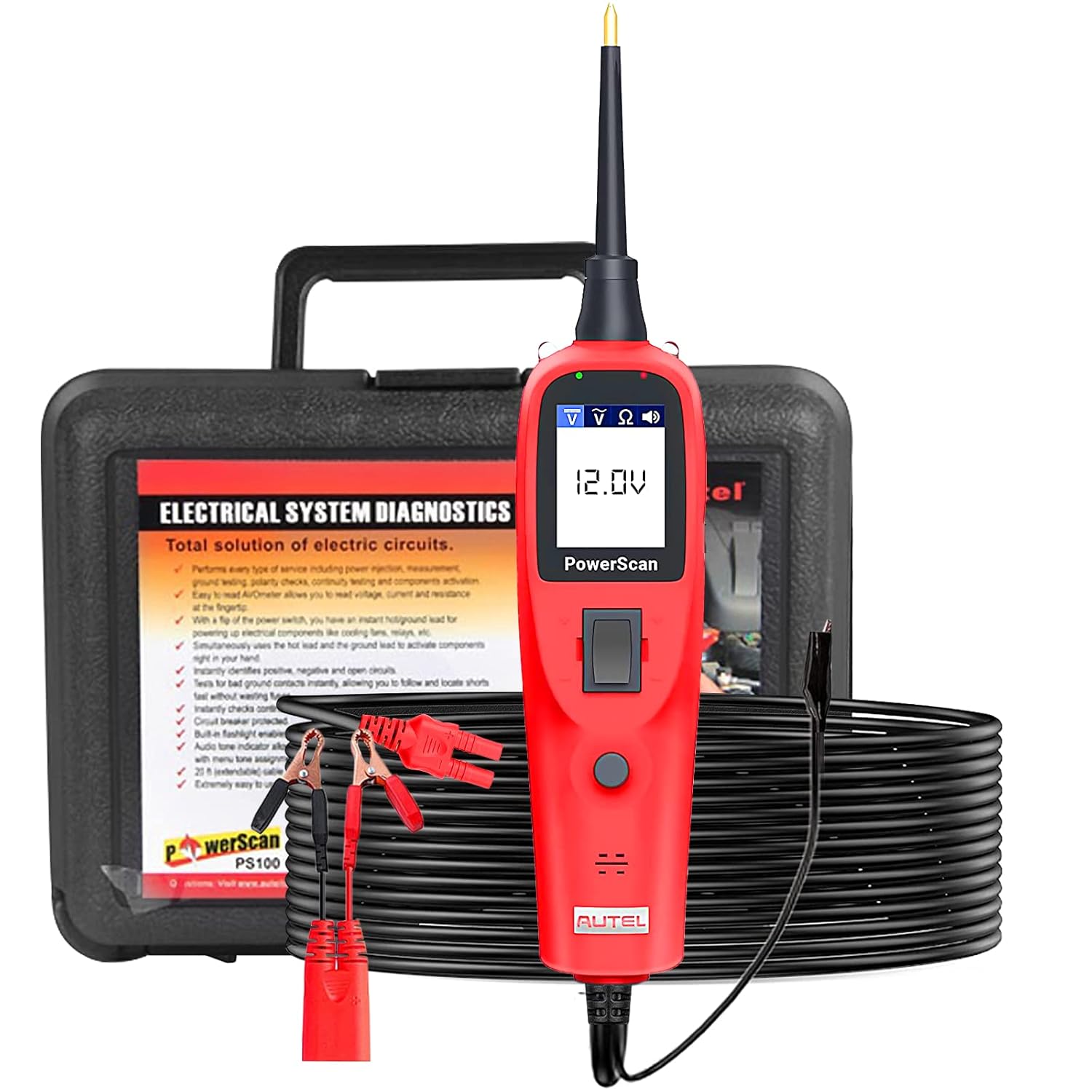

Autel PowerScan PS100 Circuit Tester, Universal 12V 24V Automotive Power Circuit Probe Kit with 20ft Extension Cable, AC/DC/Continuity/Probe/Signal Test, Activate Component Electrical System Tool

Autel PowerScan PS100---Universal Circuit Tester for All 12V-24V Power Sources !

The Autel PowerScan PS100 Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

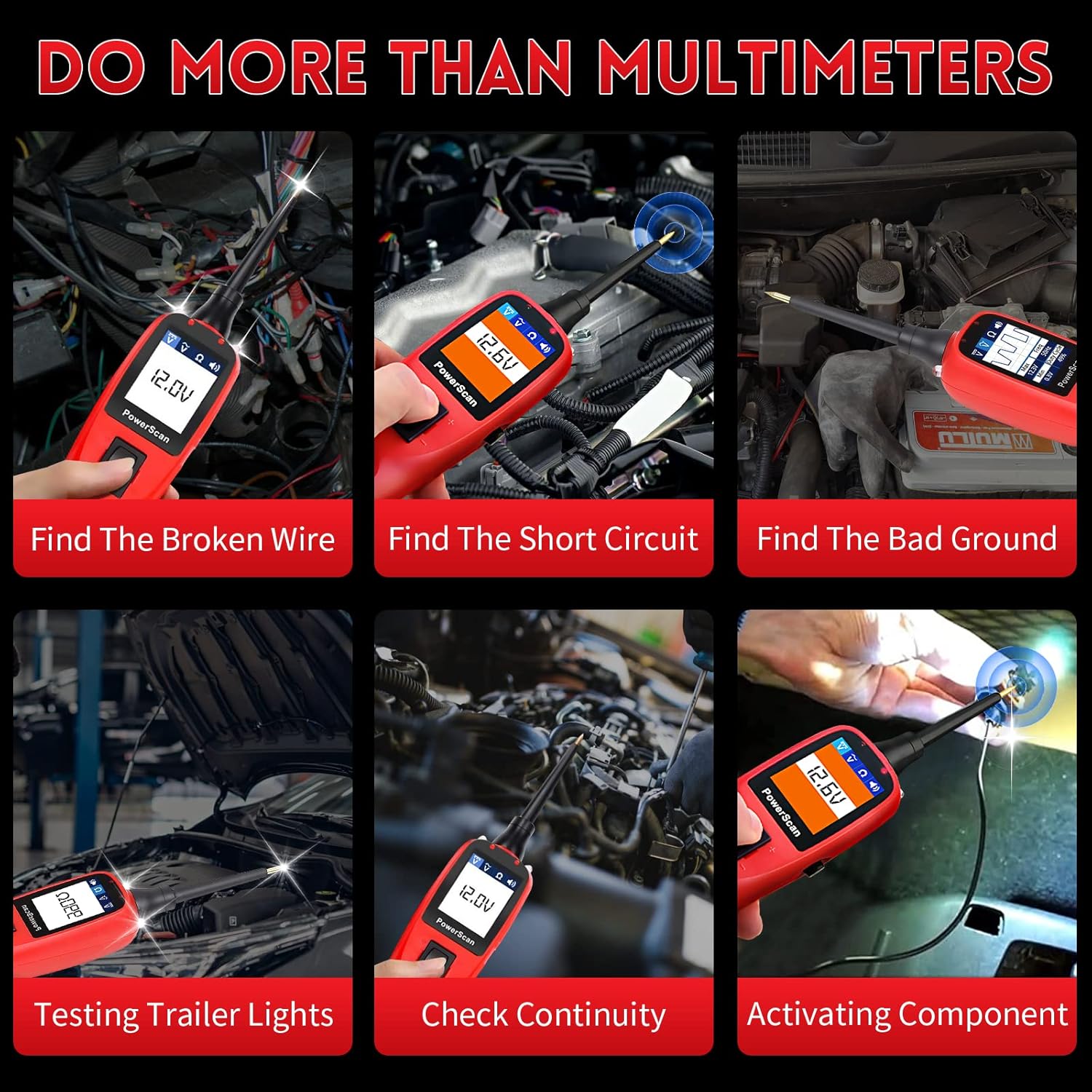

Autel PS100 Circuit Tester Kit: Do More Functions Than Multimeter:

•Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation

• Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip

• With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.

• Simultaneously uses the hot lead and the ground lead to activate components right in your hand

• Instantly identifies positive, negative and open circuits

• Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses

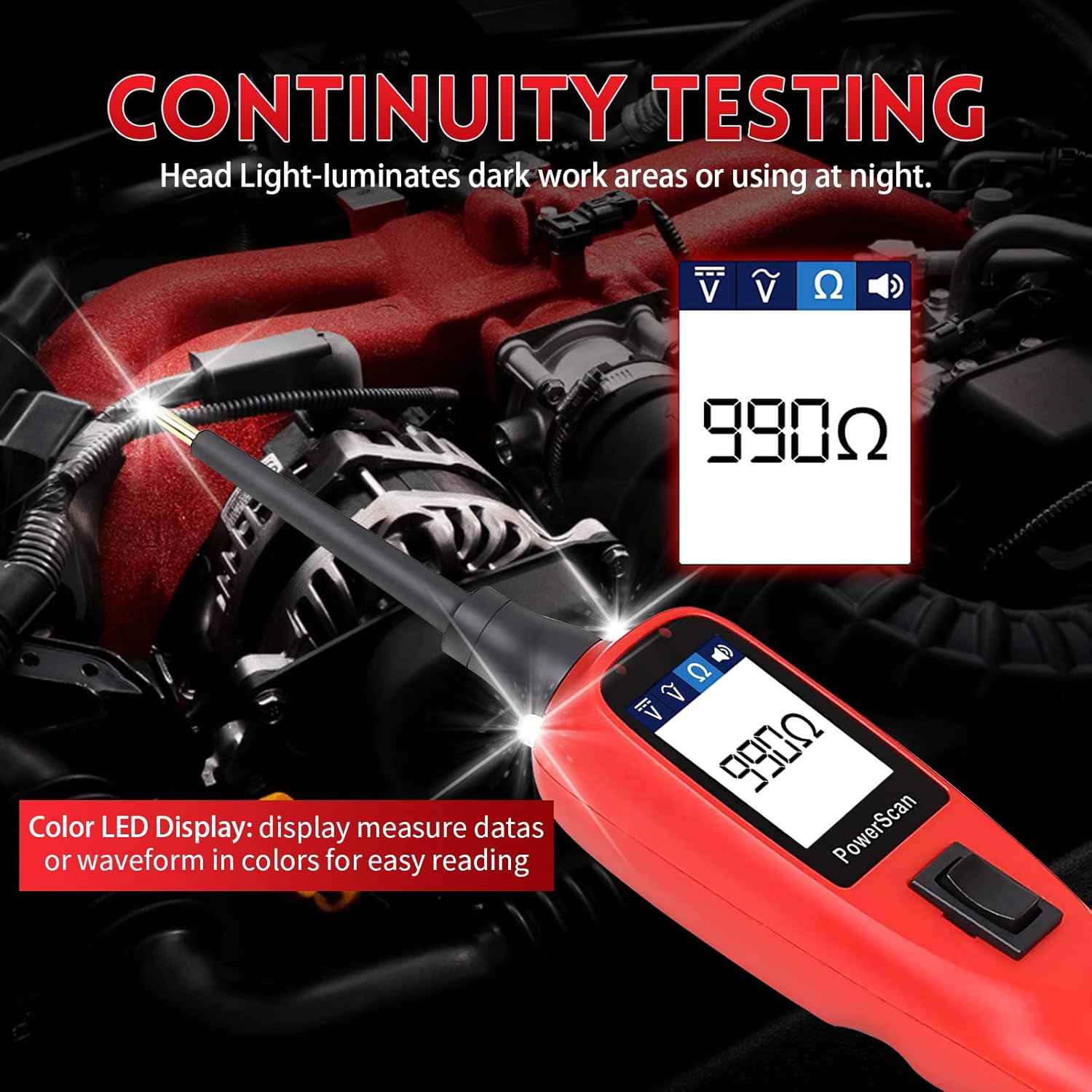

• Instantly checks continuity of switches, relays and diodes

• Circuit breaker protected

• Built-in Flashlight enables you to work in the dark

• Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment

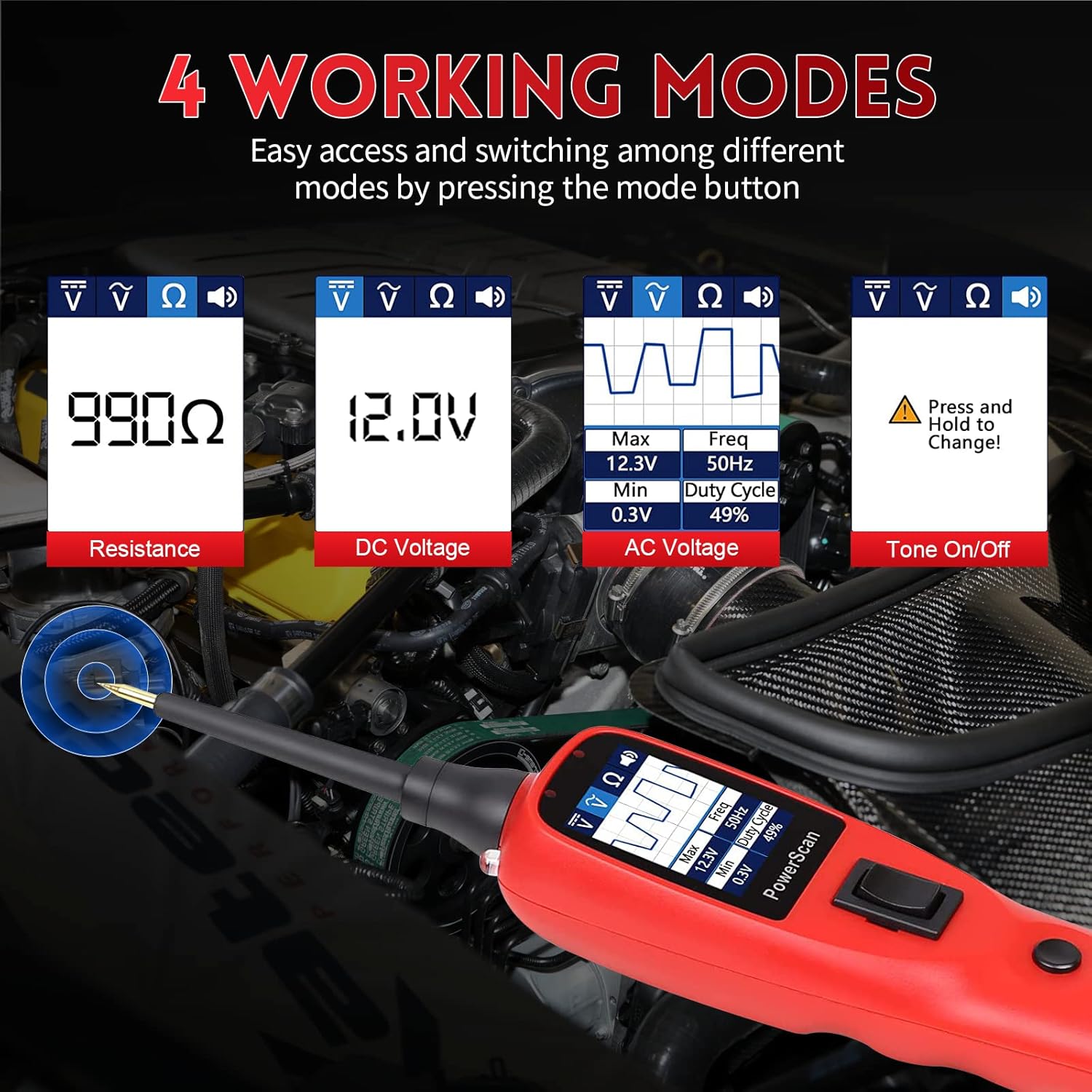

One-Click 4 Working Modes Swithcing:

Select the diagnostic model by depressing the mode button,and then connect the probe tip to the circuit,the LED is to display DC/AV voltage,resistance.

20 feet cable plus Extra 20ft Extension Cable for Large Vehicle Testing

Autel PS100 comes with exta 20ft (extendable) cable that provides excellent accessibility to test along large vehicles and the entire circuit system of the vehicles can be tested at ease.

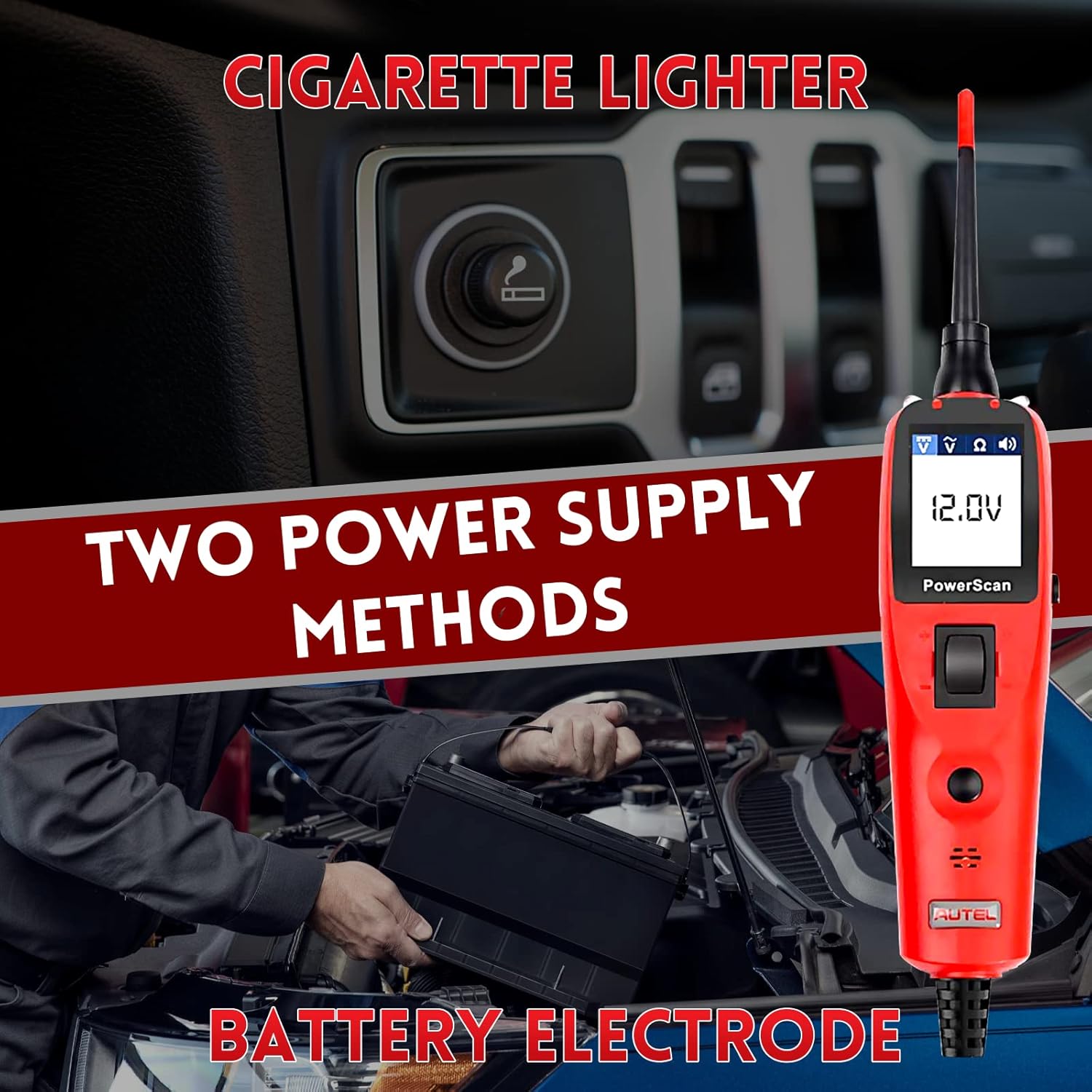

Two Power Supply Methods for Autel PS100 Circuit Tester:

• 1. Vehicle battery power supply
• 2. Ciga-rette li-ghter power supply

How to Perform Quick Self-Test :

1. Before you test a circuit or component, be sure your tool is in good order by doing a quick self-test.

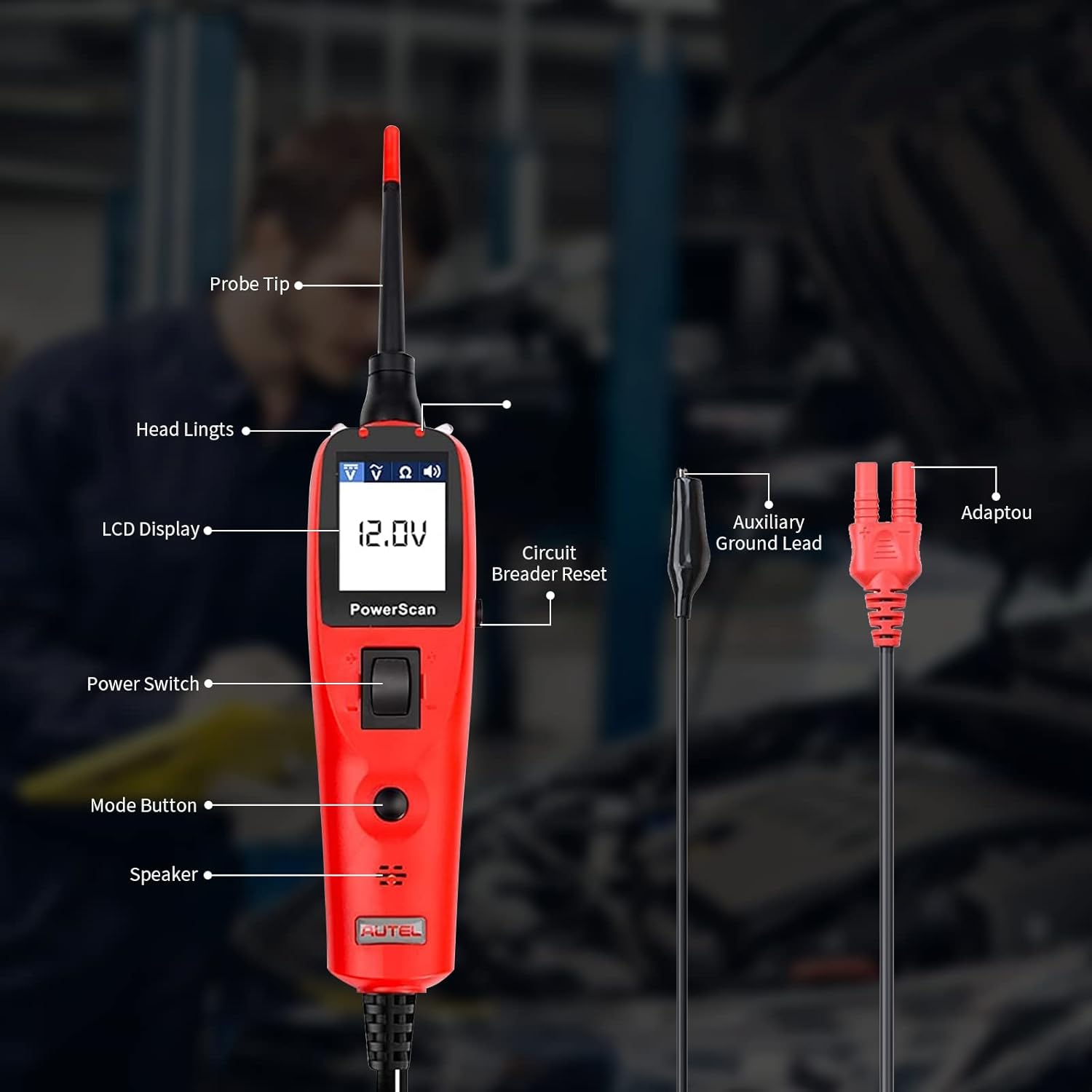

2. With the tool connected, perform a quick self-test. The power switch is a momentary rocker switch located on the tool's body. Flanking the switch are positive and negative markings.
3. Press the Power Switch forward to activate the tip with a positive voltage. The Red LED should light and the LCD display will read the battery voltage. If the tone feature is turned on, a high pitched tone will sound. Let go of the power switch and the LED will turn off and the high tone will cease.
4. Press the Power Switch rearward to activate the tip with a negative voltage. The Green LED should light and the LCD display will read the „0.0V‟ (ground). If the tone feature is turned on, a low pitched tone will sound. Let go of the power switch and the LED will turn off and the low tone will cease.

Unmatched Compatibility: Widest Application Scenario !

Autel PS100 Automotive Circuit Teste can be used to test almost all 12V-24V electric devices including motorcycle, motorboat, large trucks and so on. Autel PS100 is a must have tool for every technician looking for a fast and accurate solution to electrical system diagnostics.

100% Original Autel PS100 Circuit Tester

This Autel PS100 is the original product from Autel factory and is extremely easy to use and highly reliable.
