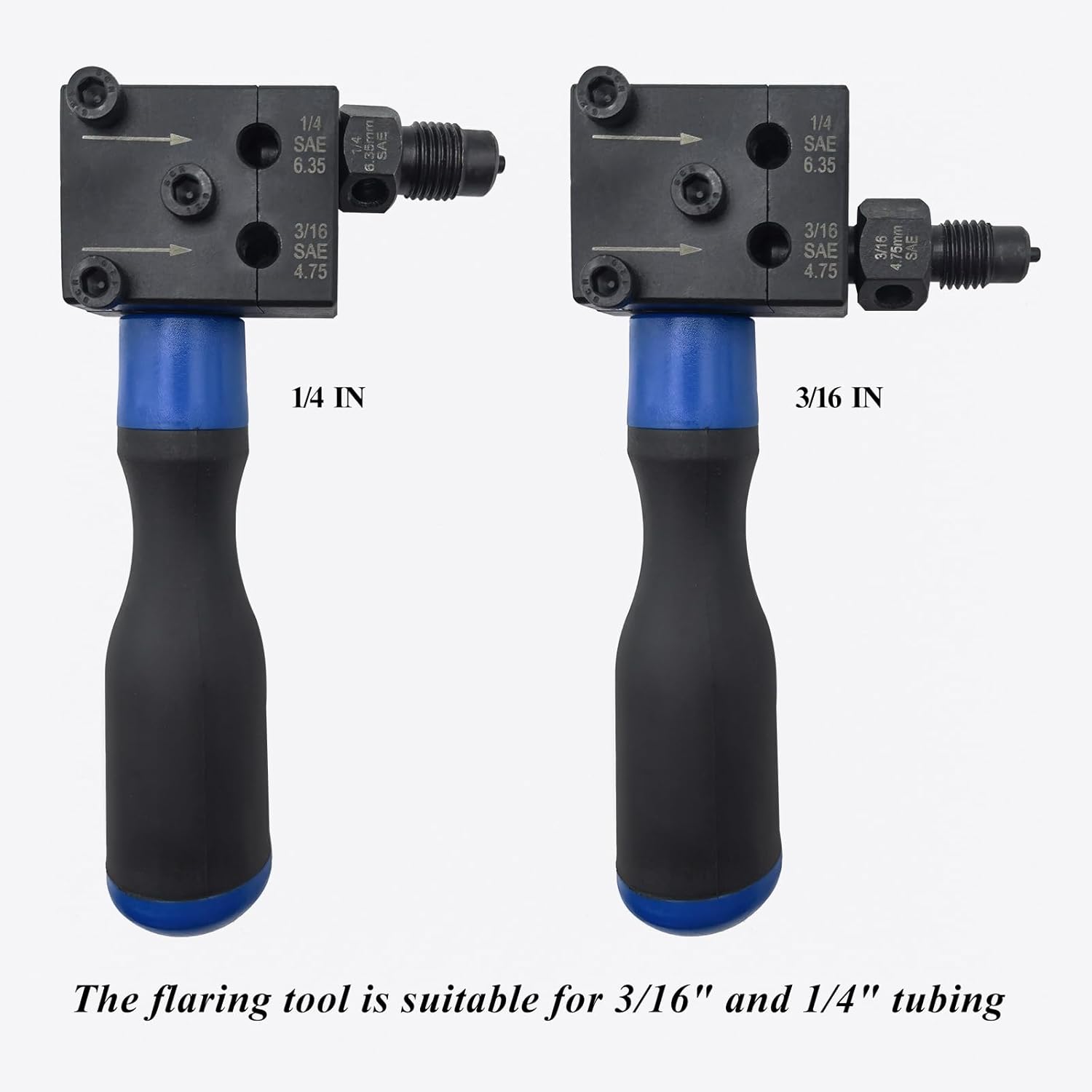

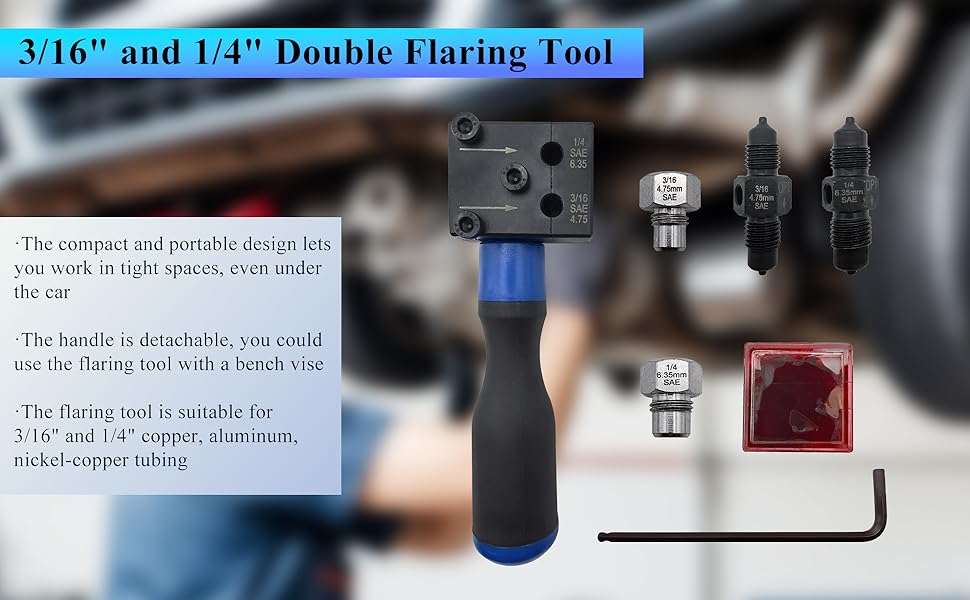

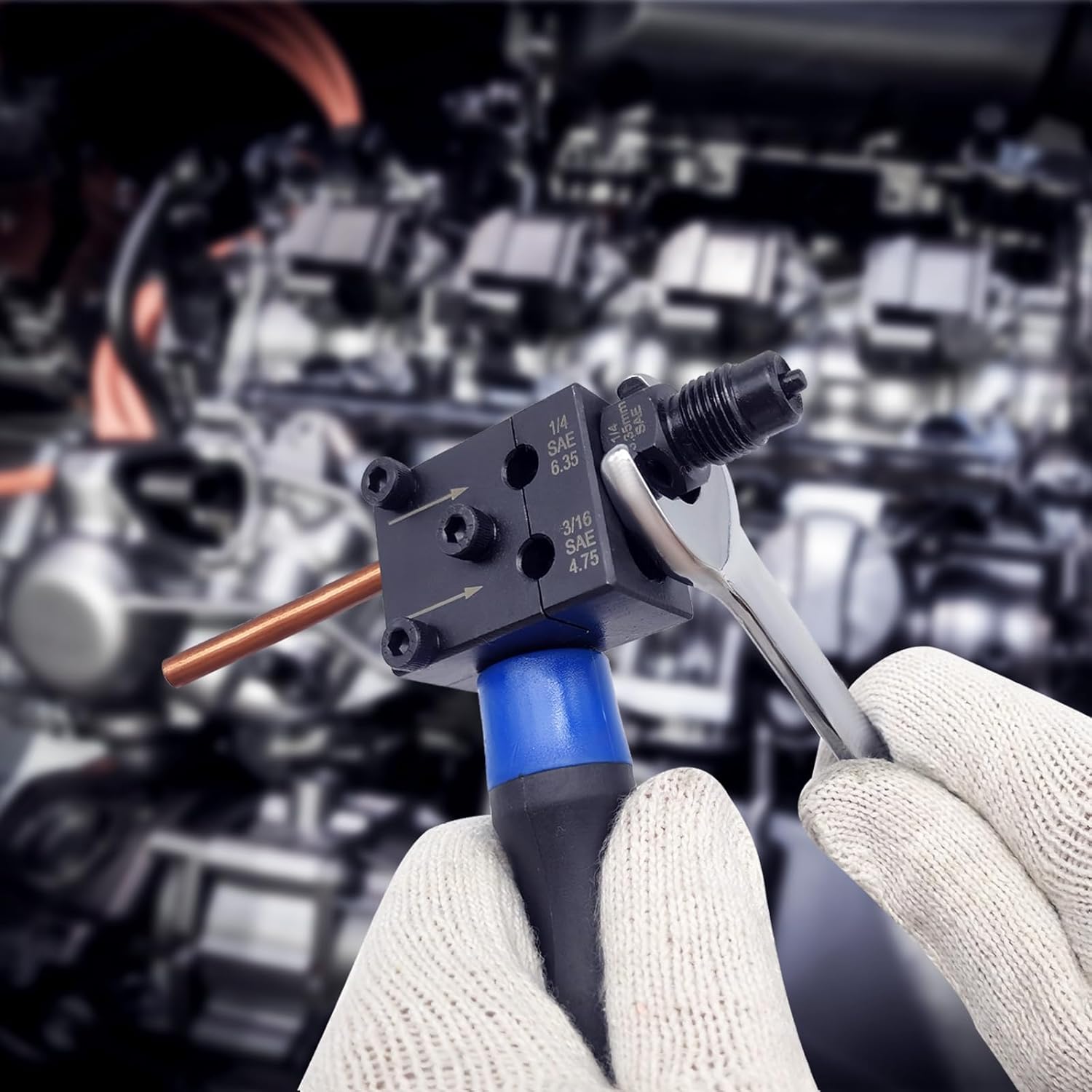

Brake Line Flaring Tool Kit, 3/16 in and 1/4 in Double Flaring Tool, Flare Tool for Vehicle Brake & Hydraulic Lines

Brake Line Flaring Tool Kit, 3/16 in and 1/4 in Double Flaring Tool, Flare Tool for Vehicle Brake & Hydraulic Lines

Regular price $51.99 USD
Regular price $51.99 USD Sale price $51.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product description

1

4

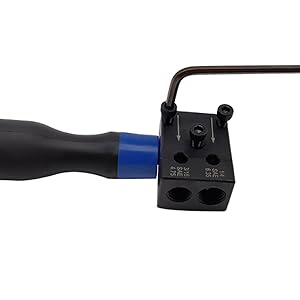

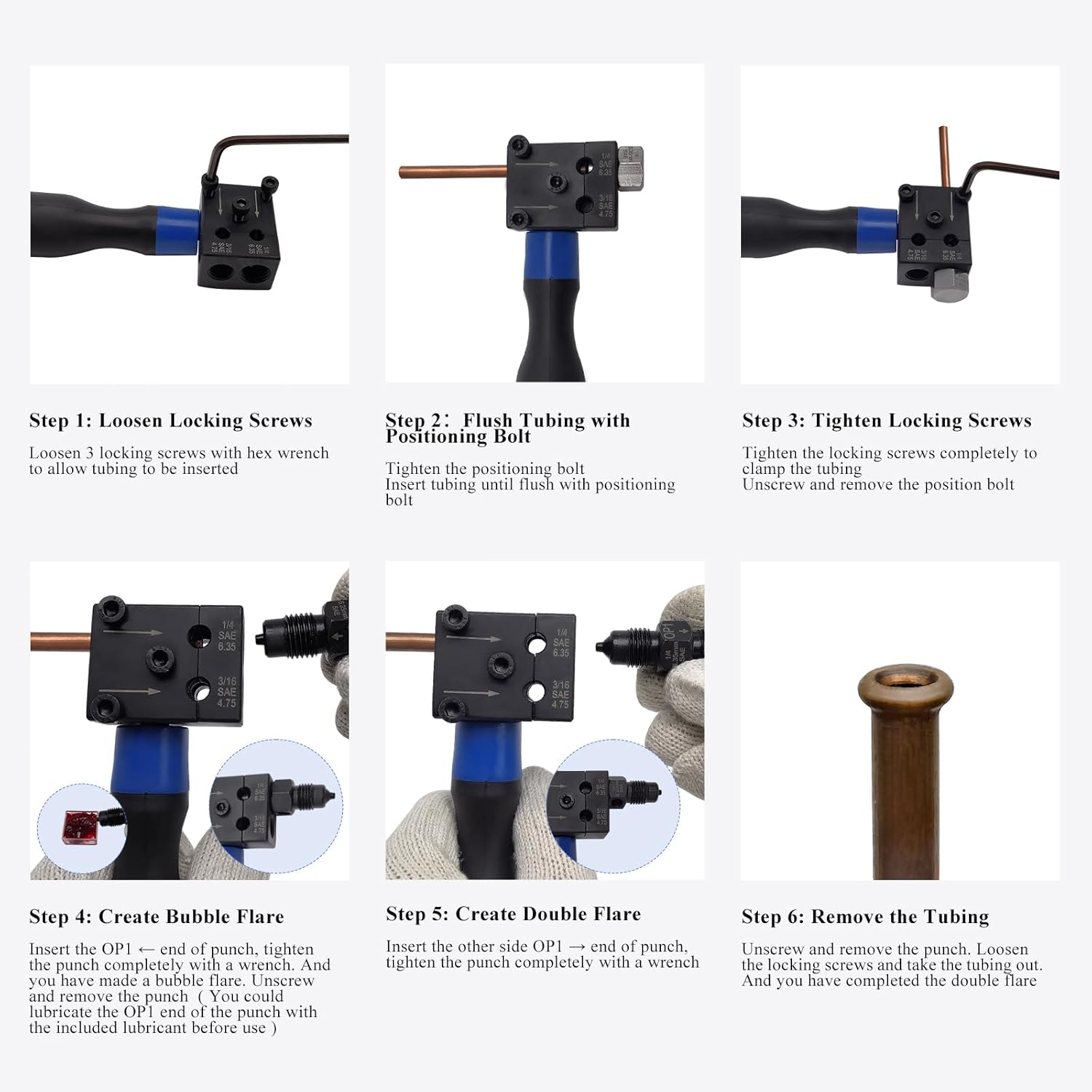

Step 1: Loosen Locking Screws

Loosen 3 locking screws with hex wrench to allow tubing to be inserted

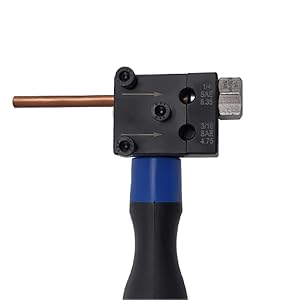

5

Step 2: Flush Tubing with Positioning Bolt

Tighten the positioning bolt

Insert tubing until flush with positioning bolt

6

Step 3: Tighten Locking Screws

Tighten the locking screws completely to clamp the tubing

Unscrew and remove the position bolt

7

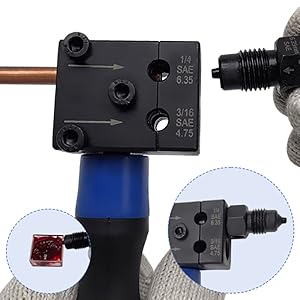

Step 4: Create Bubble Flare

Insert the OP1 ← end of punch, tighten the punch completely with a wrench. And you have made a bubble flare. Unscrew and remove the punch ( You could lubricate the OP1 end of the punch with the included lubricant before use )

8

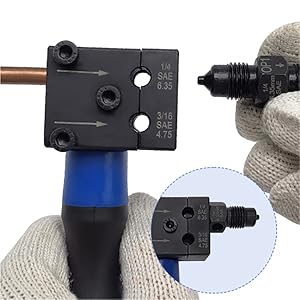

Step 5: Create Double Flare

Insert the other side OP1 → end of punch, tighten the punch completely with a wrench. And you have completed the double flare

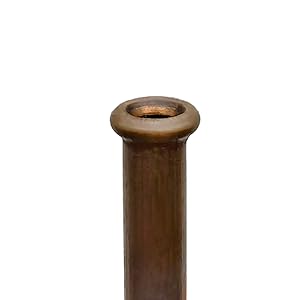

6-1

Step 6: Remove the Tubing

Unscrew and remove the punch. Loosen the locking screws and take the tubing out of the flaring tool

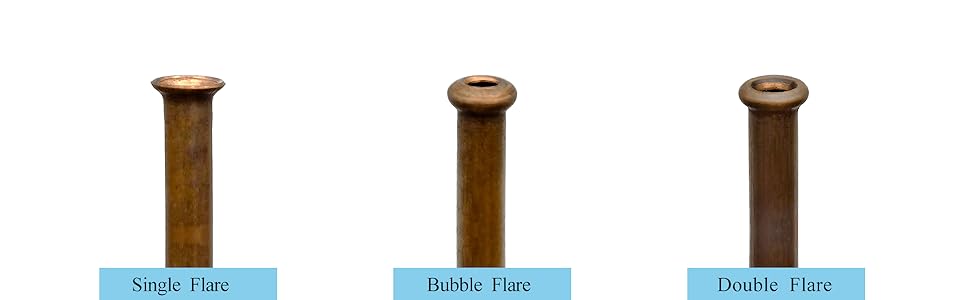

A+2
