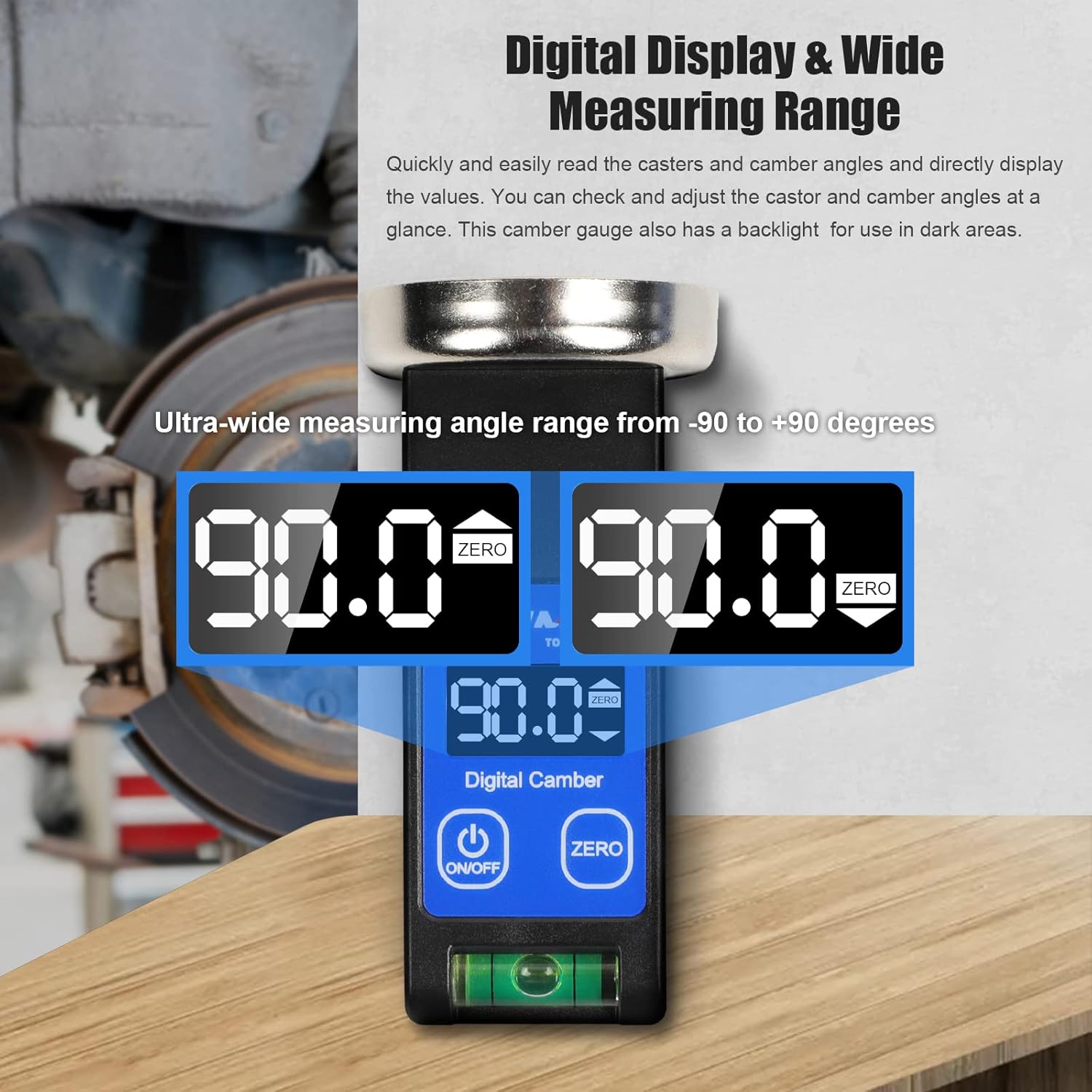

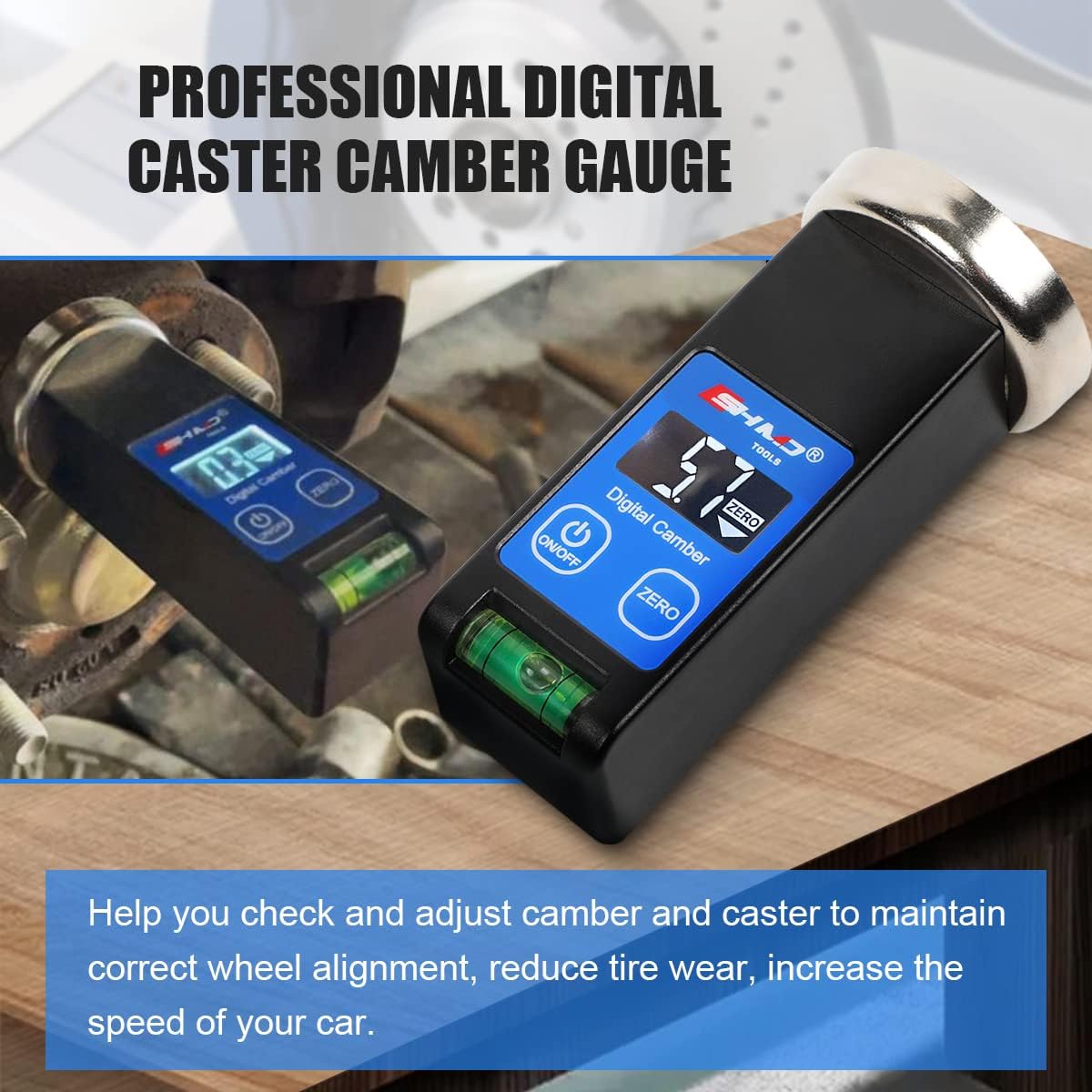

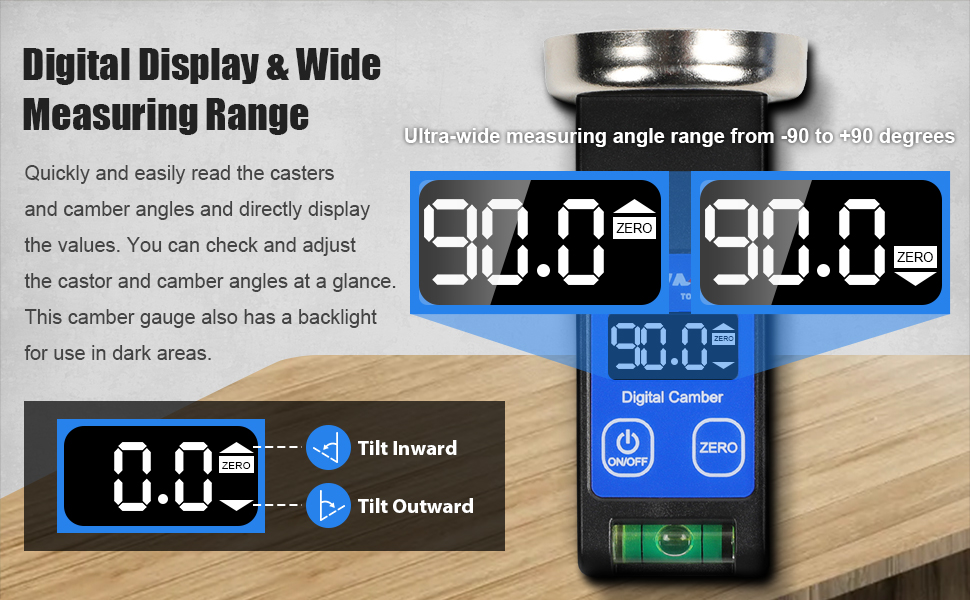

Camber Gauge Digital Wheel Alignment Tool -90° to +90° Wide Range Wheel Alignment & Balancing Tools Accurate Caster Camber Gauge with Digital Display & Powerful Magnet & Positioning Bubble & Reset Key

Power supply: 2pcs*AAA batteries (not included)

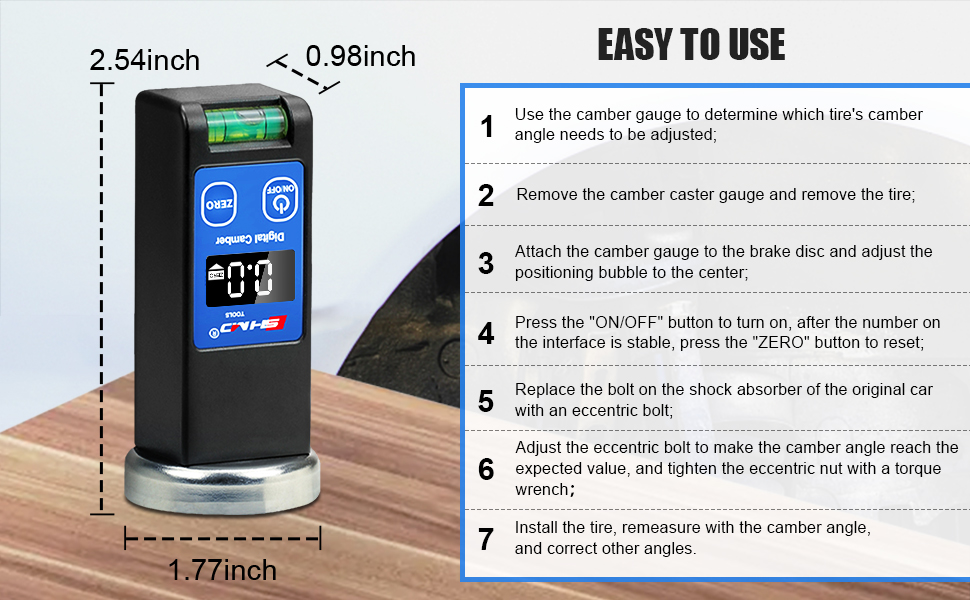

Easy to Use:

1. Use the camber gauge to determine which tire's camber angle needs to be adjusted;

2. Remove the camber caster gauge and remove the tire;

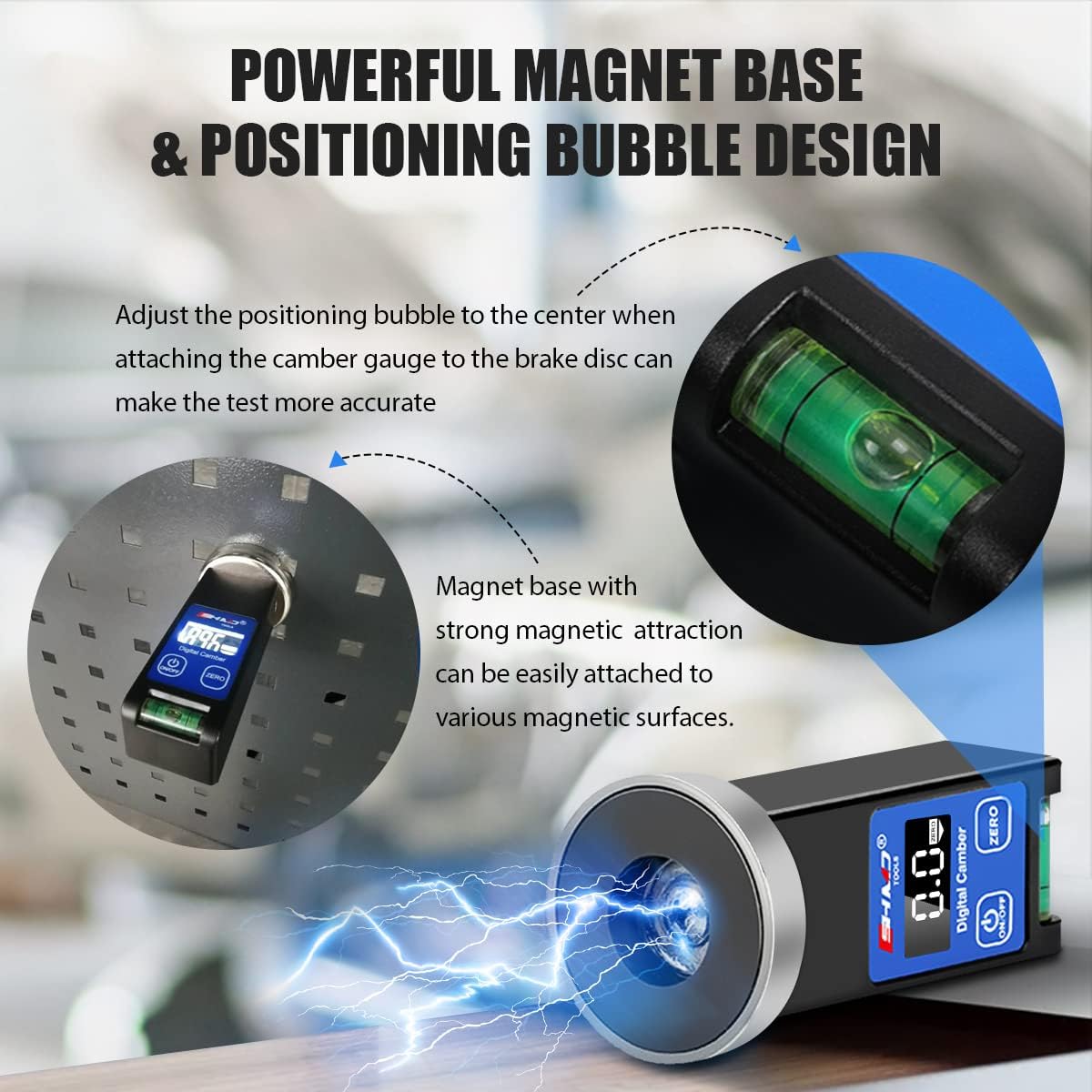

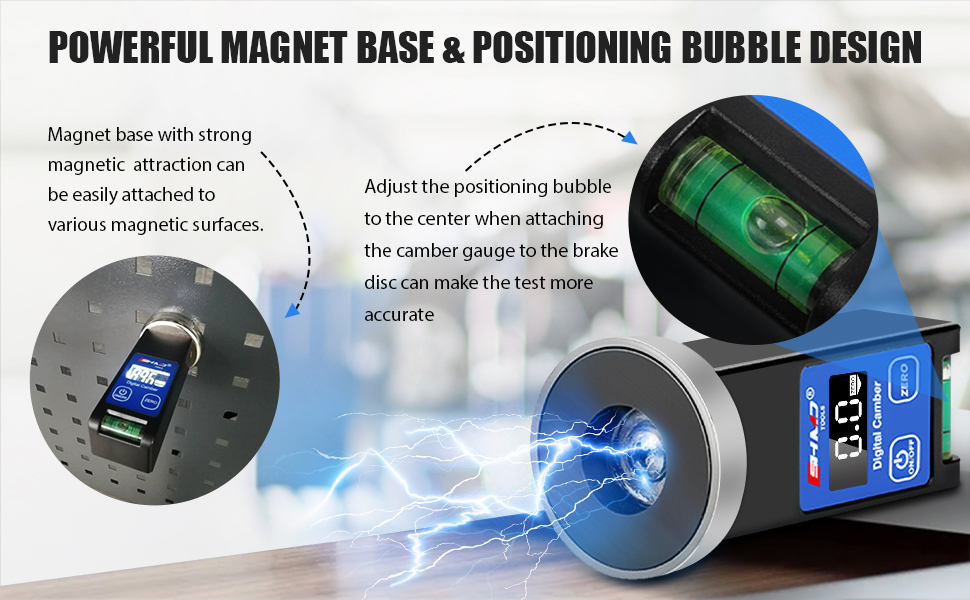

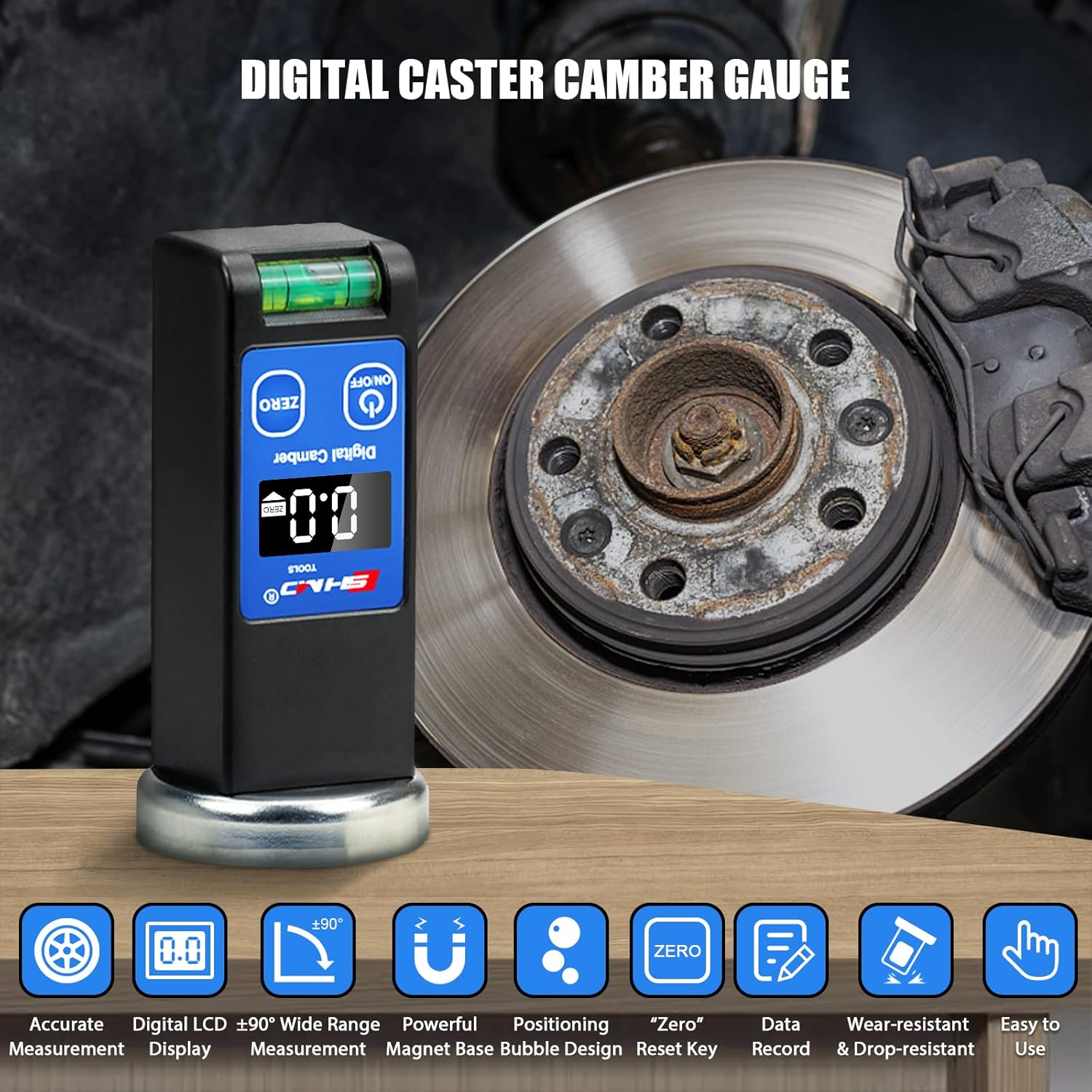

3. Attach the camber gauge to the brake disc and adjust the positioning bubble to the center;

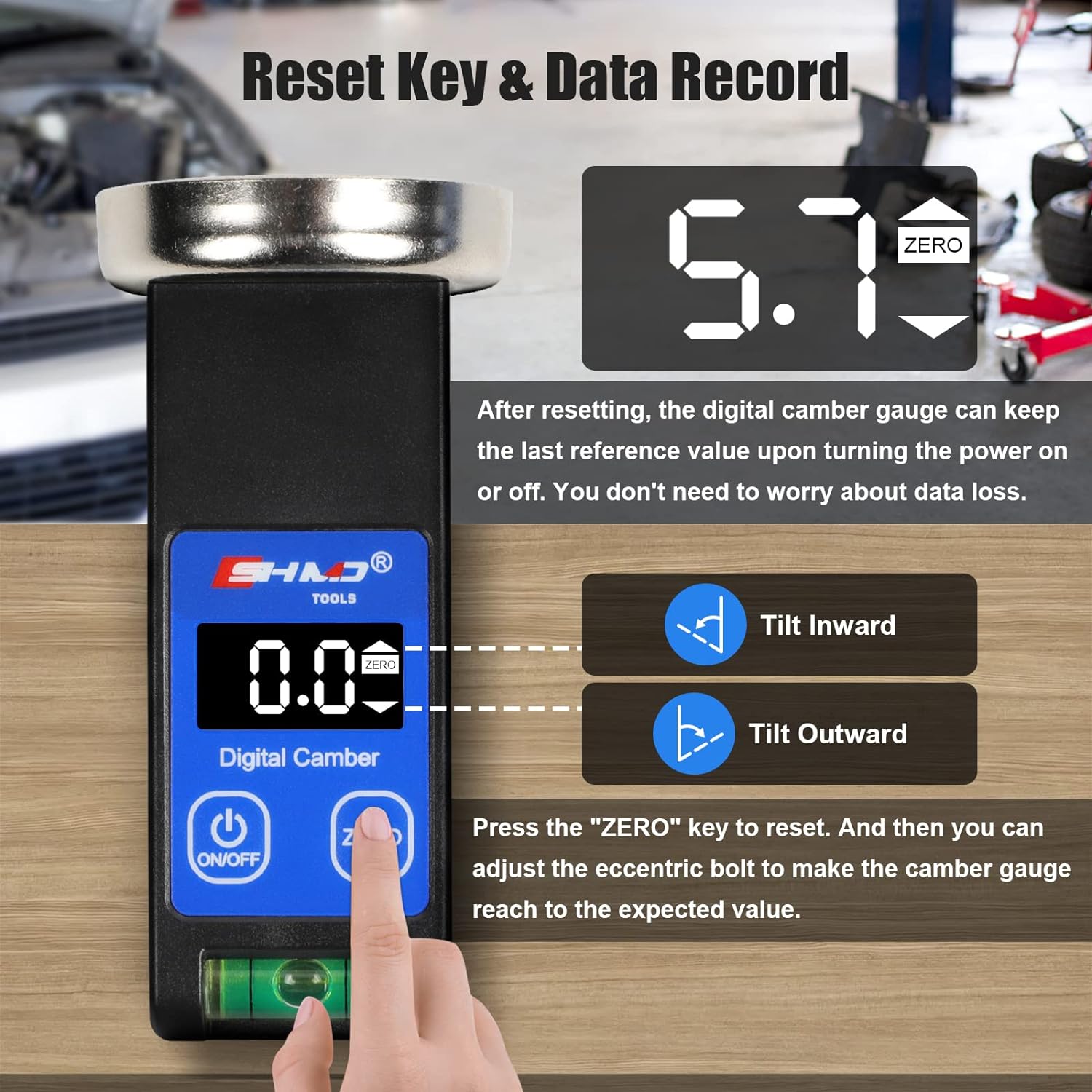

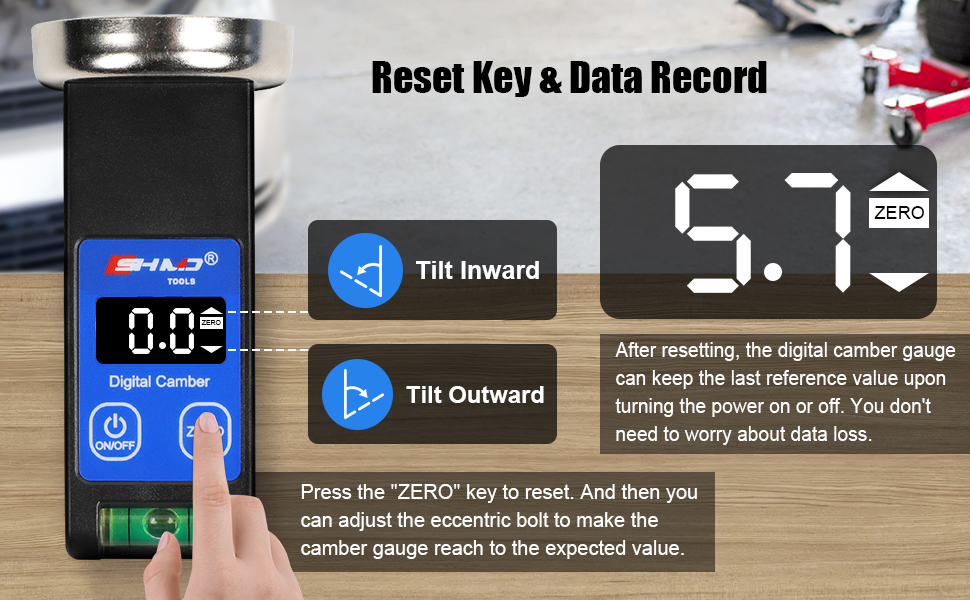

4. Press the "ON/OFF" button to turn on, after the number on the interface is stable, press the "ZERO" button to reset (the interface displays "0.0" and "ZERO" at the same time);

5. Replace the bolt on the shock absorber of the original car with an eccentric bolt;

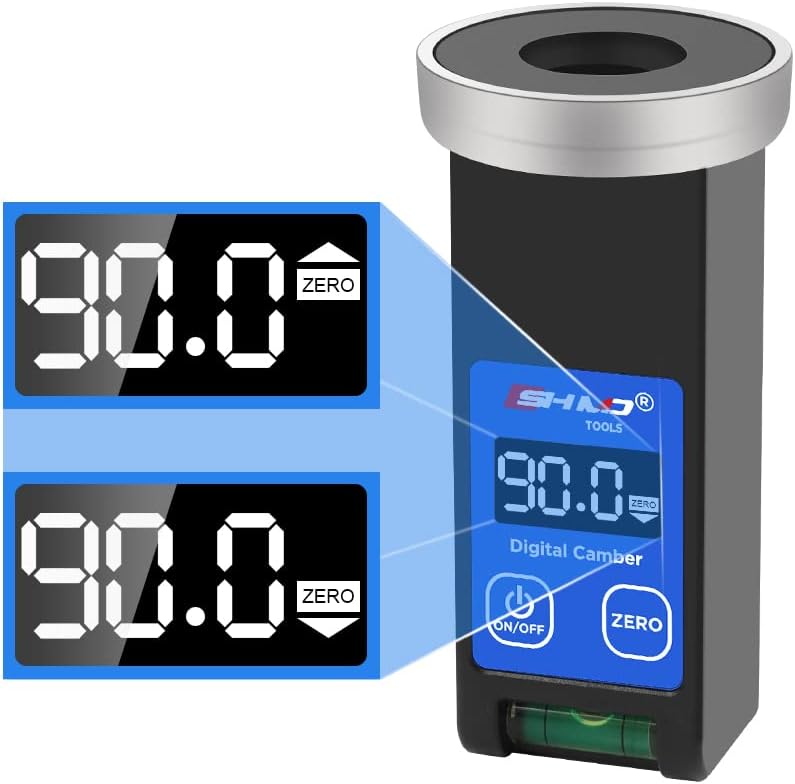

6. Adjust the eccentric bolt to make the camber angle reach the expected value, and tighten the eccentric nut with a torque wrench ("Up arrow" means inward tilt, so the value needs to be adjusted down; "Down arrow" means outward tilt, so the value needs to be adjusted up);

7. Install the tire, remeasure with the camber angle, and correct other angles (If there is a slight deviation in re-testing with the camber angle, just fine-tune it under the car. Generally, a slight deviation will not cause positioning faults).

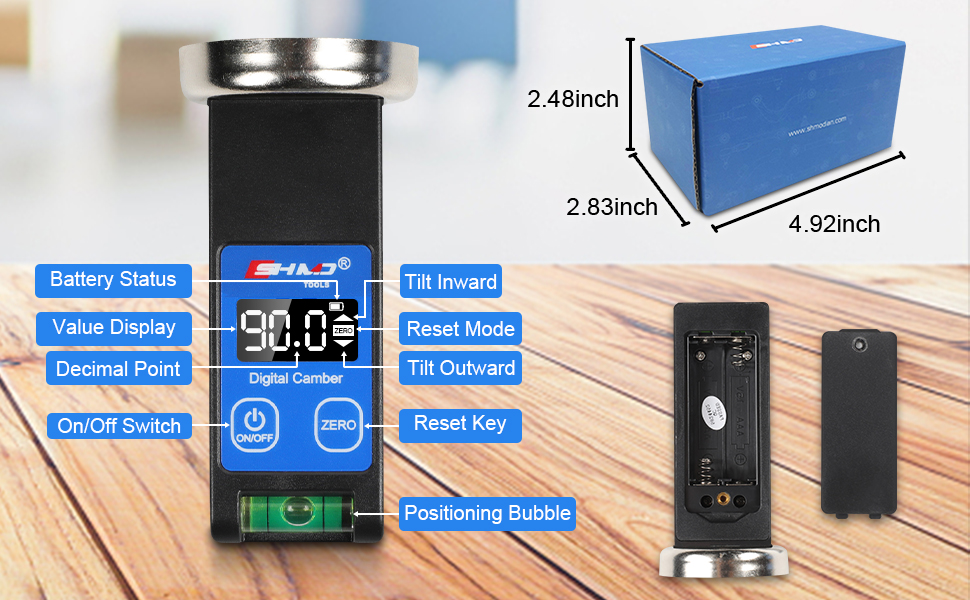

Specification:

Power supply: 2pcs*AAA batteries (not included)

Product size: 2.54*1.77*0.98inch

Product weight: 200g

Packing size: 4.92*2.83*2.48inch
