Capri Tools 3/16 in. Double Flaring Tool (CP21110-316)
Capri Tools 3/16 in. Double Flaring Tool (CP21110-316)
Couldn't load pickup availability
From the manufacturer
Step-By-Step
Step 1: Loosen Locking Screws
Loosen the (2) 10 mm locking screws to allow tubing to be inserted into the tool.
Step 2: Flush Tubing with Positioning Bolt
Insert tubing through the small opening of the tool. Tighten locking screws lightly. Insert the positioning bolt into the large threaded opening of the tool and tighten. Slide the tubing inward until flush with positioning bolt.
Step 3: Tighten Locking Screws
With the tubing positioned flush against the positioning bolt, tighten the locking screws to firmly secure the tubing. Unscrew and remove the position bolt.
Step 4: Create Bubble Flare
Starts with the OP1 end. Lubricate the OP1 end of the punch with the included die lubricant. Insert the OP1 end into the large threaded opening of the tool. Tighten the punch with a 17mm wrench. The OP1 punch then makes a bubble flare. Unscrew and remove the punch.
Step 5: Create Double Flare
Now, lubricate the OP2 end of the punch (opposite of the OP1 end) with the lubricant. Insert the OP2 end into the large threaded opening of the tool. Tighten the punch with a 17mm wrench to complete the double flare.
Step 6: Unscrew and Remove the Punch

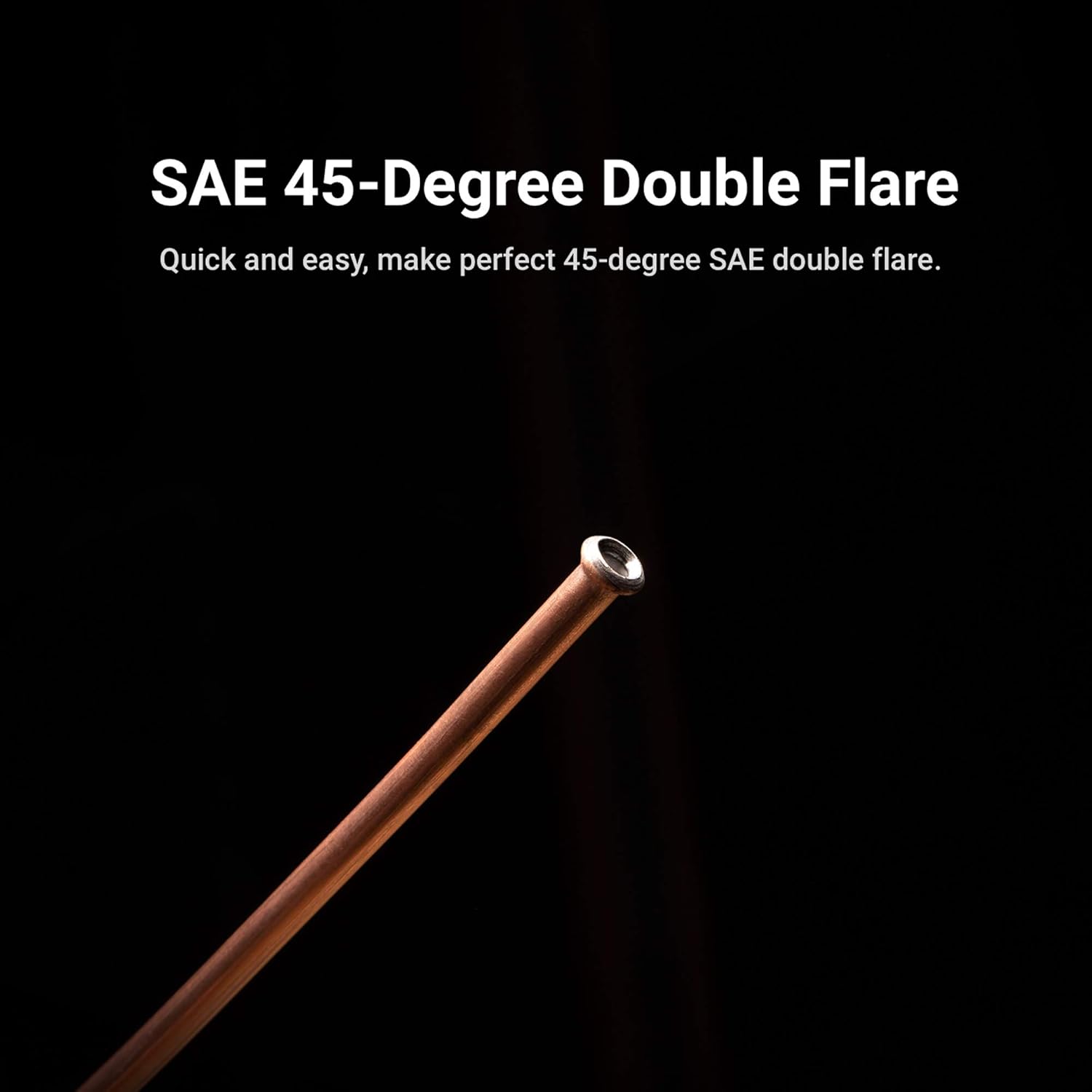

Unscrew and remove the punch. Loosen the locking screws to retrieve the tubing from the tool. The 45 degree double flare is now complete.
Capri Tools 3/16" (4.75 mm DIN) Dual Head Flaring Tool
|

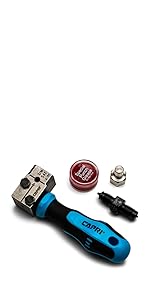

Capri Tools 3/16" Double Flaring Tool
|
Capri Tools 1/4" Double Flaring Tool
|

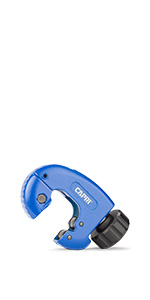

Capri Tools Close Quarters Mini Tube Cutter
|

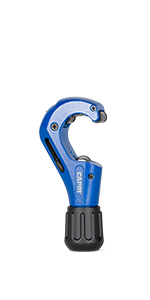

Capri Tools Telescopic Tube Cutters
|

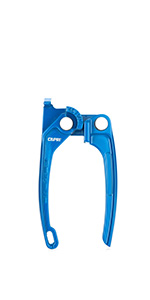

Capri Tools Brake Line Tube Bender
|
|
|---|---|---|---|---|---|---|
|
|
||||||
| Customer Reviews |
131
|
1,177
|
173
|
2
|
9
|
689
|
| Price | $69.46 | $46.99 | $43.70 | — no data | $29.00 | $14.99 |
| Part Number | CP21110-SD | CP21110-316 | CP21110-14 | CP11270 | CP11271 | CP21105 |
| Tube Capacity | 3/16 in. (4.75 mm DIN) | 3/16" | 1/4" | 1/8″ to 1-1/8″ | 1/8″ to 1-3/8″ | 1/8″, 3/16″ and 1/4″ |
| Suitable Pipe Material | Non-stainless Steel, Aluminum, Nickel, and Copper | Non-stainless Steel, Aluminum, Nickel, and Copper | Non-stainless Steel, Aluminum, Nickel, and Copper | Copper, Aluminum, Brass, and Pastic | Copper, Aluminum, Brass, and PVC | Copper, Brass and Aluminum |
Product Description

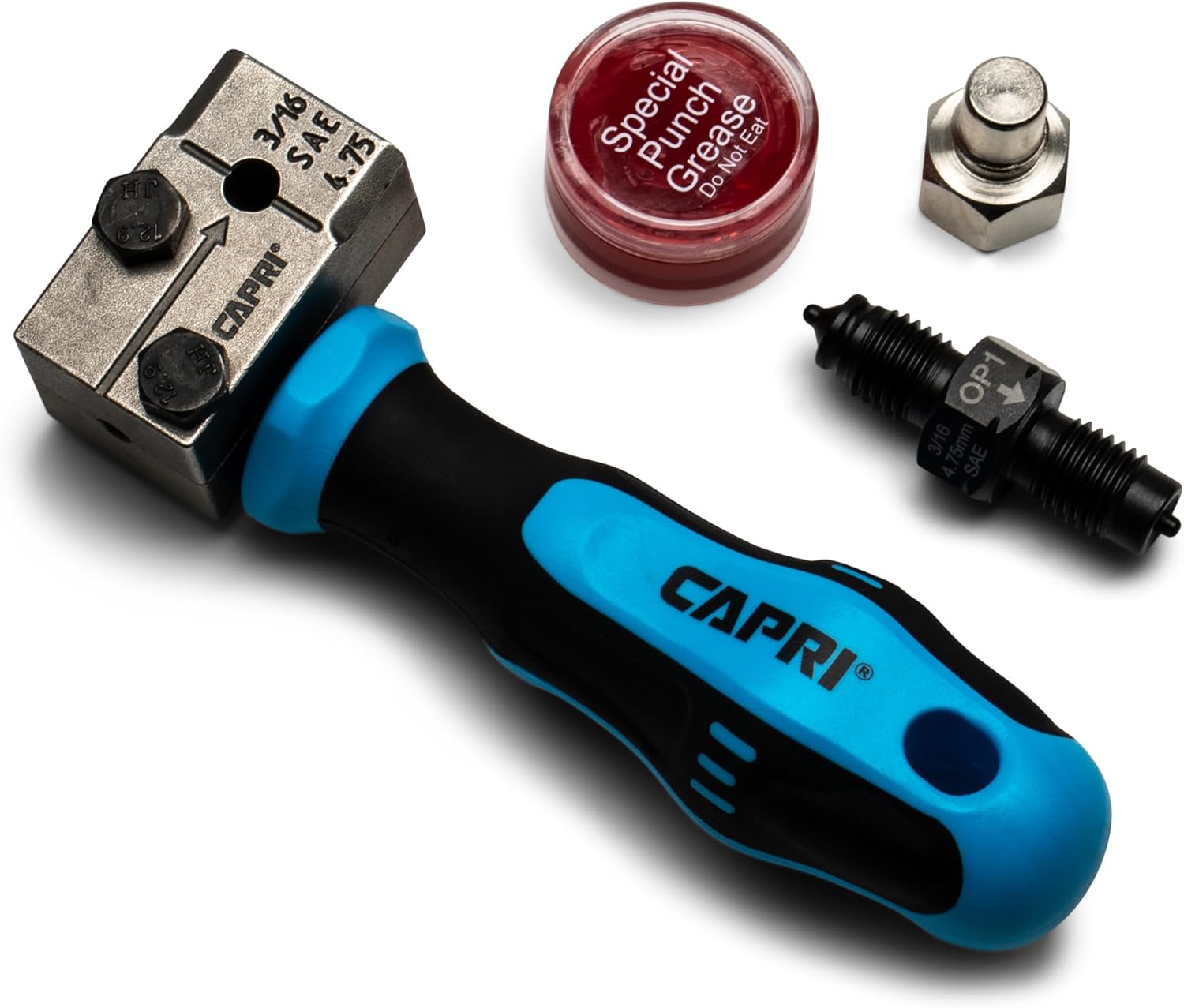

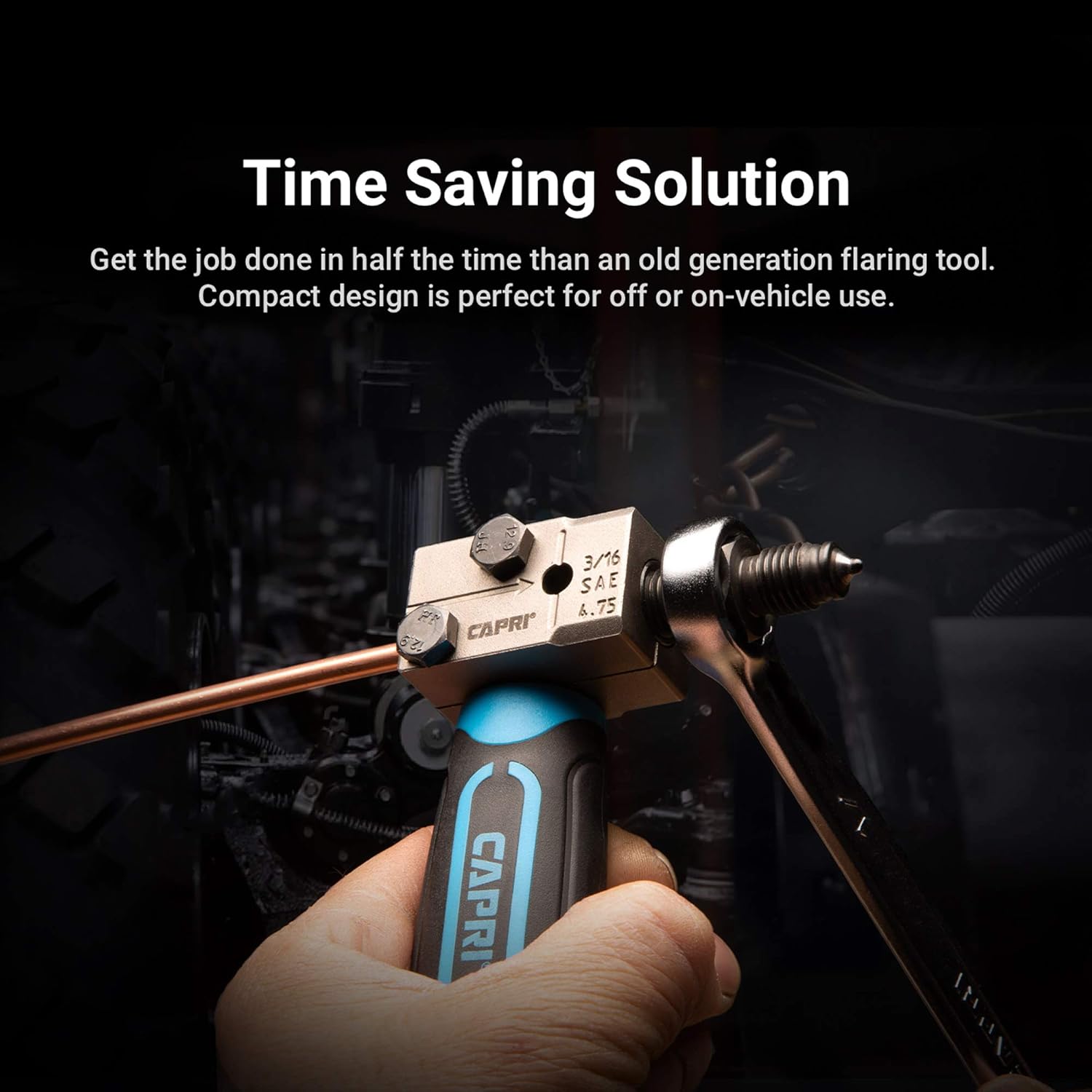

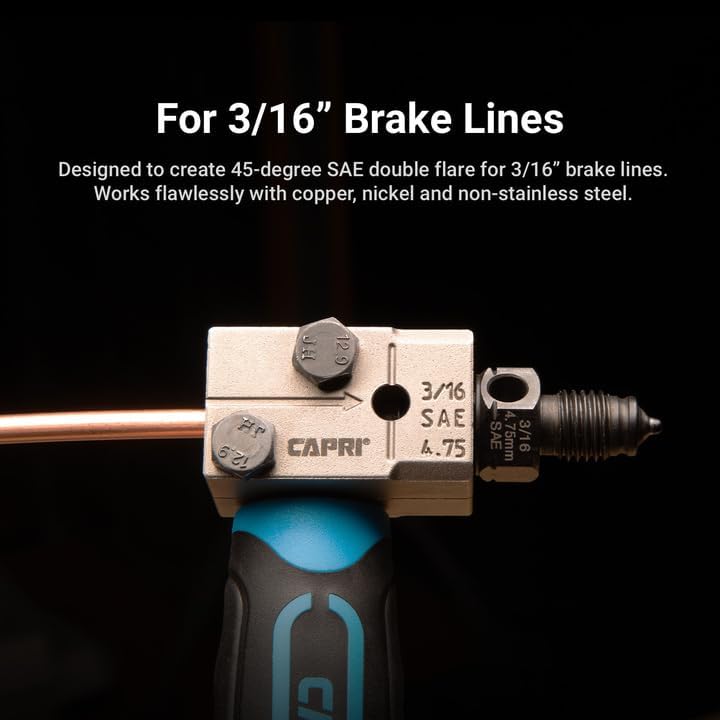

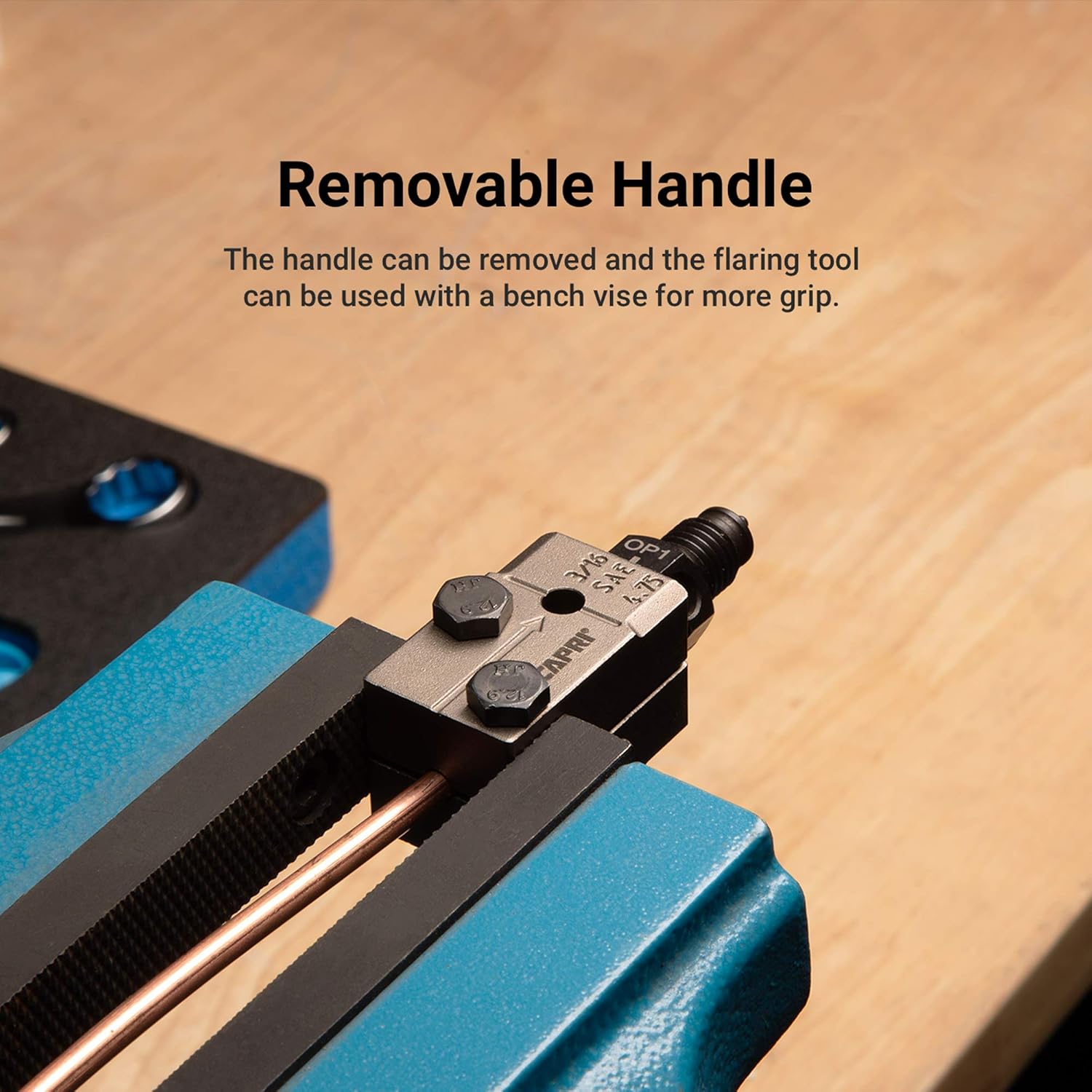

The Capri Tools Double Flaring Tool lets you create perfect 45-degree SAE double flares in half the time compared to old generation flaring tools. Its compact and portable design lets you work both off vehicle and on vehicle, even in tight spots. The die can be detached so you can also work with a bench vise for more grip. The tool works flawlessly with 3/16 in. non-stainless steel, nickel, and copper tubing. This is an all-in-one tool. A 10 mm and a 17 mm wrenches are the only other tools you need to start making perfect double flares.
