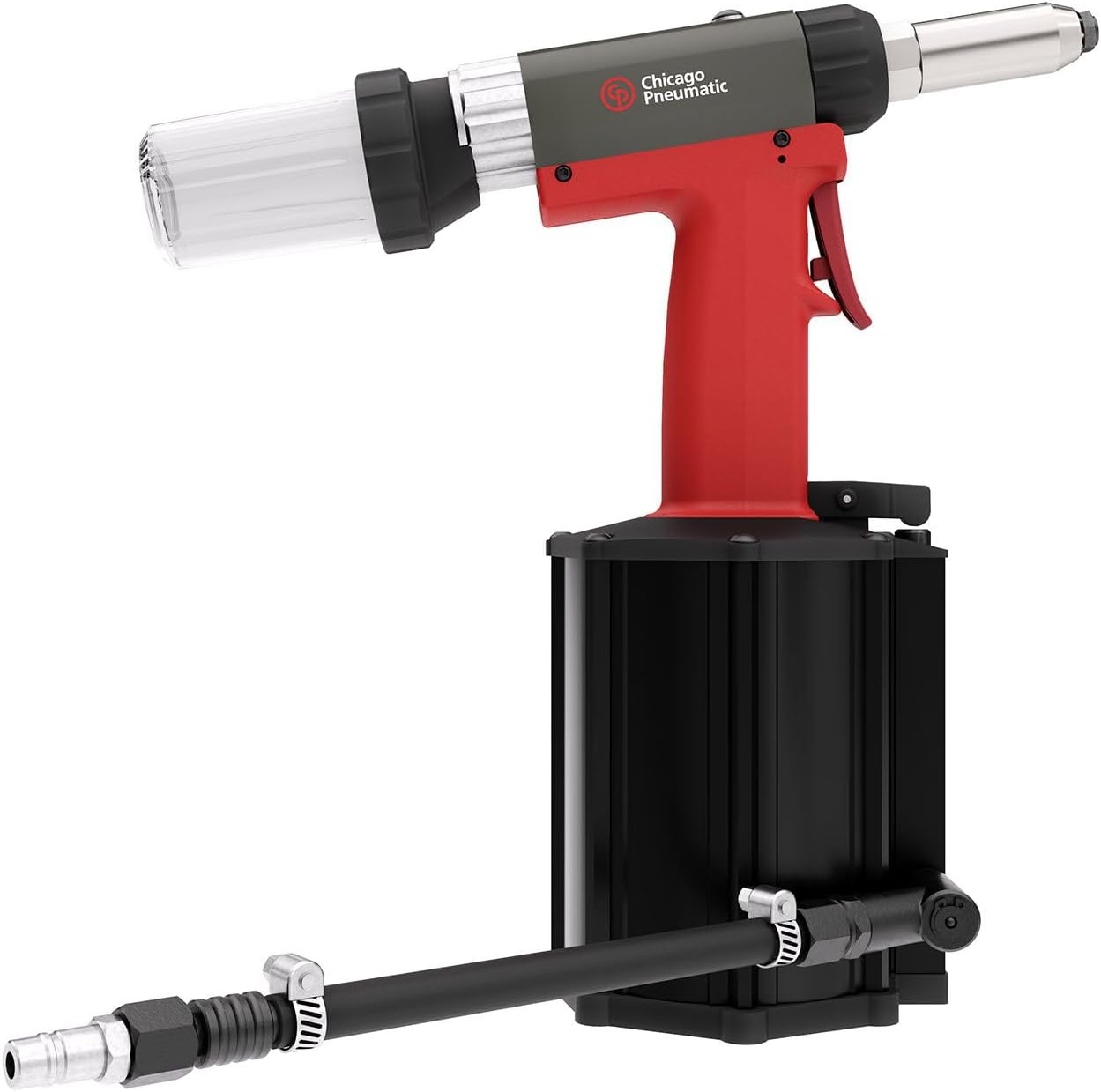

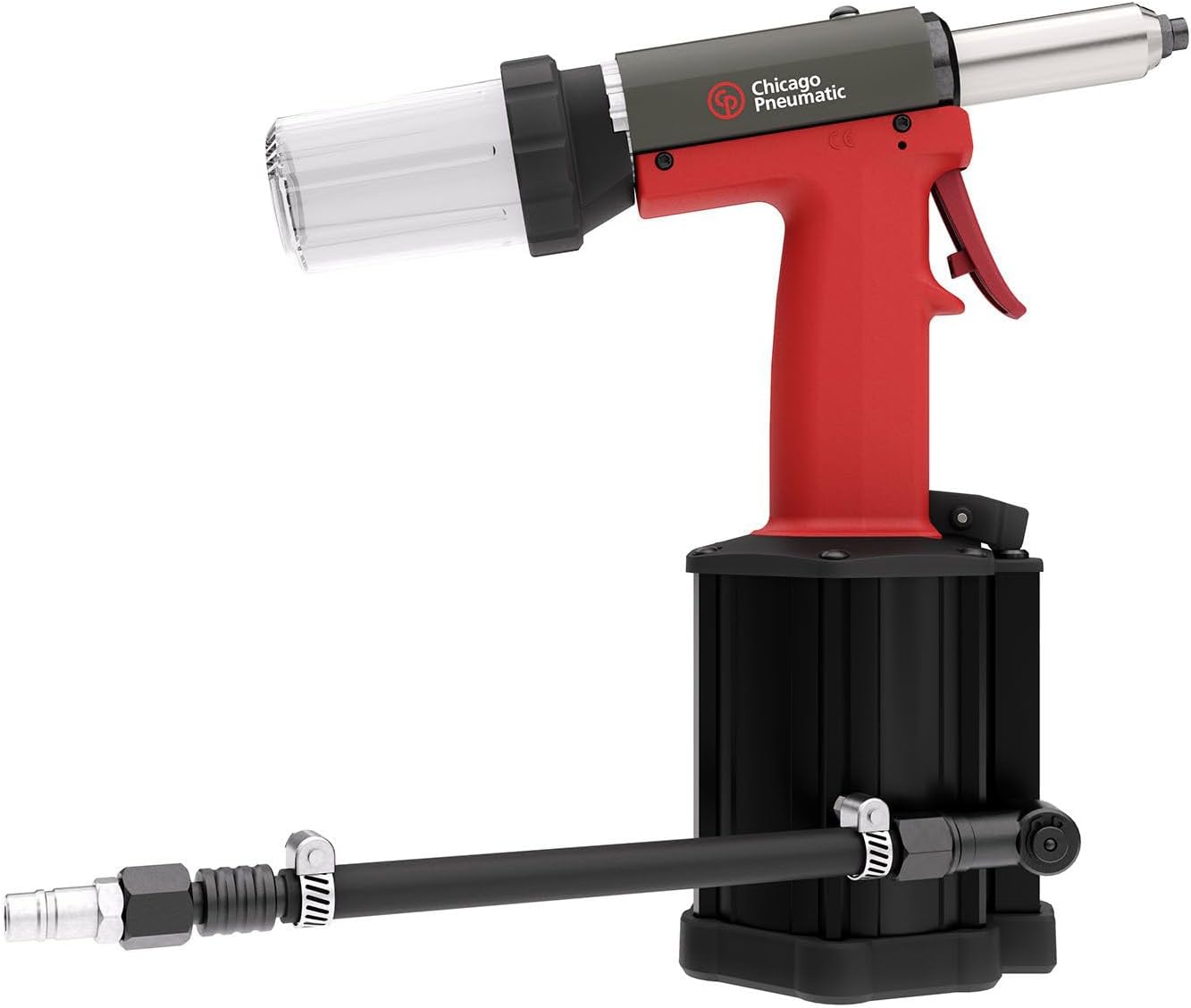

Chicago Pneumatic CP9882 - Air Riveter, Mechanic Tools, Construction, Home Improvement, Air Gun Tool, Blind Rivets, Max Rivet Size 3/16 Inch / 4.8 mm, Pulling Force 2200 lb / 1000 kg
Chicago Pneumatic CP9882 - Air Riveter, Mechanic Tools, Construction, Home Improvement, Air Gun Tool, Blind Rivets, Max Rivet Size 3/16 Inch / 4.8 mm, Pulling Force 2200 lb / 1000 kg
Couldn't load pickup availability
From the brand
-
-
Air Grinders
-
Air Impact Wrenches
-
Air Percussive Tools
-
Air Sanders & Polishers
-
Air Drills
-
Air Screwdrivers
-
Air Cutting Tools
-
Air Ratchet Wrenches
From the manufacturer

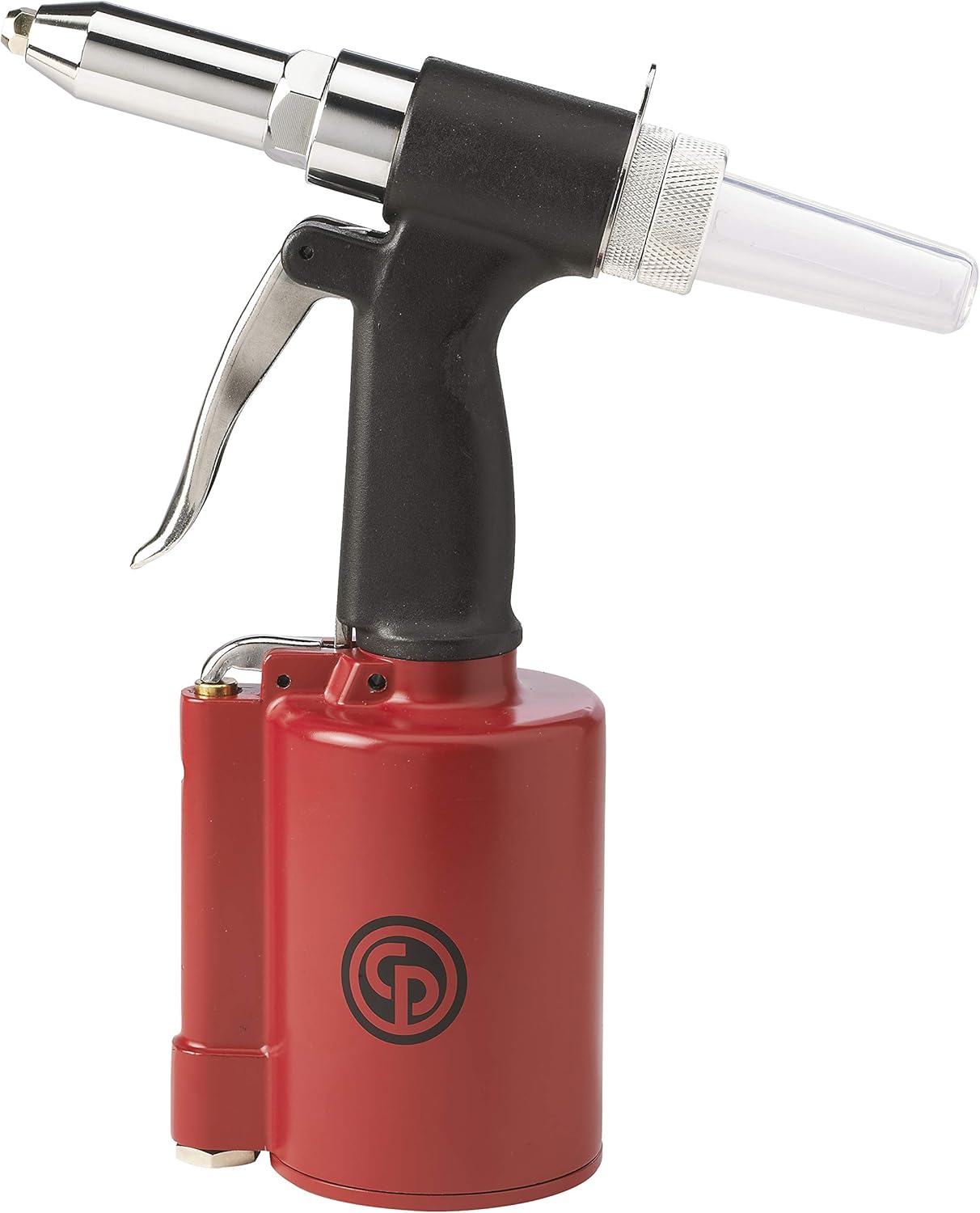

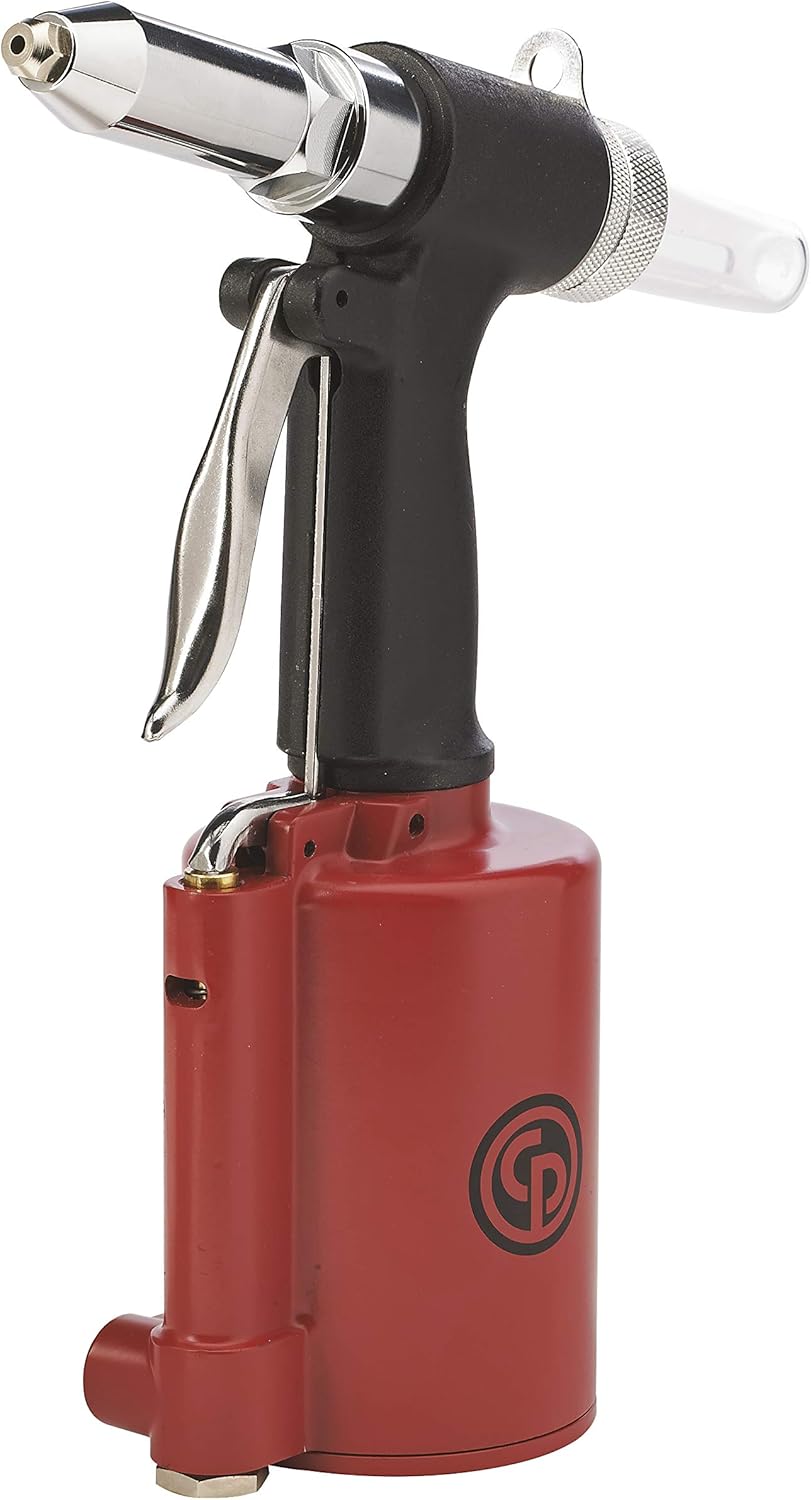

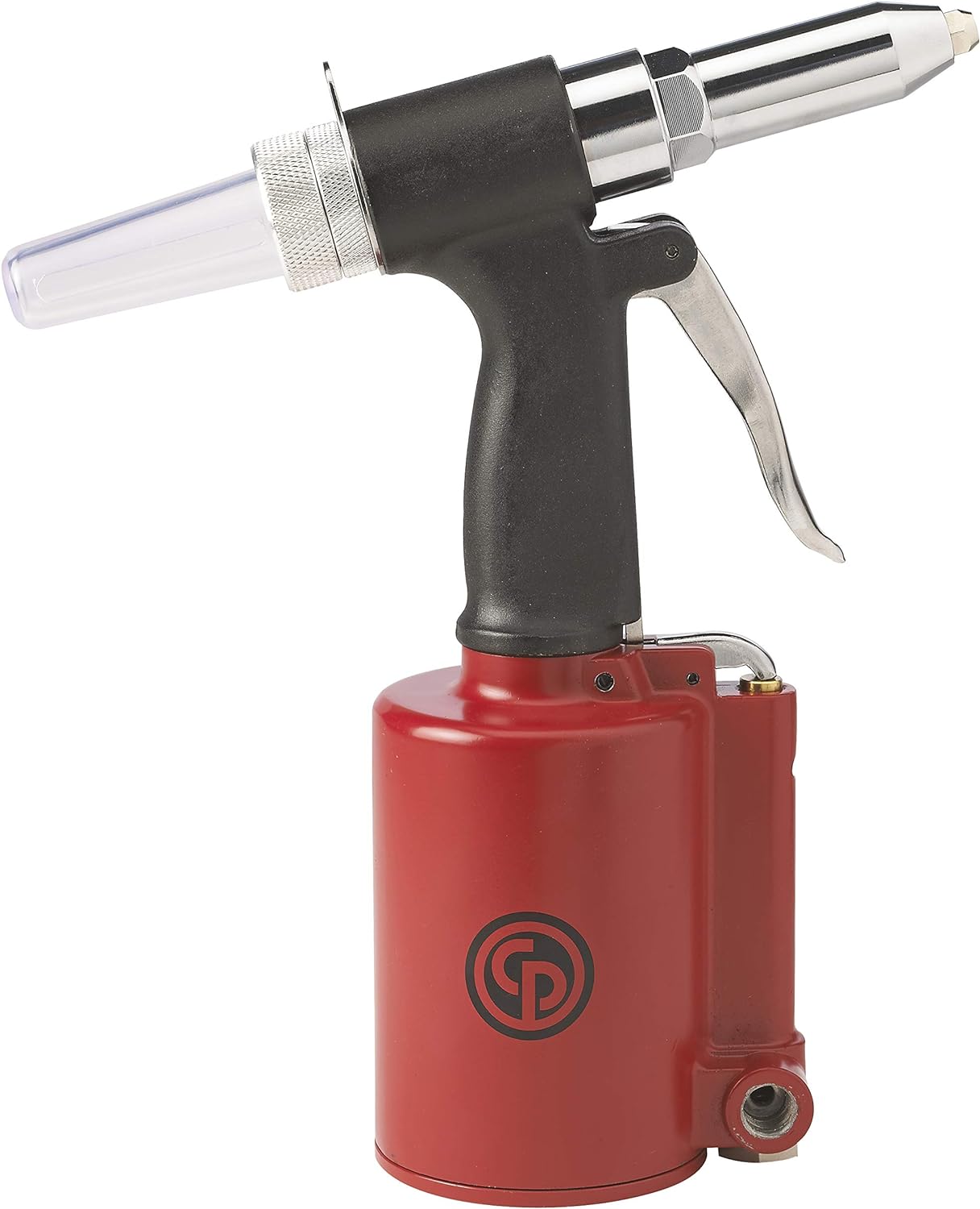

Chicago Pneumatic CP9882 - Air Riveter, Blind Rivet Type
Easy-to-use and reliable
For operators working in body shops or general maintenance applications such as trailer panels, number plates, and any type of panel maintenance who look for easy-to-use & reliable riveters, the CP9882 series is the air riveter that you need.
Designed for body shops or general maintenance applications such as trailer panels, number plates, and any type of panel maintenance, the CP9882 series offers ease of use and reliability. This pneumatic riveter can be used with aluminum, copper, and softer materials rivets with a maximum capacity of 3/16 Inch (4.8 mm).
Benefits:
- Force: 2203 Lbf / 9800 N
- Max Rivet Size: 3/16 Inch (4.8 mm)
- Rivet Type: Blind Rivet
- Extraction Rivet Mandrel
- Sound Pressure: 62 dB(A)
- Sound Power: 73 dB(A)
- Vibrations: <2.5 m/s² - k

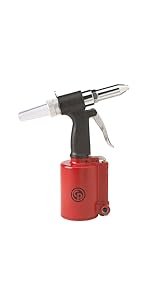

CP9882
|
CP9886
|
CP9887
|

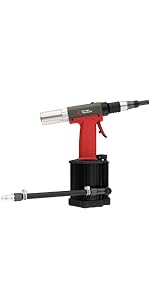

CP9888
|
|
|---|---|---|---|---|
| Customer Reviews |
116
|
116
|
116
|
116
|
| Price | $156.80 | $467.98 | $669.00 | $1,436.62 |
| Force: | 2,203 Lbf / 9,800 N | 2,833 Lbf / 12,600 N | 4,721 Lbf / 21,000 N | 5,395 Lbf / 24,000 N |
| Max Rivet Size: | 3/16 Inch (4.8 mm) | 3/16 Inch (4.8 mm) | 1/4 Inch (6.4 mm) | M3 - M12 |
| Rivet Type: | Blind Rivet | Blind Rivet | Blind Rivet | Blind Nut |
| Speed: | no data | no data | no data | 3100 RPM |
| Length: | 8.86 Inch | 10.9 Inch | 12.7 Inch | 11 Inch |
| Weight: | 3.31 lbs | 3.74 lbs | 5.5 lbs | 4.8 lbs |
| Max Dynamic Air Working Pressure: | 90 psi | 90 psi | 90 psi | 90 psi |
| Air Consumption at Load: | 4 cfm | 8.5 cfm | 8.7 cfm | 5.9 cfm |
| Air Inlet Thread Size: | 1/4 Inch | 1/4 Inch | 1/4 Inch | 1/4 Inch |
| Model Replaces: | no data | CP9883 | CP9884 | no data |
|
CP9882
|
CP9886
|
CP9887
|
CP9888
|
|
|---|---|---|---|---|
| Customer Reviews |
116
|
116
|
116
|
116
|
| Price | $156.80 | $467.98 | $669.00 | $1,436.62 |
| Aluminum & Copper Rivets: | 0.094 - 0.19 Inch | 0.12 - 0.19 Inch | 0.189 - 0.25 Inch | |
| Steel Rivets: | 0.12 - 0.19 Inch | 0.189 - 0.25 Inch | ||
| Stainless Steel Rivets: | 0.12 - 0.19 Inch | 0.189 - 6.4 mm | ||
| BULB-TITE: | 0.20 - 0.307 Inch | |||
| Monobolt, Magnalok, Interlok: | 0.189 - 0.25 Inch | |||
| Hemlok: | 0.25 Inch | |||
| Single-grip: | 0.189 - 0.19 Inch | |||
| Blind Rivet Nuts (all materials): | M3 - M12 | |||
| Extraction Rivet Mandrel: | no data | |||
| Integrated Vacuum function (vertical operation): | no data | no data |
Product Description

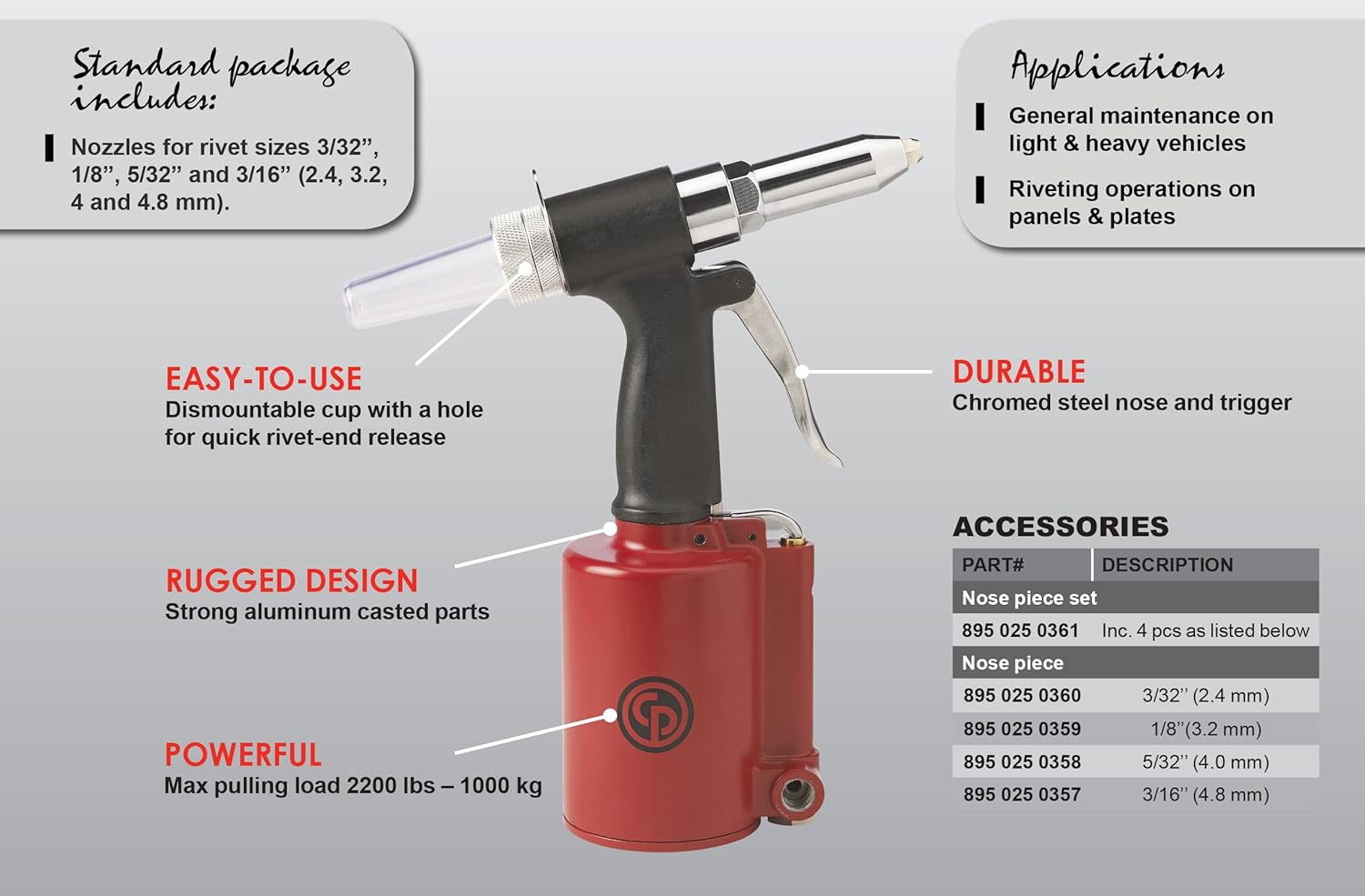

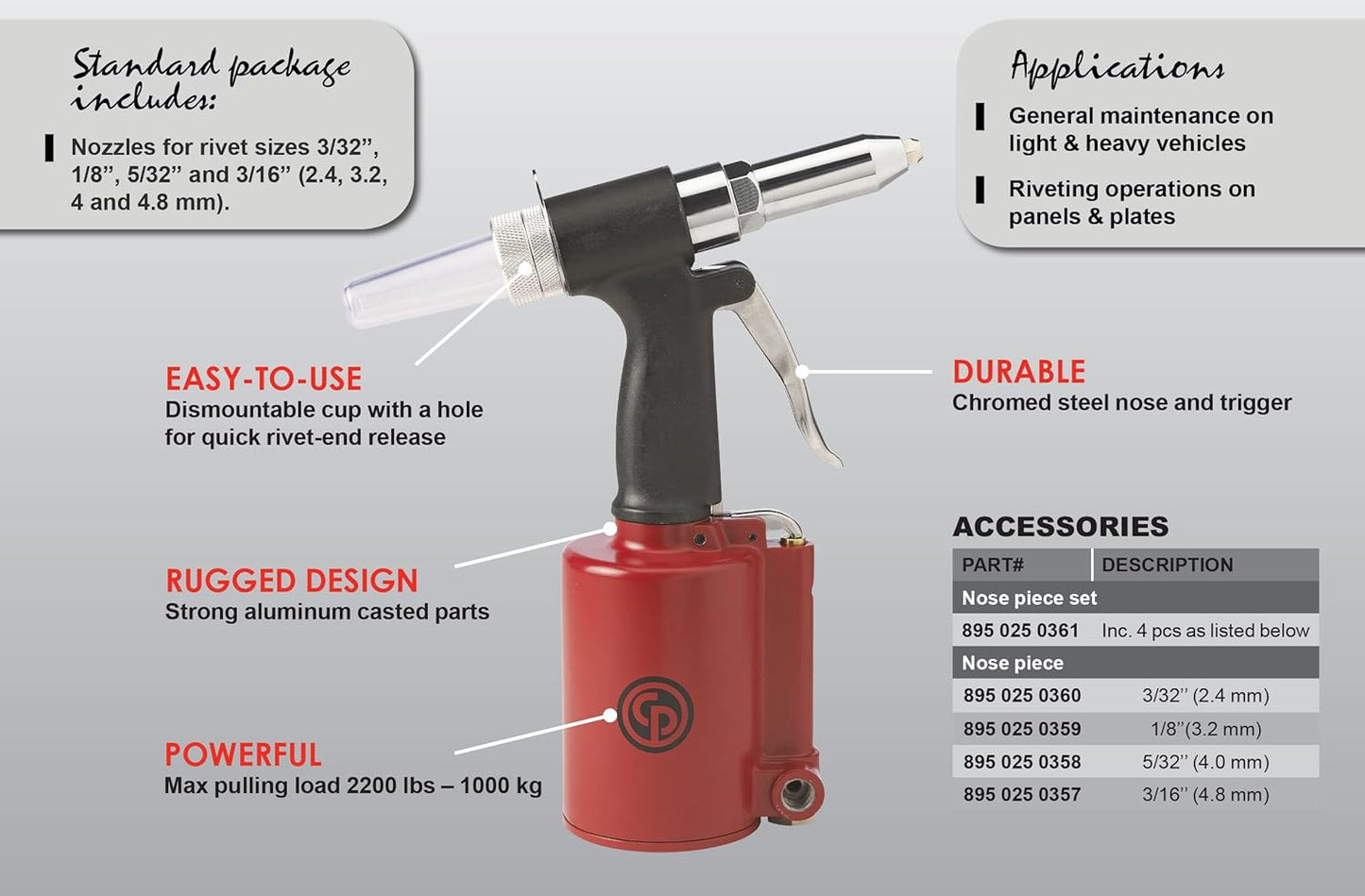

Air hydraulic riveter from Chicago Pneumatic is an ideal tool for general maintenance activities. Power tool is designed for rivets in aluminum, copper, and softer materials. This pneumatic riveter features a transparent container with holes to allow quick release of rivet ends. Compact design of this air-powered tool works well in confined areas. This rivet tool is suitable for trailer panels, number plates and any type of panel maintenance. Pneumatic riveter comes with different nose pieces for rivets 3/32, 1/8, 5/32 and 3/16 in.
