Clore Automotive PL4020, Pro-Logix 4-Bank, 8-Amp (2-Amp Per Bank) Fully Automatic Smart Charger, 12V Battery Charger, Battery Maintainer, Desulfator with Temperature Compensation, Black
Clore Automotive PL4020, Pro-Logix 4-Bank, 8-Amp (2-Amp Per Bank) Fully Automatic Smart Charger, 12V Battery Charger, Battery Maintainer, Desulfator with Temperature Compensation, Black
Couldn't load pickup availability
From the manufacturer

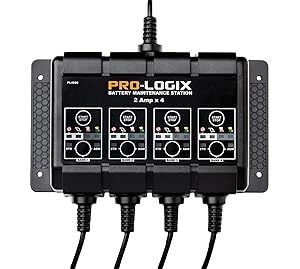

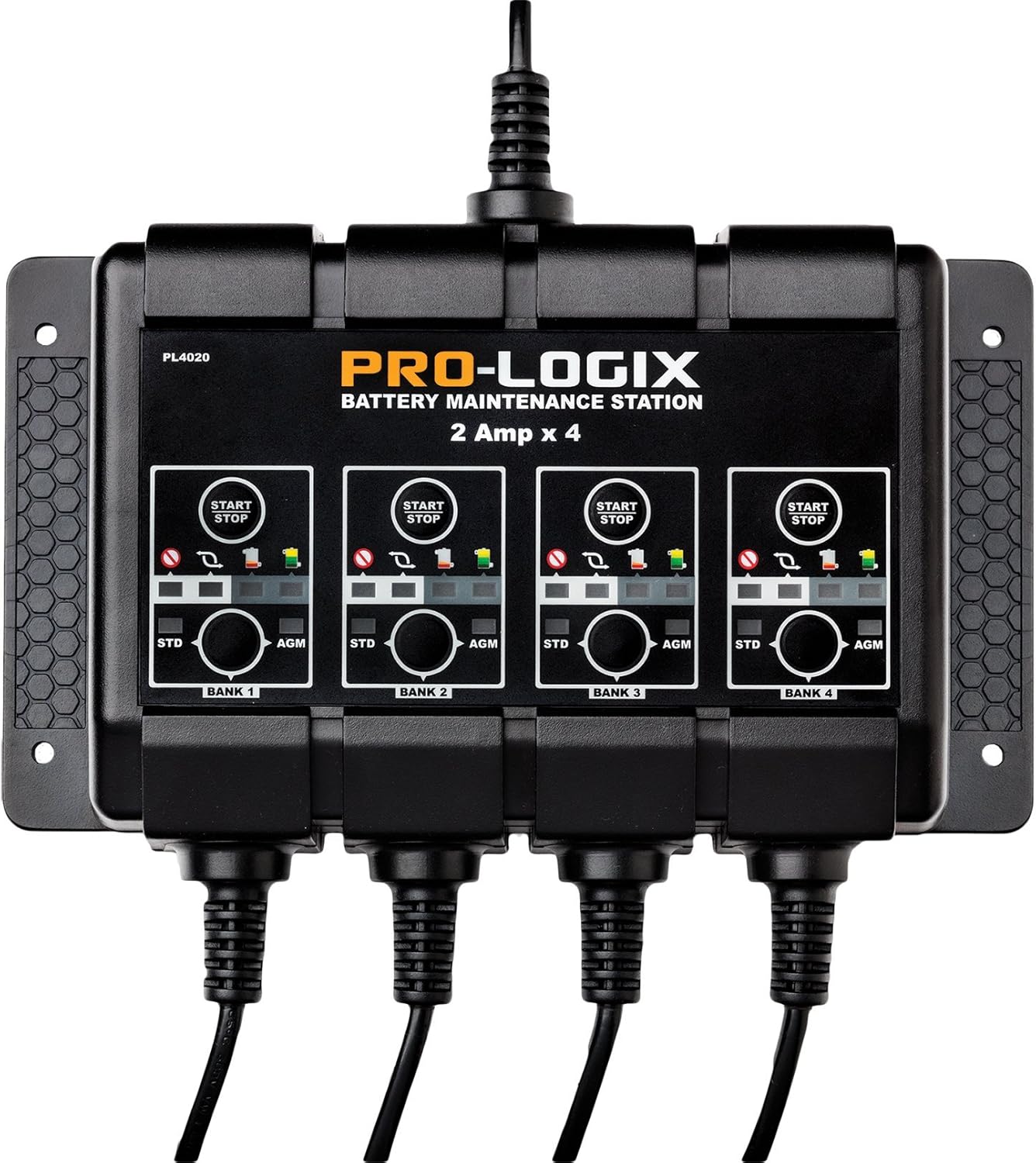

Model No. PL4020
4-Channel Battery Maintenance Station
Model PL4020 is a perfect charger to meet the needs of mechanical repair shops, collision repair facilities, fleet operations, marinas and consumers. It features four independent output channels designed to properly charge a flooded or AGM battery. Because each output is independent of the others, a troublesome battery on one channel does not create problems for the other channels.
It combines fully automatic operation with the ability to properly charge multiple battery types. Advanced charging logic, robust components, quick set-up and smart display feedback mean effective and efficient charging for your operation.
Key Specifications:
- 12 Volt Charging and Maintaining.
- 4 x 2 Amp output.
- 4 independent channels.
- Fully automatic, multi-phase process.
- Enhanced maintenance mode for long term charging.
- Charges multiple lead acid battery types.
- Temperature compensation.
- Includes (4) clamp output leads.
Charge Multiple Battery Types
Compatible with a variety of battery types including Conventional, AGM, Spiral Wound, Deep Cycle and Marine batteries. PRO-LOGIX chargers will deliver the correct type of charge required for each battery chemistry.
Advanced Technology
Soft Start Mode:
Soft Start Mode is activated when the charger is connected to a deeply discharged battery. This mode protects the battery during the initial charge period, as the battery’s voltage rises to a more normal level, and is beneficial for the long-term health of the battery.
Battery Recondition Mode:
During the Energizing Phase, if the charger detects the presence of battery sulfation, it will activate this mode. If this occurs, the Charging LED will flash. This indicates the charge time will be extended while the charger attempts to recondition the battery.
Four Charging Channels
Four independent charging channels means if there is a problem with one battery, it will not affect the other batteries being charged. With the PL4020 you can select AGM or Standard for each channel. Optimizing the charge for your battery.
Fully Automatic Operation
Simply set the Battery Type, standard or AGM, and hit the Start button. It's that easy. The charger will recognize the battery's needs, and deliver an optimal charge, every time. No need to worry about the battery being overcharged.
Professional Battery Chargers
PRO-LOGIX Battery Chargers utilize an advanced multi-phase charging process to deliver an optimal charge to each battery serviced, regardless of battery size or type. No guess work or mystery. ..if it is a lead-acid battery installed in a vehicle, it can be charged and charged right with PRO-LOGIX.
Optional Accessories
PLA61 Standard Length Clamp Set
Replacement standard length clamp set. Same as the clamp sets included with the PL4020.
PLA62 10 foot Extension Cable
Extend the reach of your PL4020 with the PLA62 10 foot Extension cable.
PLA63 Short Length PLA 63 Clamp Set (for use with PLA62)
For use with the PLA62 Extension Cable.
PLA64 Short Length Ring Terminal Mount (for use with PLA62)
For use with the PLA62 Extension Cable.
4 Amp Charger & Maintainer
|
10 Amp Charger & Maintainer
|
20 Amp Charger & Maintainer
|
10 Amp Charger & Maintainer - 12/24 Volt
|
4 X 2 Amp Battery Maintenance Station
|
4 X 5 Amp Battery Charging/Maintenance Station
|
|
|---|---|---|---|---|---|---|
| 6 Volt Charging | no data | no data | ||||
| 12 Volt Charging | ||||||
| 24 Volt Charging | no data | no data | no data | no data | no data | |
| Charge Rates | 4 Amp | 10/6/2 Amp | 20/10/2 Amp | 10/6/2 Amp | 2 Amp (each channel) | 5 Amp (each channel) |
| Stable Power Supply | no data | no data | no data | no data | ||
| Output Connectors | Battery Clamps, Ring Terminal, 12V Adapter | Heavy-Duty Battery Clamps | Heavy-Duty Battery Clamps | Heavy-Duty Battery Clamps | Battery Clamps (4 sets included) | Battery Clamps (4 sets included) |
Product Description
Model PL4020 is a perfect charger to meet the needs of mechanical repair shops, collision repair facilities, fleet operations, marinas and consumers. It features four independent output channels designed to properly charge a flooded or AGM battery. Because each output is independent of the others, a troublesome battery on one channel does not create problems for the other channels. It combines fully automatic operation with the ability to properly charge multiple battery types. Advanced charging logic, robust components, quick set-up and smart display feedback mean effective and efficient charging for your operation.
