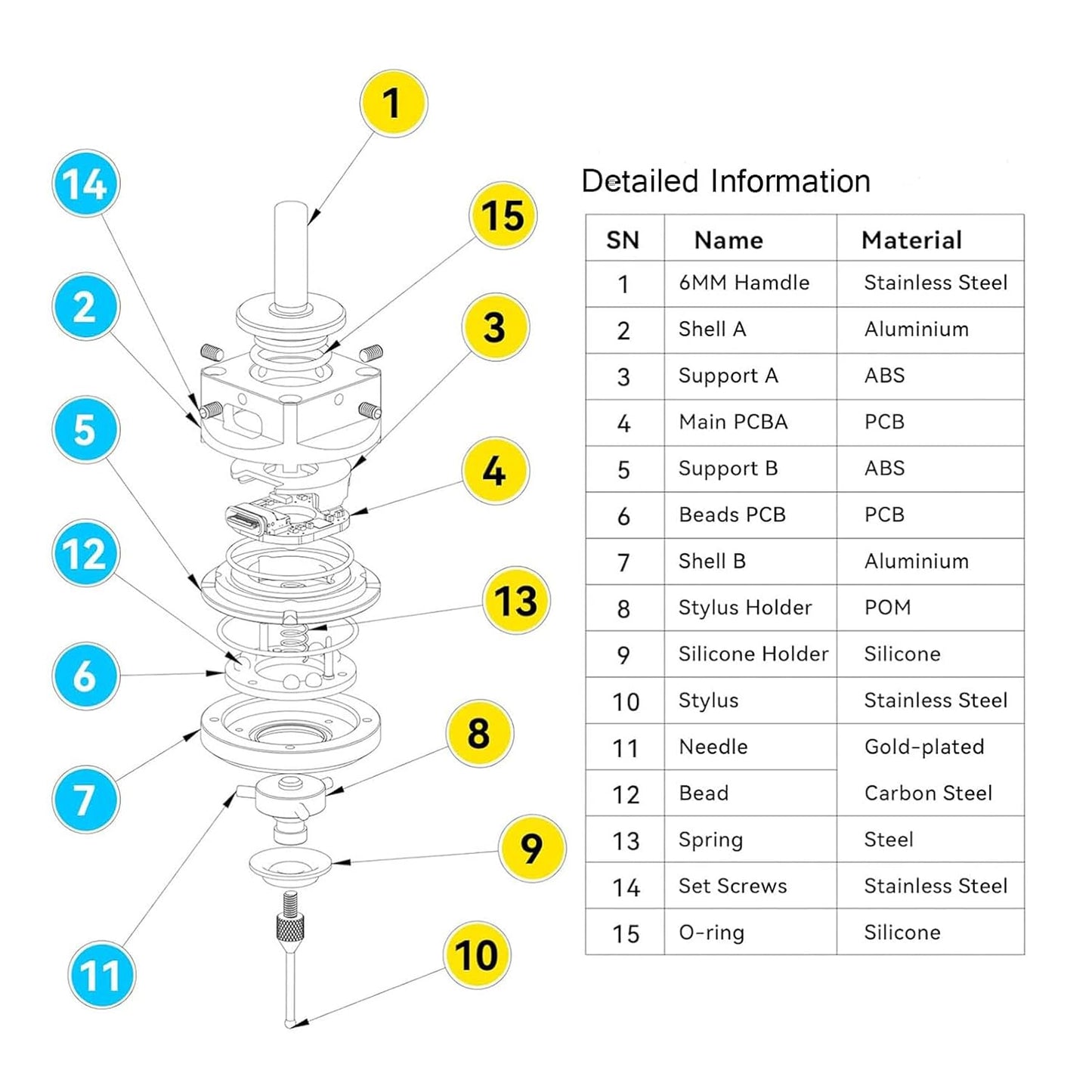

CNC 3D Touch Probe Edge Finder,XYZ Coordinate Measuring Sensor with 2M Cable and 6 MM Shank Compatible with Mach3 and GRBL,for GRBL CNC Router (NPN-NO)

$78.00 USD

~~$78.00 USD~~ $78.00 USD

Sale Sold out

Shipping calculated at checkout.

color NPN-NC NPN-NO

From the brand

About Us

YIDOFENG is mainly engaged in CNC machinery manufacturing. Our products mainly include various types of motors , Linear Stage Motion Actors, Worm Gear Gearbox, Micro CNC engraving machine and accessories,etc.

YIDOFENG always adheres to the principle of quality first and operates our CNC business,Our technical team will continue to develop more CNC products and also provide higher quality services to our customers.
CNC Touch Probe
Mini lathe accessories
Best seller
Yidofeng Motor
Worm Gear Gearbox
CNC engraving machine
DIY CNC Router Control
Linear Stage Motion Actuator

1 )3D edge finder with excellent waterproof and dustproof performance.
2) Effectively extending the service life.
3 )With signal light prompting, green light on when energised and red light on when triggered.
4 )Anti-Roll design

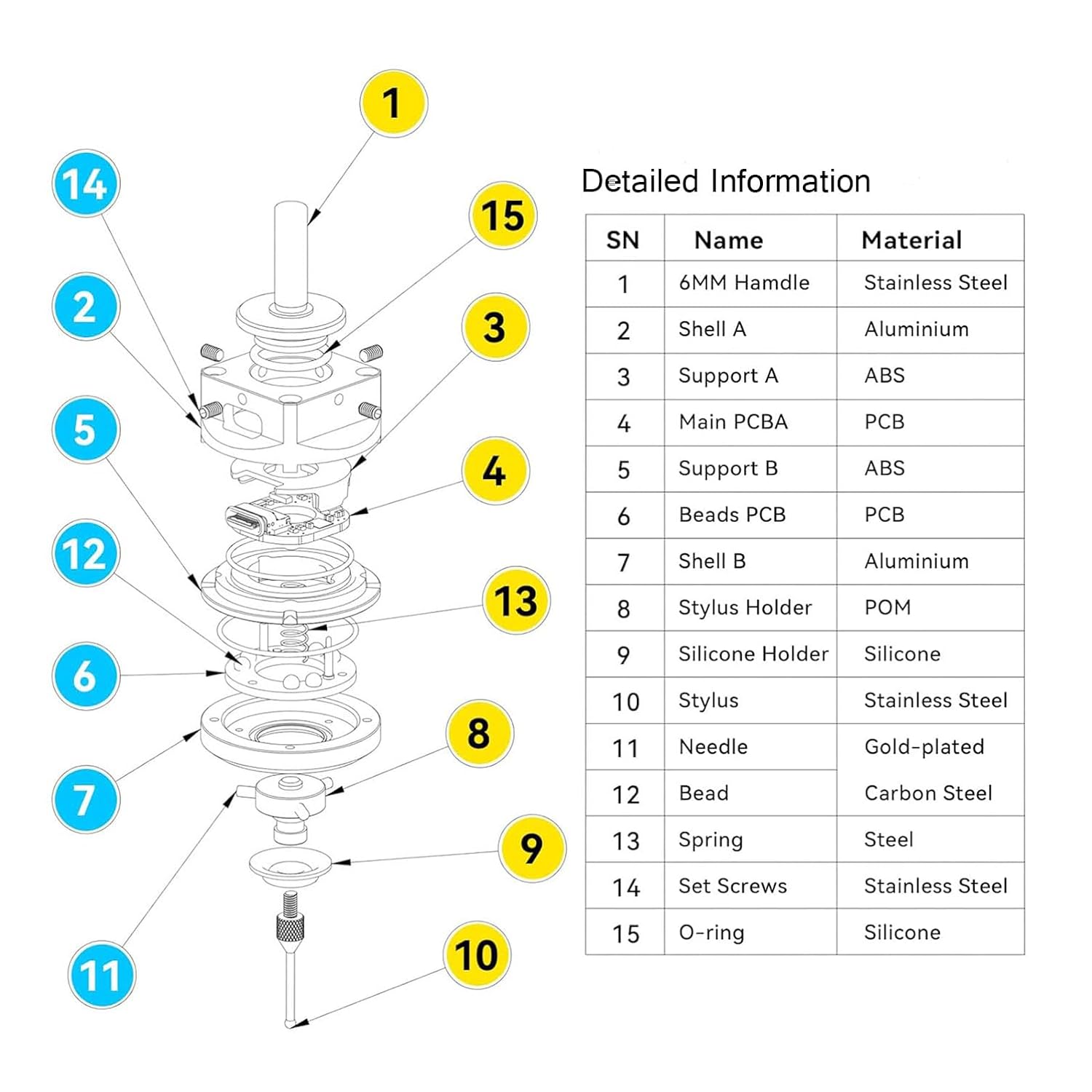

5 )The stylus is integrated stainless steel processing, using tungsten steel ball head, more wear-resistant.

If you are using a mach3 system, it is recommended to use the open source Probe Wizard.
If you are using the grbl system, it is recommended to use Grblgru

3D Touch Probe A+4

[Waterproof & Dustproof Design] - to maximize the life of the probe.With the characteristics of ruggedness and durability and Longer service life.

3D Touch Probe A+5

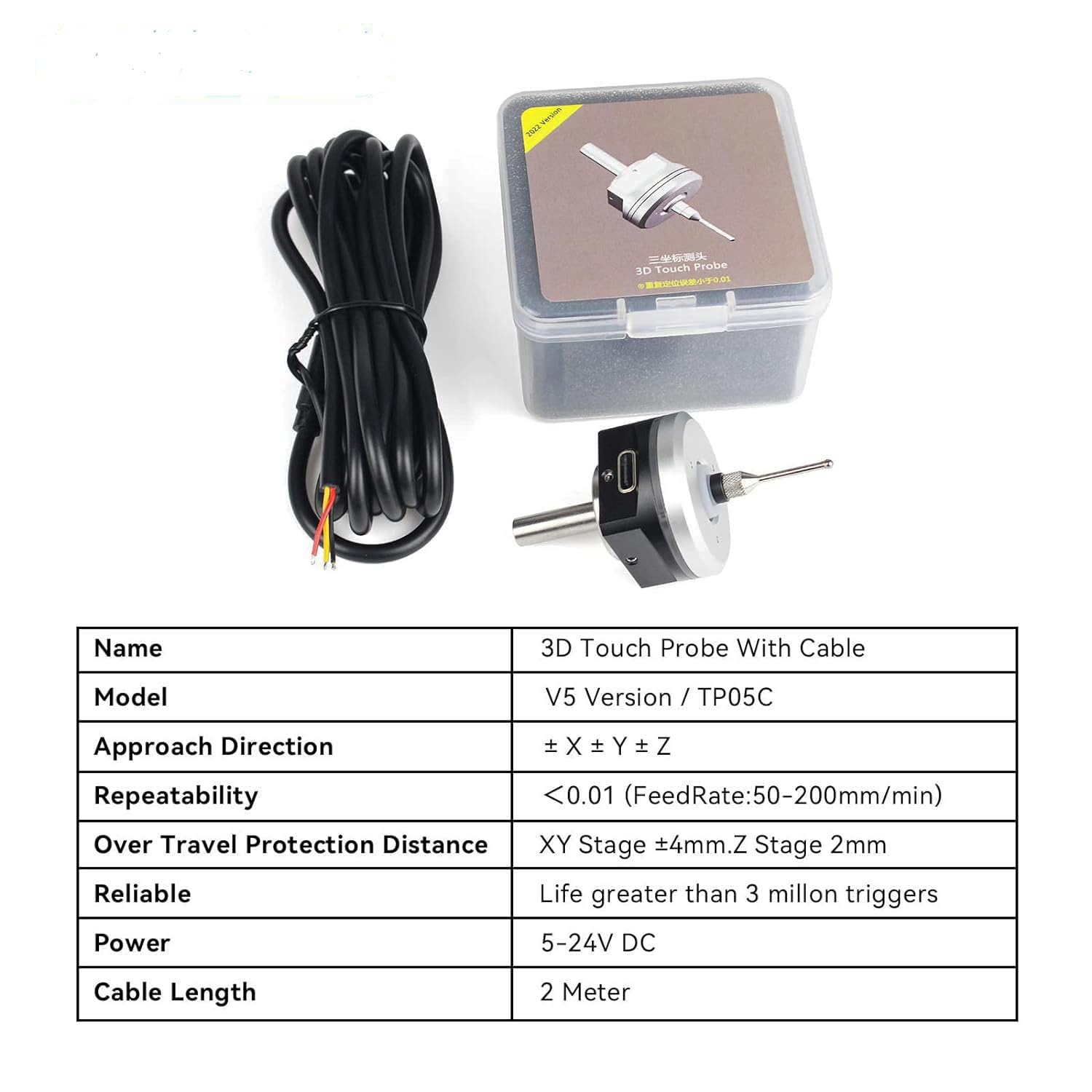

[High Precision] - Unidirectional Repeatable Positioning Accuracy less than 0.01MM.

3D Touch Probe A+6

Red:VCC (DC5-24V power);
Yellow: IO/ Signal Output;
Black: GND(DCM);
[Indicator Light] - When power on, the green light is always on,and after the probe is triggered, the red light is on.

Because your ER chuck spring clip cannot assure 100% uprightness. Every time the probe is installed, even if the concentricity is adjusted to 1 wire, there will still be deviations when the probe is removed and installed again. So your chuck is best to buy AAA and above accuracy (concentricity <=0.005), because many chucks in China have false standards, it is recommended to use a high-precision gauge or tungsten steel rod to check the table after installing the chuck. Look at concentricity. It's best to place the dial indicator at a distance of 50mm from the chuck, which is roughly the distance between the ball head of our probe and the root of the tool handle.

That's because you bought a virtual label chuck.
Under normal circumstances, if the spindle jumps by 0.01, the AAA chuck clamps the milling cutter and the table tool holder, the error may not exceed 0.02, and the error may not exceed 0.03 at most. There will be a slight angular deviation between the center axis of the collet chuck and the center axis of the spindle, which will be magnified by the length of your tool holder. Usually you use a calibration meter to measure the root of a milling cutter, and you can't see a big error, but because the stylus of the probe is about 50mm away from the tool holder, the error will be further magnified. Therefore, be sure to choose genuine high-precision chucks.
