Solar Panel Roof Mounts Bracket Kit for Sloped Pitched Tin Roof
Solar Panel Roof Mounts Bracket Kit for Sloped Pitched Tin Roof
Couldn't load pickup availability
From the brand
SOLAR PANEL MOUNTING BRACKT
Product description
CMYYANGLIN
We are committed to providing solar mounting customized design solution. Our products are designed well for easy installation.

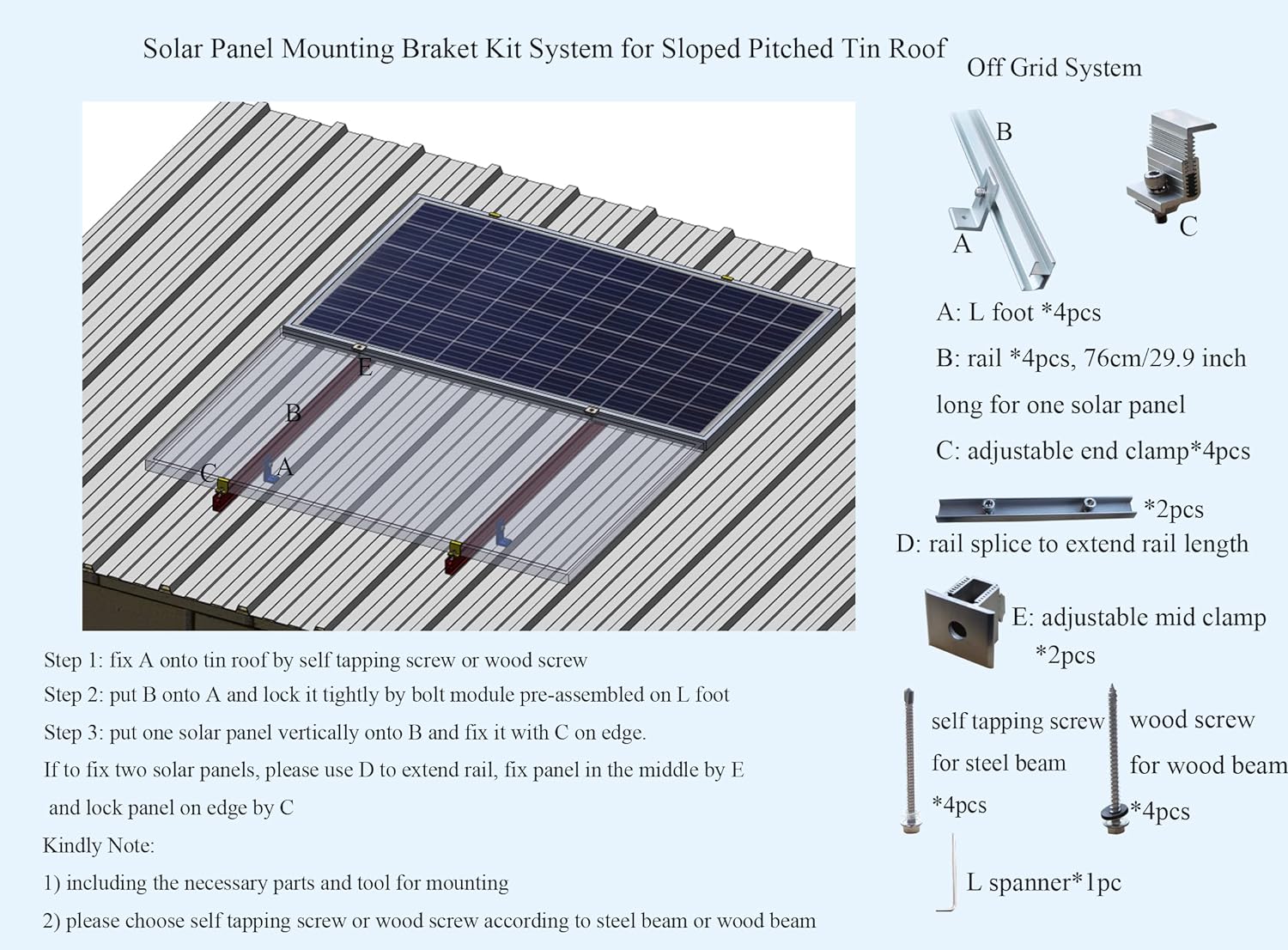

CMYYANGLIN Solar Panel Mounting Braket Kit System for Sloped Pitched Tin Roof

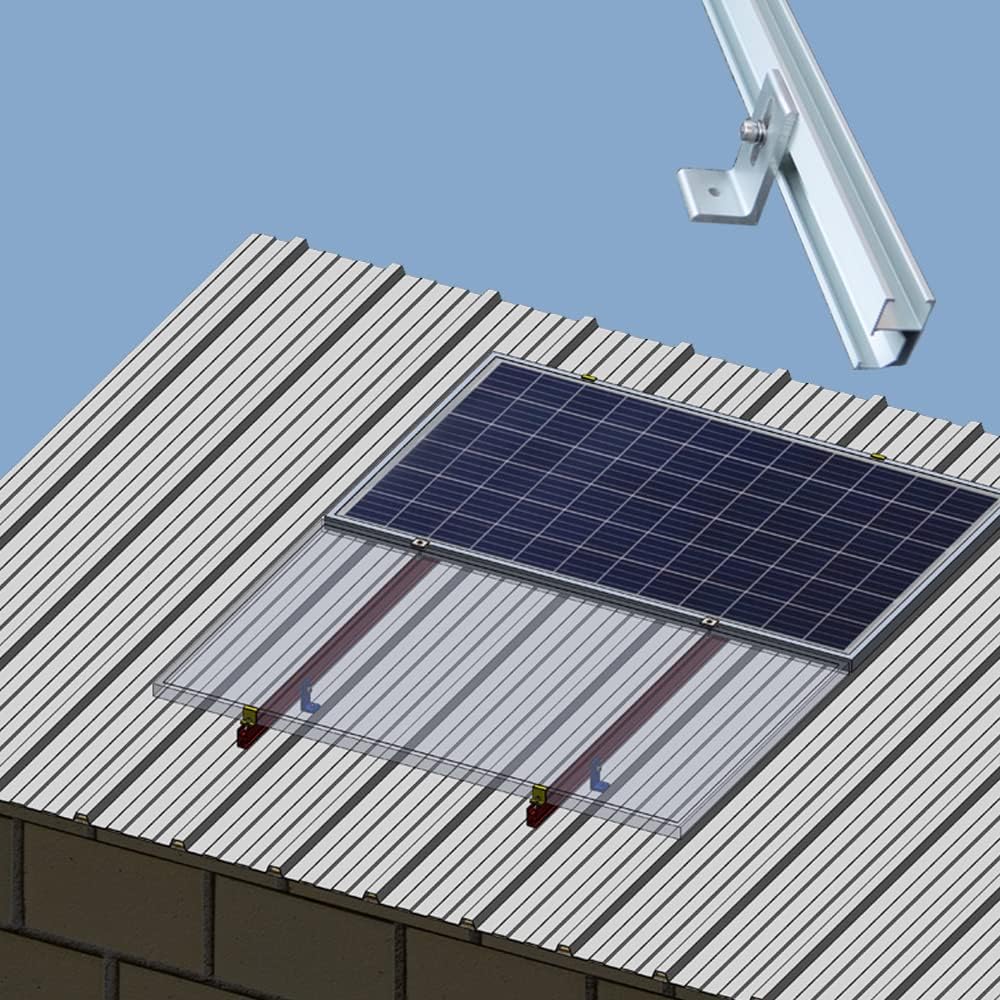

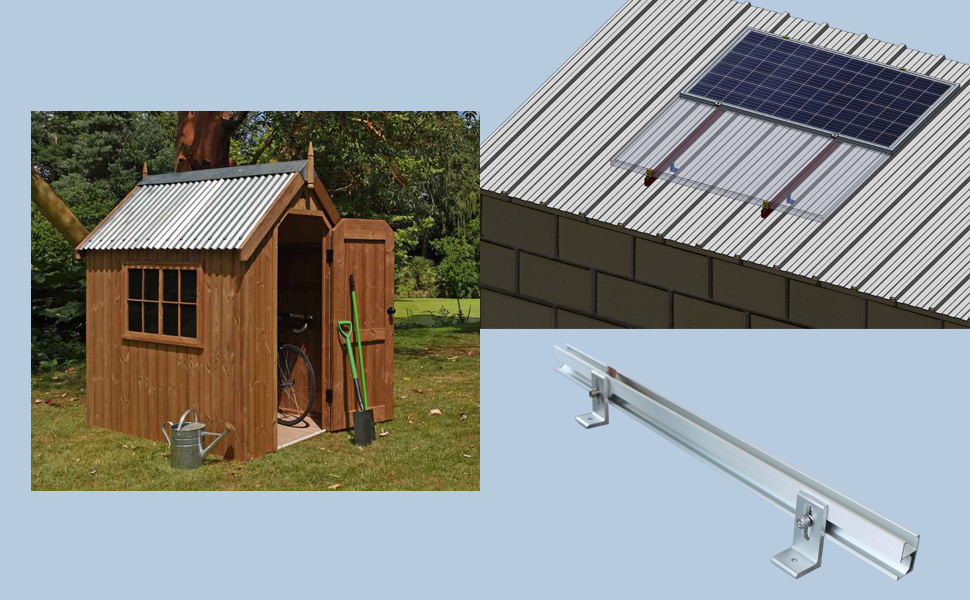

A Flexible Option for Mounting One Solar Panel onto the Tin Roofs of a Cabin, Shed or Barn
If you need to mount one solar panel onto your tin roof flexibly and without too much bothering of so many long rails and accessories, here we bring you a convenient solar mounting bracket kit for mounting solar panels onto the sloped pitched tin roofs or flat tin roofs. If you need to mount more solar panels, please add the kit quantities as you like.

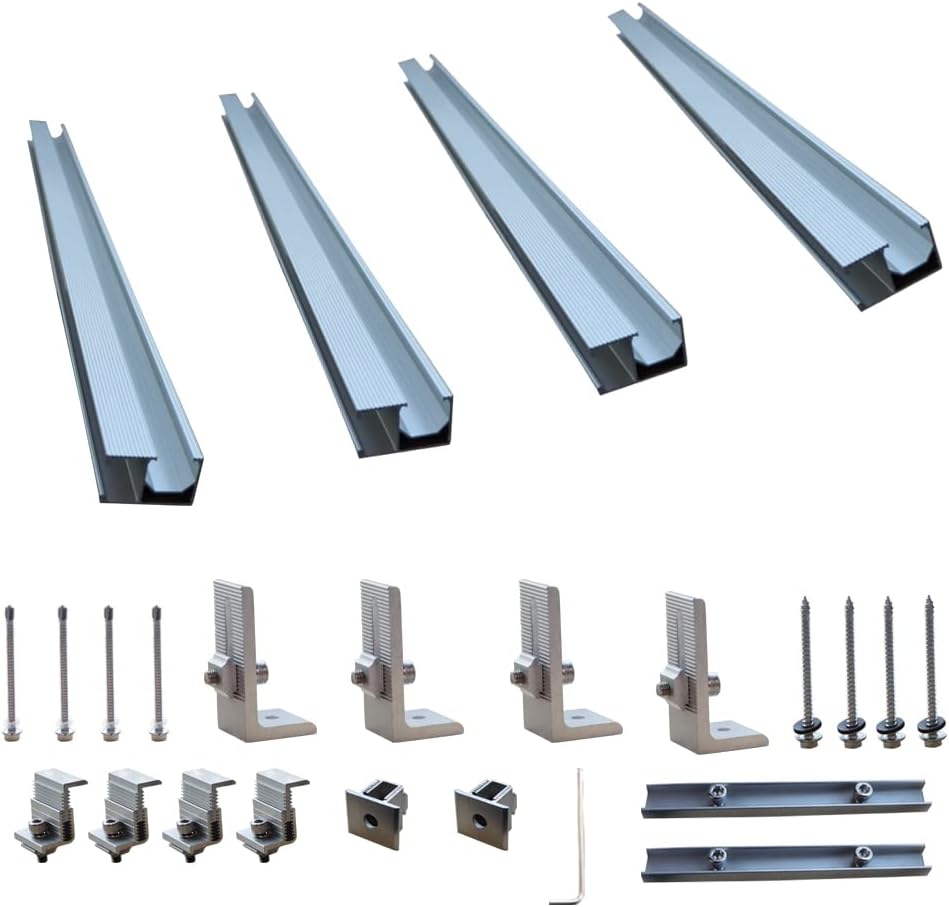

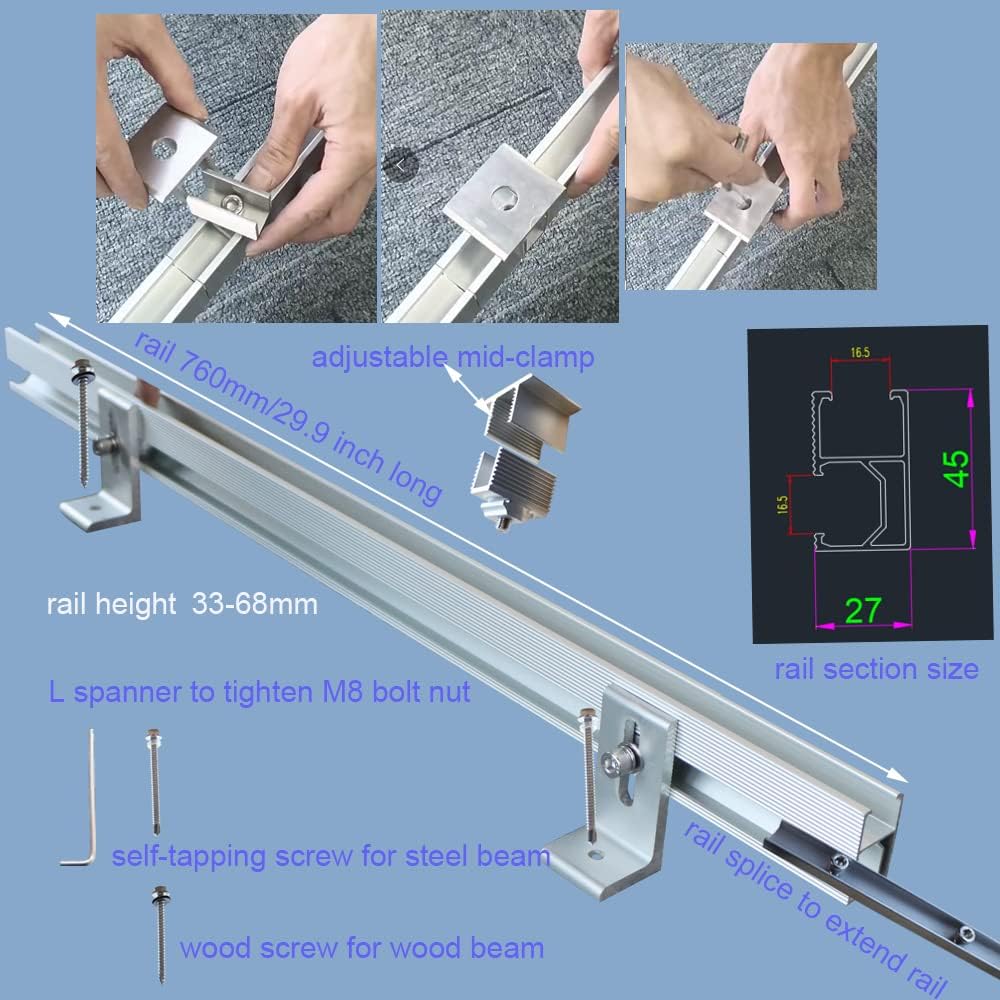

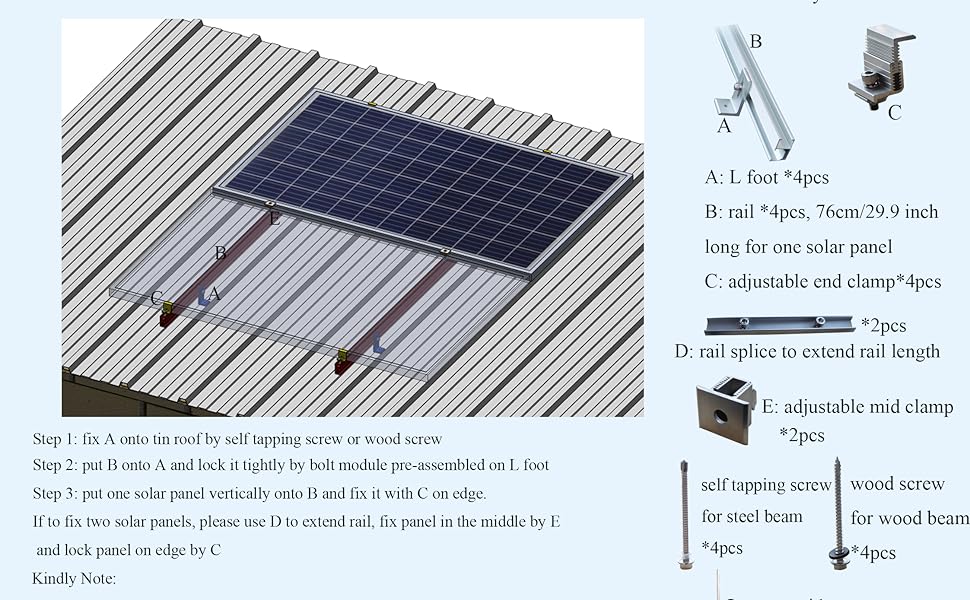

- 1)Rail*4pcs: 76cm/29.9 inch long, supporting one or two solar panels fixed vertically.

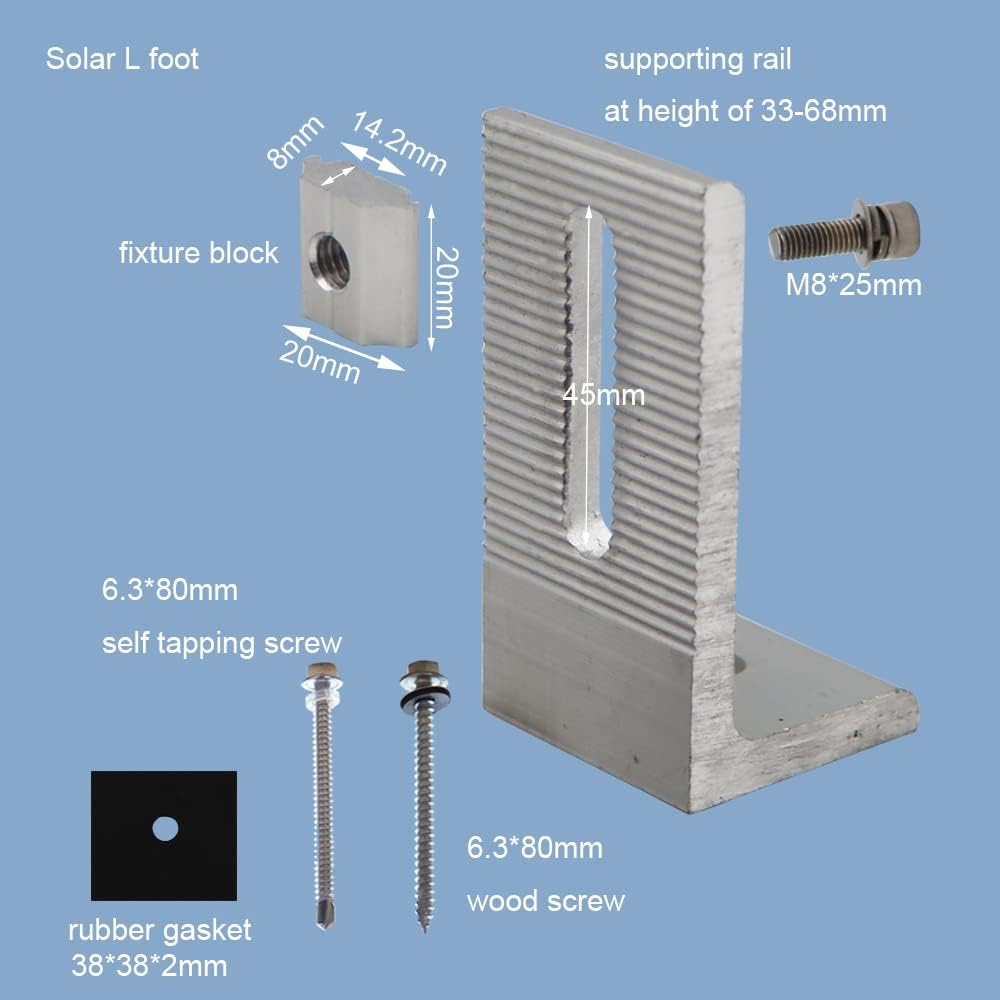

- 2)L foot*4pcs: flexibly secure rails to the roof at the desired height 33-68mm .
- 3)Adjustable end clamps*4pcs: secure a solar panel 30-45mm/1.18 inch-1.77 inch thick
- 4)Adjustable mid clamps*2 secure two solar panels 30-45mm/1.18 inch-1.77 inch thick in the middle
- 5)Self tapping screw*4pcs, wood screw*4pcs: please choose the self tapping screw for steel beam or wood screw for wood beams.
- 6)L spanner*1pc: tool to tighten or loosen end clamps and mid clamps.
- 7) rail splice*2pcs: to extend rail length.

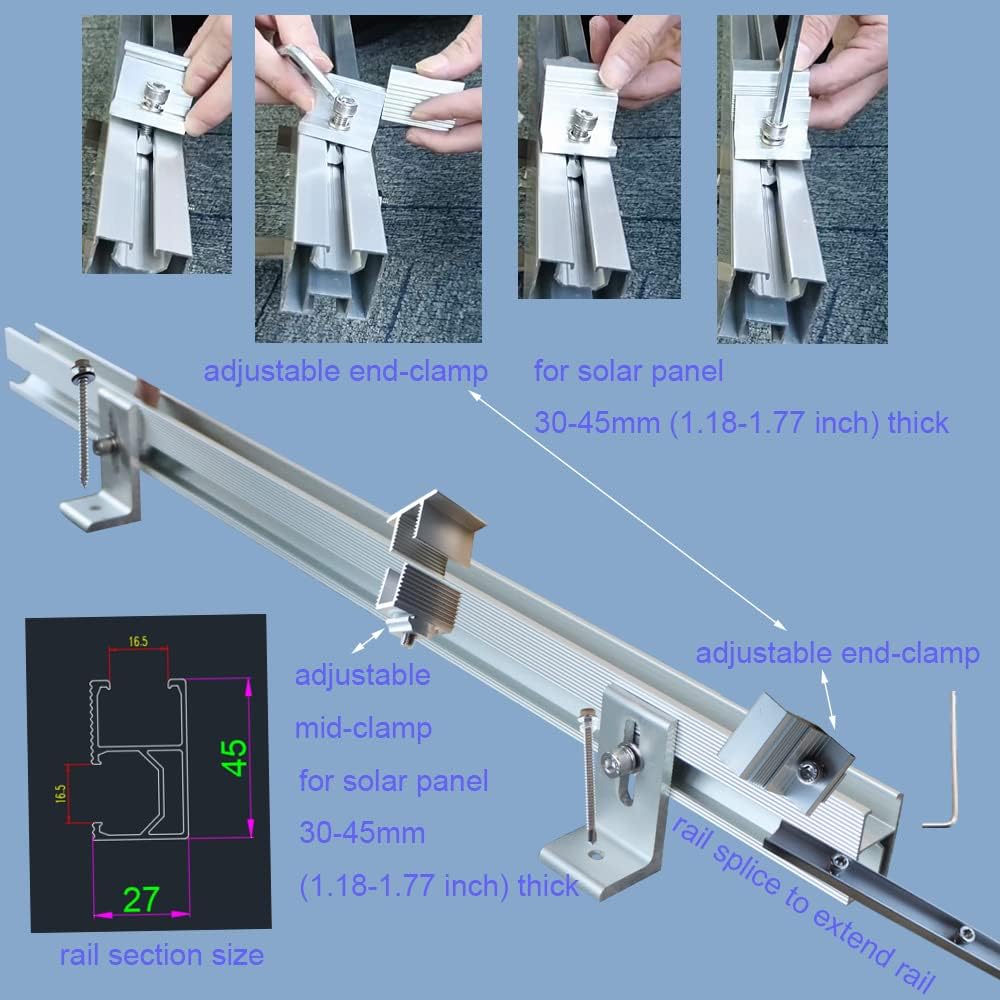

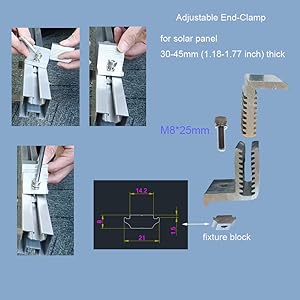

Adjustable End Clamp
- Hold the edge of solar panel tight flexibly, fit 30 mm - 45 mm thick solar panels

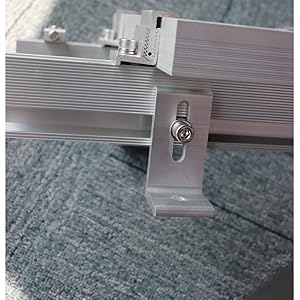

Universal Use for Tin Roofs
- Hold the rails on tin roofs flexibly, support rails at your desired height, ranging 33-68 mm high, provide an optimal height to allow proper air flow between the panel and the roof surface, assuring your panel to stay cool in high temperatures
- Universal use for tin roofs

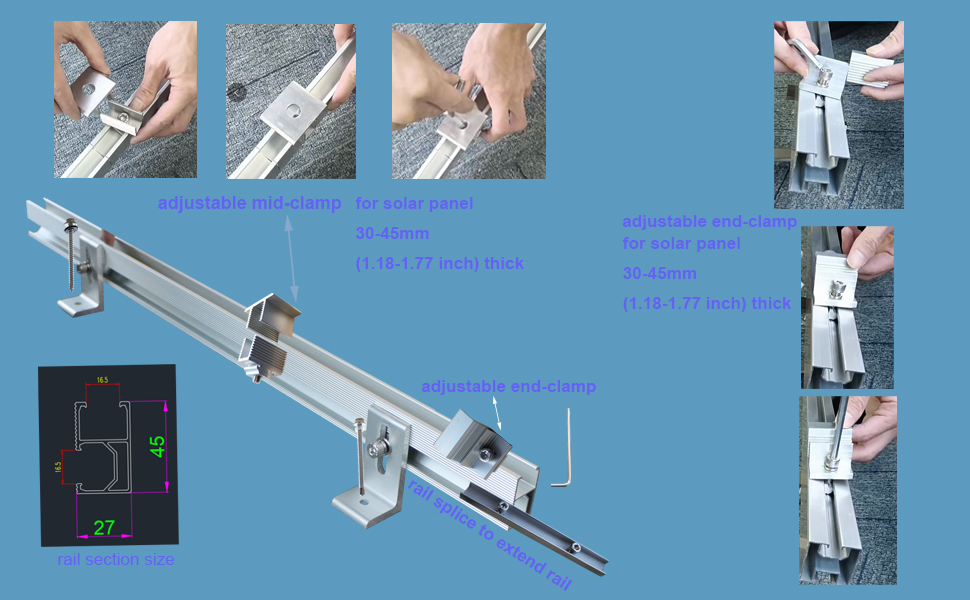

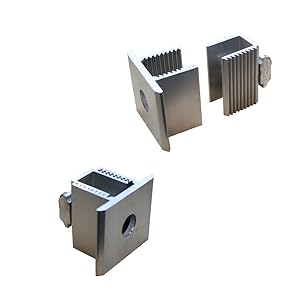

Adjustable Mid Clamp
- Clamp the panels on rails flexibly
- Fit solar panels 30-45 mm thick
