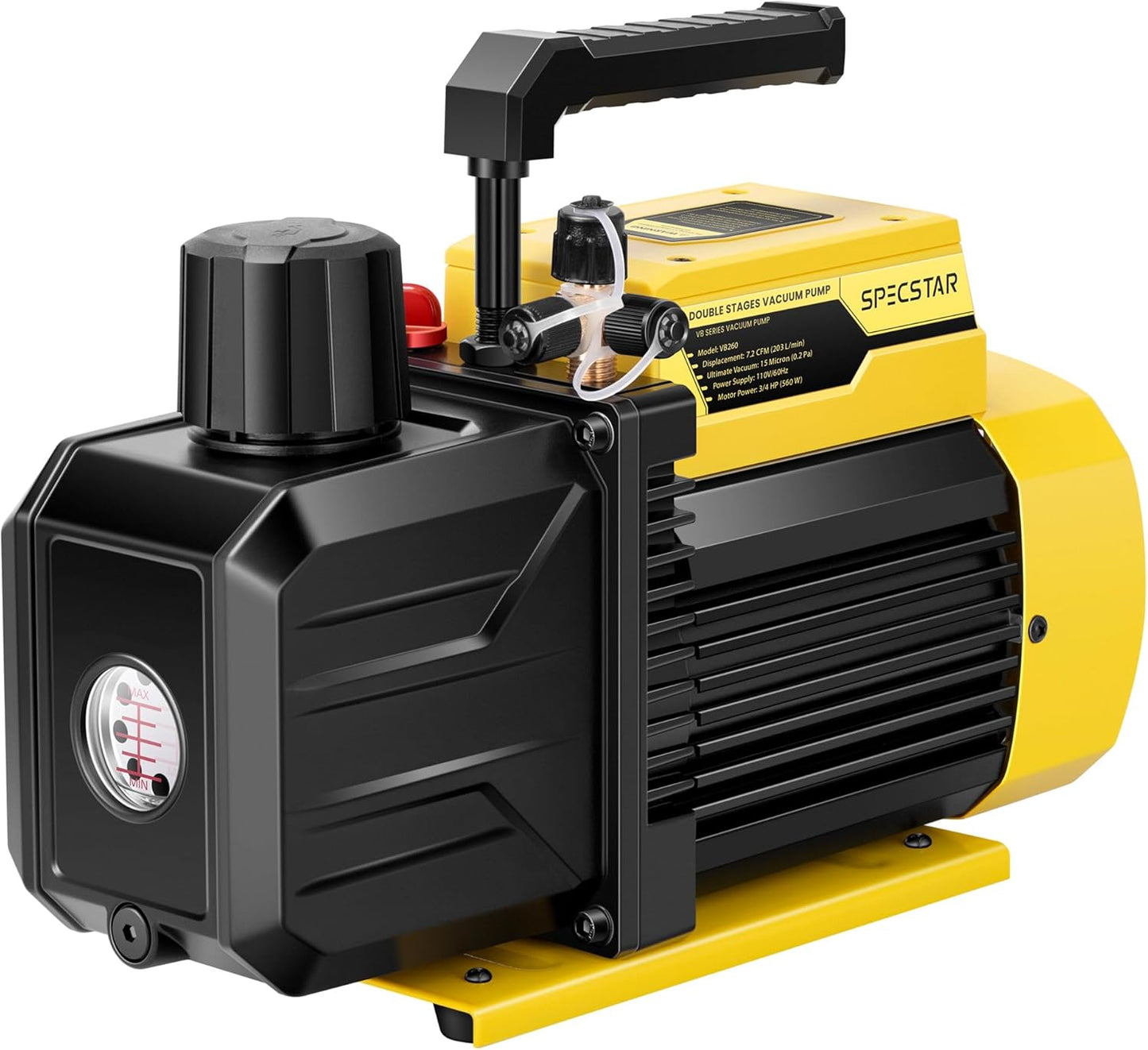

SPECSTAR 1/2 HP 5 CFM 110V Dual Stage Rotary Vane HVAC Air Vacuum Pump for R12 R22 R134a R410a Systems with 2 Oil Bottles

SPECSTAR 1/2 HP 5 CFM 110V Dual Stage Rotary Vane HVAC Air Vacuum Pump for R12 R22 R134a R410a Systems with 2 Oil Bottles

$64.99 USD
$64.99 USD $64.99 USD
Sale Sold out
Shipping calculated at checkout.
size

From the brand

  2. vacuum pump
  3. PIC

  4. AC Service Tools

  5. vacuum pump kit

  6. Vacuum Pump Kit

  7. vacuum pump

  8. Vacuum Pump

  9. Refrigerant Recovery Machine

  10. Refrigerant Recovery Machine

  11. Electronic Digital Refrigerant Charging Weight Scale

  12. Refrigerant Charging Scale

  13. Manifold Gauge Set

  14. Manifold Gauge Set

  15. Leak Detector

  16. Refrigerant Leak Detector

  17. vacuum pump accessories

  18. Refrigerant System Essentials

Product description

VH1158US-NEW
VH1158US-NEW
VH1157US
VH1158US-NEW

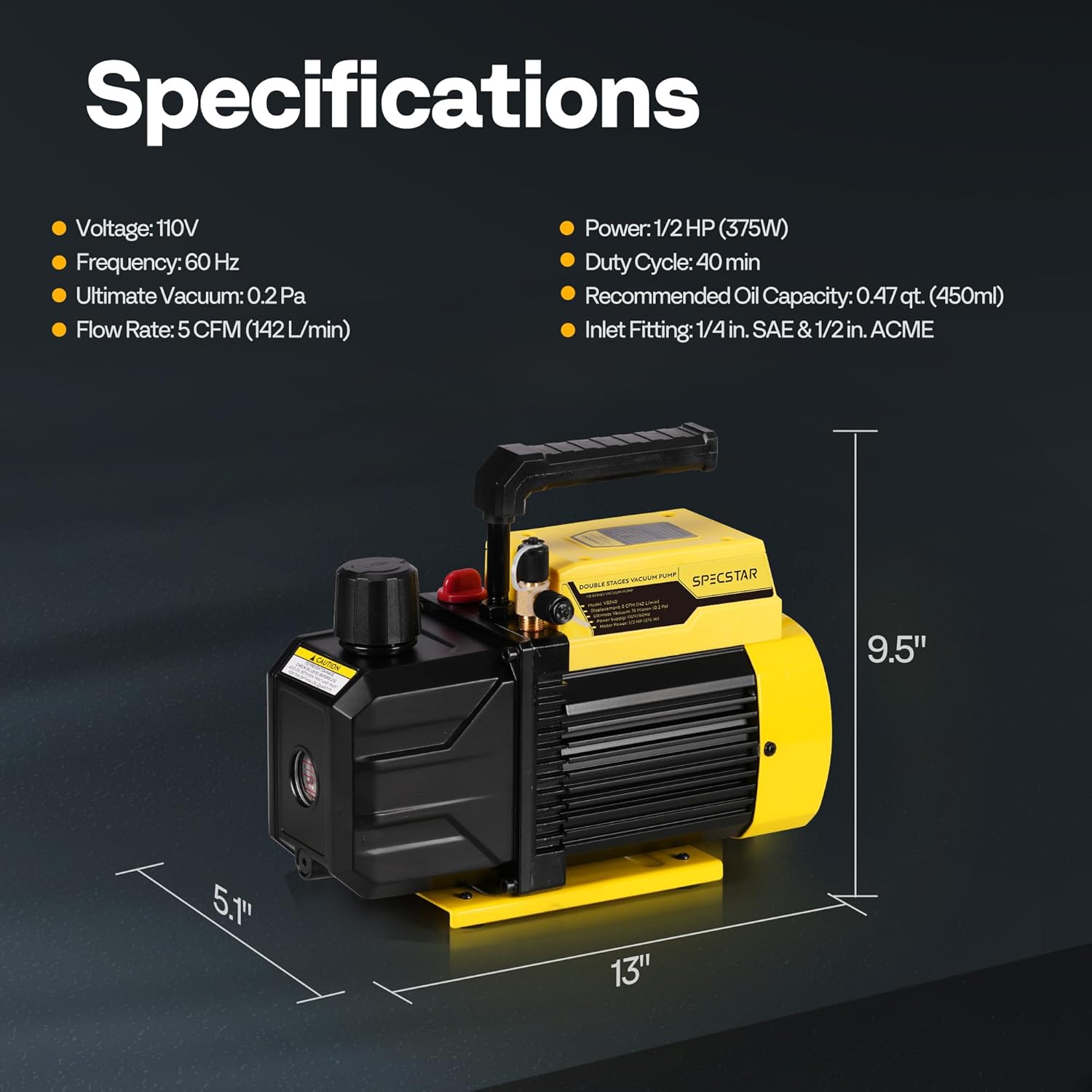

Product and Package Information

Rated Power 1/2 HP (375W)
Flow Rate 5 CFM (142 L/min)
Duty Cycle 30 min
Ultimate Partial Vacuum 0.2 Pa (1.5 Microns)
Ultimate Total Vacuum 15 Microns (2 Pa)
Refrigerant Type R134a, R12, R22, R502 and R410a

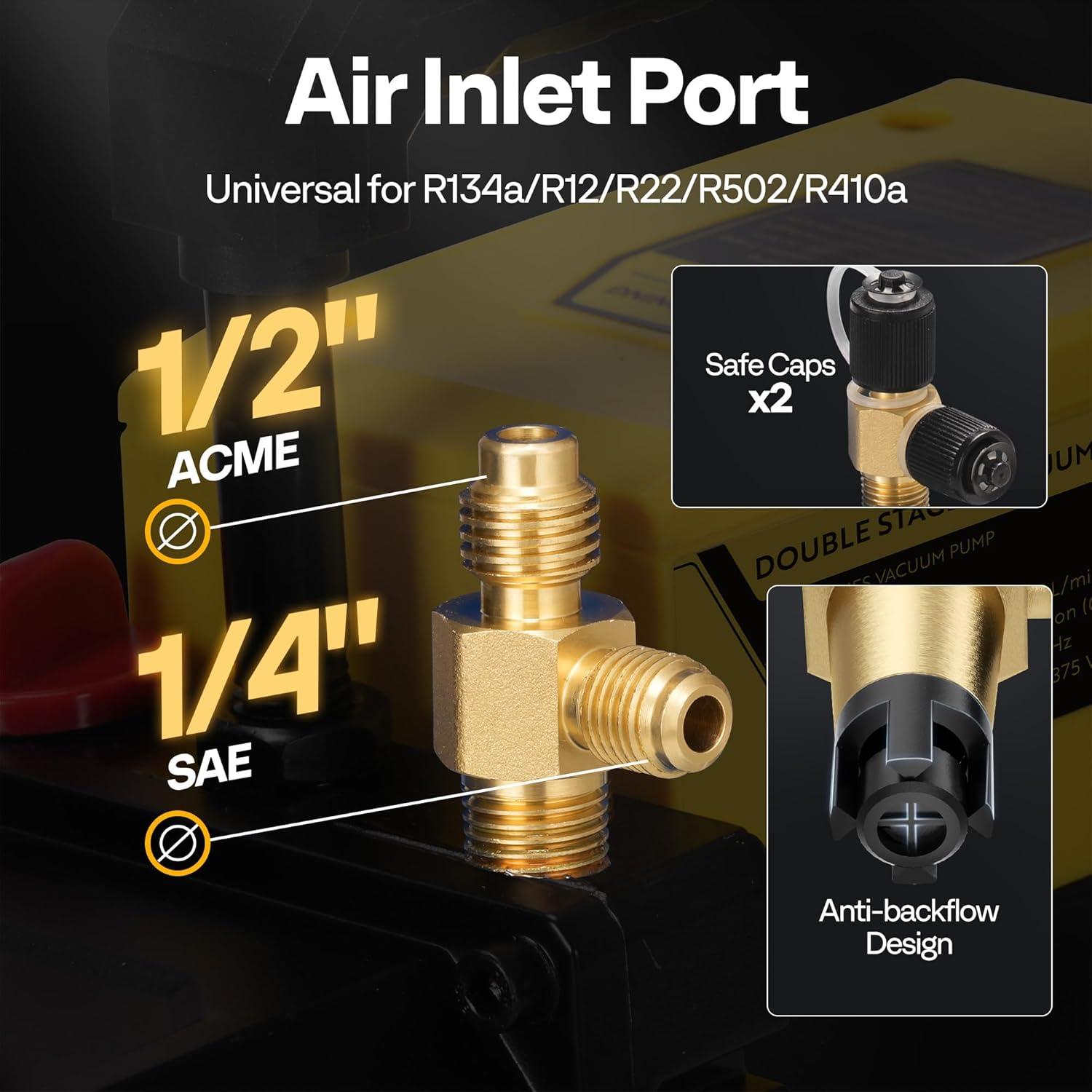

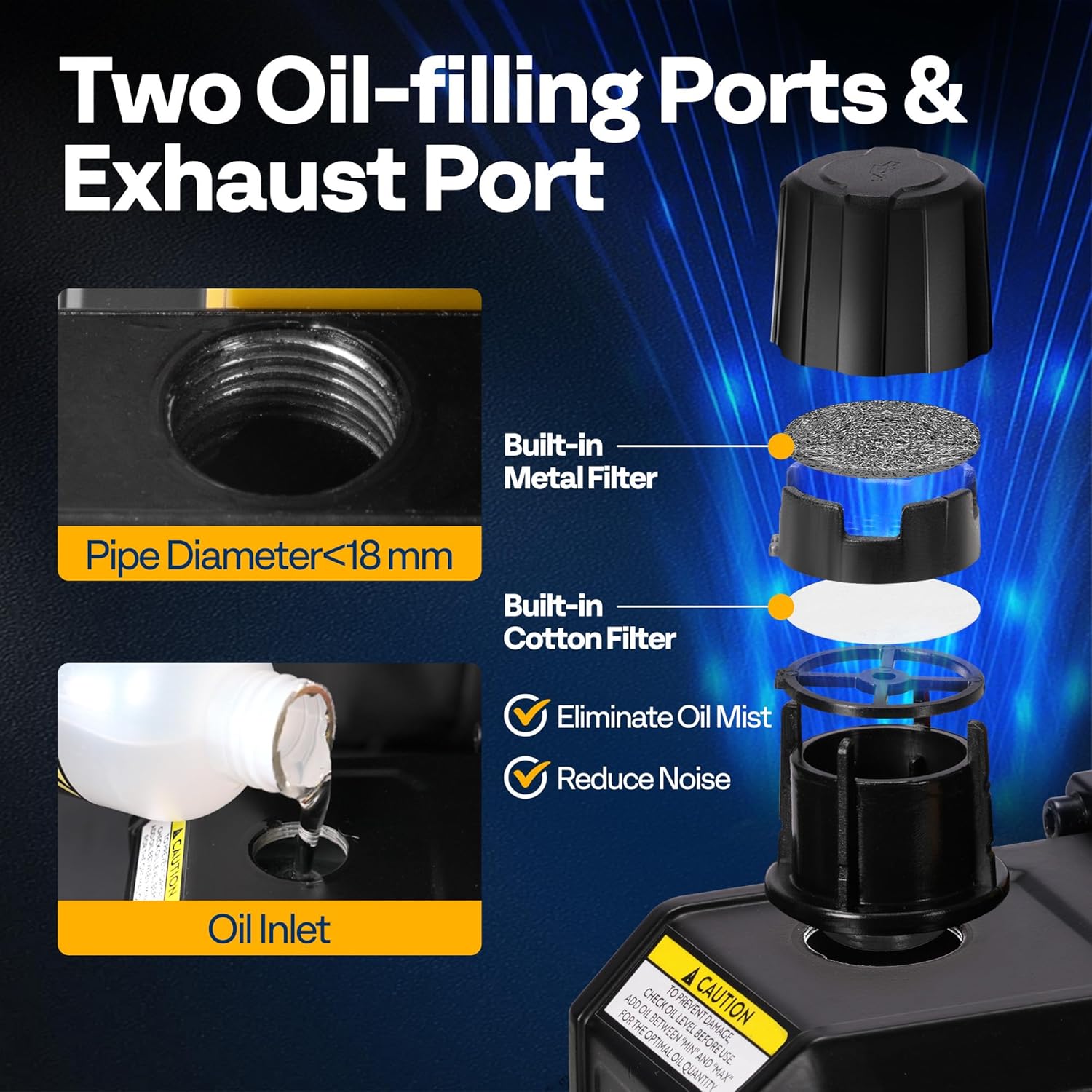

Air Inlet Ports 1/4" SAE & 1/2" ACME
Pump Oil Type Viscosity Grade 46

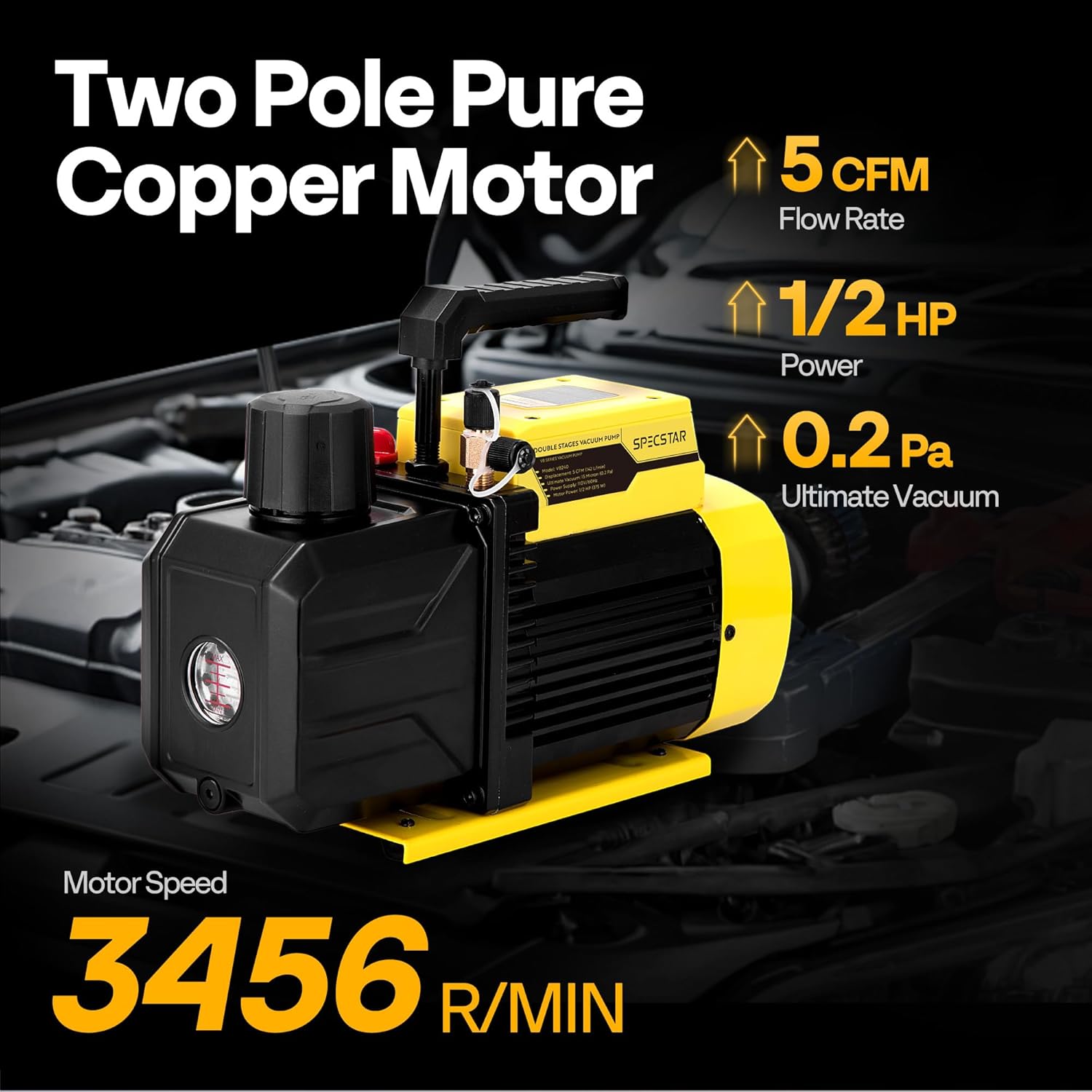

Speed 3456 r/min
Voltage/Frequency 110V/60 Hz
Inlet Port Diameter < 18mm

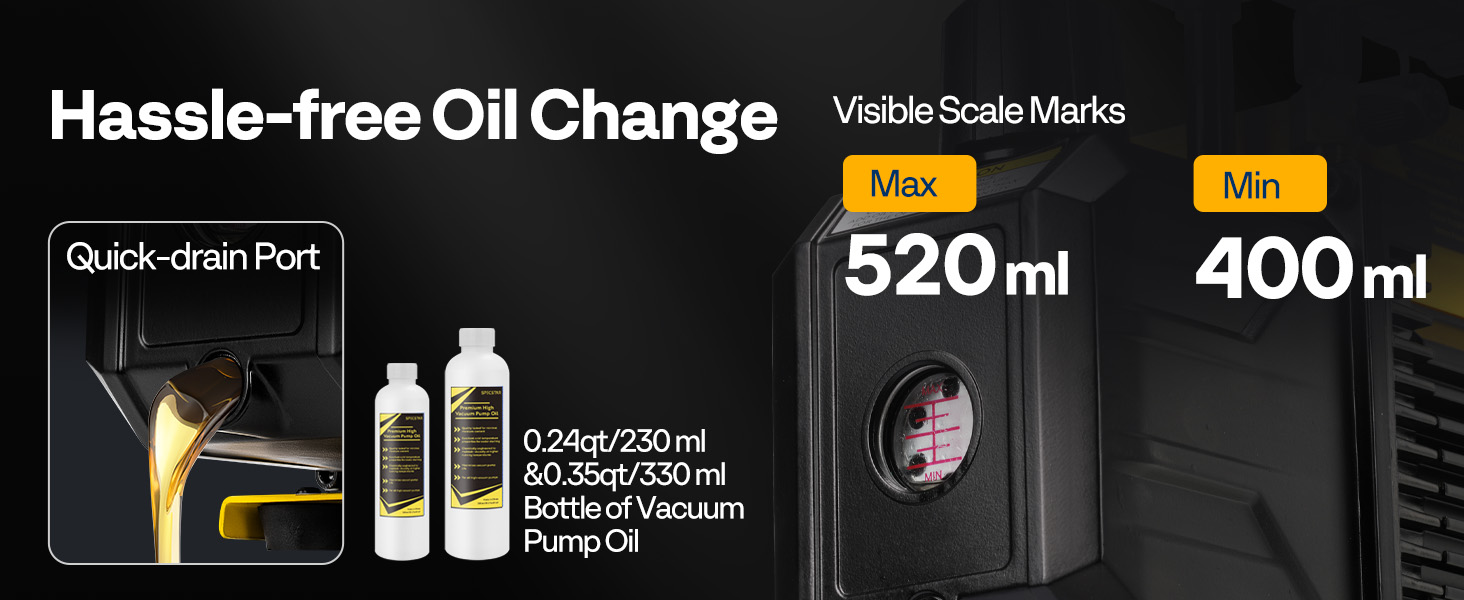

Package Included 1 × 5 CFM Dual-stage Vacuum Pump, 2 Bottles of Vacuum Pump Oil (0.35 qt/330 ml & 0.24 qt/240 ml), 1 × User Manual

Related Products Recommendations

Customer Reviews
4.3 out of 5 stars 48
4.4 out of 5 stars 60
4.6 out of 5 stars 77
4.6 out of 5 stars 19
4.4 out of 5 stars 60
4.4 out of 5 stars 344
4.4 out of 5 stars 2,413
Price
$224.99 $79.99 $59.99 $109.99 $125.99 $233.98 $129.59
Stages
2 1 1 2 2 2 2
Flow Rate
14.4 CFM (408 L/min) 3.5 CFM (100 L/min) 3.5 CFM (100 L/min) 2 CFM (57 L/min) 5CFM (142 L/min) 9.6 CFM (272 L/min) 7.2 CFM (204 L/min)
Motor Power
1.5 HP 1/4 HP 1/4 HP 1/4 HP 1/2 HP 1 HP 3/4 HP
Motor Speed
3456 r/min (Two-stage Motor) 1440 r/min 1440 r/min 3200 r/min 2880 r/min 1728 r/min (Four-stage Motor) 2880 r/min
Ultimate Partial Vacuum
0.2 Pa 2 Pa 5 Pa 0.2 Pa 0.2 Pa 0.2 Pa 0.2 Pa
Ultimate Total Vacuum
15 Microns 150 Microns 150 Microns 15 Microns 15 Microns 15 Microns 15 Microns
Inlet Ports
1/4" SAE, 1/2" Acme, 3/8" SAE 1/4 in. SAE & 1/2 in. Acme 1/4 in. SAE 1/4 in. SAE 1/4 SAE, 1/2" Acme, 3/8" SAE 1/4" SAE, 1/2" Acme, 3/8" SAE 1/4 SAE, 1/2" Acme, 3/8" SAE
Oil Capacity
0.66 qt. (620 ml) 0.37 qt. (350 ml) 0.35 qt. (330 ml) 0.21 qt. (200 ml) 0.53 qt. (500 ml) 0.66 qt. (620 ml) 0.53qt. (500 ml)
Oil Provided
2 × 0.35 qt. (330 ml) 0.35 qt. (330 ml) 0.35 qt. (330 ml) 0.35 qt. (330 ml) 0.24 qt. & 0.35 qt. 2 × 0.35 qt. (330 ml) 0.24 qt. & 0.35 qt.
Cord Length
Total: 1.5 m Exposed: 1.4 m Total: 1.5 m Exposed: 1.4 m Total: 1.5 m Exposed: 1.4 m / Total: 1.5 m Exposed: 1.4 m Total: 1.5 m Exposed: 1.4 m Total: 1.5 m Exposed: 1.4 m
Net Weight
36 lb 12.1 lb 12.1 lb 7.9 lb 20.5 lb 36 lb 22.7 lb
