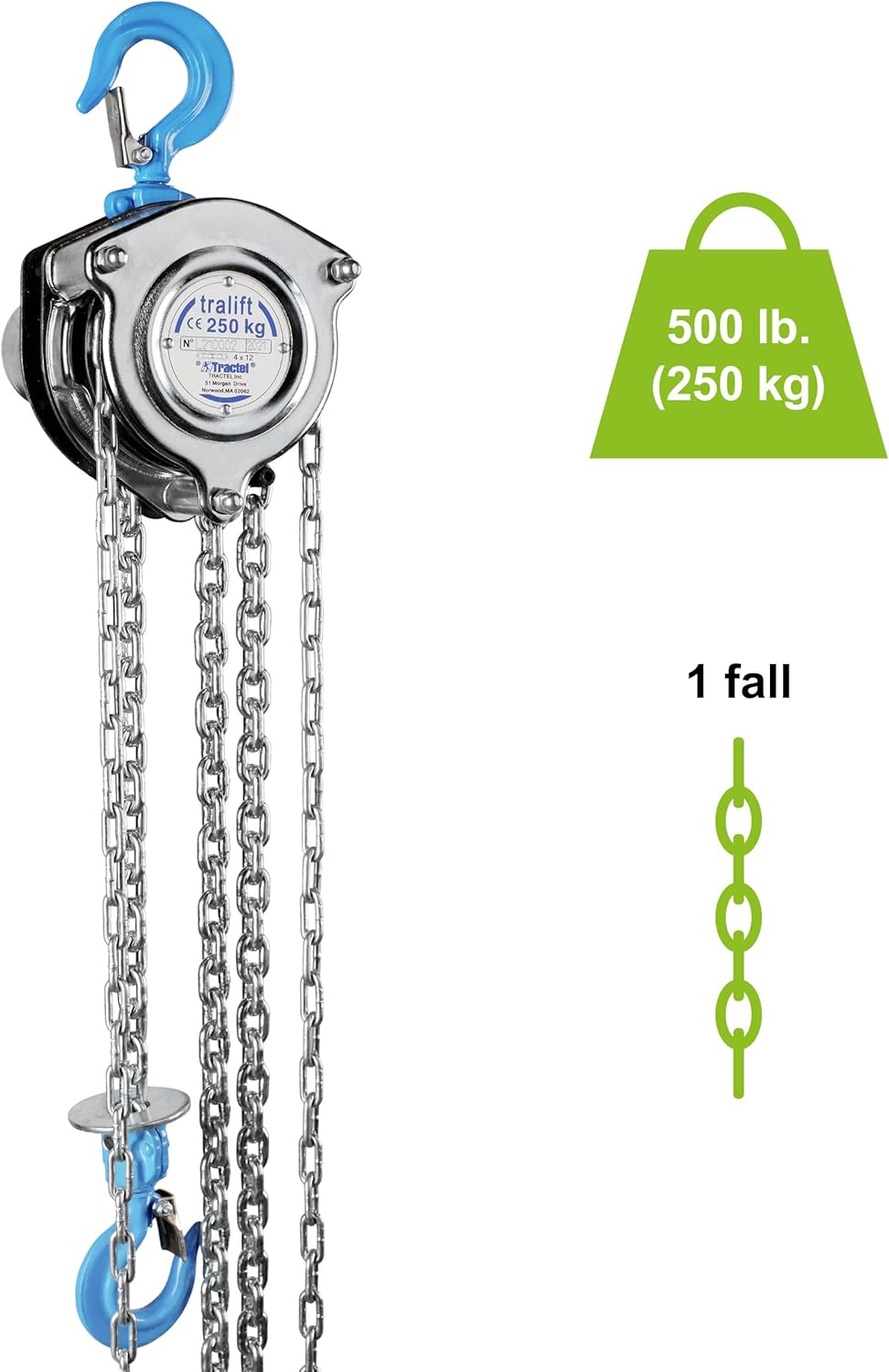

Tractel Manual Chain Hoist | 1/4 Ton - 500 lbs Capacity | 10 ft Steel Chain | Industrial-Grade Steel for Construction, Workshops, Garages | Tralift 56429

Tractel Manual Chain Hoist | 1/4 Ton - 500 lbs Capacity | 10 ft Steel Chain | Industrial-Grade Steel for Construction, Workshops, Garages | Tralift 56429

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

From the brand

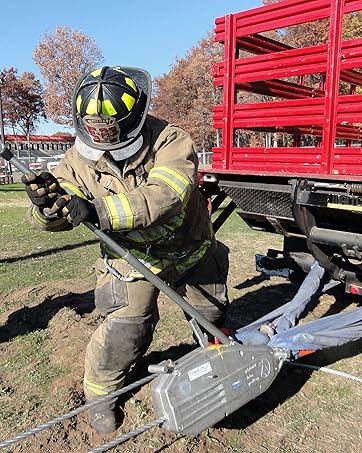

  2. The Fireman's Best Friend

  3. Professional Grade Products

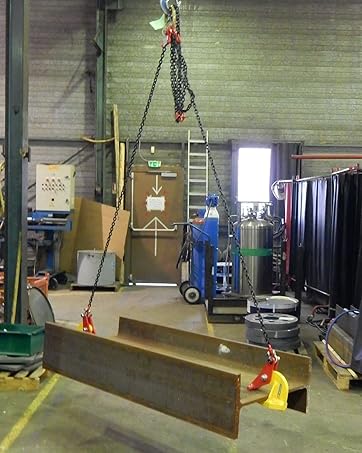

  4. Horizontal Lifting Clamps

Product description

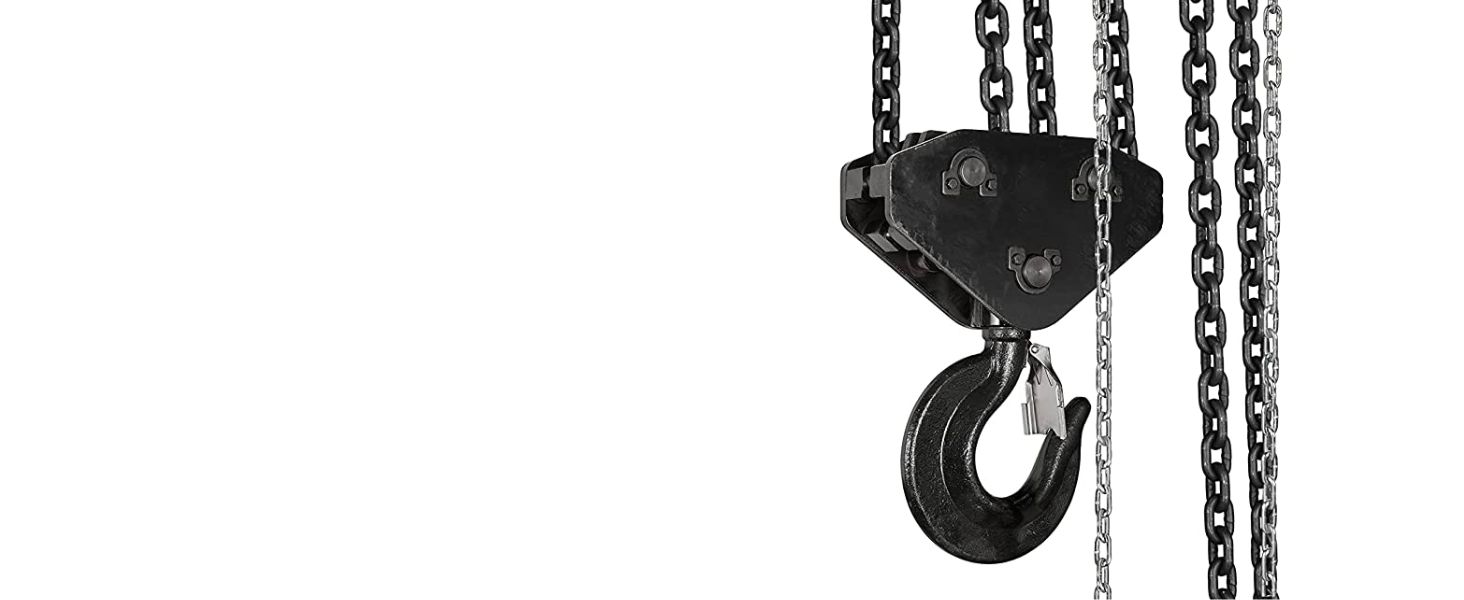

tralift manual chain hoist - premium banner

Tractel Professional Grade Hoists

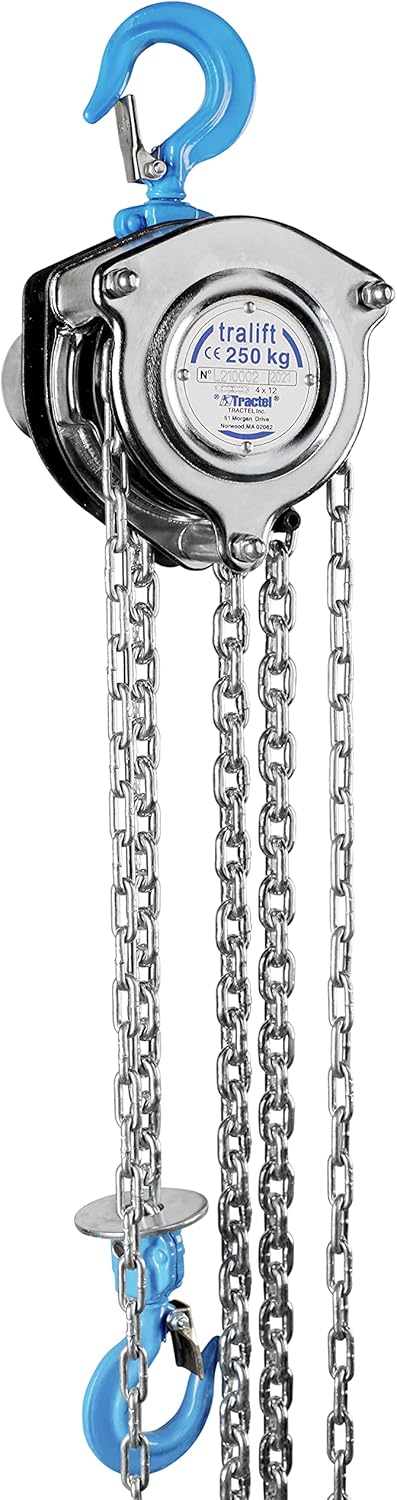

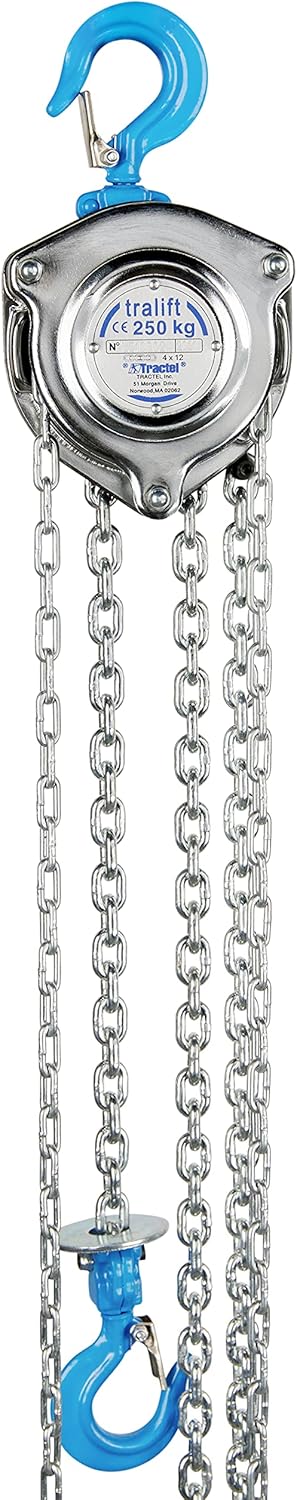

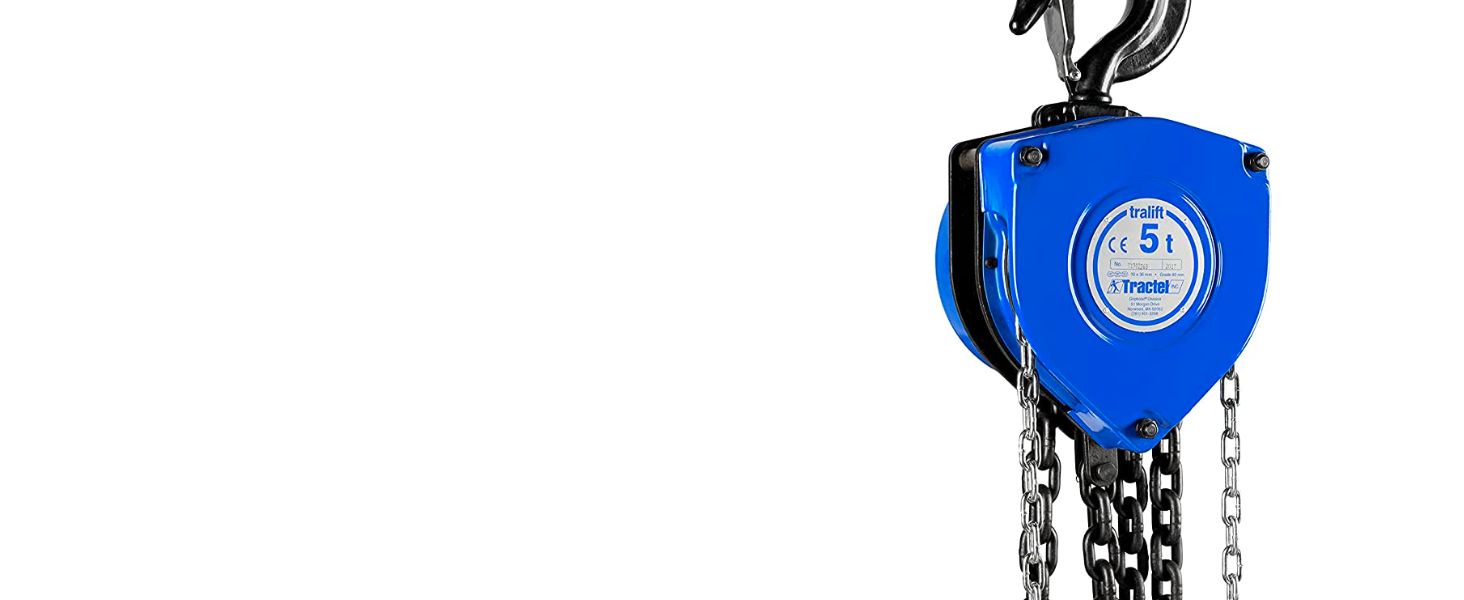

Tralift Manual Chain Hoist

The Tralift chain hoist is a lightweight and compact portable lifting machine for a wide variety of applications. Manufactured from high quality materials, the Tralift chain hoist is rugged and reliable.

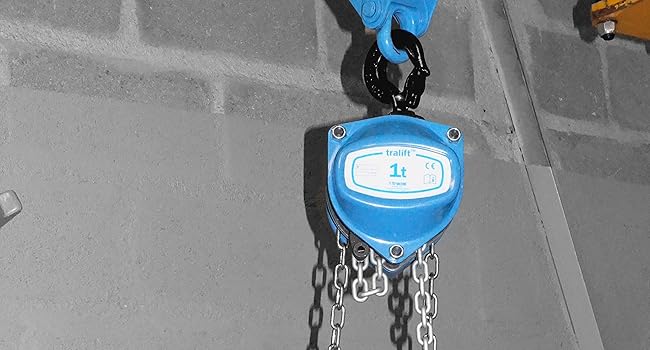

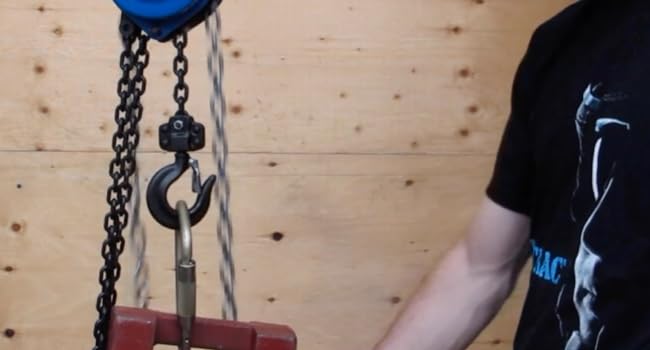

tralift in use

Professional Grade Hoist

Made out of industrial steel, the Tralift is designed for industrial applications:

  • Compliance: Meets or exceeds ASME B30.16, Overhead Hoist (underhung) code
  • Applications: Workshops, Construction Sites, Garages, Theaters, Factories, etc.
  • Very Resistant: operates in temperatures between -40 and 140°F
tralift in use

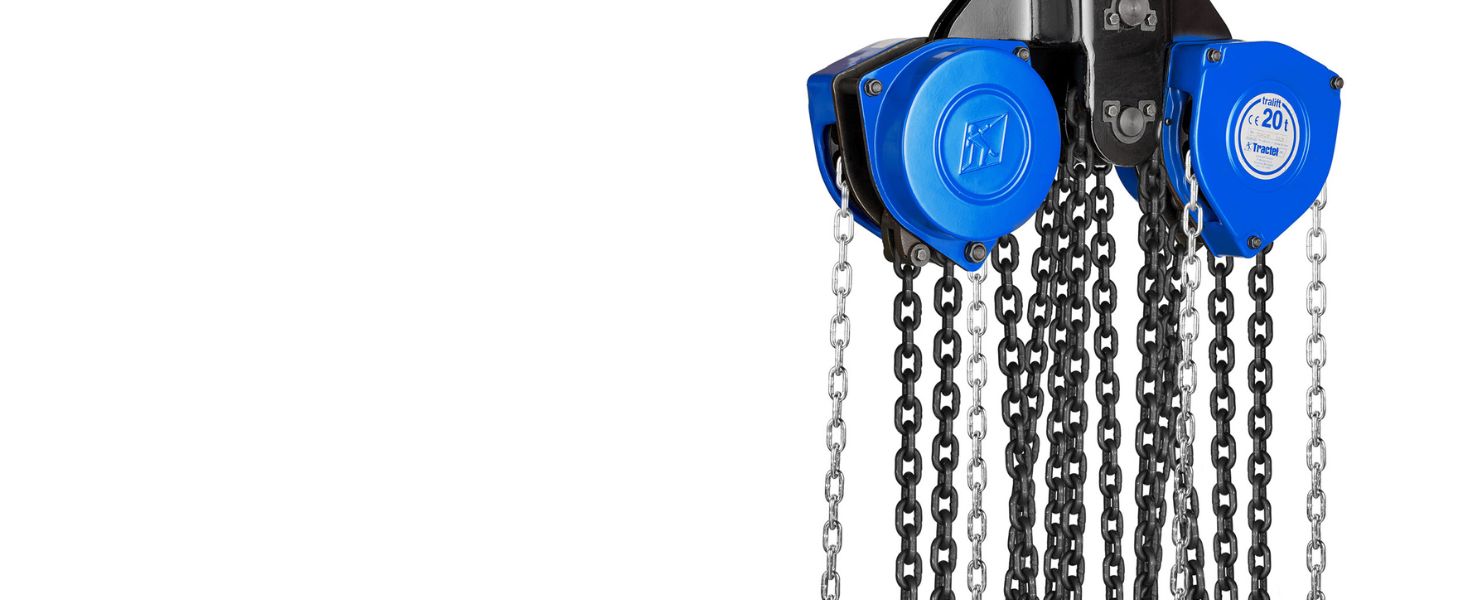

Multiple Configurations

With a wide range of capacities, there's a Tralift for every job:

  • Weight Load Capacity: available from 500 to 40,000 lbs. (1⁄4 to 20T), the Tralift models are suitable for a wide variety of lifting applications.

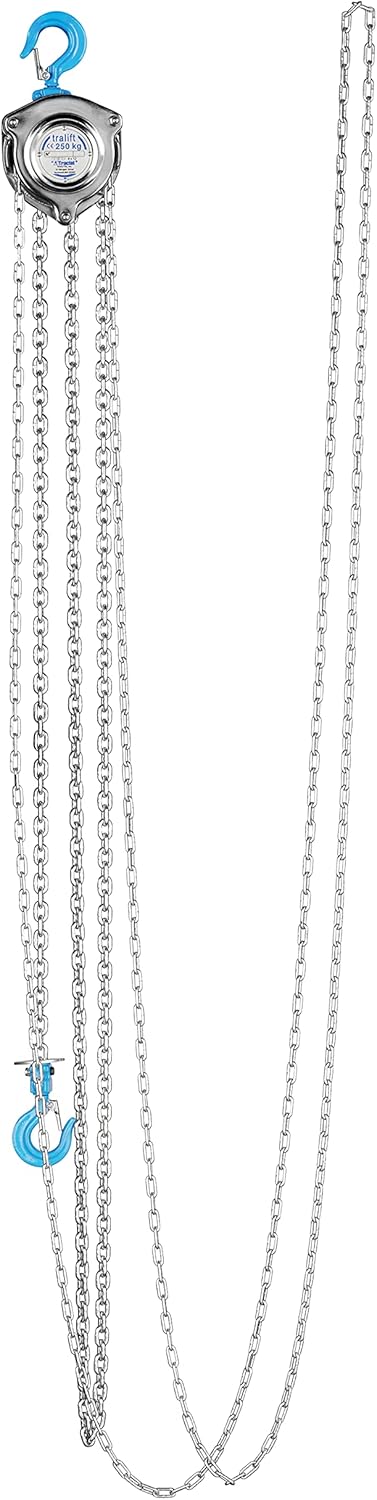

  • Various Chain Lengths: 10, 15, 20, 30 and 40 ft to meet your needs and requirements.

Tractel's Tralift Manual Chain Hoist Range

Load capacity
500 lbs. (250 kg) 1,000 lbs. (500 kg) 1,500 lbs. (750 kg) 3,000 lbs. (1,500 kg) 4,000 lbs. (2,000 kg)
Lengths Available
10 Feet 10, 15, 20, 30, 40 Feet 10, 15, 20, 30, 40 Feet 10, 15, 20, 30, 40 Feet 10, 15, 20, 30, 40 Feet
Number of Falls
1 1 1 1 1
Effort for rated load
24 lbs. (11 kg) 46 lbs. (21 kg) 75 lbs. (34 kg) 84 lbs. (38 kg) 88 lbs. (40 kg)
Load Chain Size
4 x 12 mm 5 x 15 mm 6 x 18 mm 8 x 24 mm 8 x 24 mm
Hand Chain Size
5 x 24 mm 5 x 24 mm 5 x 24 mm 5 x 24 mm 5 x 24 mm

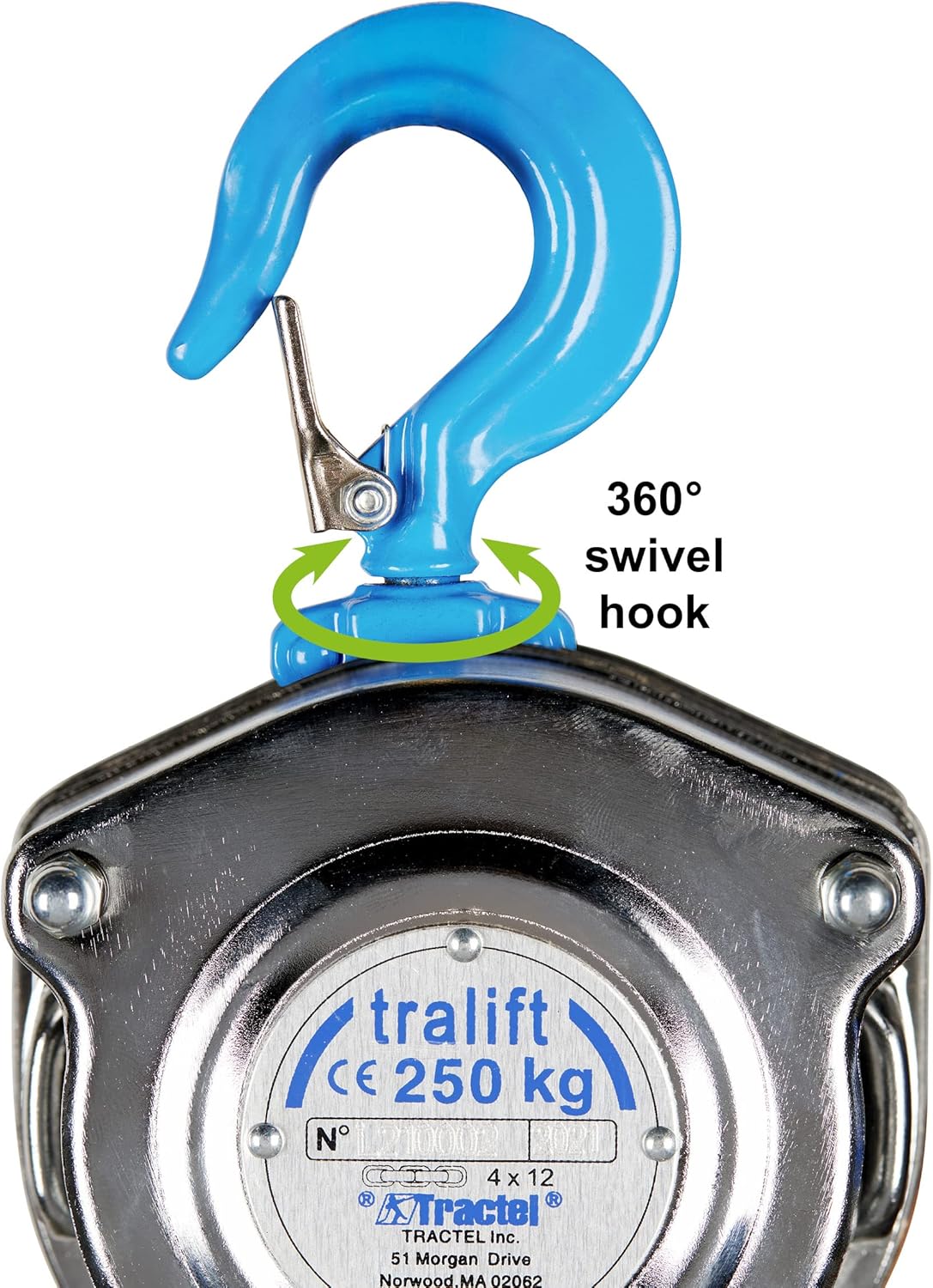

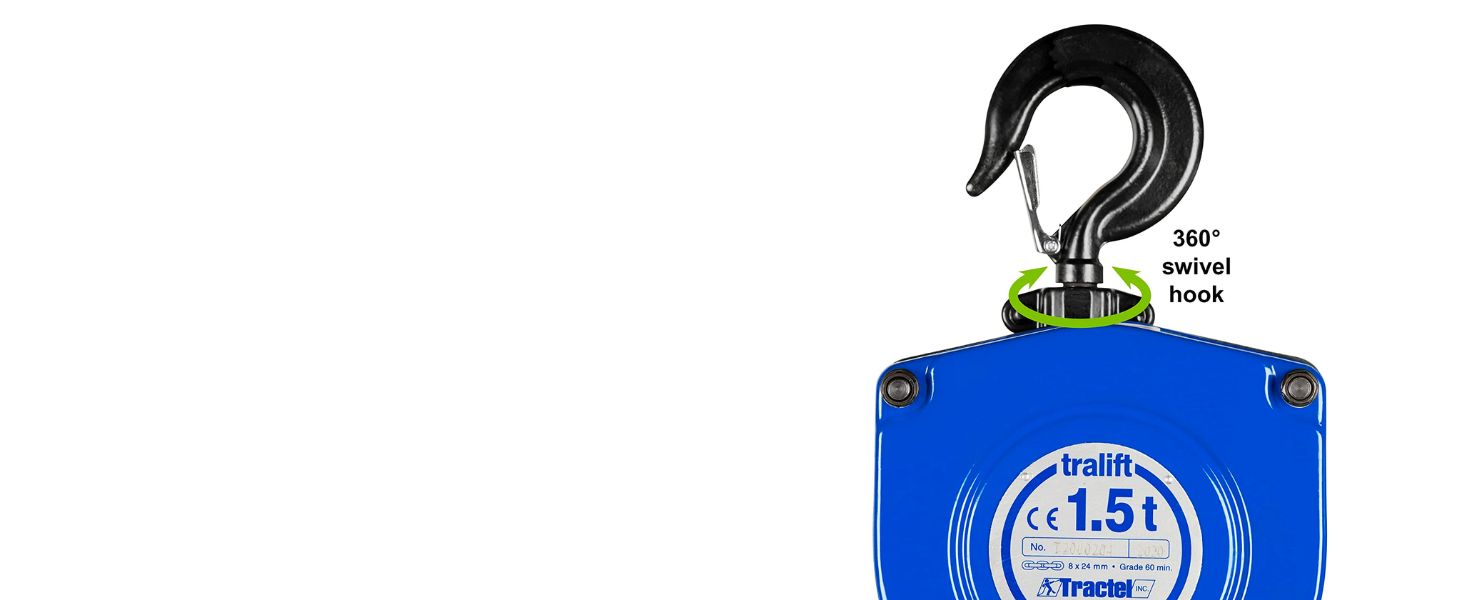

360° Swivel Hook
Unit Weight with 10ft chain.
7.1 lbs. (3.2 kg) 18.7 lbs. (8.5 kg) 26.5 lbs. (12 kg) 39.7 lbs. (18 kg) 44.1 lbs. (20 kg)
Weight for each add. 5ft chain
- 5.5 lbs. (2.5 kg) 6.3 lbs. (2.8 kg) 8.3 lbs. (3.8 kg) 9.2 lbs. (4.2 kg)

Tractel's Tralift Manual Chain Hoist Range

Load Capacity
6,000 lbs. (3,000 kg) 10,000 lbs. (5,000 kg) 20,000 lbs. (10,000 kg) 40,000 lbs. (20,000 kg)
Lengths Available
10, 15, 20, 30, 40 Feet 10, 15, 20, 30, 40 Feet 10, 15, 20 Feet 10, 15, 20 Feet
Number of Falls
2 2 4 8
Effort for Rated Load
92 lbs. (42 kg) 99 lbs. (45 kg) 101 lbs. (47 kg) 110 lbs. (50 kg)
Load Chain Size
8 x 24 mm 10 x 30 mm 10 x 30 mm 10 x 30 mm
Hand Chain Size
5 x 24 mm 5 x 24 mm 5 x 24 mm 5 x 24 mm
360° Swivel Hook
Unit Weight with 10ft chain
57.3 lbs. (26 kg) 90.4 lbs. (41 kg) 176.4 lbs. (80 kg) 366 lbs. (166 kg)
Weight for each add. 5ft chain
13.7 lbs. (6.2 kg) 19.3 lbs. (8.8 kg) 35.6 lbs. (16.2 kg) 71 lbs. (32.3 kg)
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

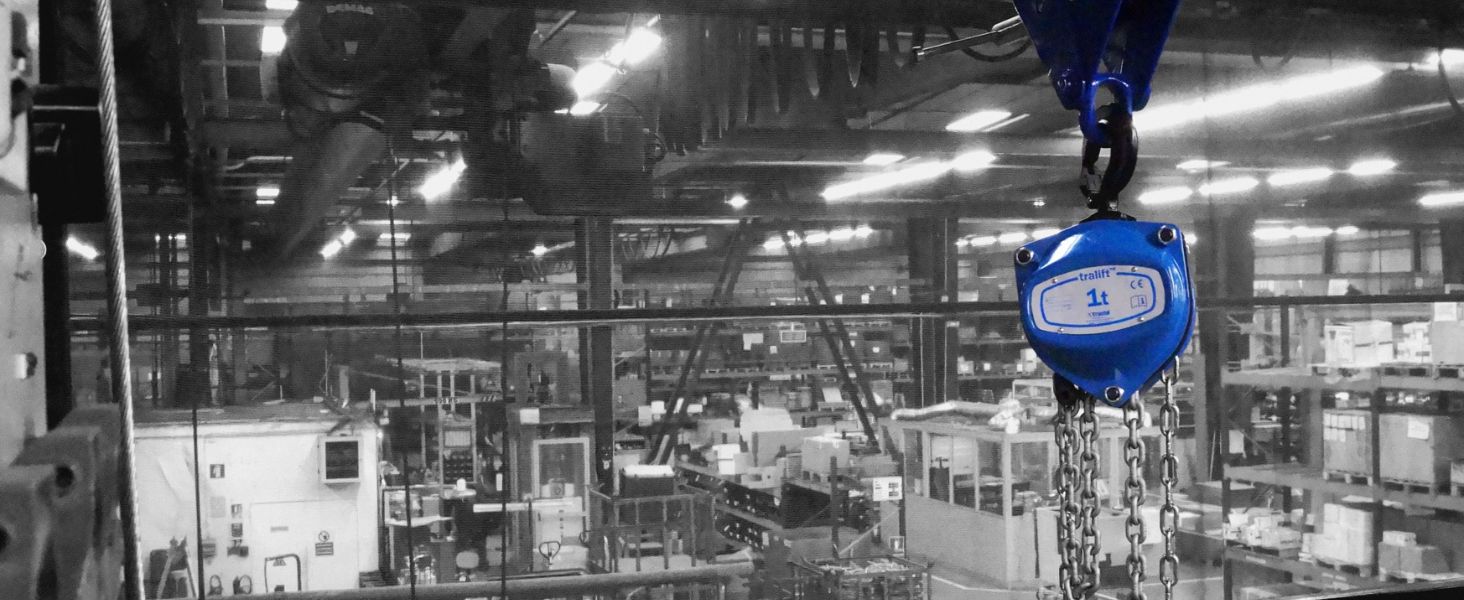

The Tralift chain hoist in use


Tractel's Tralift manual chain hoist is ideal for industrial lifting and handling applications. Very economical, it is Tractel's best value hoist.

Learn more about its key features in this short video.

More Market-Leading Manual Hoists by Tractel

Manual Lever Hoist

Ideal for industrial and building/civil engineering applications.

Manual Wire Rope Hoist

This lifting and pulling hoist is safe, reliable and efficient.

Manual Wire Rope Hoist

Easy to deploy, assemble, and operate under any conditions.

Weight Capacity

From 1/4 Ton (500 lbs) to 6 Ton (12,000 lbs)

Weight Capacity

From 1 Ton (2,000 lbs) to 4 Ton (8,000 lbs)

Weight Capacity

From 1 Ton (2,000 lbs) to 4 Ton (8,000 lbs)

Wire Rope Length

From 5 to 40 ft

Wire Rope Length

From 30 to 250 ft

Wire Rope Length

From 30 to 200 ft

Man-Riding Capability

Approved by UL and qualified to be used as man-riding equipment
