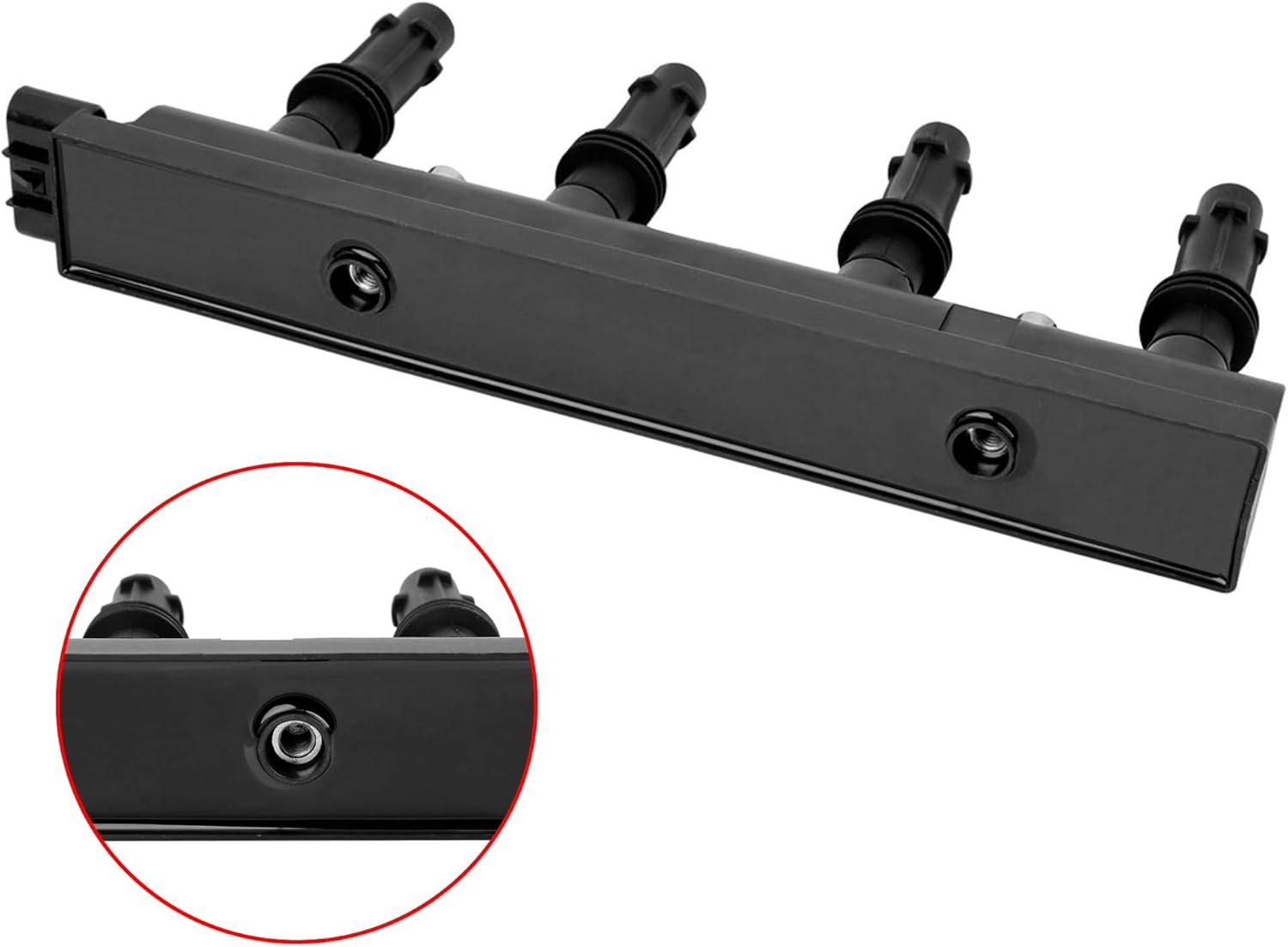

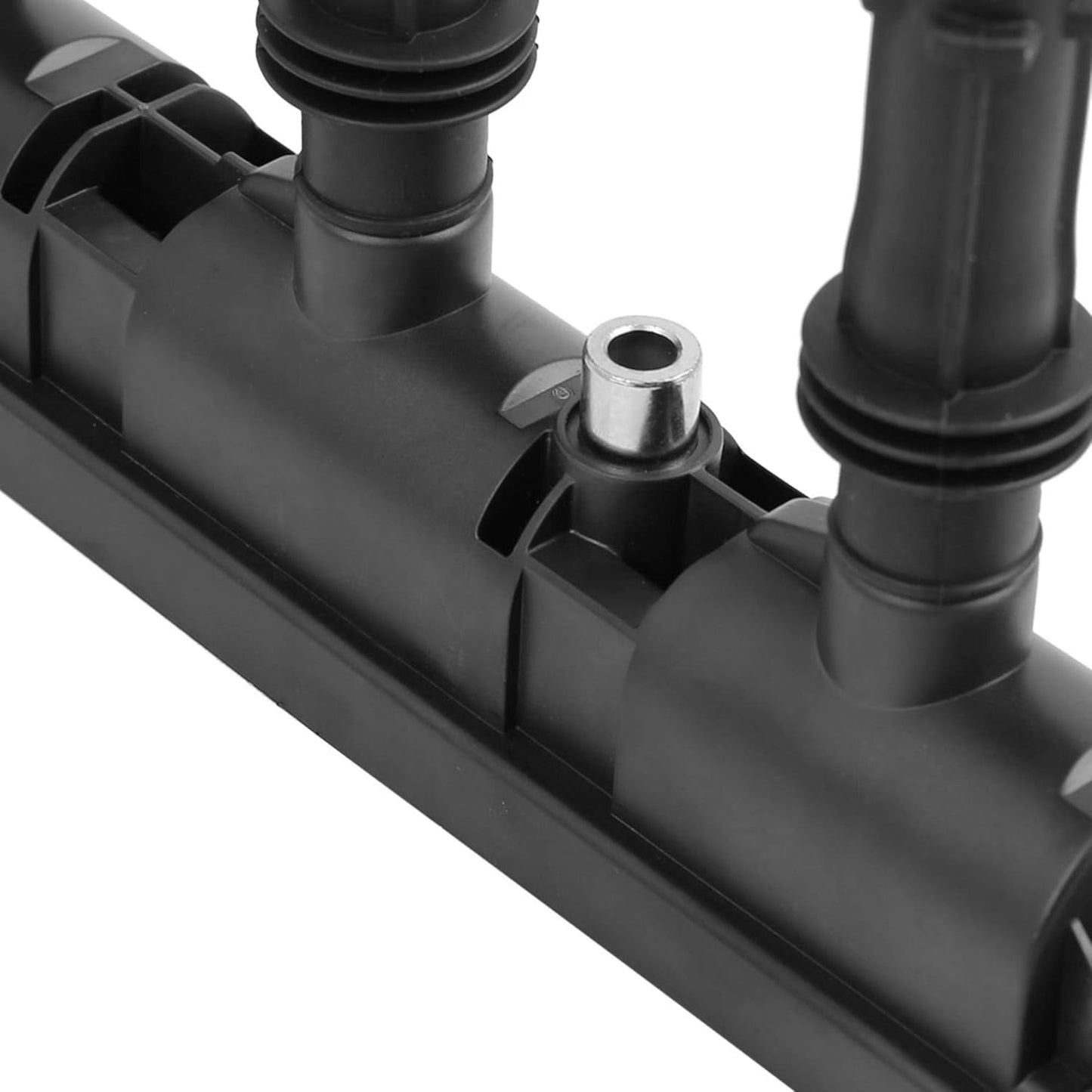

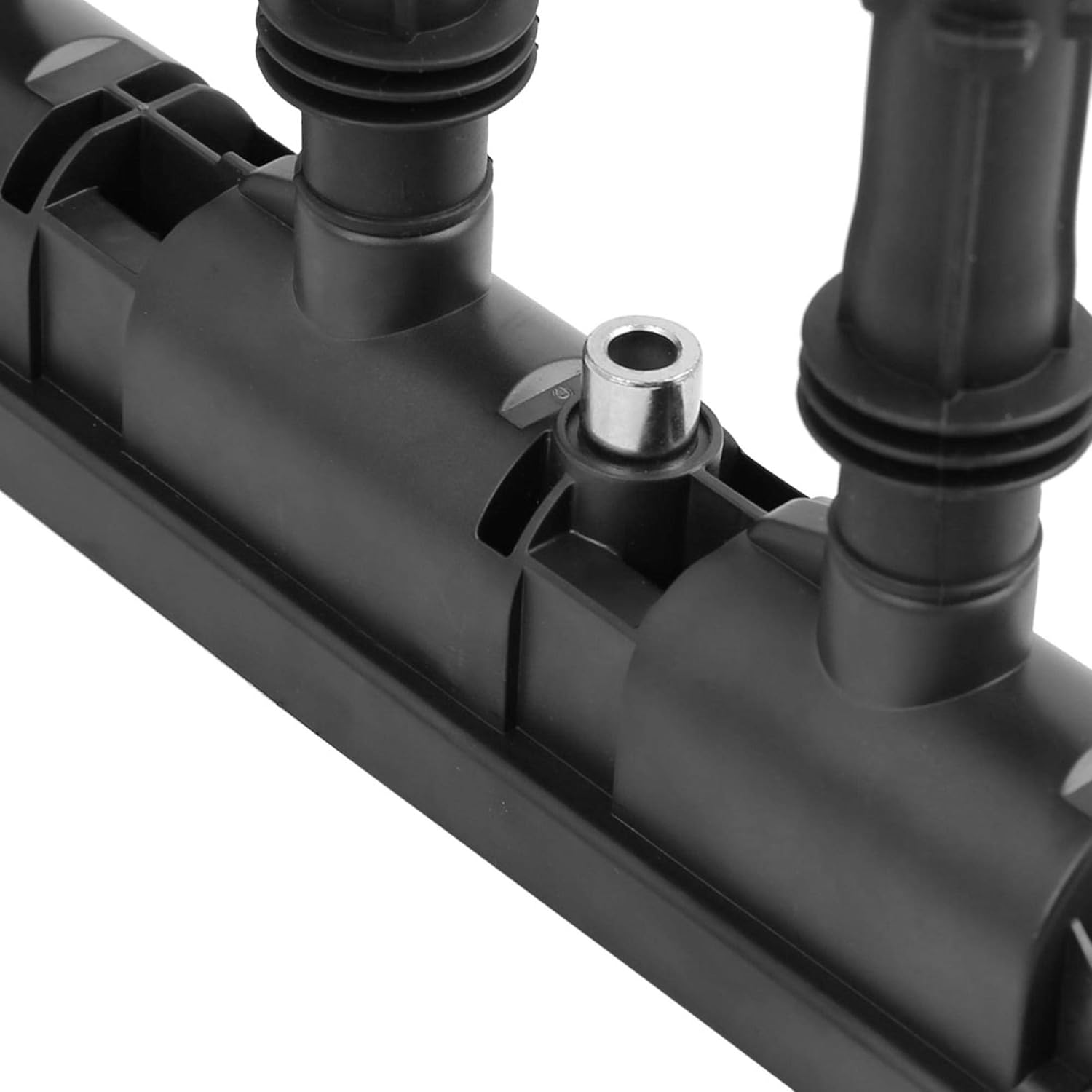

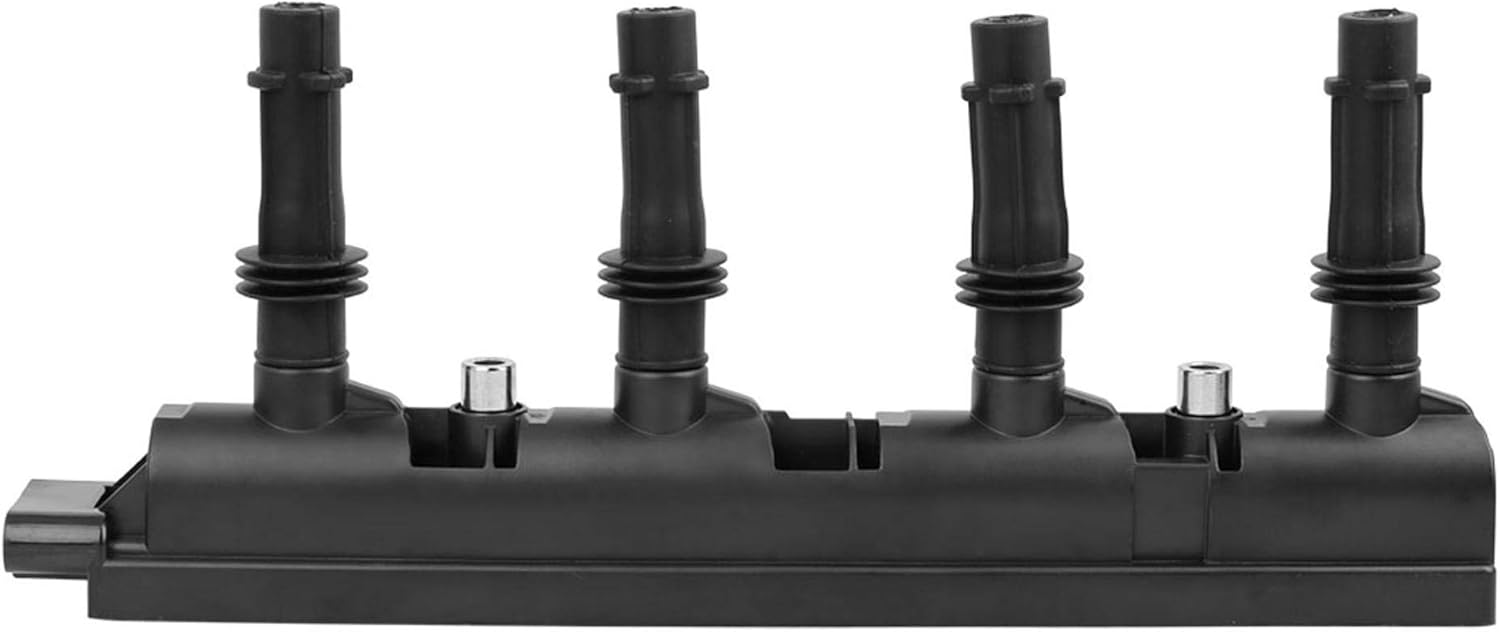

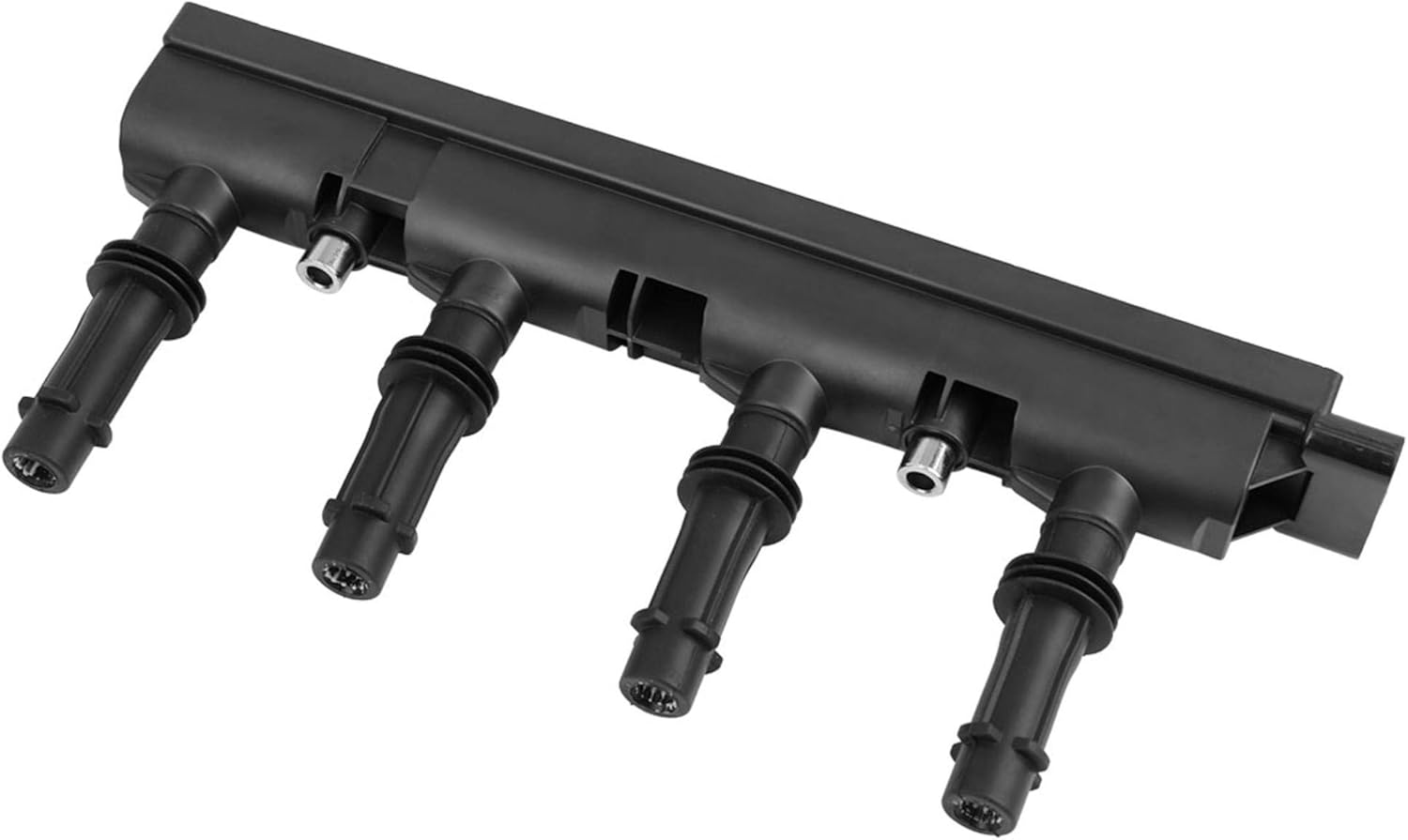

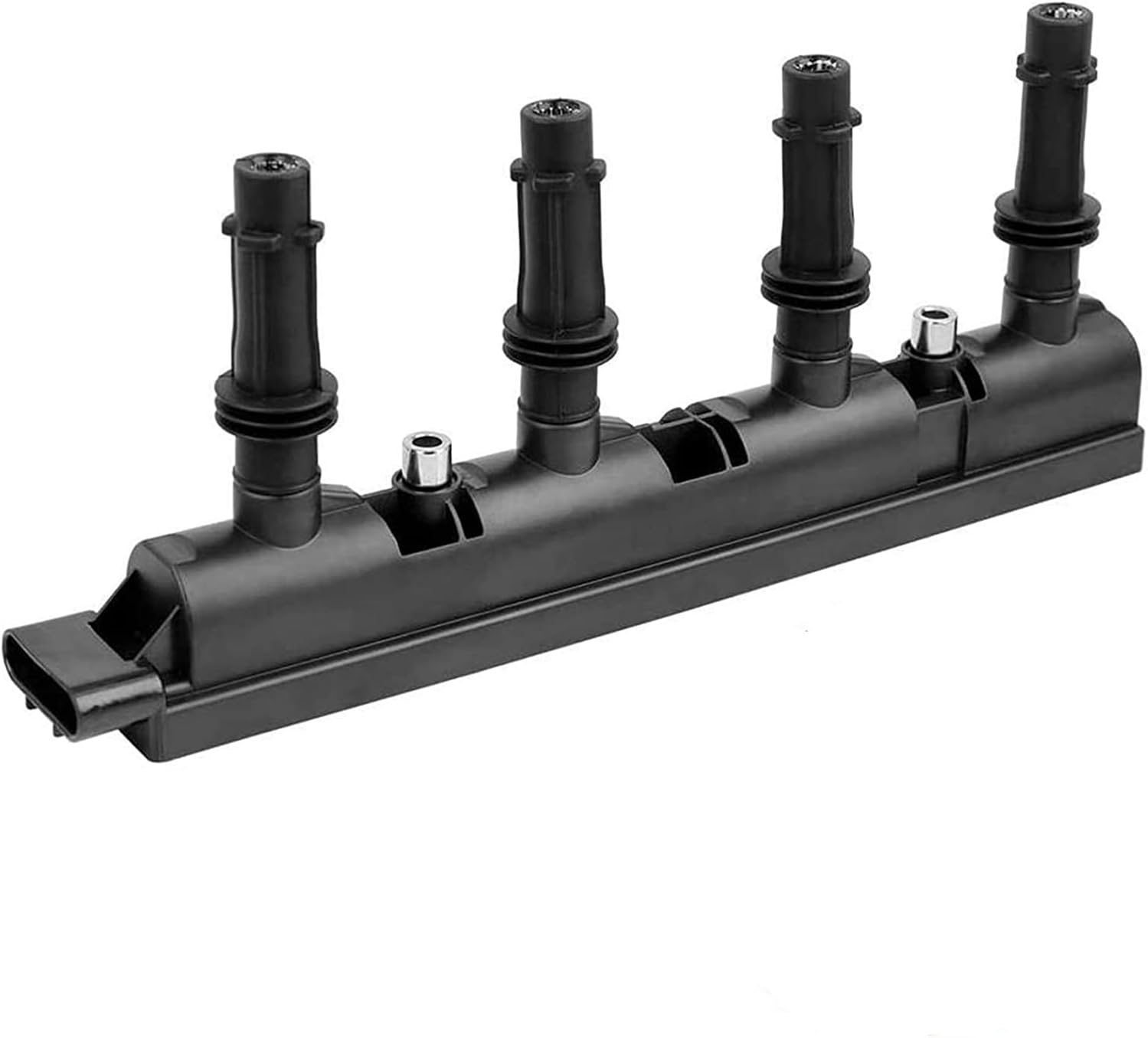

UF669 55579072 Ignition Coil Pack Compatible with 2011-2020 Chevy Cruze Sonic Trax Buick Encore Cadillac ELR L4 1.4L Replacement # D521C 25195107
UF669 55579072 Ignition Coil Pack Compatible with 2011-2020 Chevy Cruze Sonic Trax Buick Encore Cadillac ELR L4 1.4L Replacement # D521C 25195107
Couldn't load pickup availability
Product description
What is it?
Ignition coil, also referred to as a "spark coil" or "spark plug coil," is a critical component in the electrical ignition system of your vehicle. The coil essentially converts the 12 volts from your battery to the thousands of volts necessary to allow for the spark plug to ignite the air / fuel mixture in the engine. The location and appearance of the engine’s ignition coil is dependent on what type of ignition system your vehicle uses, but they can usually be found near the spark plugs.
Customers can find the product you need accurately according to the OE part number. This is a compatible replacement part manufactured our factory. Associated vehicle models and part numbers are used in this listing only to identify the this gnition Coil fits.
Replacement Part Number:
- 25195107 25198623 19005362
- 55577898 55579072 55573735
- D521C C1810 UF669 UF-669 C-1810
- DMB1155 610-00191 55575499 ICA86973
For exact years and models, please check compatibility.

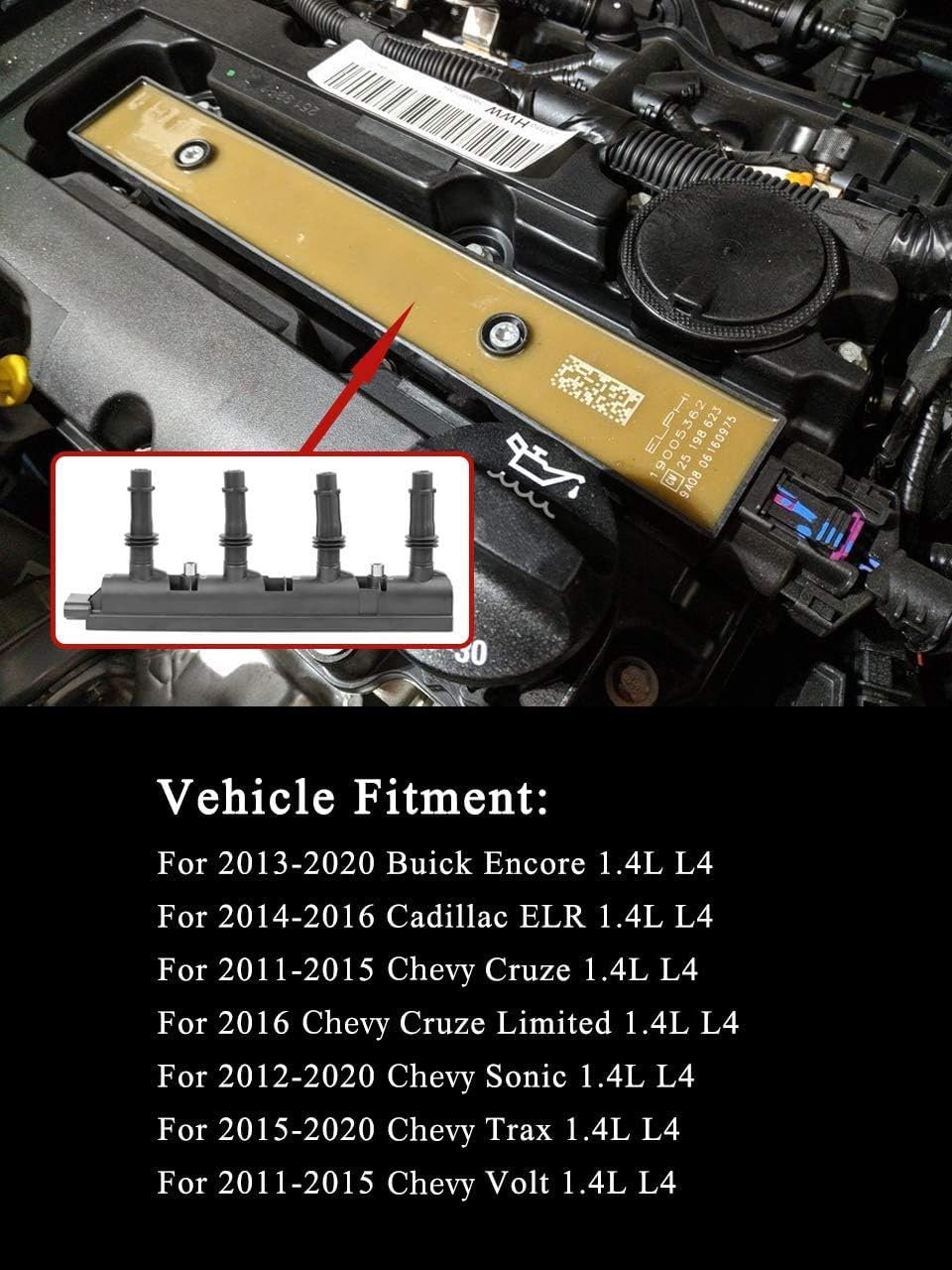

Compatible with:
For 2013-2020 Buick Encore 1.4L L4
For 2014-2016 Cadillac ELR 1.4L L4
For 2011-2015 Chevy Cruze 1.4L L4
For 2016 Chevy Cruze Limited 1.4L L4
For 2012-2020 Chevy Sonic 1.4L L4
For 2015-2020 Chevy Trax 1.4L L4
For 2011-2015 Chevy Volt 1.4L L4
How to Replace the Ignition Coil?
Disconnect the negative terminal on your battery. Locate the ignition coil that needs to be replaced.
Label the cables running into the coil, if there are more than one.
Disconnect each cable leading into the coil.
Tuck the ignition cables to the side. Release the clip on the plug running into the side of the coil.
Unscrew the bolts holding the coil in place using a wrench. Remove the coil from the engine bay.
Compare the new coil to the old one before installing it.
Orient the new coil in the same direction as the old one.
Insert the bolts to hold the coil in place. Connect the plug into the side of the ignition coil.
Plug each ignition cable into the coil using the order written on them.
Reconnect the battery. Start the vehicle to test the new coil.
