VOU 600V Solar DC PV Combiner Box for Solar Panel,1 String with Lightning Arrester Connector for On/Off Grid Solar Panel System,1 Input 1 Out 15A Rated Current Fuse,63A Circuit Breaker,Waterproof
VOU 600V Solar DC PV Combiner Box for Solar Panel,1 String with Lightning Arrester Connector for On/Off Grid Solar Panel System,1 Input 1 Out 15A Rated Current Fuse,63A Circuit Breaker,Waterproof
Couldn't load pickup availability
Product description
Product Description
Why would you choose the VOU Solar photovoltaic PV Combiner Box ？
- VOU PV combiner box function: PV combiner box tidied up connection and confluence of photovoltaic modules.It is used to reduce the connection of the photovoltaic array to the inverter and optimize the system structure. Make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.Can extend the service life of the solar system.
- VOU solar photovoltaic combiner box: equipped with 2pcs15A DC fuses, a high voltage arrester and a 600V 63A circuit breaker. It has short circuit/lightning surge/overvoltage/overcurrent protection/grounding protection. Protect photovoltaic panels and inverters and other devices
- VOU Combiner Box IP65 Waterproof ABS Housing: The combiner box adopts a sturdy housing. It has an IP65 protection level. It is dustproof, moisture-proof, waterproof, rainproof, snowproof, and oil-proof. It is easy to install and comes with a PC transparent cover for easy monitoring. The ABS material is also impact-resistant , allowing your equipment to be well protected in harsh environments.
- VOU PV combiner box Easy installation & clear wiring: The wiring connection has been completed in the photovoltaic combiner box. The ground wire is also connected. It can save 1 hour of manual wiring time. It is also equipped with a photovoltaic connector and a dedicated waterproof cable connector. It can be plug and play. It provides a quick and simple solution for connecting solar panels.
- VOU PV combiner box Application Scenario：The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV array, home solar panel systems. The maximum input voltage supported by this product for a single photovoltaic array is 600V, and the maximum input current for a single photovoltaic array is 15A, which is 15A x 600V = 9000W.
- The product includes：1000V Fuse holider with 15A fuse, 2P DC 600V MCB 63A, 2P DC SPD 600V，IP65 HT8WAY waterproof box，And other accessories
Choose a good brand. Bringing you a better life
VOU is a leading brand specializing in photovoltaic products. VOU is committed to providing our customers with quality photovoltaic products at very low prices. Today, VOU's products are sold to more than 150 countries and regions. Its global influence is also gradually increasing.
Why Choose VOU?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

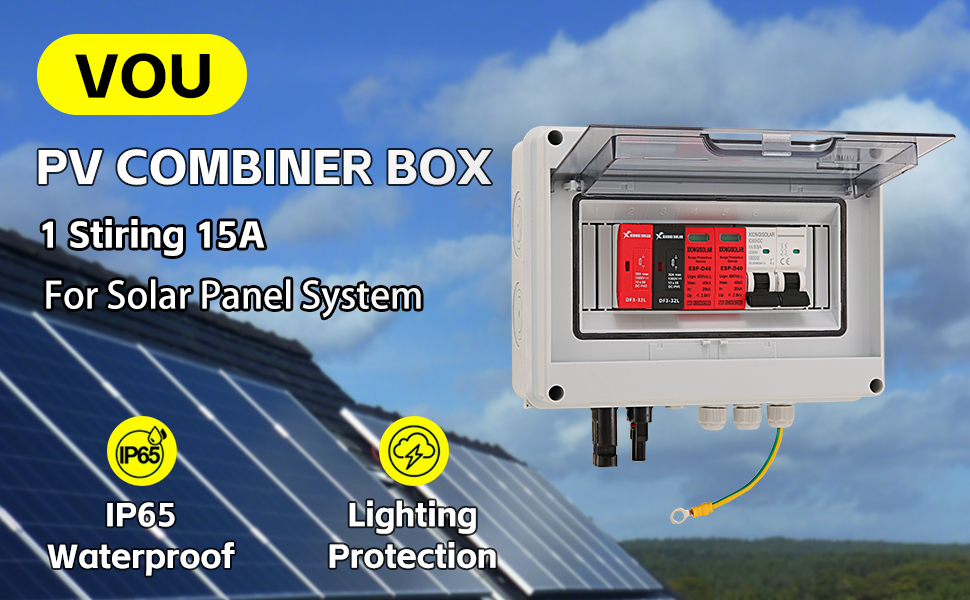

1 String Solar PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
VOU solar photovoltaic combiner box is a perfect device designed to reduce the connection line between PV modules and inverters, facilitate maintenance and improve reliability. Equipped with high-voltage lightning arresters, 15A DC fuses, and circuit breakers to play a role in circuit protection and lightning protection. It supports photovoltaic On-Grid/Off-Grid solar power generation systems, solar panel systems.
- Professional PV Combiner Box
- Secure & Reliable Protection
- IP65 Waterproof & ABS Shell
- Easy installation & clear wiring
- Multiple application scenarios
- Professionalism in the Photovoltaic Industry

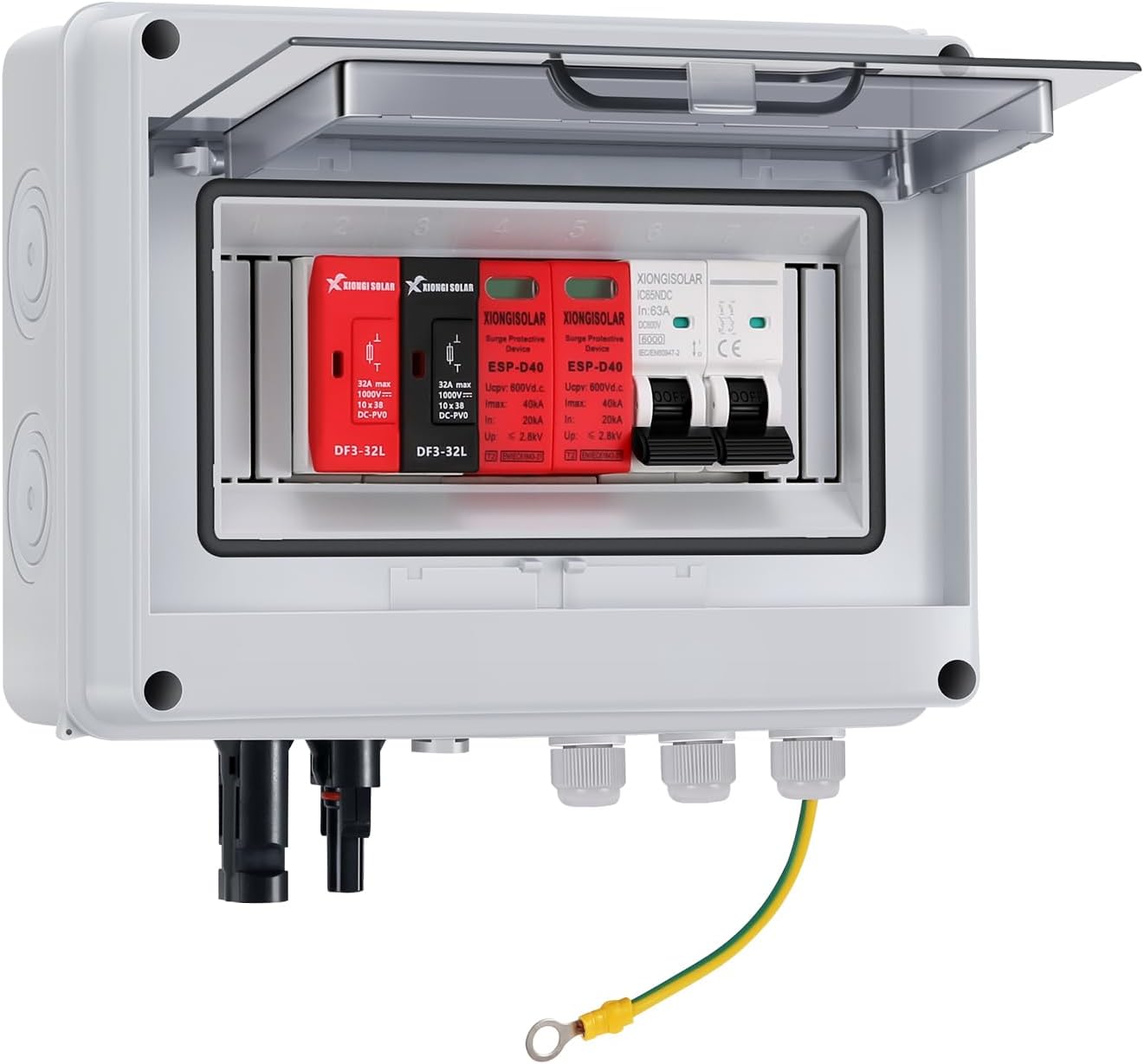

Product Introduction
1000V DC Fuse holider with 15A fuse
Pull-out fuse holder is more convenient
2P DC SPD 600V
Safer through laboratory lightning protection testing
2P DC 600V MCB 63A
MCB can be switched in milliseconds, with low energy consumption

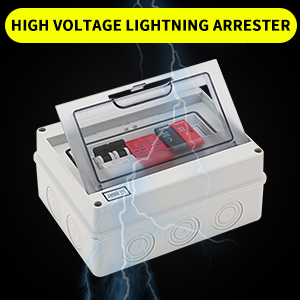

High Voltage Lightning Arrester
- The combiner box for solar systems is built with a professional high voltage lightning arrester to provide lightning and rain protection. Both positive and negative with thunder proof protection.

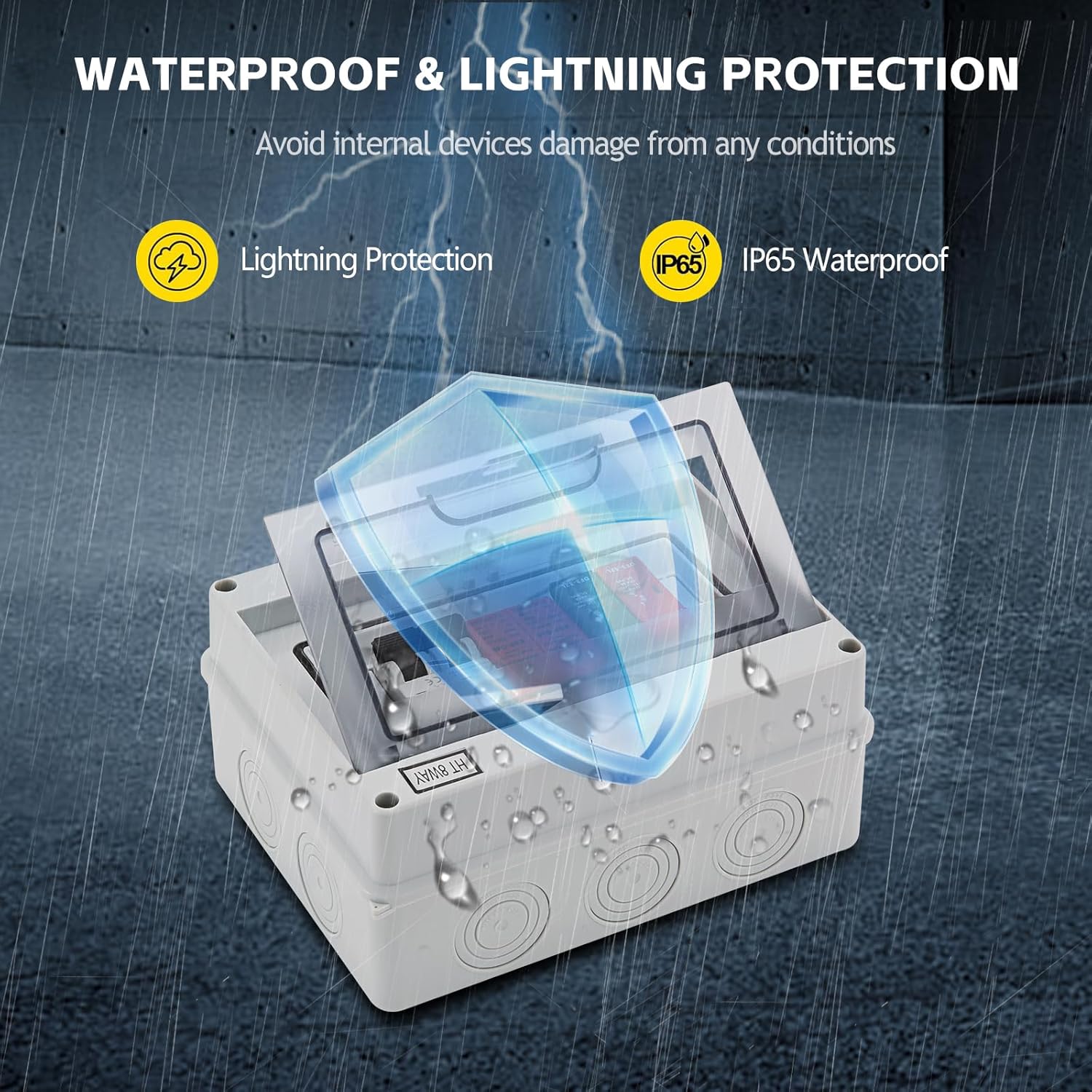

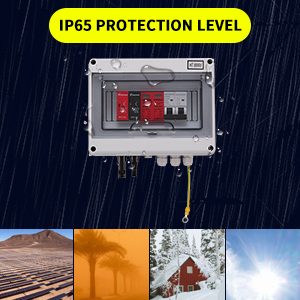

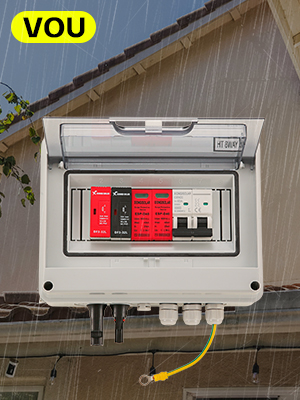

IP65 Protection Level
- The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures even more security on construction sites.

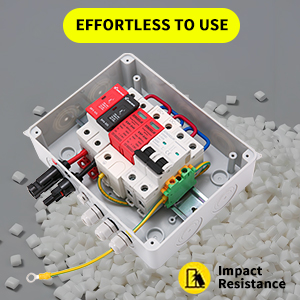

Premium ABS Material
- The combiner box shell is made of ABS material, which has high impact strength, good weather resistance and strong wear resistance.

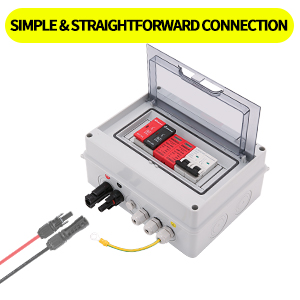

Clean wiring
All wires are pre-wired in the solar breaker combiner box, which is very sturdy and neatly wired to combine your solar panels, making your solar panel system connection easier.

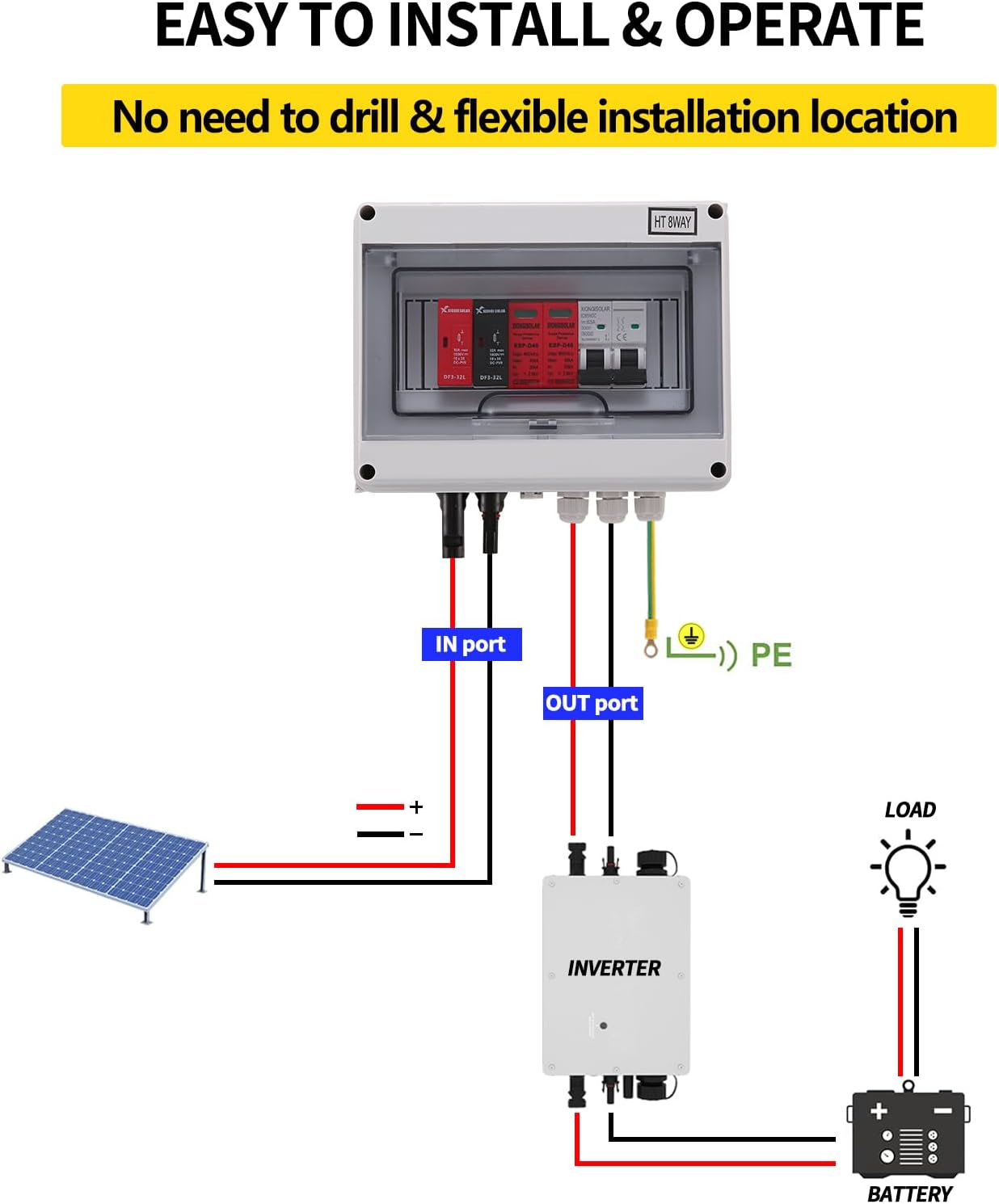

Plug and Play
The combiner box is equipped with solar panel connector, which can be plug-and-play, very convenient

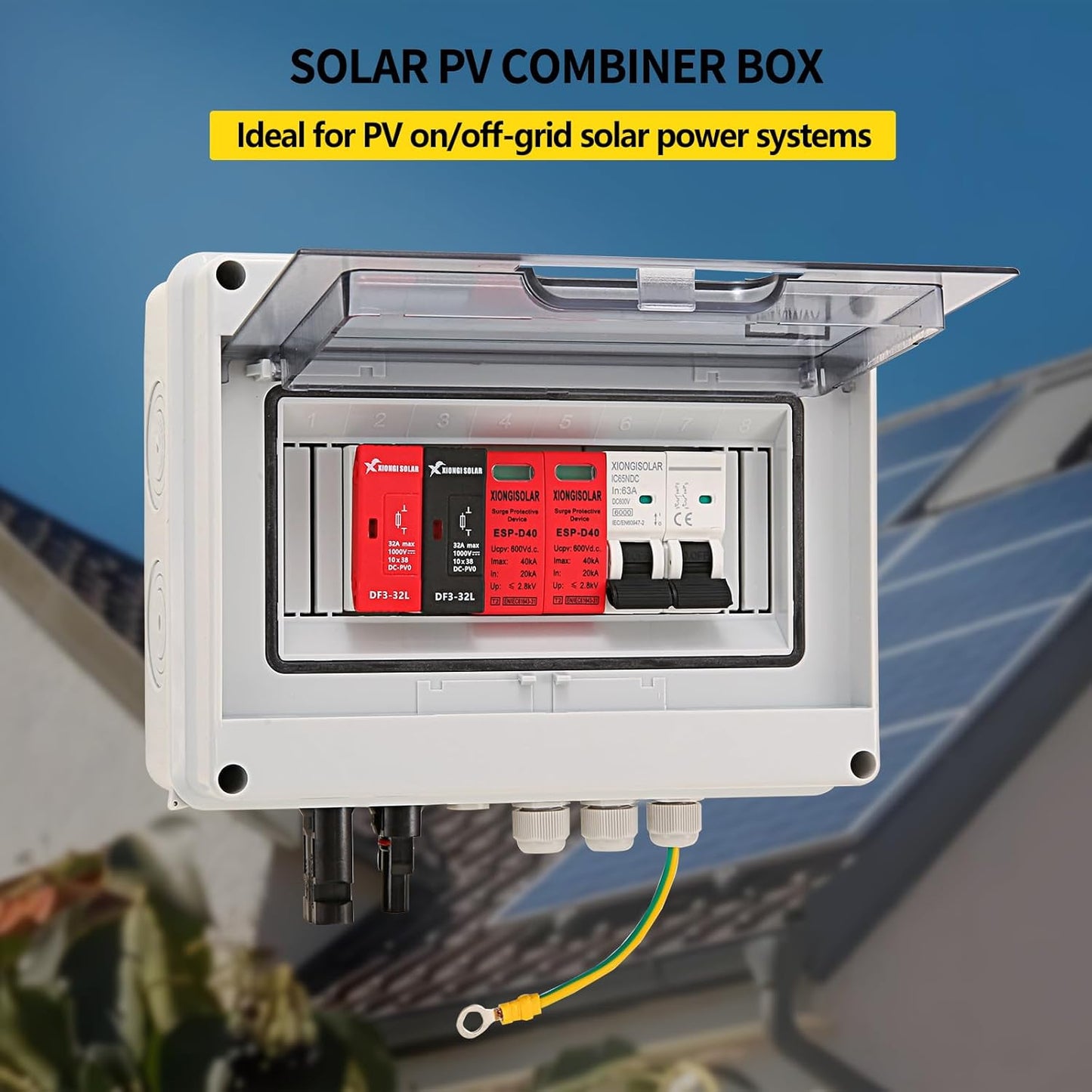

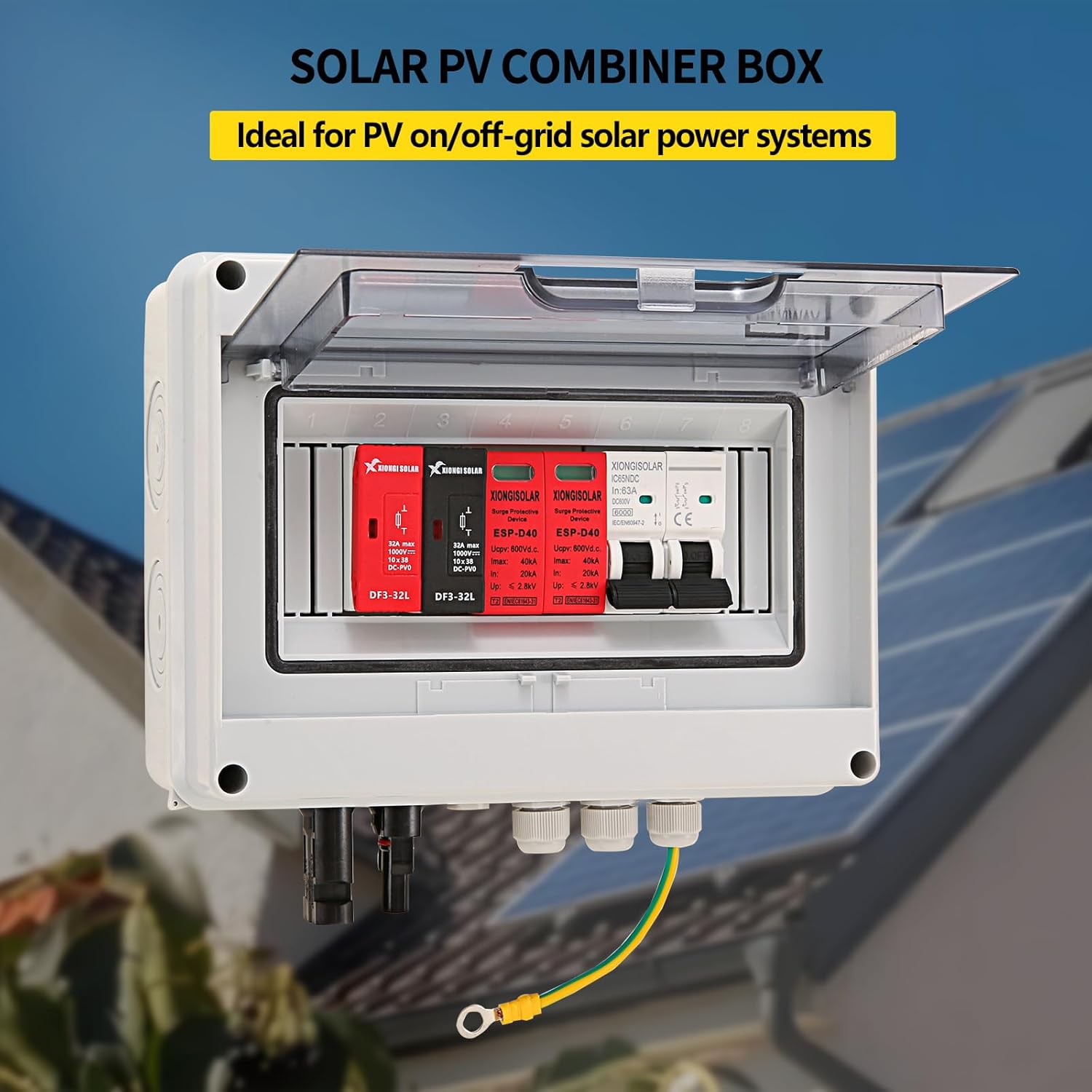

Extensive Application
The solar breaker combiner box is ideal for photovoltaic grid-connected and off-grid power generation systems. It is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc.

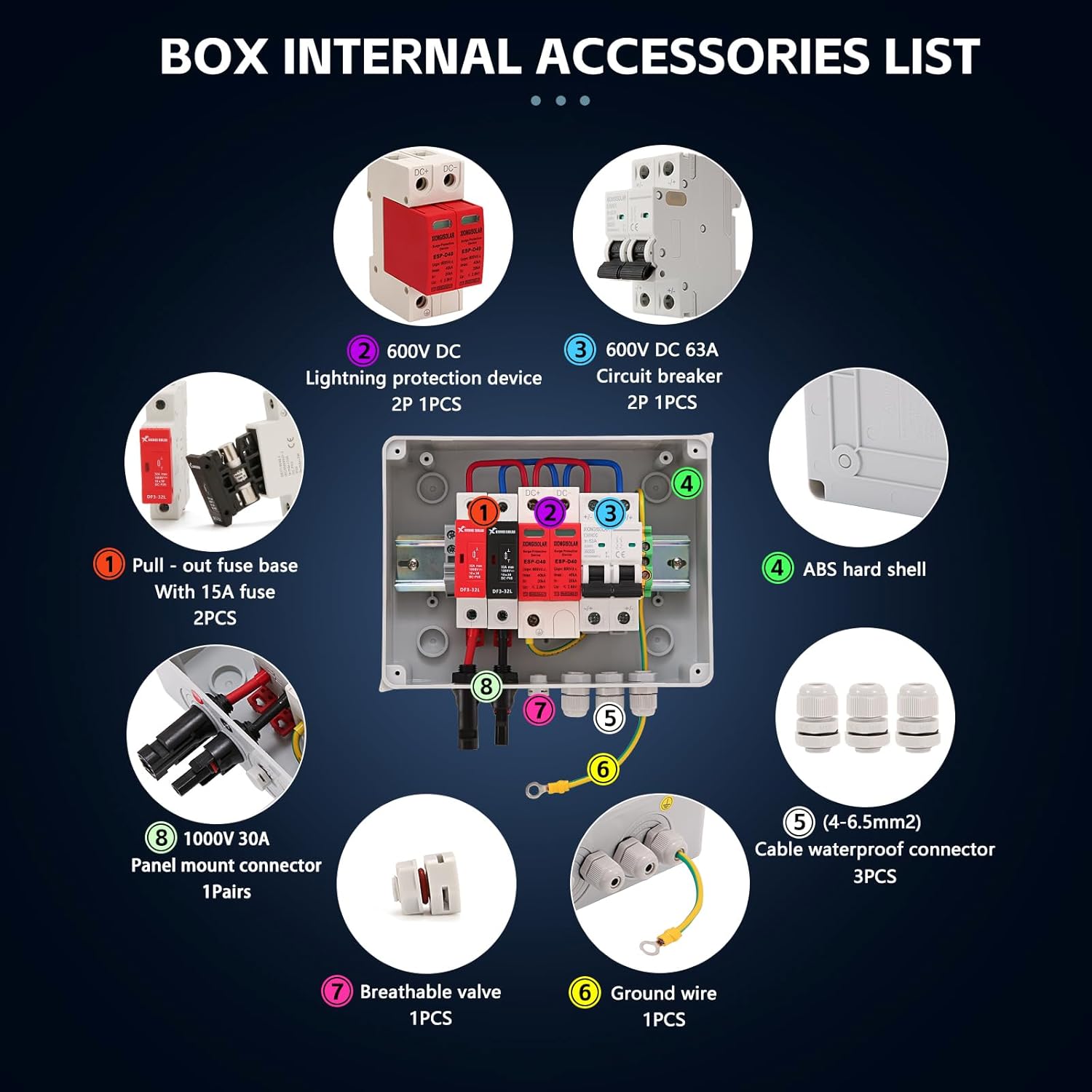

The product includes
- 1000V Fuse holider with 15A fuse, 2P DC 600V MCB 63A, 2P DC SPD 600V，IP65 HT8WAY waterproof box，And other accessories

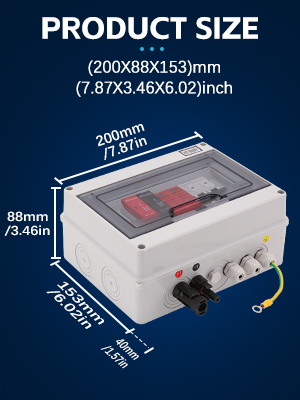

Specifications
Model: XG116
Maximum number of connected PV arrays: 1
Maximum input current of a single PV array: 15A
Total input current of PV array: 15A
Maximum input voltage of a single PV array: 600V
Maximum output voltage: 600V
Protection level: IP65
Operating ambient temperature: -30°C to 70°C / -22°F to 158°F
Relative humidity: 0-95%, non-condensing
Cooling method: natural cooling
