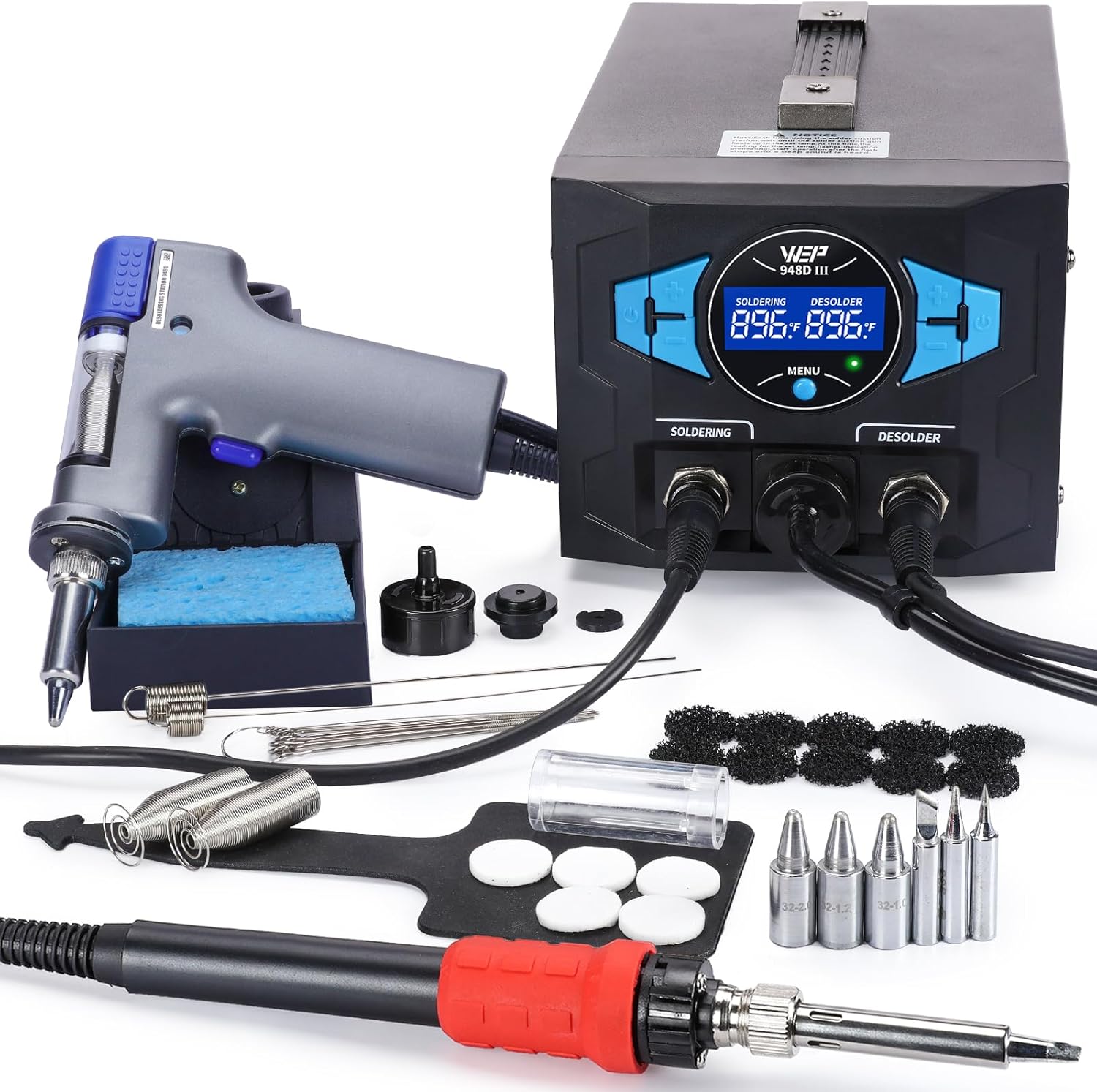

WEP 948D III Upgraded 2-IN-1 ESD Safe Soldering Desoldering Station with Fast-Heating Desoldering Gun & Soldering Iron, Sleep Mode, Automatic Shutdown, Temperature Calibration with 31 Pcs Accessories
WEP 948D III Upgraded 2-IN-1 ESD Safe Soldering Desoldering Station with Fast-Heating Desoldering Gun & Soldering Iron, Sleep Mode, Automatic Shutdown, Temperature Calibration with 31 Pcs Accessories
Couldn't load pickup availability
Product description

WEP introduces 948D-III 2-in-1 Station with multiple functions to satisfy your soldering and desoldering needs in one station!

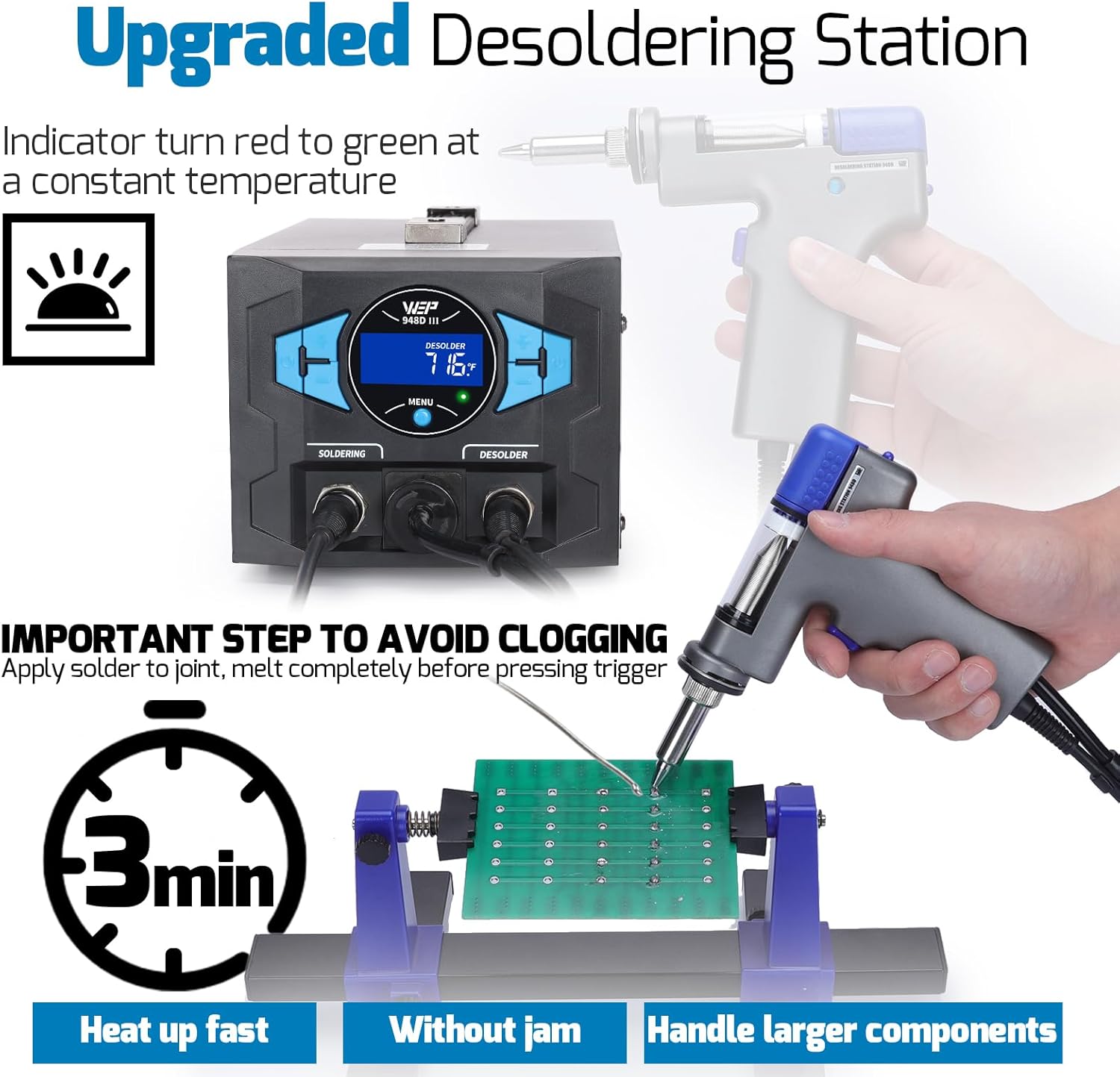

Upgraded Desoldering Station
- Quicker heating
- Desolder without jam
- Desolder large components

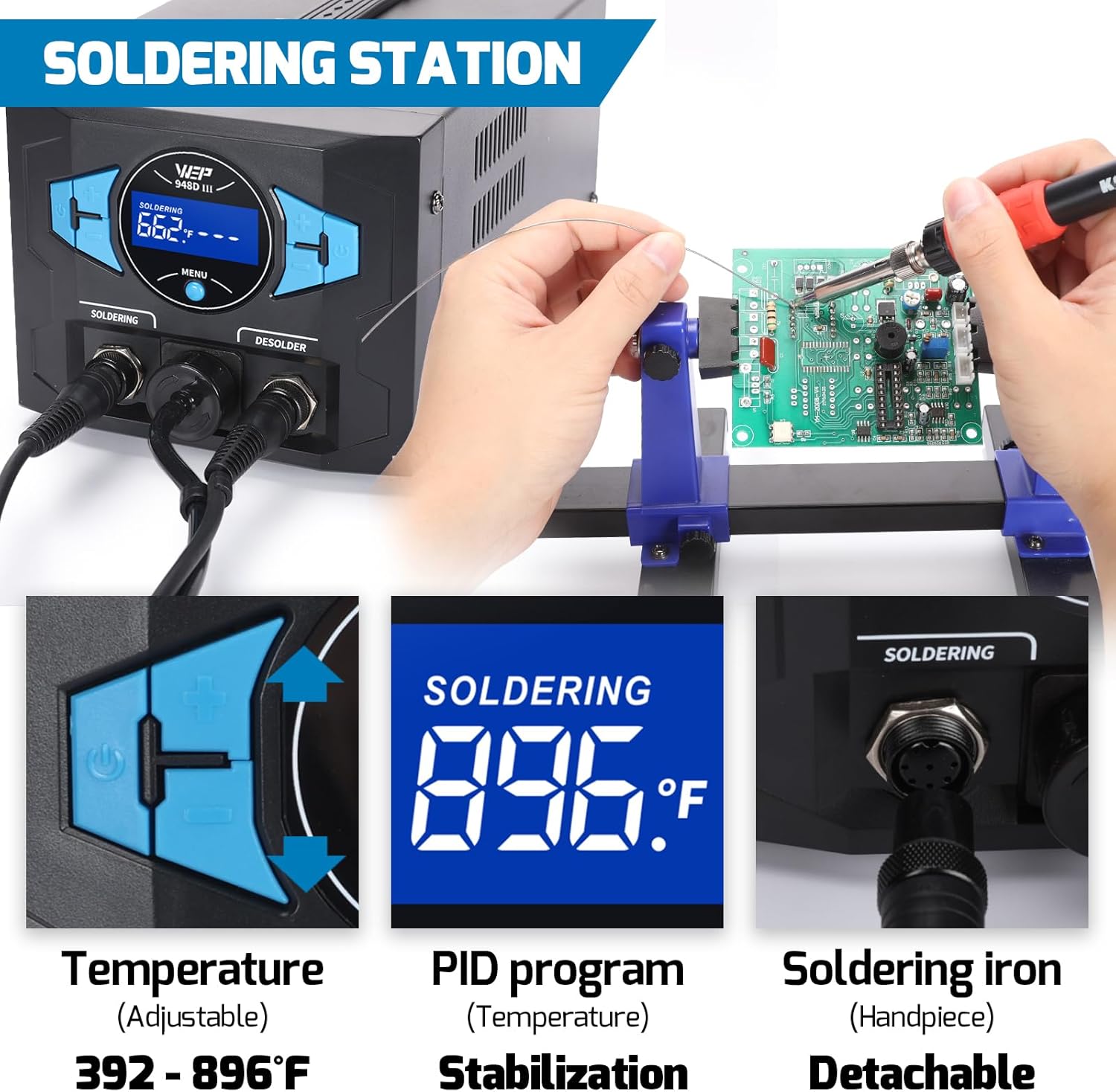

Soldering Station
- High Power Rate: 110W
- Suitable for through-hole components with multiple pins or leads
- Temperature Range: 392~896°F

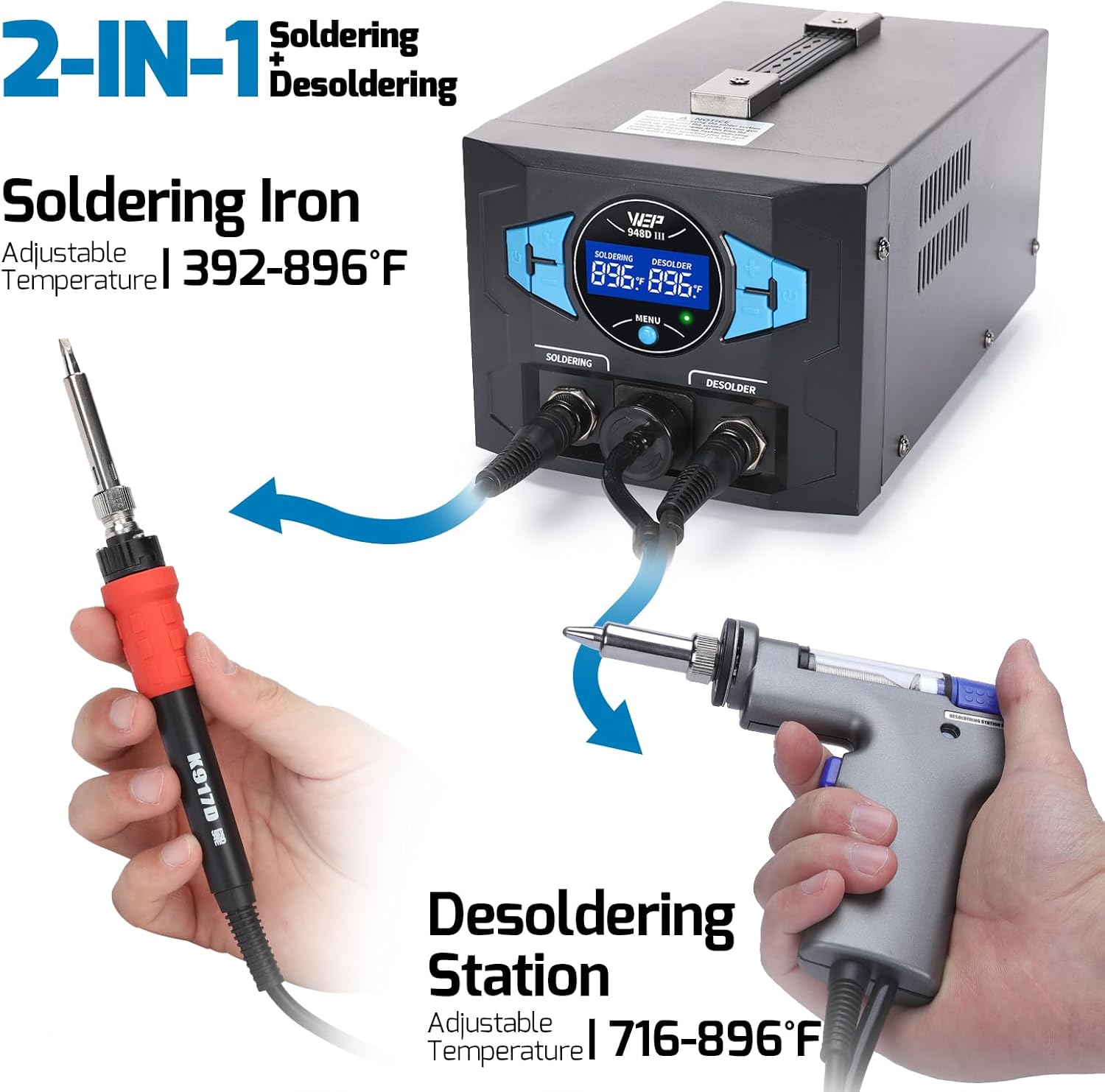

2-IN-1
- Individual Switches: Turn on individually or together
- Indicator for PID program
- Soldering& Desoldering holder

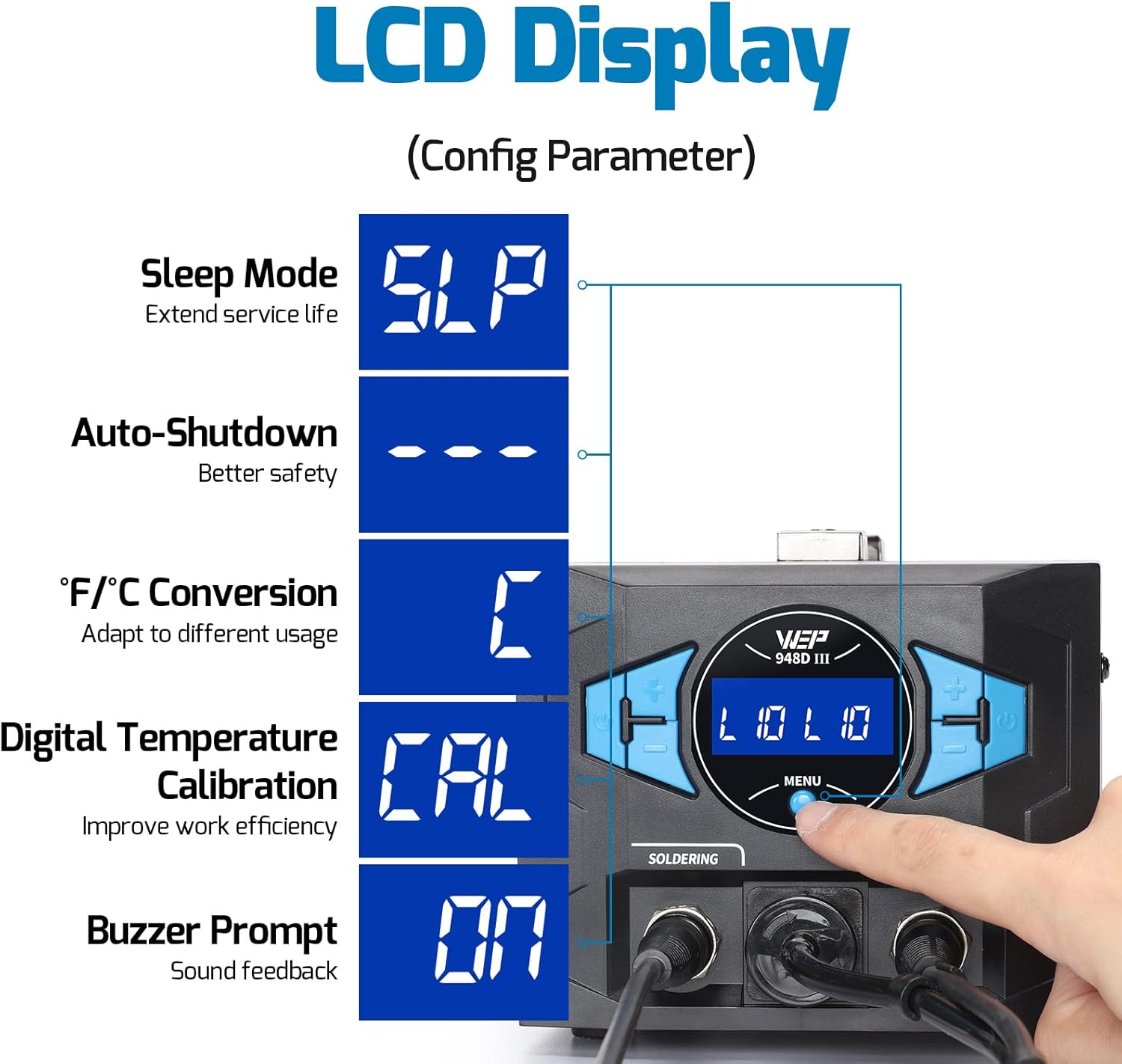

Sleep Mode
Press and hold the "MENU" button for about 2 seconds to enter the settings page. "L10 L10" means the sleep mode was ON and the sleep countdown is 10 mins. Activates when non-use for longer than 10 minutes is detected, cooling the soldering iron’s temperature to 392°F, the station enters sleep mode.

Auto Shut-down
If the station is continuously not woken in another 30 minutes under sleep mode, it will automatically shut off (takes 40mins totally). To restart the soldering station, please turn ON the power switch.
NOTE: Automatic shutdown is only effective when the station is turned on for sleep mode.

°F/°C Conversion
Press and hold the “MENU” button for about 2 seconds, enter the settings page, and change the ºC/°F display to adapt to different usage situations.

Digital Temperature Calibration
Once the station’s temperature has stabilized, press and hold both the soldering station's (or the desoldering station's) temperature increase and decrease buttons for approximately 2 seconds. The display will show “CAL” and the set temperature value. Enter the actual measured temperature and the station automatically calibrates.

Sleep Mode

Auto Shut-down

°F/°C Conversion

Digital Temperature Calibration
902 Series Soldering Iron Tips
- 902-I
- 902-B
- 902-K
- 902-3.2D
Interchangeable Desoldering Nozzles
- 0.8 mm
- 1.0 mm
- 1.2 mm
- 2.0 mm
Compact Desoldering Soldering Holder
- Soldering& Desoldering 2-IN-1
- Heat-resistant
- 100% Metallic -Hold securely

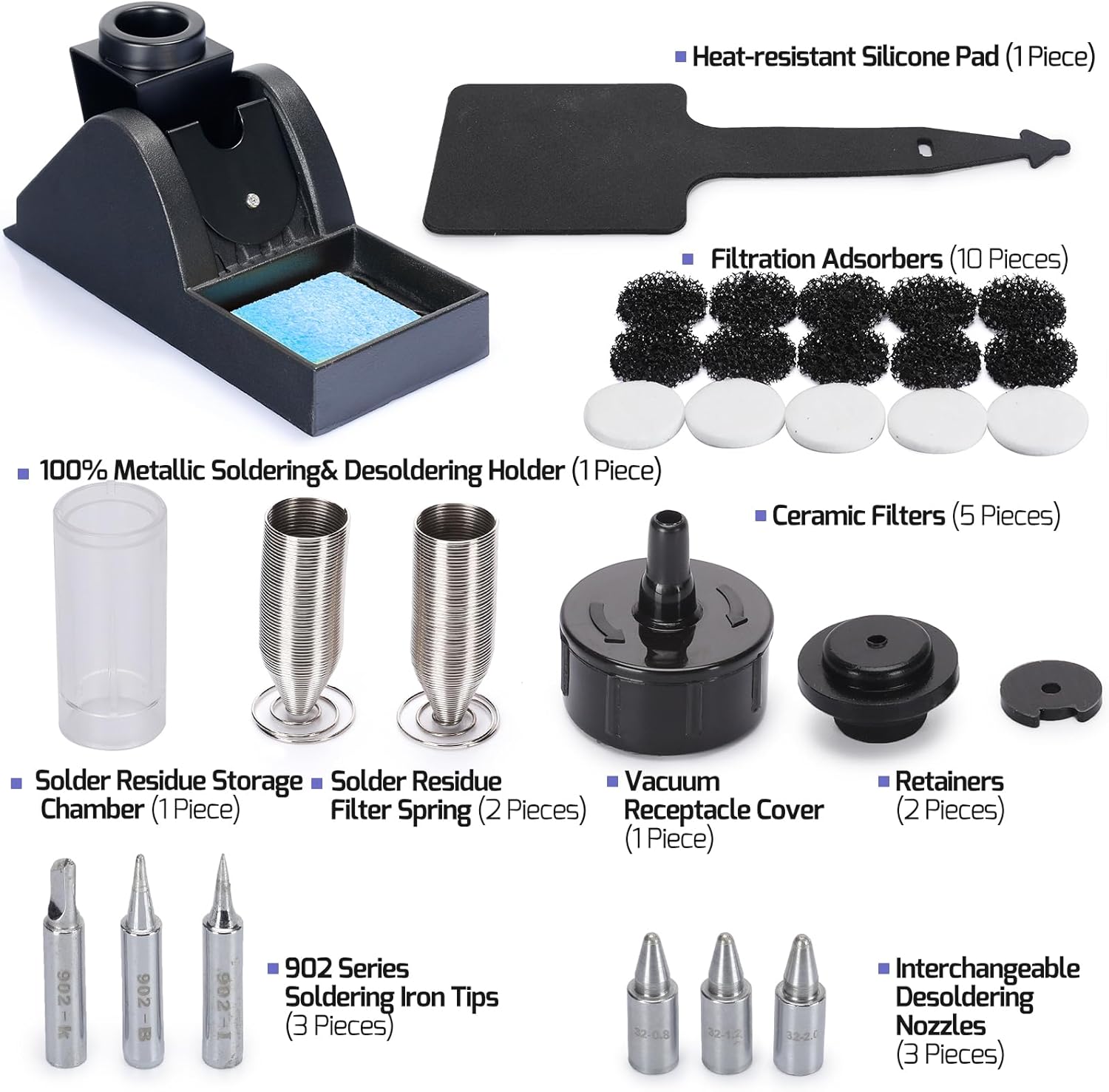

Desoldering Gun Accessories
- 5 x ceramic filters
- 10 x filtration adsorbers
- 2 x solder residue storage chamber
- 2 x vacuum receptacle cover
Specifications
Model number | 948D-III |
Rated voltage range | 110V-127V/AC, 60Hz |
Maximum power | 290W |
Rated power | 74W |
Main unit dimensions | L9.76×W5.9×H4.96in ±0.2in |
Operating ambient temperature | 0~40°C/32~104°F |
Desoldering Station | |
Temperature range | 380-480°C/716-896°F |
Display | LCD |
Tip to ground resistance | <2 Ohms |
Vacuum pressure | 0.05 Mpa |
Soldering Station | |
Temperature range | 200~480°C/392~896°F |
Display | LCD |
Tip to ground resistance | <2 Ohms |
![]()

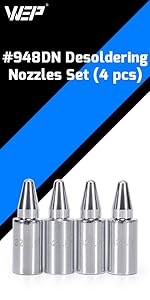

WEP #948DN
|
![]()

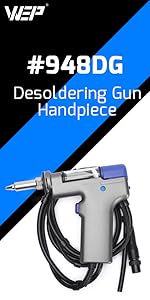

WEP #948DG
|
![]()
WEP #1400
|
![]()

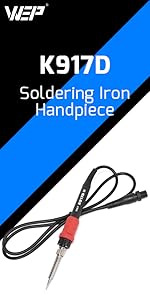

WEP K917D
|
![]()

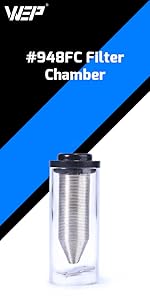

WEP #948FC
|
![]()
WEP #948P
|
|
---|---|---|---|---|---|---|
Customer Reviews |
4.5 out of 5 stars 2
|
3.4 out of 5 stars 5
|
4.6 out of 5 stars 27
|
3.4 out of 5 stars 4
|
4.0 out of 5 stars 1
|
4.7 out of 5 stars 5
|
Price | $20.99$20.99 | $31.99$31.99 | $12.99$12.99 | $19.99$19.99 | $10.99$10.99 | $6.99$6.99 |
Category | Desoldering Nozzles Set | Desoldering Gun Handpiece | Soldering Iron Tips Set | Soldering Iron Handpiece | Filter Chamber | Stainless Cleaning Pin Set |
Function | ONLY Compatible with WEP 948D-III | ONLY Compatible with WEP 948D-III | Compatible with WEP 927-IV, WEP 938BD-I, WEP 948-III, WEP 948DQ-III, WEP 926LED V1, WEP 948D-III | Compatible with WEP 938BD-I, WEP 948-III, WEP 948D-III, WEP 948DQ-III | Compatible with WEP 948-III, WEP 948D-III | Compatible with WEP 948-III, WEP 948D-III, WEP 929D-V |
