WindyNation 10 Gauge 10 AWG Pair 50 Feet Black + 50 Feet Red PV Photov

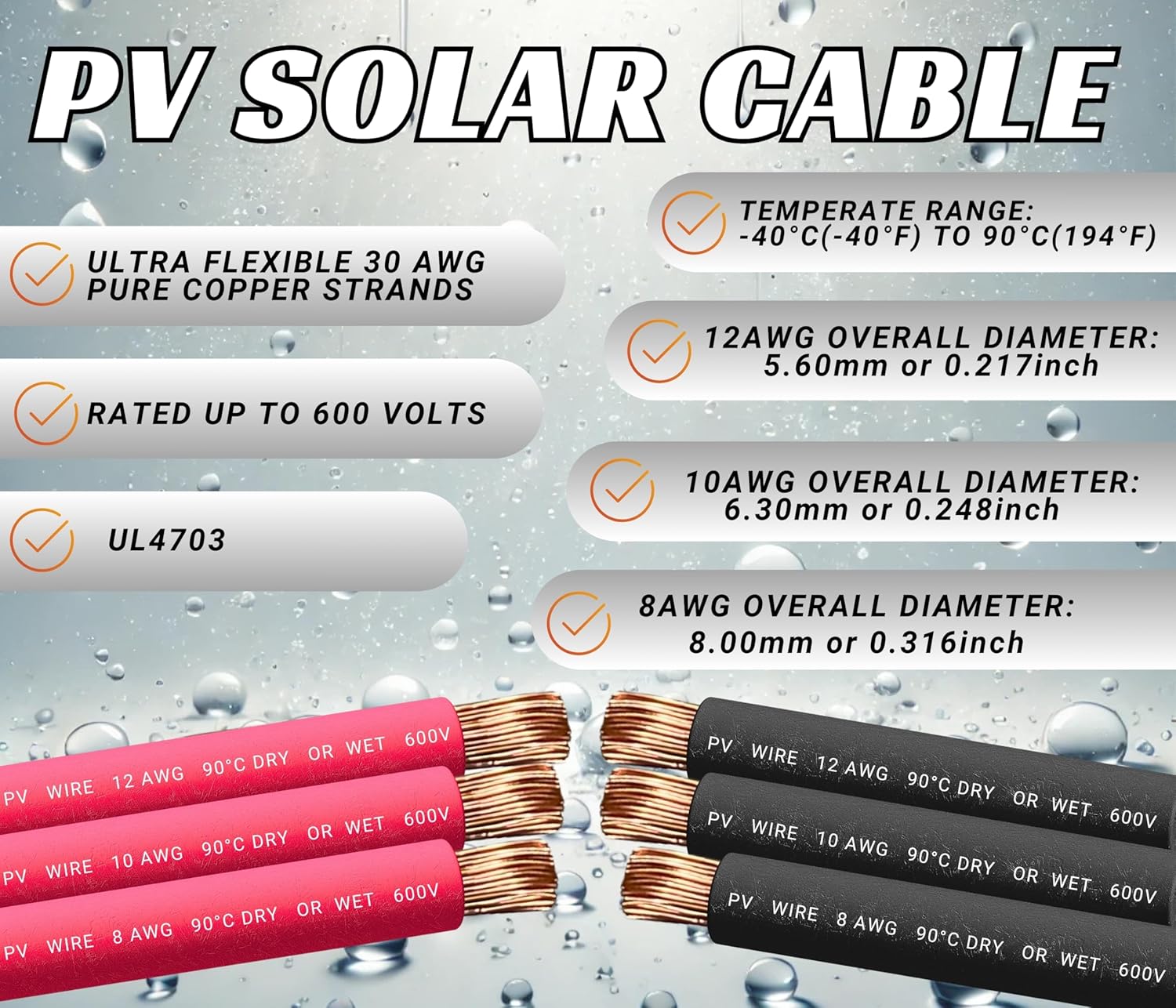

UL4703 approved, 600 volt photovoltaic PV wire cable with pure copper conductors.0.25mm diameter copper strands for extra flexibility (65 strands 12 AWG, 105 strands 10 AWG, 168 strands 8 AWG). Amperage ratings: 30A for 12AWG, 40A for 10AWG, 55A for 8AWG. The pure copper conductors allow for ultra-low resistance to insure maximum electrical efficiency for your solar system!

Solar Cable Features

copper

Solar Connectors

Photovoltaic Solar cable is fully annealed stranded bare copper per ASTM B3. Class B stranding.

PV connectors

Copper Conductors

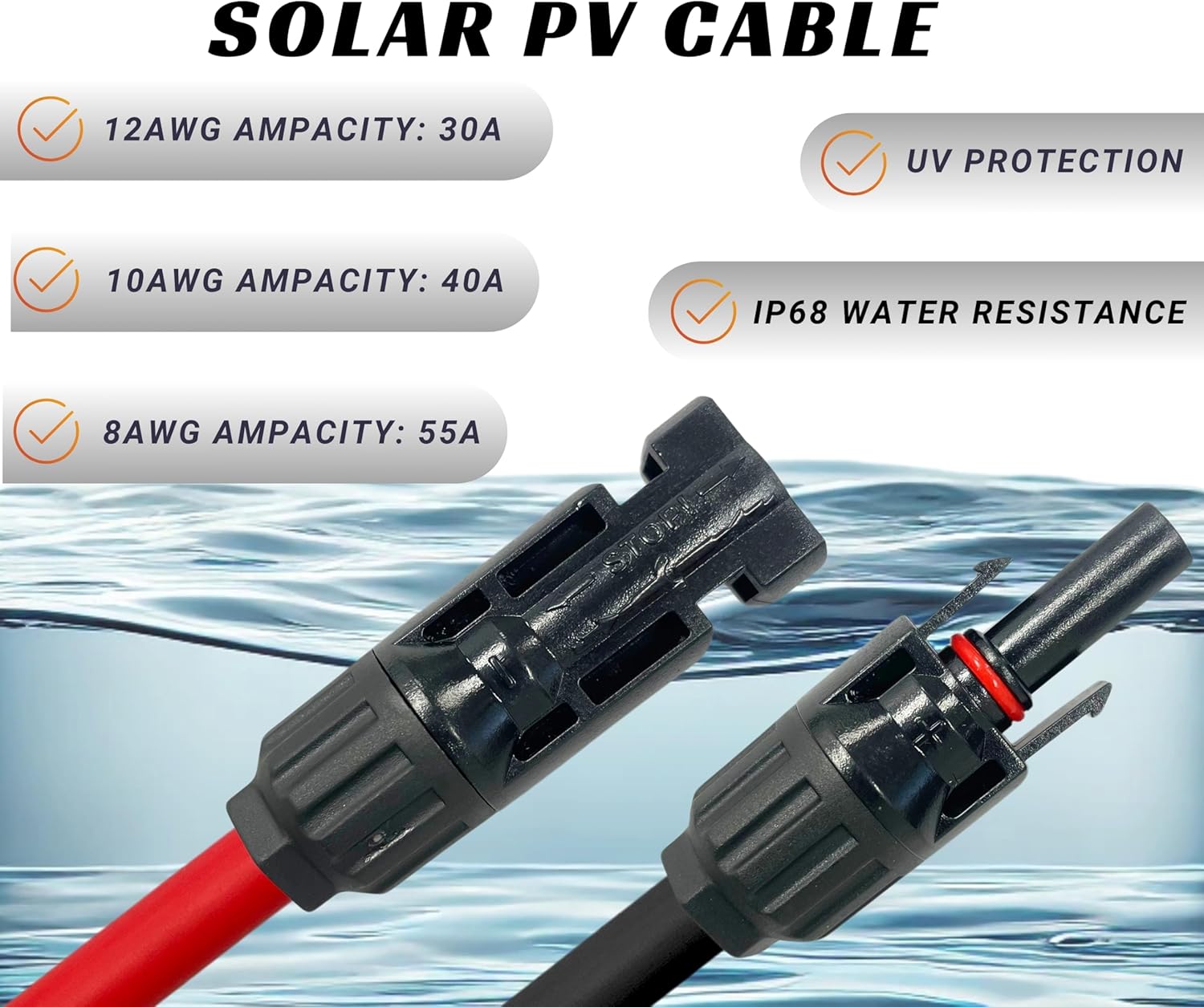

Photovoltaic Solar cable arrives terminated with solar connectors. Solar Connectors are the industry standard for connecting photovoltaic panels for safe operation. The connectors are specially designed with a watertight seal and coated with a UV-resistant coating.

wiindynation solar cable pair

Polyethylene Insulation Jacket

Photovoltaic Solar cable insulation jacket is chemically XLPE cross linked polyethylene. Available in both black and red.

	WindyNation 8 AWG Pair Black + Red Solar Panel Extension Cable Wire Solar Con...	WindyNation 1 Pair Black + Red Solar Extension Cable Wire 10 or 12 AWG. 3 ft,...	WindyNation 1 Pair Black + Red Solar Extension Cable Wire 10 or 12 AWG. 3 ft,...

Customer Reviews	81	2,546	2,546

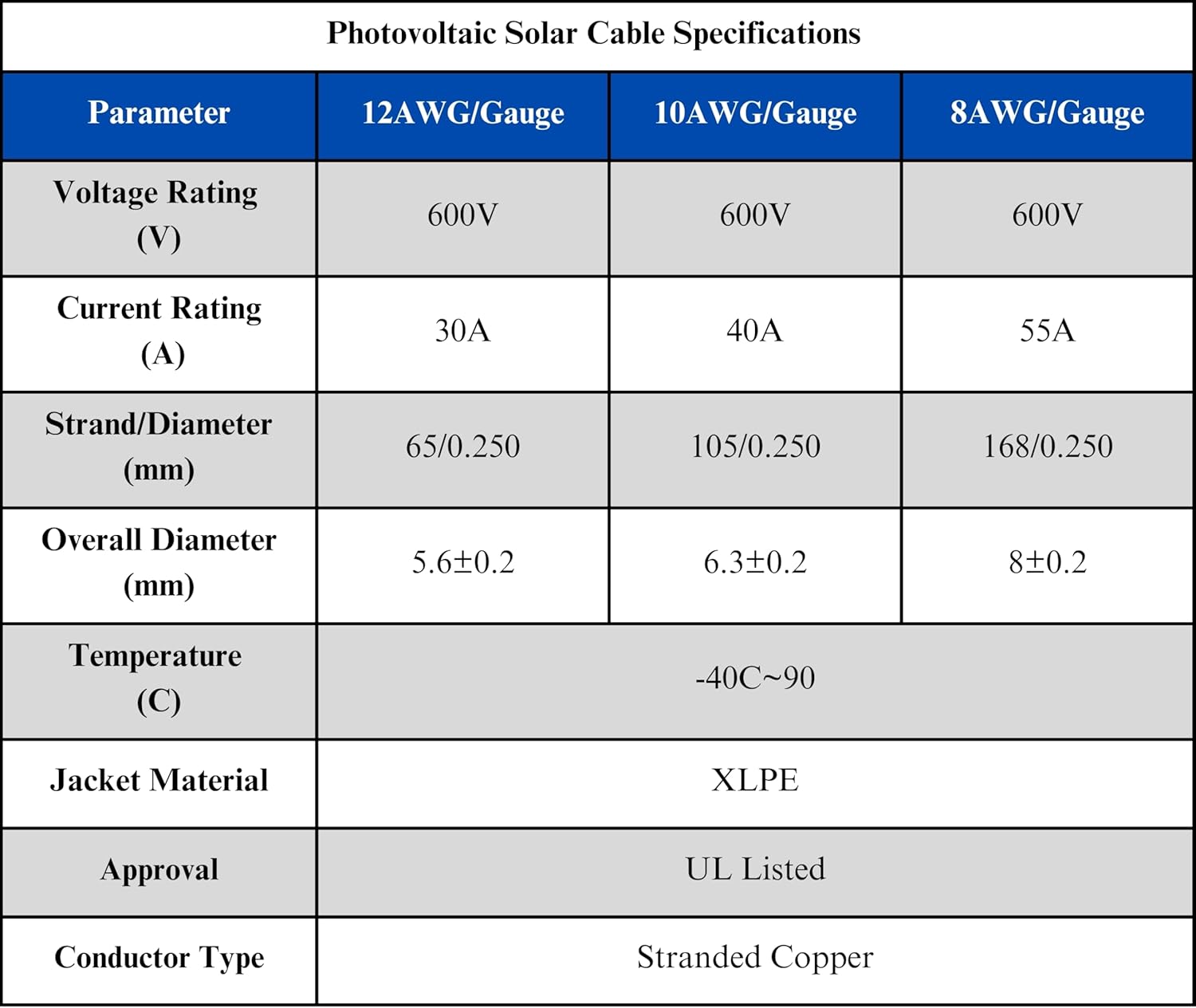

Voltage rating	8AWG 600V	10AWG 600V	12AWG 600V
Max Amperage	8AWG 55A	10AWG 40A	12AWG 30A
